Avolites Arena Live Lighting Console
Avolites Arena Live Lighting Console £16,163.00 inc VAT
£13,469.17 ex VAT
Back to products
Avolites Avokey Editor
Avolites Avokey Editor £99.00 inc VAT
£82.50 ex VAT
Avolites

Avolites Arena Live Lighting Console (White)

SKU: 30/01/3040
Avolites Arena Live Lighting Console (White)
Avolites Arena Live Lighting Console (White)
Avolites Arena Live Lighting Console (White)
Avolites Arena Live Lighting Console (White)
Click to enlarge

    £15,731.00 inc VAT
    £13,109.17 ex VAT

    1 available online
    More available from supplier in 1–3 weeks
    FREE delivery by ThursdayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

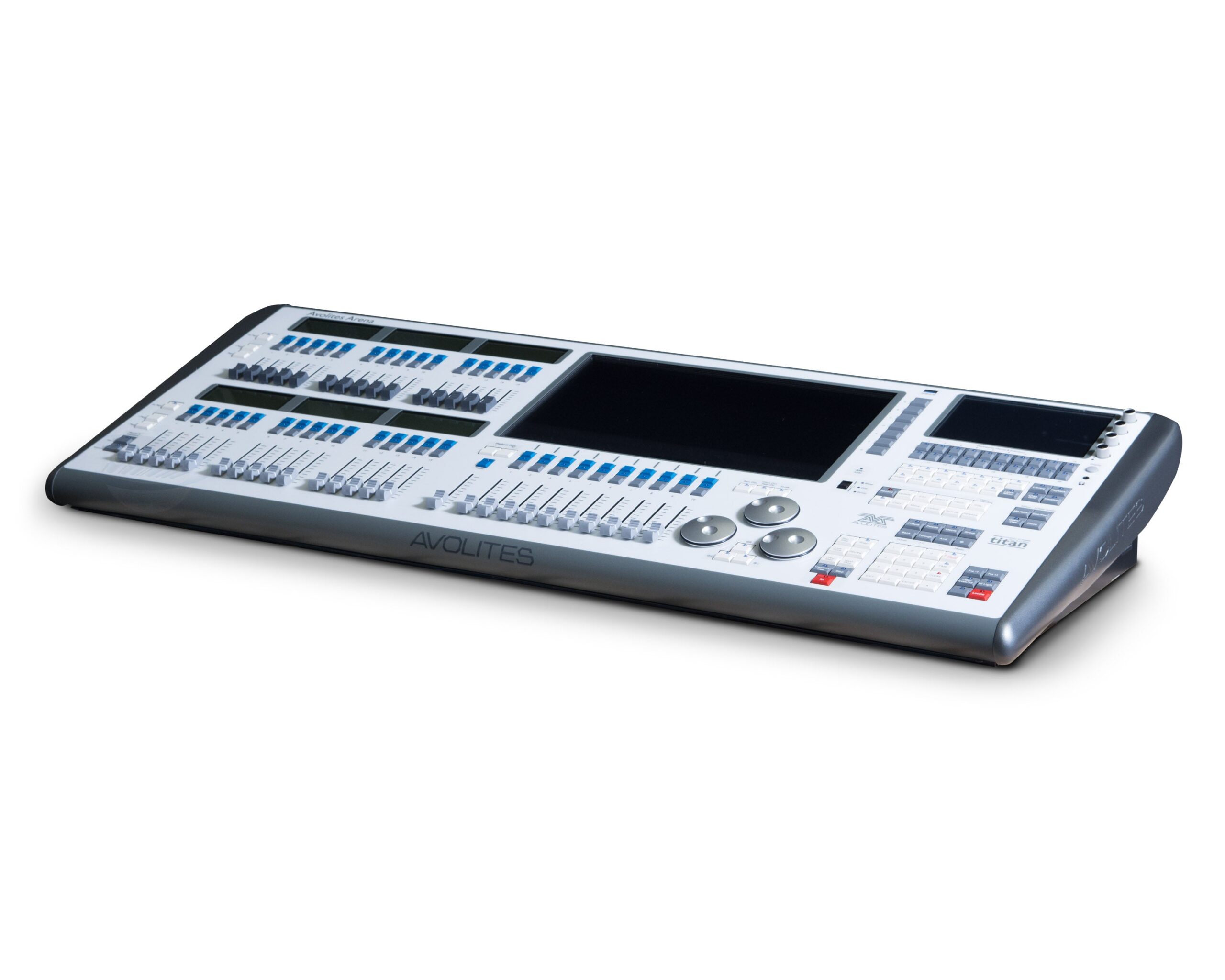

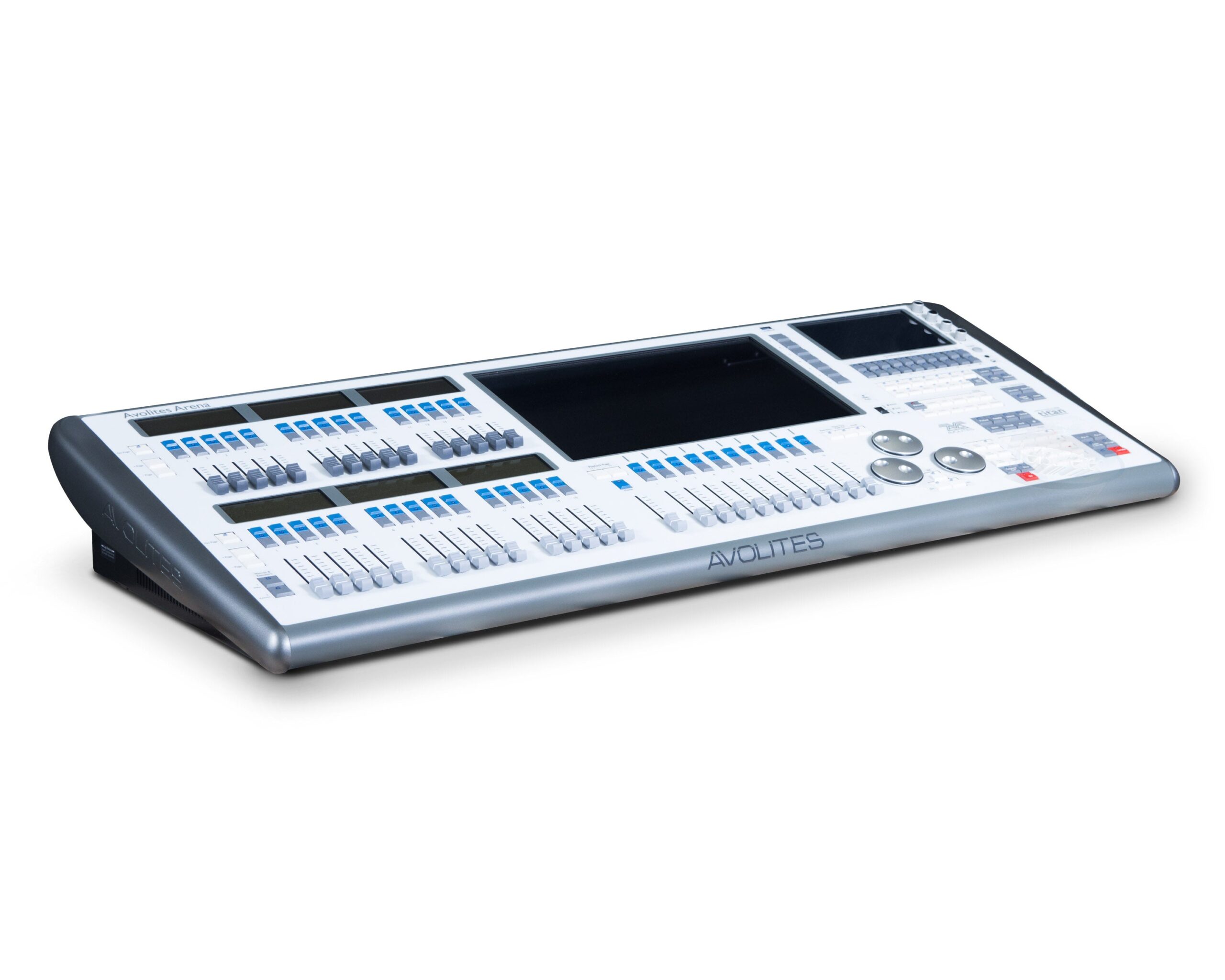

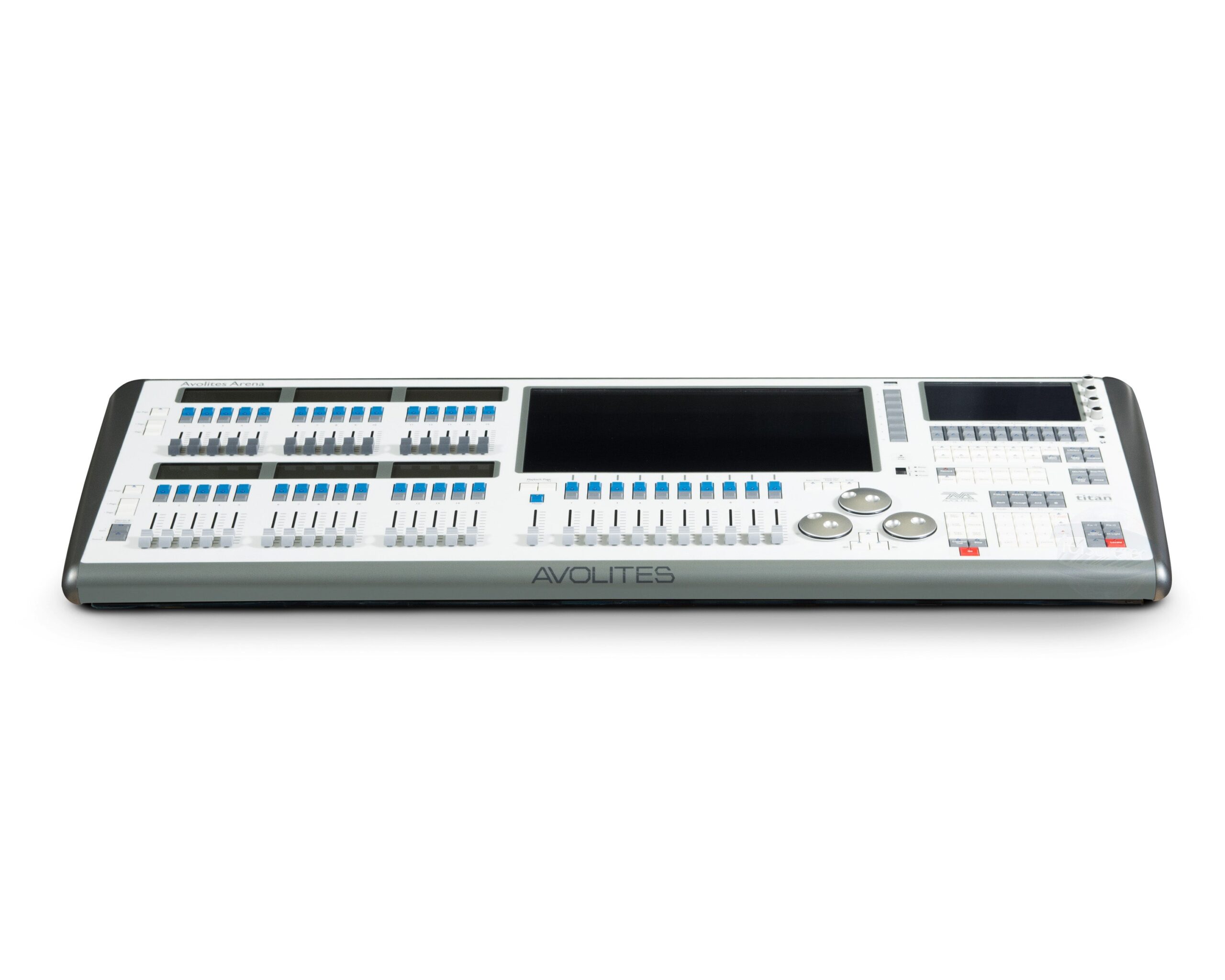

    The Avolites Arena in white finish, the same Titan-powered, full-size lighting console built for festivals, theatres, and large-scale live production, in a striking white colourway. Dual touchscreens, six LCD screens across 30 motorised faders, assignable playback encoder pots, and optical fibre output deliver the control surface real estate complex shows demand. Multi-user networking support makes it ideal for large productions with multiple operators.

    30
    Faders · With LCD screens
    2
    Touchscreens · Dual integrated displays
    6
    LCD Screens · Fader bank displays
    Optical Fibre
    Output · Plus DMX & Ethernet
    Multi-User NetworkingThe Arena supports Avolites multi-user mode, allowing multiple consoles and processing nodes to share a single show file across a network. Ideal for large-scale productions where lighting, media, and effects operators need simultaneous access.
    Features
    Titan operating system with full fixture library
    Dual integrated touchscreens for workspace and visualiser
    Six LCD screens across 30 playback faders
    Assignable playback encoder pots for speed and crossfade control
    Optical fibre output for long-distance, interference-free data runs
    Multi-user compatible for networked multi-console operation
    White finish for broadcast, corporate, and install environments
    Integrated optical trackball for pan/tilt control
    Specifications
    SKU 30/01/3040
    Operating System Avolites Titan
    Touchscreens 2 x integrated
    LCD Fader Screens 6
    Playback Faders 30
    Optical Fibre Output Yes
    Multi-User Yes
    Finish White
    Manufacturer Avolites
    Compare the Range
    Avolites Arena Live Lighting Console (White)
    Avolites Arena Live Lighting Console (White)
    £15,731.00 inc VAT
    £13,109.17 ex VAT
    • Console Only
    • White Limited Edition
    Viewing Now

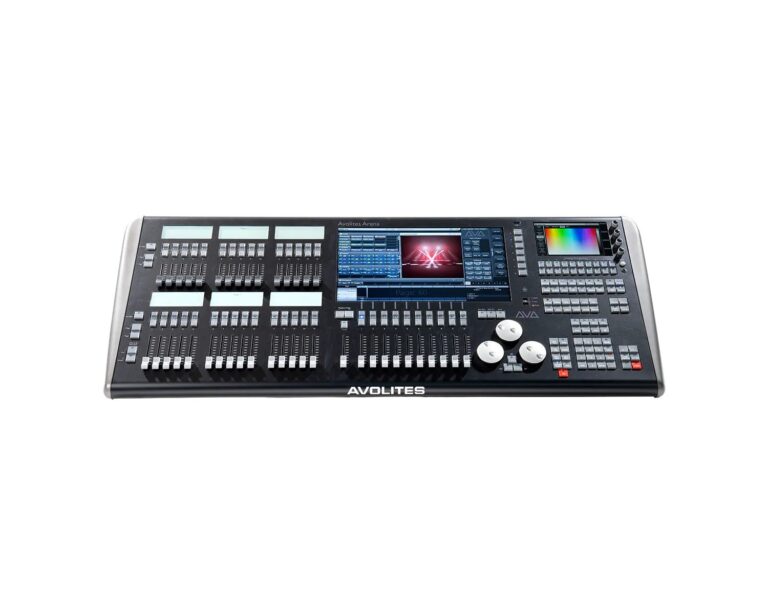

    Avolites Arena Live Lighting Console
    Avolites Arena Live Lighting Console
    £16,163.00 inc VAT
    £13,469.17 ex VAT
    • Console Only
    • Black Standard
    View →

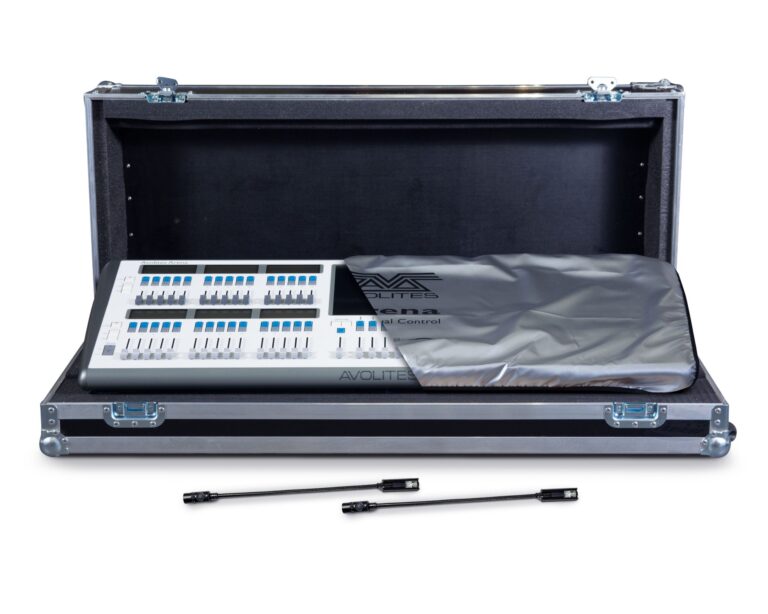

    Avolites Arena Console Bundle
    Avolites Arena Console Bundle
    £16,829.00 inc VAT
    £14,024.17 ex VAT
    • Console Bundle
    • Black + Flight Case
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 40 precision playback faders in three pageable groups.
    • 20 programmable macro executor buttons.
    • 3 metal shaft optical attribute encoders.
    • 4 optical playback encoder pots.
    • 15.6" vibrant main touch screen with brightness control.
    • 7" vibrant secondary touch screen.
    • 6 mono LCD screens for digital fader legends.
    • UPS battery back-up
    • New six-position articulation stand
    • Ergonomic trim and carry handles
    • Robust stainless and zinc treated steel construction - built for life on the road
    • Includes 4-port managed Gigabit network switch

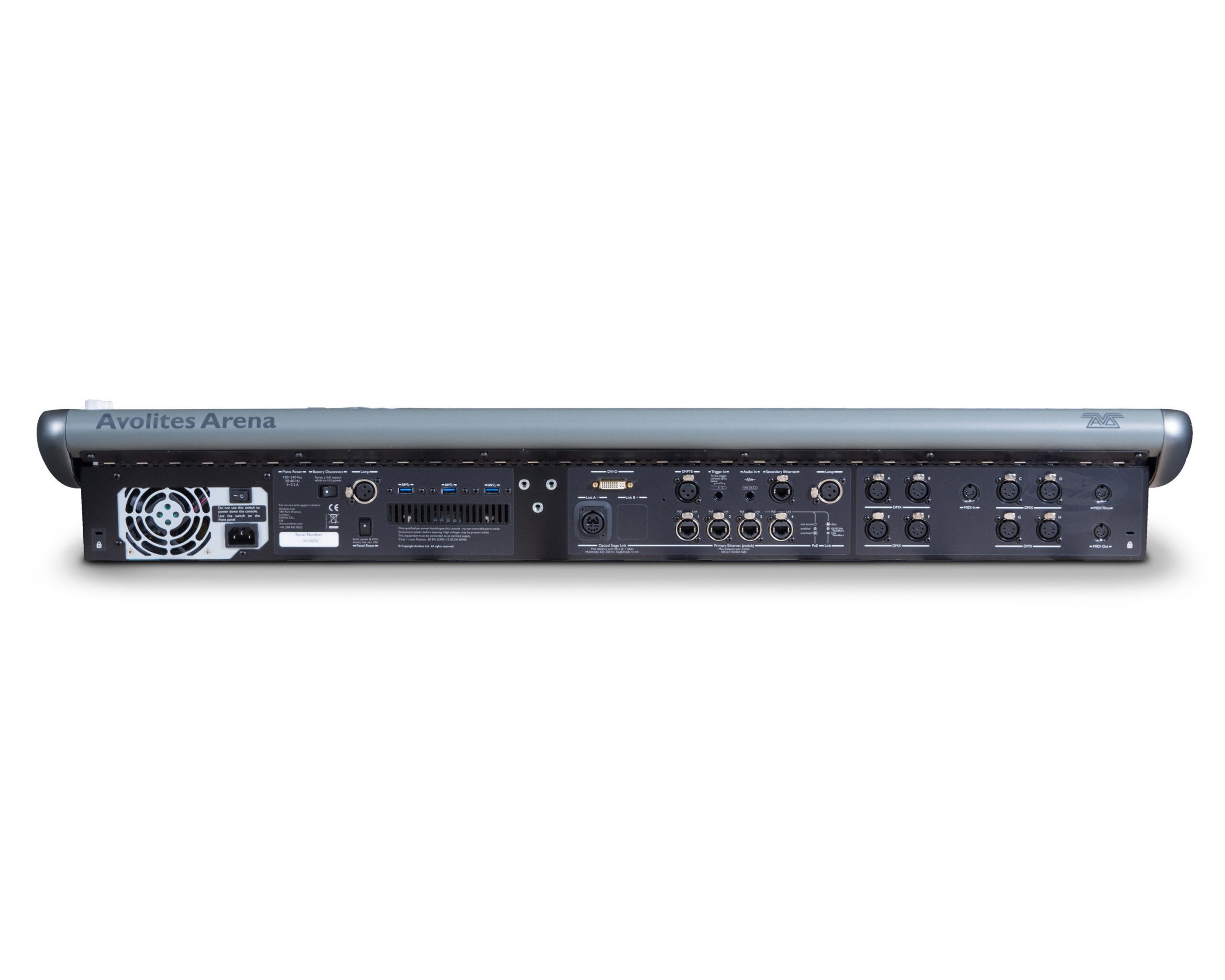

    • OpticalCON Stage link output, with an optional second link
    • 8 physical 5-pin XLR opto-isolated DMX out, up to 16
      universes over ArtNet or streaming ACN - total of 8192 console channels.
    • Compatible with Titan Net - up to 64 universes, total of 32,768 system channels.
    • 4 Ethercon Gigabit primary network connection with a battery maintained managed switch supporting Titan Net, ArtNet and streaming ACN.
    • 1 Ethercon Gigabit secondary Network connection for Titan Net, ArtNet and streaming ACN.
    • 1 standard OpticalCON stage link output, to connect to industry standard network switches with optical support.
    • SMPTE Timecode/LTC input 3-pin XLR (transformer isolated).
    • Trigger inputs on ¼" jack, suitable for foot switches.
    • Audio in on stereo ¼" jack for Audio Triggering.
    • Headphone 3.5mm jack conveniently placed on the front panel.
    • 4 USB3 ports - 1 front, 3 rear.
    • DVI-D for external display.
    • Two 3-pin XLR dimmable lamp connector
    • MIDI in, out and thru.
    • Compatible with Titan Remote (Wi-Fi access point required)
    • Optional extras: Flight Case, Dimmable Lamp x2, Cover
