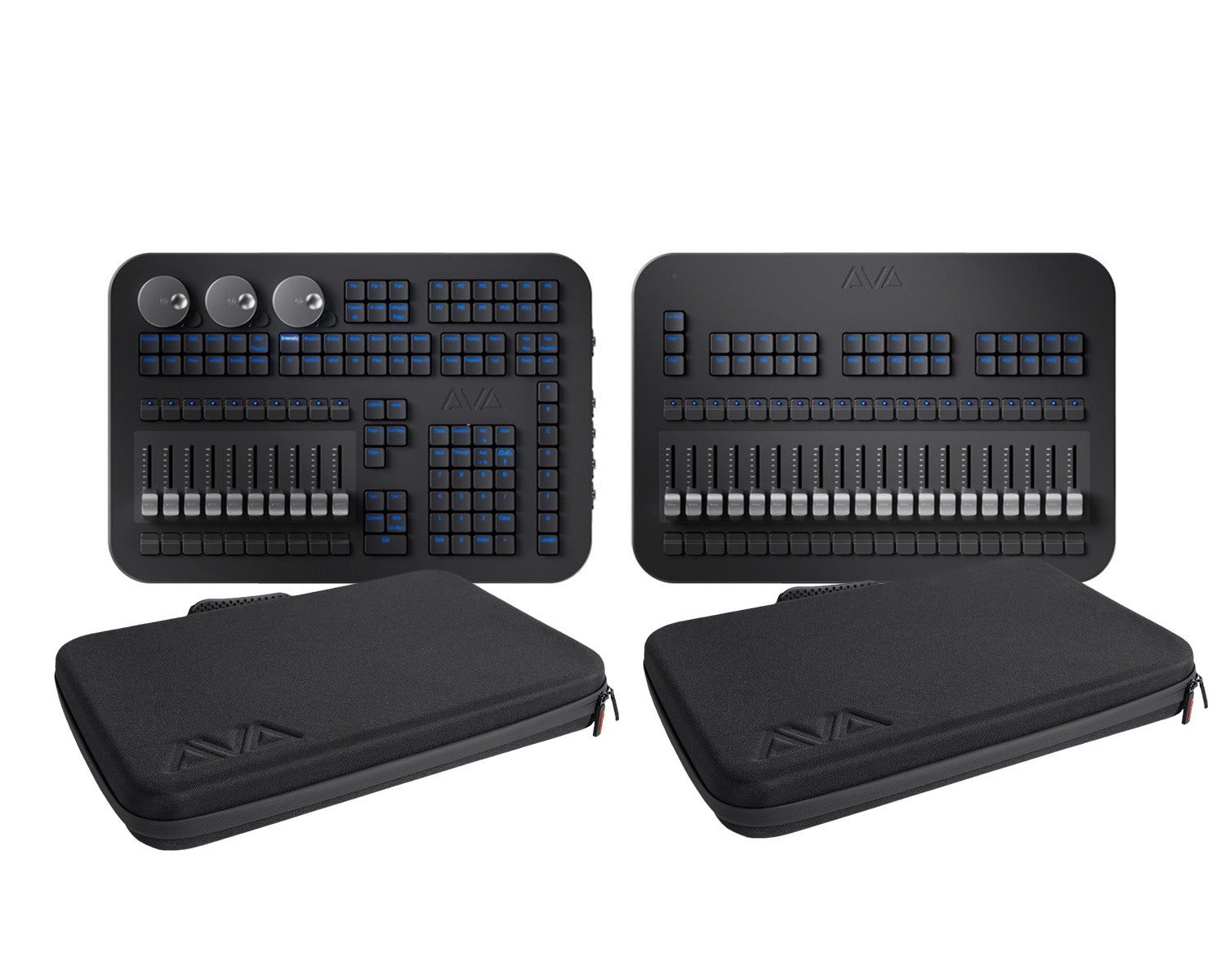

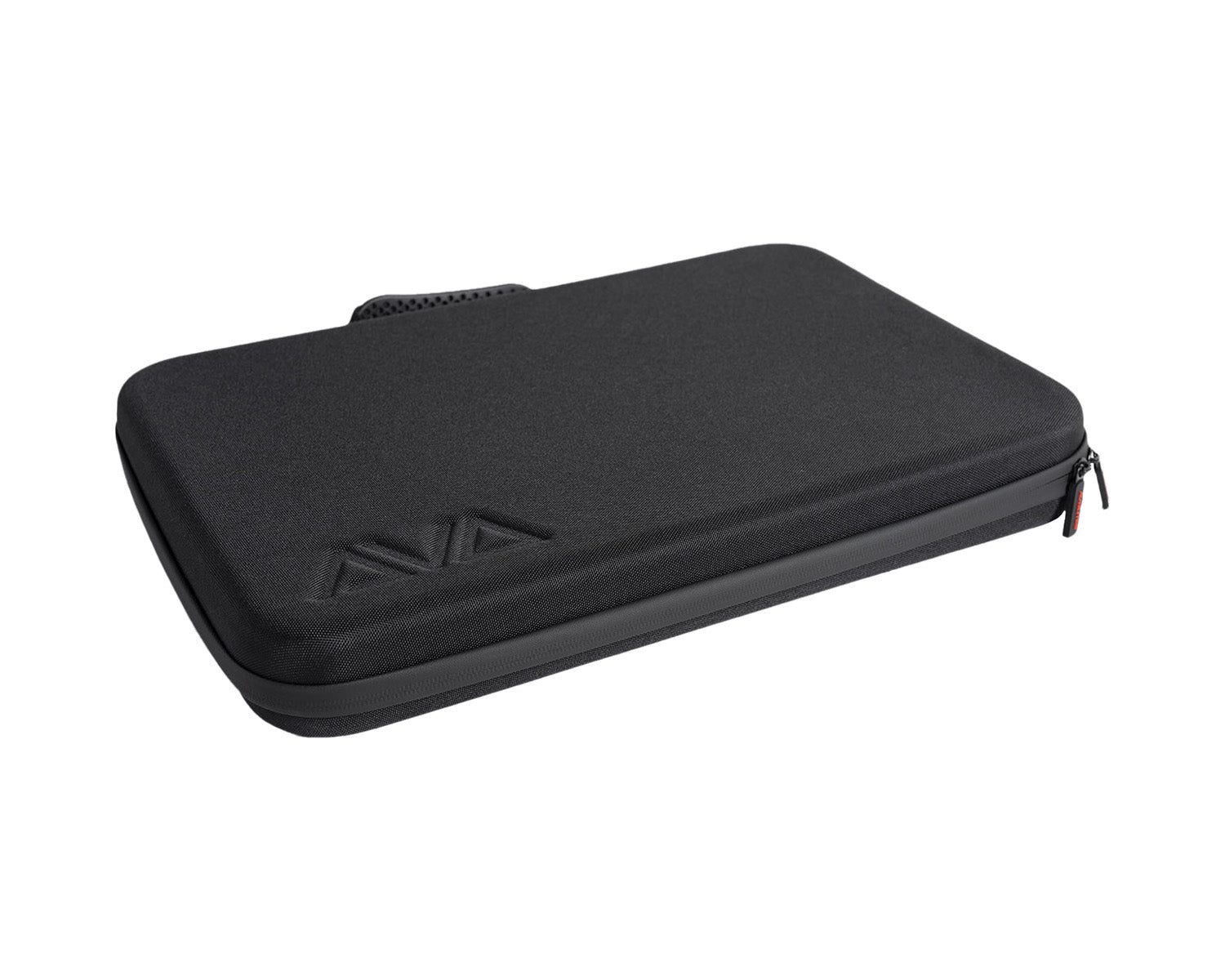

Avolites T3 / T3 Wing BUNDLE (Avolites T3 and T3 Wing with Carry Cases)
£4,801.50£4,001.25 Incl. VATExcl. VAT
The T3 combines a user centred design approach, with high quality materials and components, reliability, comfort and ease of use. It is the ultimate tool for every visual designer who is constantly on the move. Together, our new hardware combined with our powerful software platforms, Titan, Ai and now Prism, means visual designers are able to control not just lights, but integrate the control of lighting, video, generative content and special effects. Giving visual designers unparalleled creative visual control.Designed to take demanding shows anywhere, Avolites T3 and the optional Avolites T3–Wing companion form an unbeatable portable control surface.The Avolites T3 combines the full power of our proprietary Titan software. With a compact, lightweight design that easily connects to your laptop to produce a fully featured moving lights control system. The key difference of the new T3 is not just the visual change, taking cues from the Diamond 9 flagship console. But also, the button layout, so there is less adjustment required for your muscle memory when using other Avolites consoles.Designed and built for life on the road. The T3-Wing is the ideal companion to extend your control surface, giving you freedom and flexibility to operate bigger shows.

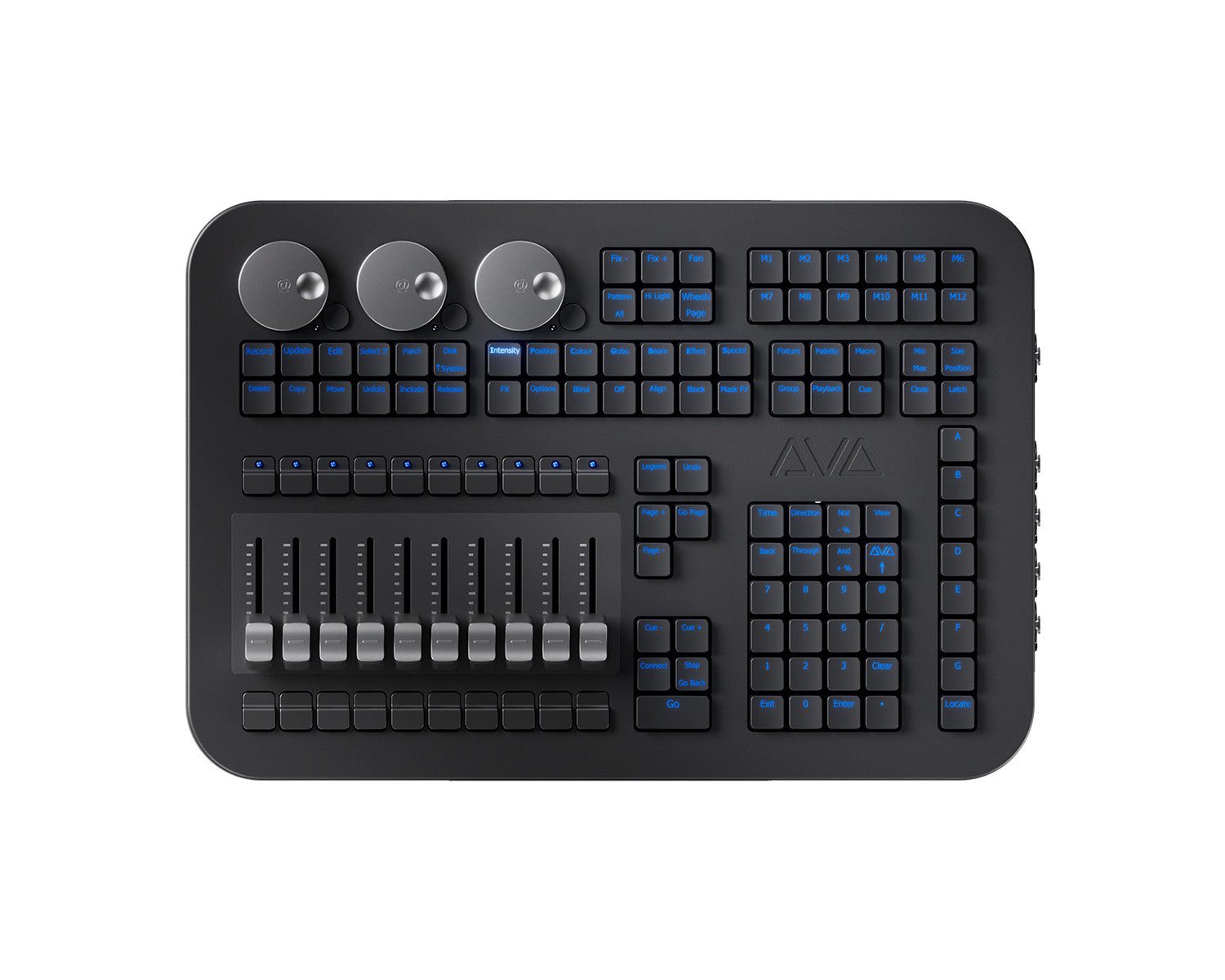

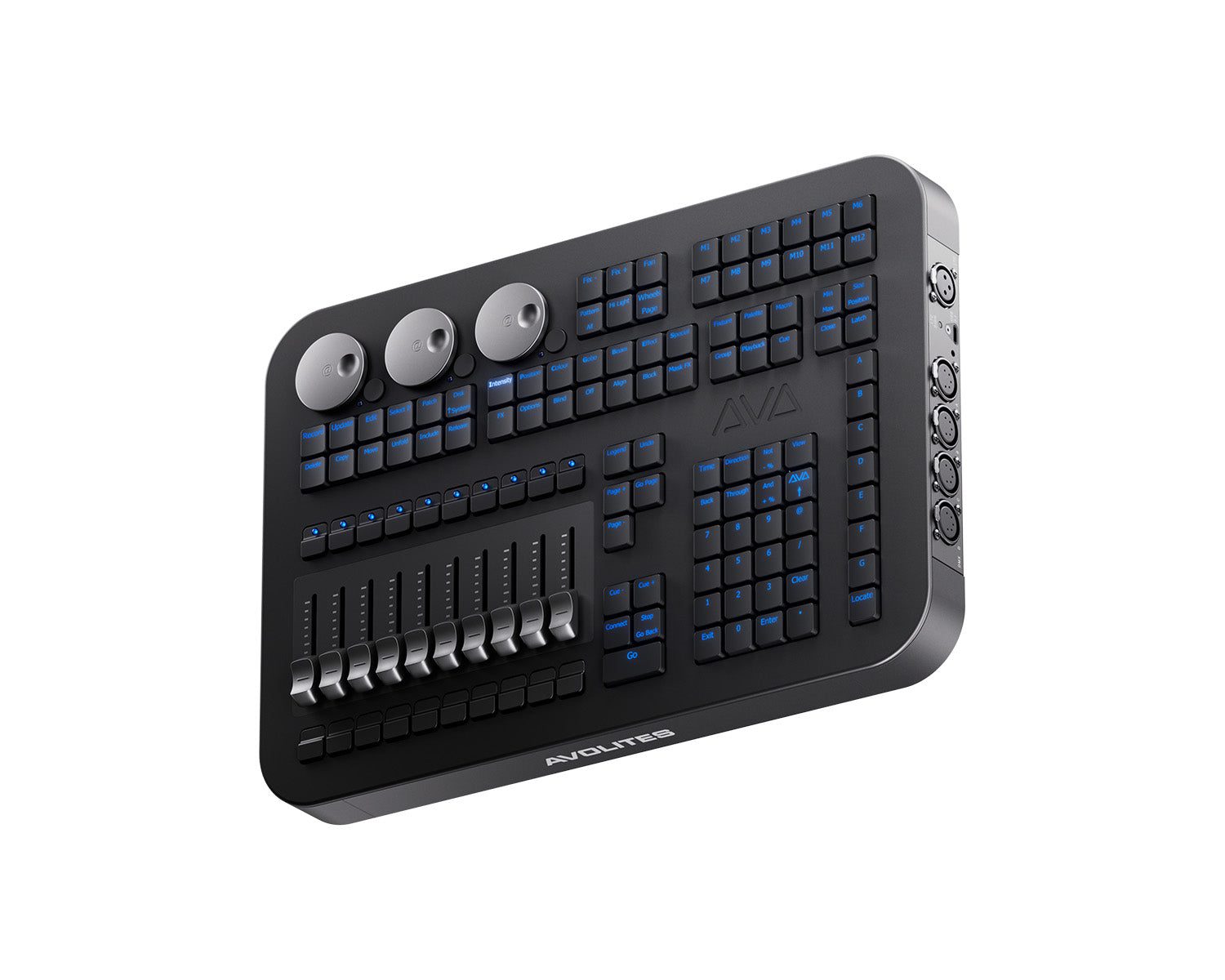

T3 Features
- 10 Playback faders
- 12 Macro/Executor buttons
- 20 C&K flash buttons with custom cap
- 3 x Optical encoder wheels
- Robust aluminium & steel construction
- Durable reverse printed laminate on high wear area
- 96 low profile Cherry backlit keys
- 9 New Titan keys to match D9 layout
- AVOKey factory fitted
- Screw lockable USB–C cable
- Low profile 50mm/2inch

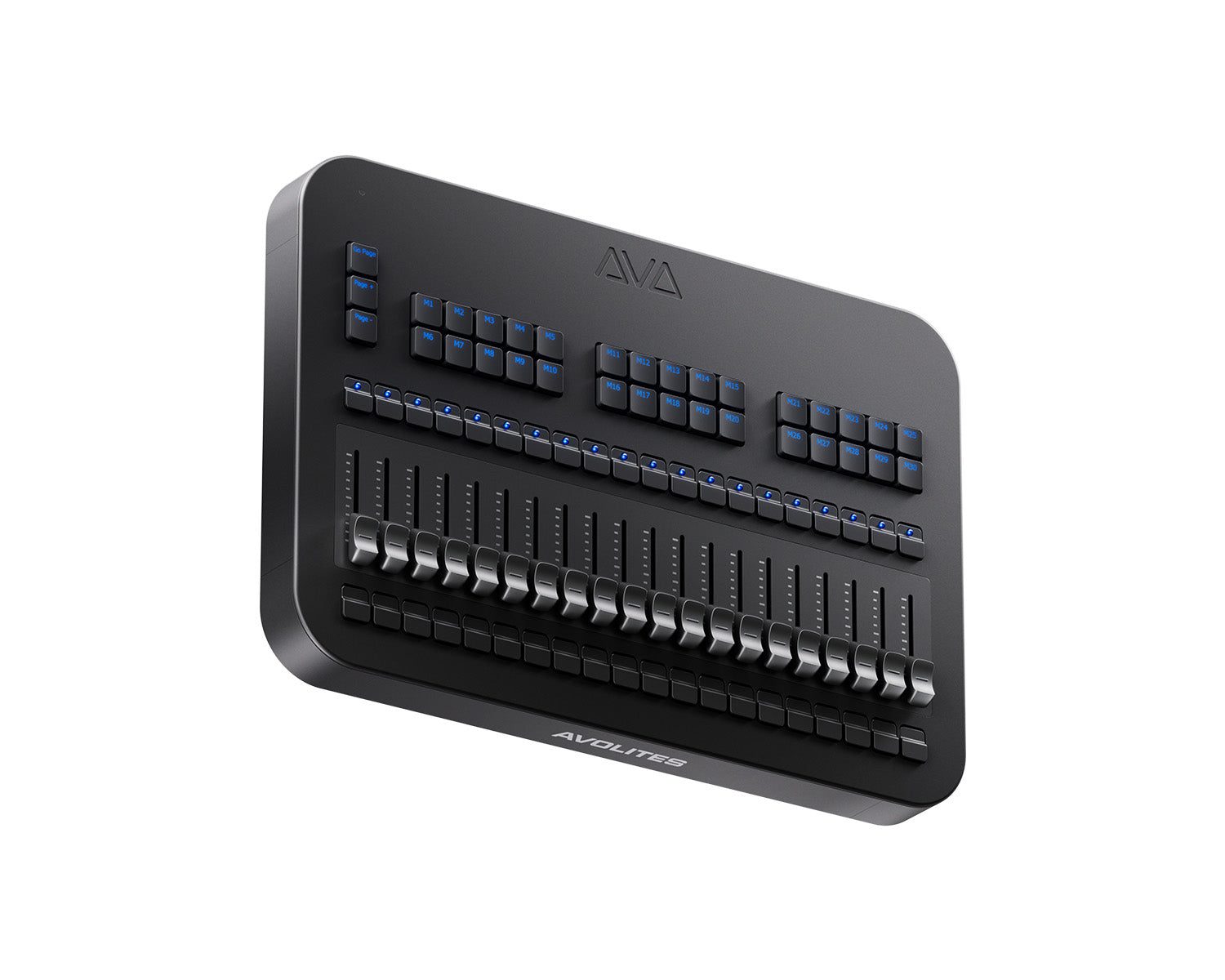

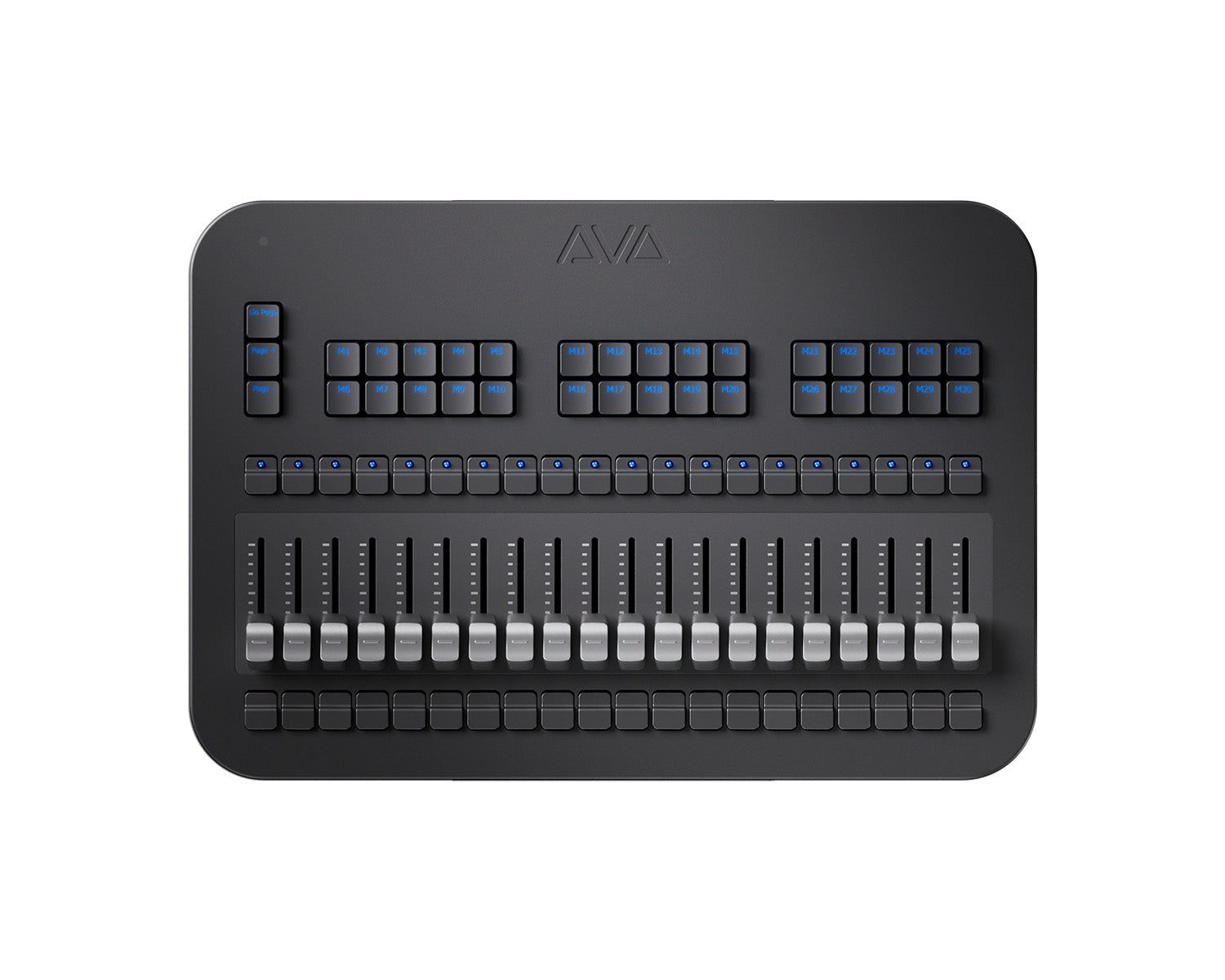

T3 Wing Features
- 20 Playback faders
- 30 Macro/Executor buttons
- Robust aluminium & steel construction
- 40 C&K flash buttons with custom cap
- 33 low profile Cherry backlit keys
- Low profile 50mm/2inch
T3 Specifications
Software
- Software Platform: Avolites Titan PC Suite
- Base OS: Microsoft Windows 10 Upwards
- 3D Visualisation: Capture Engine Built-in
- Output Formats: Art-Net, s-ACN or DMX512
- Universes: Up to 16 DMX universes ( Art-Net and s-ACN) from host, PC hardware dependent. Upgrades to 32 or 64 universes (Contact our team for more information)
- External Control: Web API, MIDI, DMX, s-ACN
- Playback Control: USer defined using multiple faders, encoders & buttons
- DMX Channels Per Device: 8,192
- DMX Channels Per System: Up to 32,768
- Main Features: Timeline, cue lists with tracking sheet, capture visualisation, pixel mapping, keyframe effects, synergy with prism and AI
Hardware
- Unit Dimensions (W x D x H): 402 x 270 x 50mm
- Weight:
- 3.0kg / 6.6 lbs
- 3.7 kg / 8.2 lbs (inc. case)
- Connection: Crew Lockable USB-C
- Power Consumption: USB 3.1, up to 900mA
- Operating Environment: Ambient Temp 0-40C / 32-104F. Max humidity 95% relative non-condensing
Connectivity
- Ports:
- DMX 512: 4 X 5-PIinXLR, galvanic & optically isolated
- DMX port can be configured as input (requires connector type change cable)
- Up to 16 ethernet DMX universes (Art-Net and s-ACN) from host computer
- 3–PIN XLR SMPTE LTC input
- USB-C compatible with USB 3.1
- Peripherals:
- USB MIDI support through host computer
- Titan supports up to two touchscreens connected to host computer
- Expand control surface with optional fader wing
T3 Wing Specifications
Hardware
- Unit Dimensions (W x D x H): 402 x 270 x 50mm
- Weight:
- 2.95 kg / 6.5 lbs
- 3.65 kg / 8.1 lbs (inc. case)
- Connection: Crew Lockable USB-C
- Power Consumption: USB 3.1, up to 900mA
- Operating Environment: Ambient Temp 0-40C / 32-104F. Max humidity 95% relative non-condensing
Connectivity
- Ports: USB-C compatible with USB 3.1
PC Specification
- Processor (Minimum):
- Intel i5 2GHz
- AMD Ryzen 5 3600XT
- Benchmark Scores - 6000
- System RAM (Minimum): 16GB
- GPU: Passmark 2000 or greater, support for direct x 11.1
- Processor (Required with 32 universe):
- Intel i7 2.5GHz
- Benchmark Score - 14000
- System RAM (Required with 32 universes): 32GB
- Storage: SSD 256GB + 20% Space Free
- OS:
- Microsoft Window 10 Upwards
- Control over firewall and virus scanning software settings
