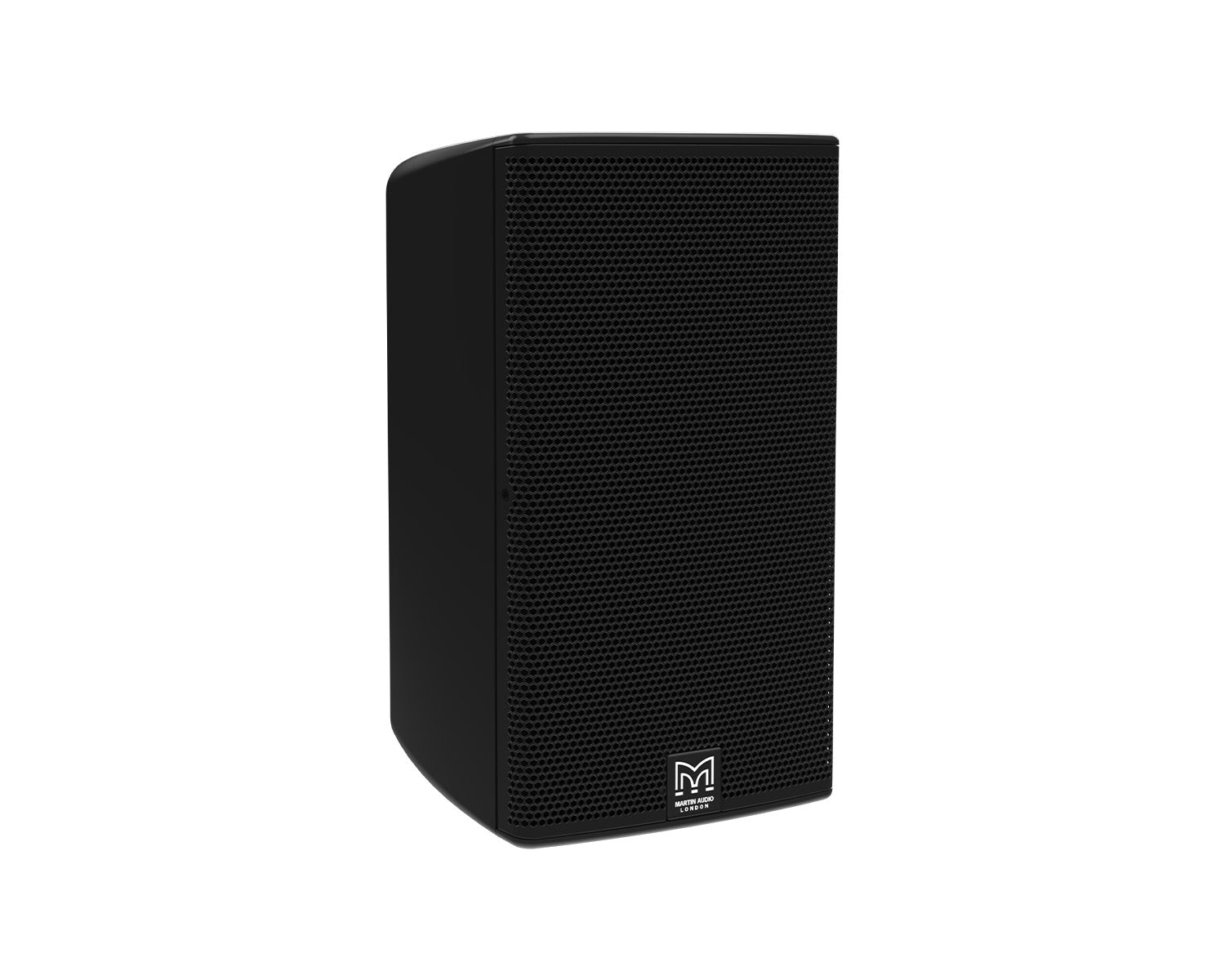

Martin Audio ADORN A80T 8″ 2-Way Speaker Inc Bracket 90×50¬∞ 8Œ©/100V Black

£415.80£346.50 Incl. VATExcl. VAT

SKU: A80T Category:
Description

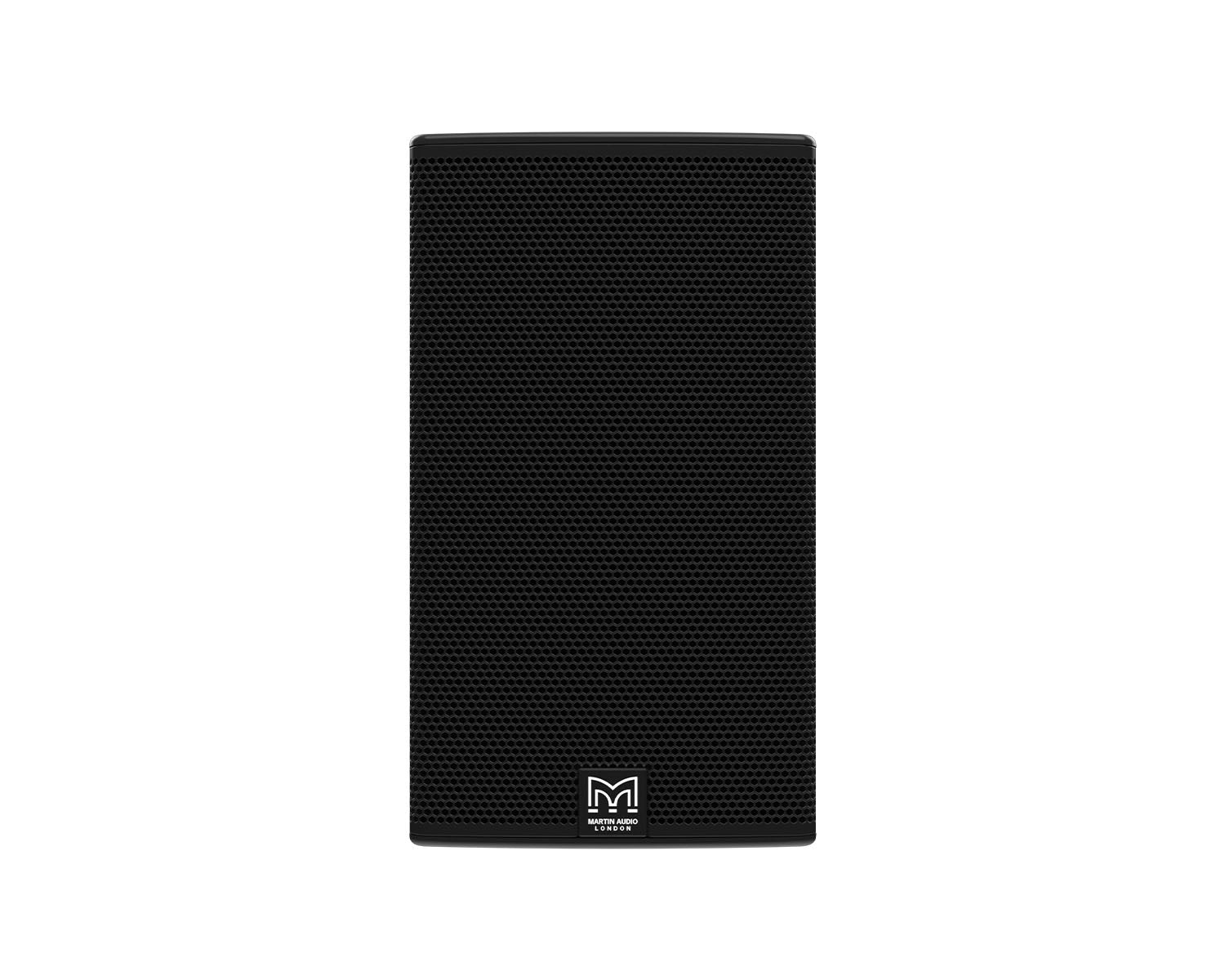

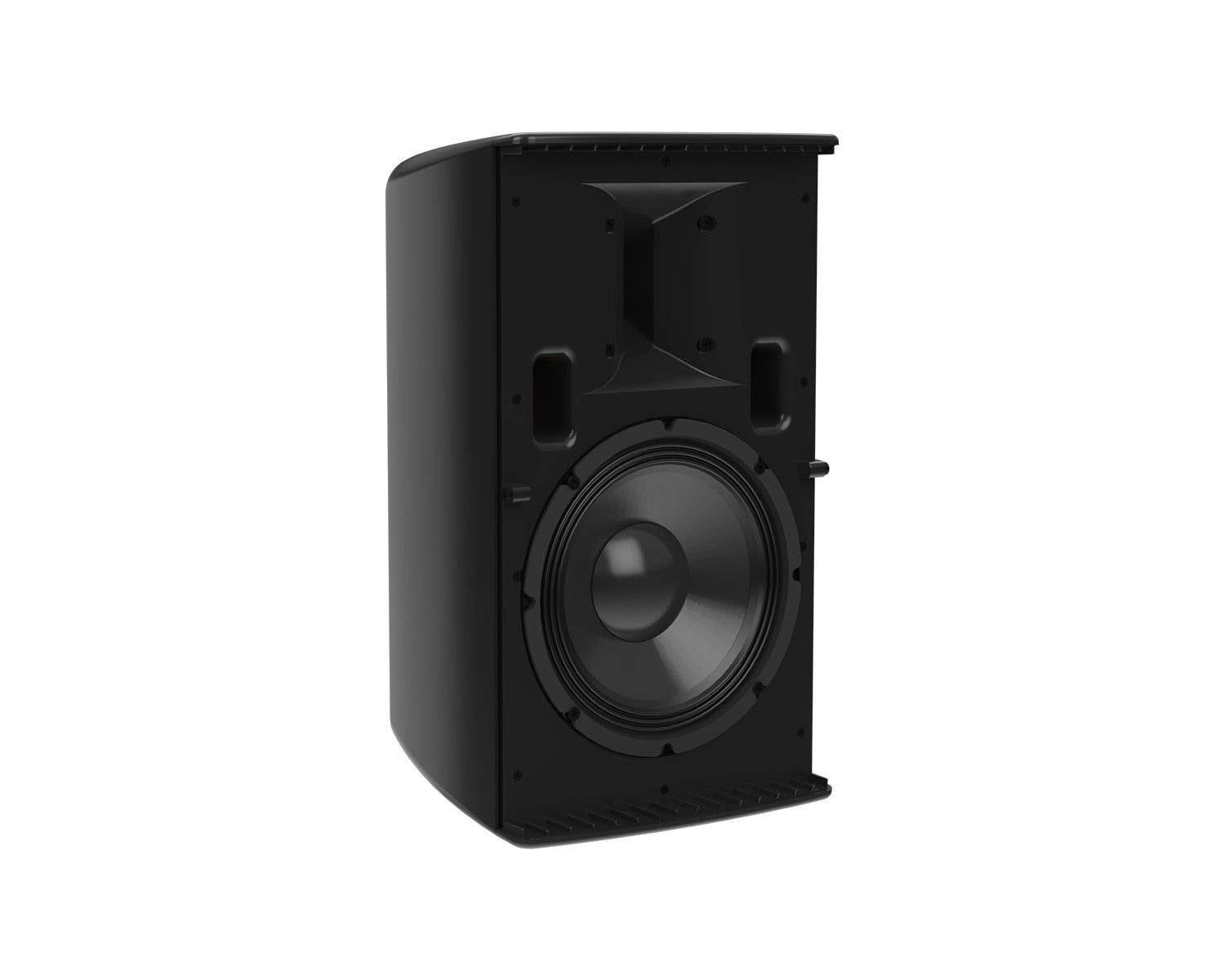

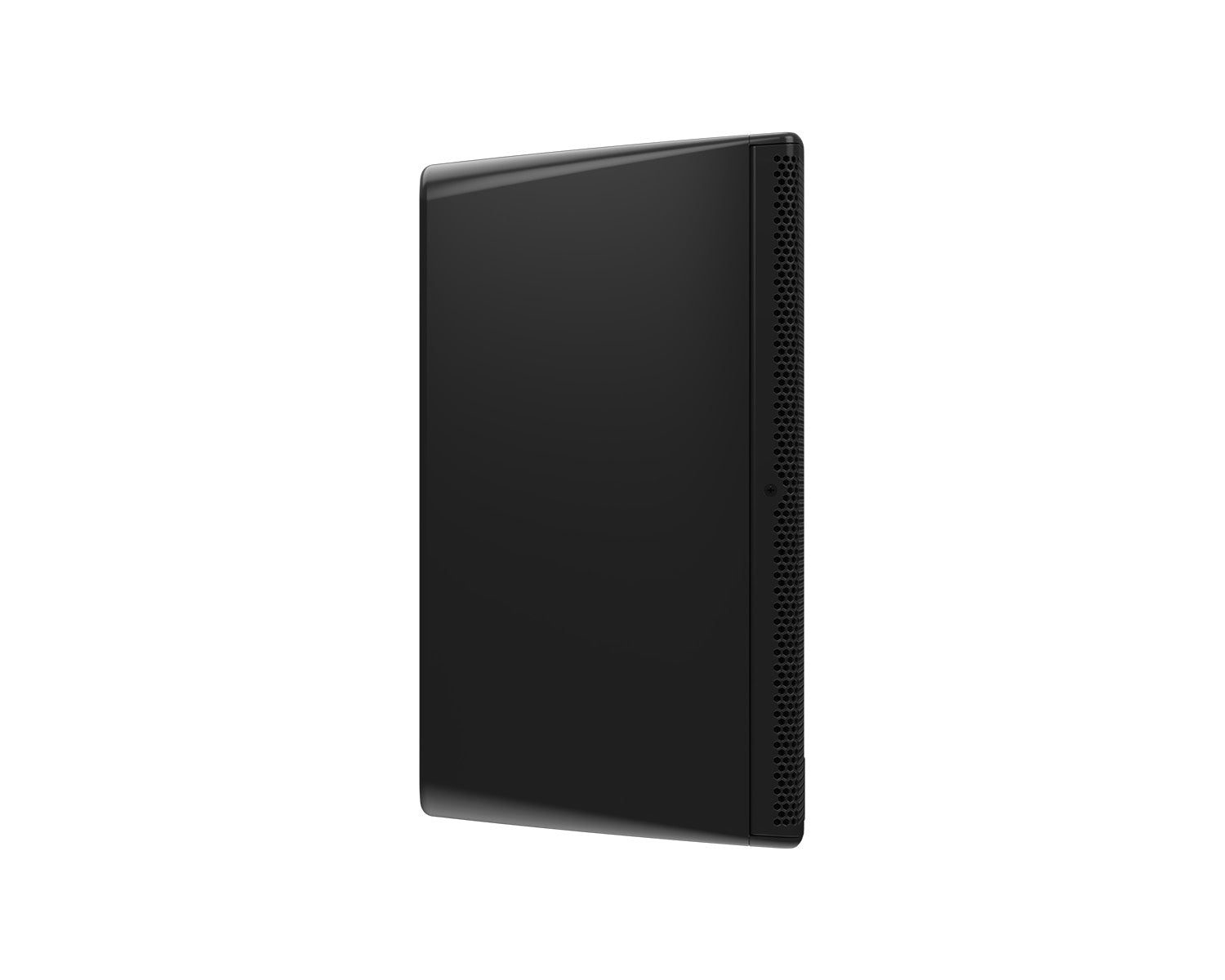

The ADORN A80T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications ‚Äî from retail outlets, bars and restaurants to corporate offices and convention centres.Comprising an 8″ (203mm) LF driver and a 1″ (25mm) polymer dome HF compression driver on a 90¬∞ x 50¬∞ horn, it handles 200W AES, 800W peak and can produce 120dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 63Hz.With a nominal impedance of 8 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2502 or VIA5002, thereby maximising efficiency and minimising cost. A80T also incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.

Features
  • Contemporary, unobtrusive design
  • High output capability
  • High fidelity sound
  • 70V/100V line transformer
  • Low and high-frequency overload protection
  • Vertical or horizontal orientation
  • 90¬∞ x 50¬∞ coverage
  • IP54 with optional waterproof connector cover
  • 5-year warranty
Specs
  • Type: Compact passive two-way system, front ported bass reflex
  • Frequency Response: 63Hz-17kHz ¬± 3dB, -10dB @ 50Hz
  • Drivers
    • LF: 8‚Äù with 2‚Äù high-temp voice coil, ferrite motor system
    • HF: 1‚Äù with 1‚Äù exit polymer dome compression driver
  • Rated Power: 200W AES, 800W peak
  • Recommended Amplifier: VIA2502 or VIA5004 (or VIA5002 for70V/100V line)
  • Sensitivity: 91dB
  • Maximum SPL: 120dB peak
  • Nominal Impedance: 8 ohms
  • Dispersion (-6dB): 90¬∞ H x 50¬∞ V
  • Crossover: 2.3kHz passive (LF and HF auto-resetting fuses)
  • Transformer Taps:
    • 70V: 60/30/15/7.5W
    • 100V: 60/30/15W
  • Recommended High-Pass Filter: 40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
  • Enclosure: ABS, UL 94V-0 rated
  • Finish: Black
  • Grille: Perforated steel
  • Connectors: Low profile 13A push-lock
  • Fittings: 6 x M6 inserts for wall or ceiling brackets
  • Dimensions Excl. Bracket (WxHxD): 246mm x 421mm x 233mm (9.69in x 16.56in x 9.18in)
  • Weight: 9.08kg (20.02lbs)
  • Accessories:
    • IP54 rating with optional waterproof connector cover (not included)
    • Wall bracket WB6/8 (included)
