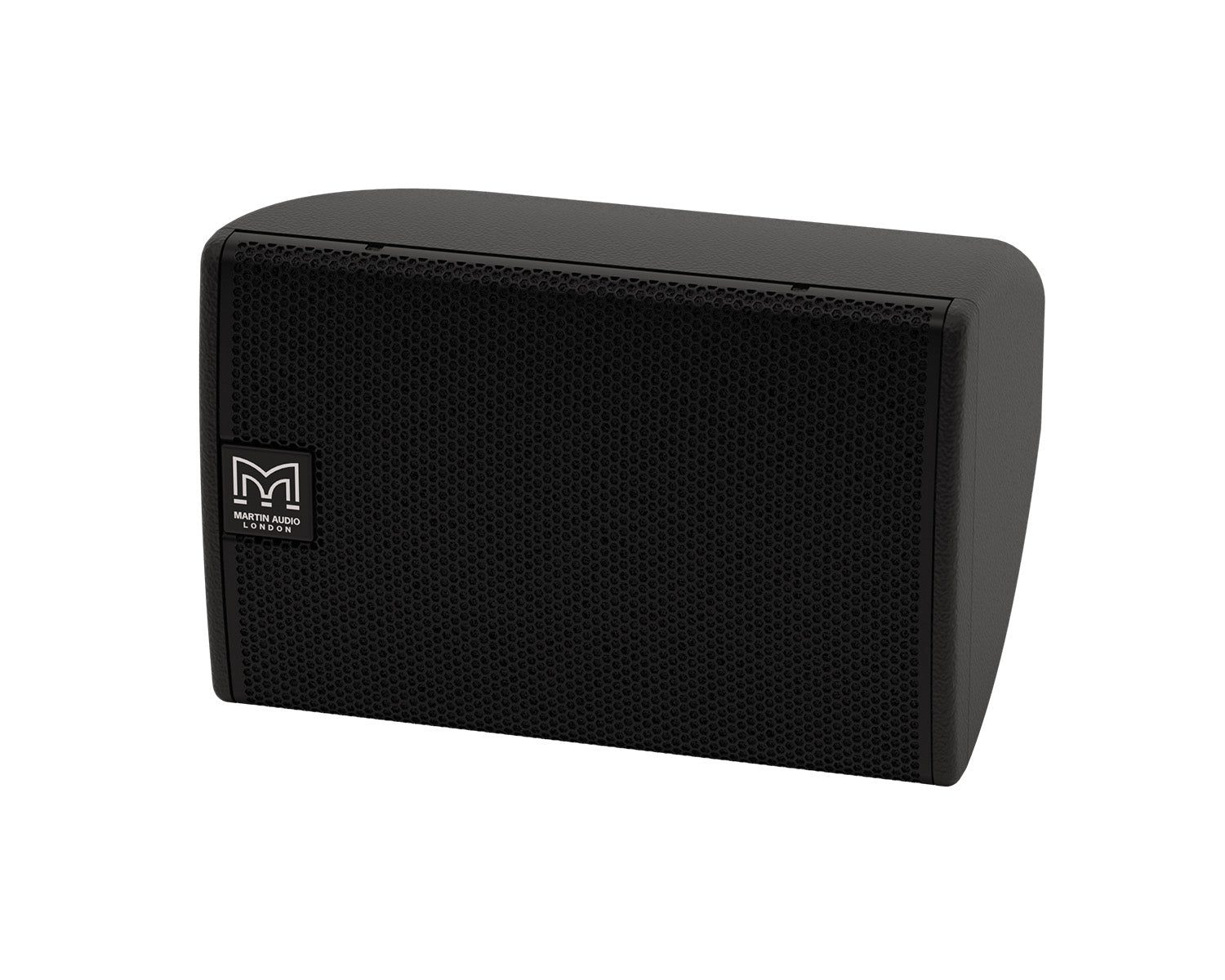

Martin Audio CDD5BTX-WR 5" Weatherised Speaker 100V

Product code: 1102

£317.00 inc VAT
£264.17 ex VAT

SKU: CDD5BTX-WR
8 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
Other colours available
5 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

Connection: 100V line (taps 6 / 12.5 / 25W) or low impedance (8Ω).

The CDD5TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations – including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.

5″ (125mm) LF / 0.7″ (19mm) HF
Driver · coaxial
IP54
Protection
100V LineThis is a 100V line variant with built-in transformer, designed for distributed audio installations. Compatible with standard 100V line amplifiers and systems.

Applications

Installed sound
Bars and restaurants
Retail
Houses of worship
Theatres

Features

A full-range, passive two-way system, the CDD5TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection
Coaxial Differential Dispersion driver technology
IP54 rated for weather resistance
Rigid ABS moulded enclosure
Designed for permanent installation: wall bracket, yoke or eyebolt suspension
Multiple rigging and mounting options

Specifications

Martin Audio CDD5BTX-WR 5″ Weatherised Speaker 100V specifications
Coaxial Driver 5″ (125mm) LF / 0.7″ (19mm) HF
IP Rating IP54
SKU CDD5BTX-WR

Full features

  • Ultra-compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant ABS moulded enclosure
  • Outdoor operation when sheltered from direct exposure to elements
  • Operating temperature -20°C to +70°C
  • Environmentally tested to meet IP54
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free water and particle resistant grille
  • 8Ω nominal impedance
  • Discreet weatherised mounting accessories
  • Black or white standard colour options
  • 70V/100V line transformer
  • Supplied with 'pan and tilt' weatherised mounting bracket

Applications

  • Bars and restaurants
  • Museums and AV spaces
  • Convention centres
  • Hotels
  • Retail outlets
  • Leisure centres
  • Houses of Worship
  • Outdoor restaurants, bars, hotel areas
  • Nearfield systems in outdoor stadia, transport hubs, concourses and theme parks

Full specifications

Technical General

  • TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system
  • FREQUENCY RESPONSE (5): 100Hz-20kHz ± 3dB | -10dB @ 70Hz
  • RATED POWER: 100W AES, 400W peak
  • RECOMMENDED AMPLIFIER: MA2.8Q, MA2.0
  • SENSITIVITY (8): 90dB
  • MAXIMUM SPL (9): 110dB continuous, 116dB peak | 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB
  • NOMINAL IMPEDANCE: 8 ohms
  • DISPERSION (-6dB): 120°-90° horizontal, 80° vertical (user-rotatable)
  • CROSSOVER: 2.5kHz passive
  • CONNECTORS: Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
  • PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link +

Driver

  • LF: 5.25" (130mm)/1.25" (32mm) voice coil, long excursion, ferrite motor system
  • HF: 0.75" (19mm) voice coil, fabric dome with neodymium motor system

Transformer Settings

  • 100V line: 6W, 12.5W, 25W
  • 70V line: 3W, 6W, 12.5W, 25W

Physical & Dimensions

  • ENCLOSURE: 3 litre, ABS
  • FINISH: Black or white as standard (RAL as cost option)
  • PROTECTIVE GRILLE: Zinc plated mild steel with powder coated finish and weatherised backing
  • ENVIRONMENTAL: Rated at IP54
  • FITTINGS: 6 x M5 inserts for wall/ceiling brackets
  • DIMENSIONS: (W) 160mm x (H) 230mm x (D) 149mm | (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
  • WEIGHT: 3.4kg (7.5lbs)

Accessories Included

  • Wall bracket black
  • Optional: CDDCB5B ceiling bracket black
