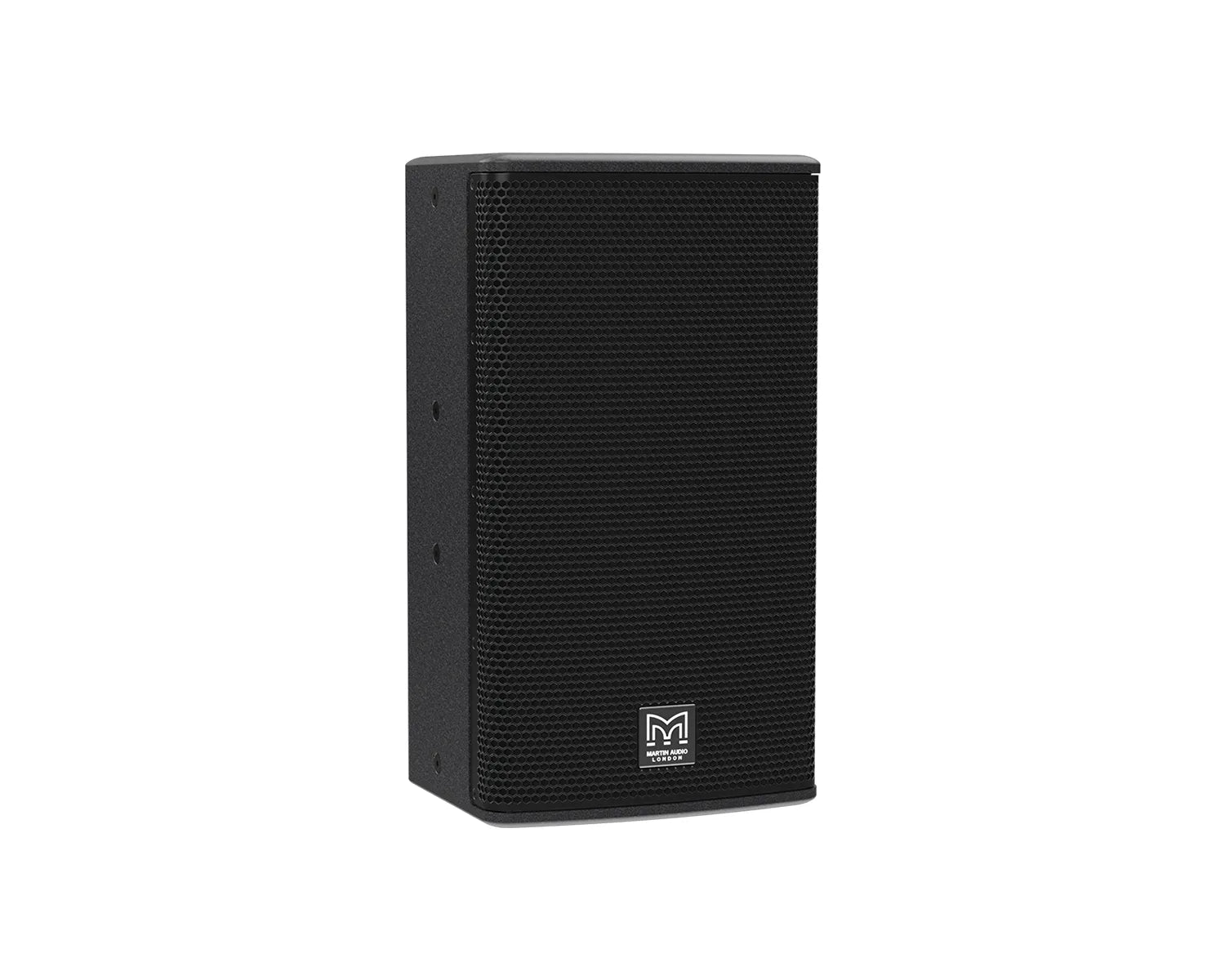

Martin Audio Blackline Q10 10″ 2-Way Passive Speaker Rotatable 90-110×50¬∞ Blk

£772.20£643.50 Incl. VATExcl. VAT

SKU: Q10-B Category:
Description

With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10″ (250mm) LF driver with a 2.5″ (63mm) voice coil and a 1″ (25mm) exit HF compression driver with a 1.4″ (36mm) dome. The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements. Blackline Q10 offers exceptional versatility across a wide range of professional applications from distributed sound reinforcement, houses of worship, and AV events to front-fill/ in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure. When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical. Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications. This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

Features
  • Compact passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • Peak SPL of 125dB (131dB with crest factor 4)
  • User-rotatable Differential Dispersion horn
  • Dispersion: 90¬∞‚Äì110¬∞ horizontal √ó 50¬∞ vertical
  • Vertical and horizontal orientation
  • Screw-tight, cloth-backed perforated steel grille
  • Integrated ergonomic handle made from recycled ABS
  • Pole-mount cover maintains clean lines
  • 8Œ© nominal impedance
  • Two NL4 connectors
  • Flexible mounting options via M8 inserts
  • 85% Post Consumer Recycled ABS Plastic
  • FSC Certified Cardboard Packaging
  • Biodegradable Box Sealing tape
Specs
  • Type:  Compact, passive two-way loudspeaker
  • Frequency Response:  63 Hz ‚Äì 17 kHz ¬± 3 dB, -10 db @ 48 Hz
  • Driver (LF):  10‚Äù (250 mm) with 2.5‚Äù (63 mm) voice coil, ferrite motor system
  • Driver (HF):  1" (25 mm) exit compression driver with 1.4" (36 mm) voice coil,
    polyimide dome
  • Rated Power:  250 W AES, 1000 W peak
  • Required Electronics:  Processor and amplifier, or a combined amplifier-processor unit
  • Recommended Electronics:  DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
  • Sensitivity:  95 dB
  • Maximum SPL:  119 dB continuous, 125 dB peak, 131 dB peak with crest factor 4
  • Nominal Impedance:  8 ohm
  • Dispersion:  Dispersion: 90¬∞‚Äì110¬∞ (horizontal) √ó 50¬∞ (vertical)
  • Crossover:  3 kHz passive
  • Enclosure:  Symmetrical multi-angle plywood
  • Finish:  Black textured paint
  • Protective Grille:  Black perforated steel grille with scrim cloth backing
  • Connectors:  2 x NL4 connector
  • Pin Connections (Input):  1+/1‚Äì
  • Pin Connections (Link):  1+/1‚Äì to 1+/1‚Äì and 2+/2‚Äì to 2+/2‚Äì
  • Fittings:
    • 15 x M8 inserts, 6 x M8 inserts for wall bracket
    • 1 x pocket handle made from recycled ABS
    • Pole-mount socket with removable cover
  • Dimensions (WxHxD):  300 mm x 545 mm x 310 mm (11.8 in x 21.5 in x 12.2 in)
  • Weight:  15.3 kg (33.7 lbs)
  • Accessories (Optional):
    • Wall bracket WB10/12
    • M8 eye bolt HTKCT05, yoke, transit cover
