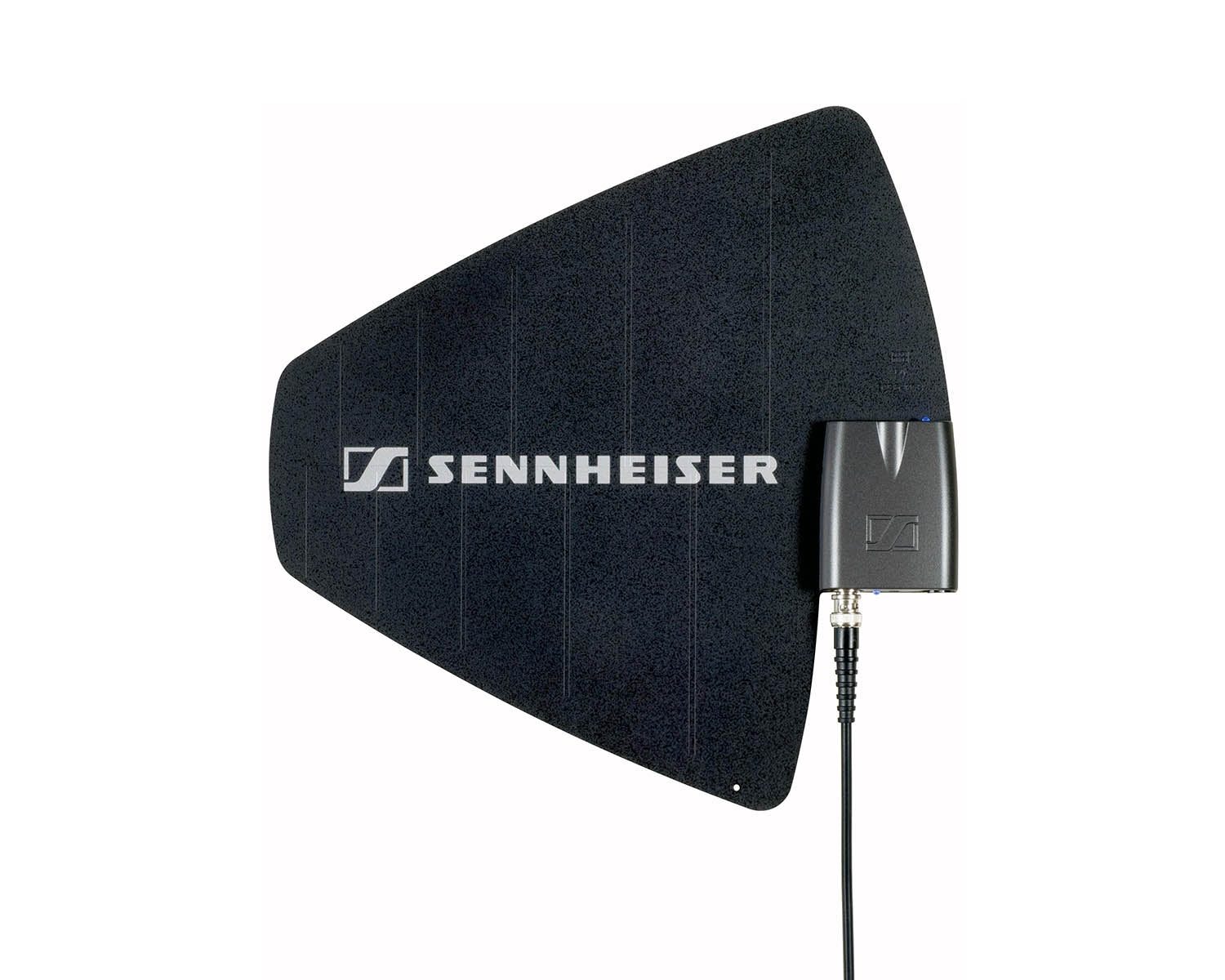

Sennheiser AD3700 EM2000 Series Log-Periodic Dir Wideband Antenna

• Frequency range: 470 ‚Äì 866 MHz
• Omnidirectional antenna
• Specifically compatible with the EM3731/3732 series
• Also specifically compatible with EM2000/2050 receivers
• 50 ‚Ѷ Impedance
• BCN Connector
• Mounting connection: 3/8" or 5/8" thread

General

• Frequency range: 470 ‚Äì 866 MHz
• Apex angle (-3 dB): approx. 100¬∞
• Front-to-back ratio: ‚â• 14 dB
• Gain: approx. 3 dB
• Amplification (booster) typ.: bypass (-3 dB), 5 dB, 10 dB, 15 dB adjustable, without DC feed: -6 dB
• Impedance: 50 ‚Ѷ
• OIP3: ‚â• 32 dBm
• RF connection: BCN socket
• Power supply: 9 ‚Äì 15 V ‚éì / 160 ‚Äì 100 mA, DC feed via antenna cable (RF OUT socket)
• Mounting connection: 3/8" or 5/8" thread

Physical

• Dimensions: 329 x 322 x 23 mm
• Weight incl. booster: 625 g
