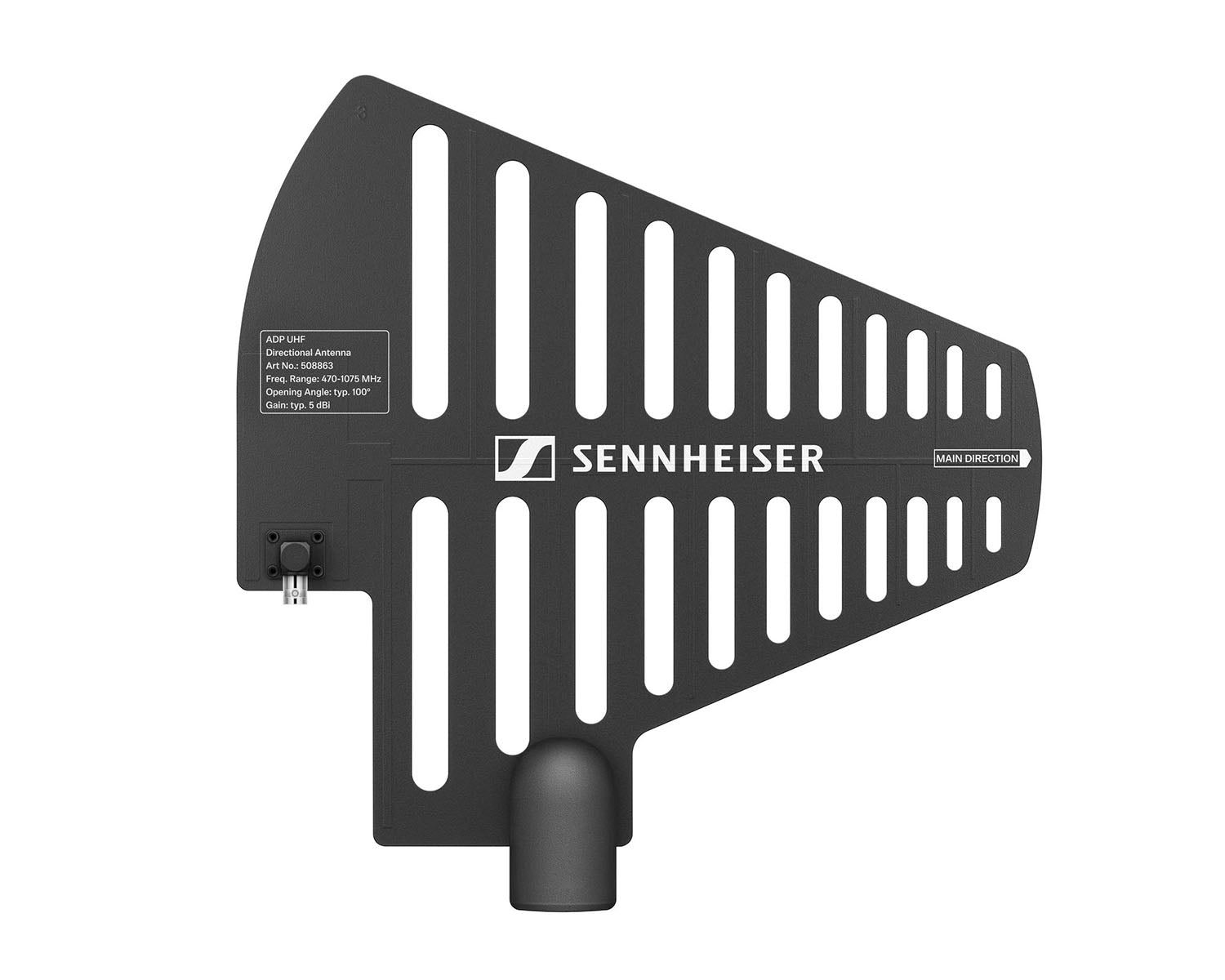

The Sennheiser ADP UHF is a passive directional antenna covering the full 470-1075 MHz UHF range, intended for use with Sennheiser’s Evolution Wireless Digital (EW-D) systems. With its wide bandwidth and directional pattern, it is suited to engineers and AV professionals who need to improve RF reception over distance or reject interference from off-axis sources in live production, broadcast and installed environments.
CompatibilityDesigned for the Sennheiser EW-D wireless family and terminated with a 50 Ω BNC (female) connector for connection via coaxial cable. As a passive antenna it carries no DC path, so it cannot pass phantom power to an inline booster, supply any required booster power separately.
Features
Wideband 470-1075 MHz coverage across the UHF range
Passive design, no power required
Directional pattern with approx. 100° apex angle (-3 dB)
Front-to-back ratio > 14 dB for off-axis rejection
Typical gain of 5 dBi
50 Ω BNC (female) coaxial connection
Integrated 3/8″ and 5/8″ threads for stand mounting
Lightweight at approx. 320 g
Specifications
| Manufacturer | Sennheiser |
| Model | ADP UHF (470-1075 MHz) |
| Article number | 508863 |
| Antenna type | Passive directional antenna |
| Frequency range | 470-1075 MHz |
| Apex angle (-3 dB) | Approx. 100° |
| Front-to-back ratio | > 14 dB |
| Gain | Typically 5 dBi |
| Impedance | 50 Ω |
| Connection | BNC female, no DC path |
| Mounting threads | 3/8″ and 5/8″ |
| Dimensions | 319 x 310 mm |
| Weight | Approx. 320 g |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +85 °C |
| Relative humidity | 5-95 % |
