Sennheiser MAT153SB XLR Table Base with Mic Button XLR5-F In XLR3-M Out
£283.93£236.61 Incl. VATExcl. VAT
Description

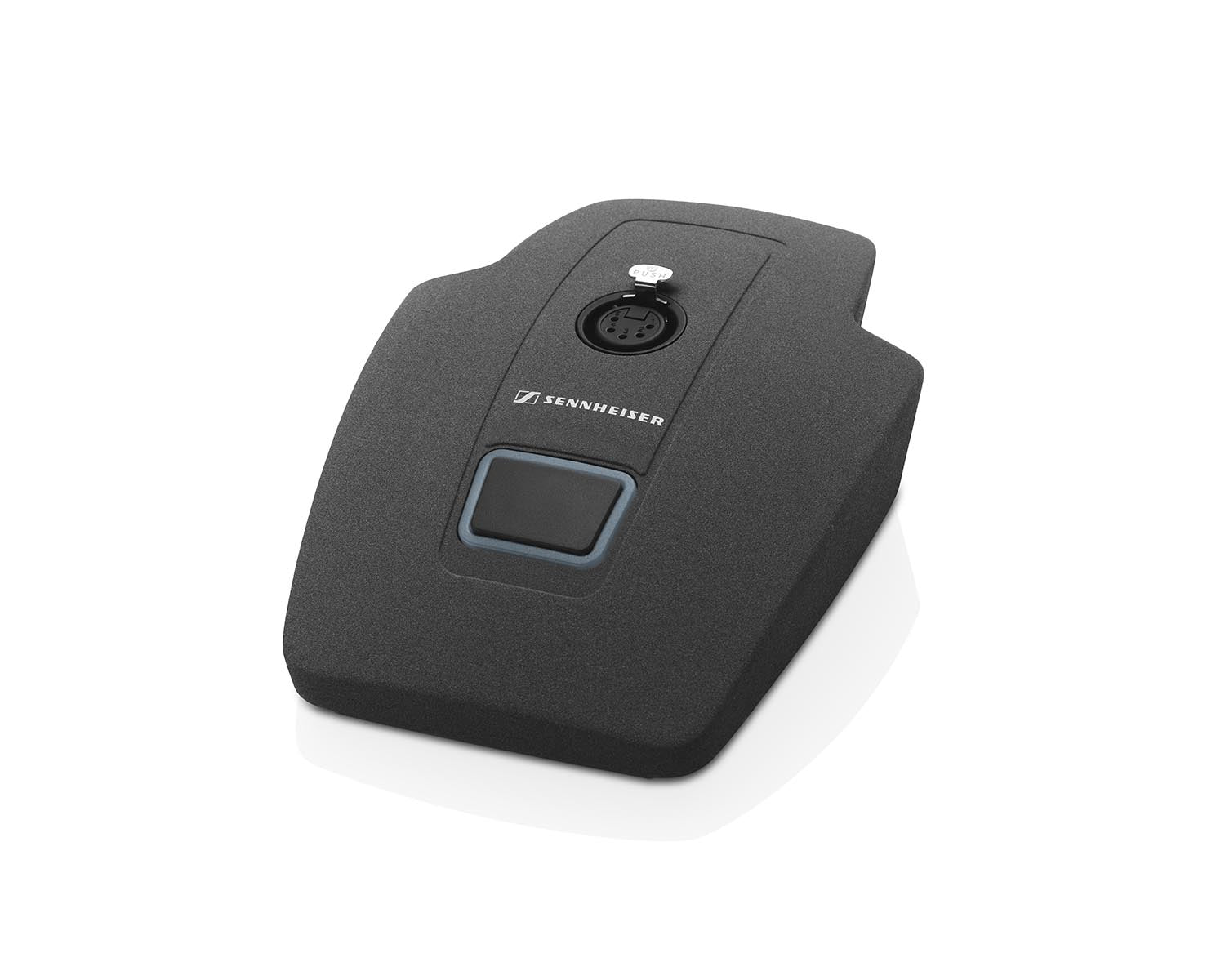

The MAT 153-S is a sturdy, wired table stand that provides a stable base for XLR-5 gooseneck microphones. It has a user-friendly microphone button with a two-colour status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black colour.
Connector
- MIC IN: XLR-5F
- MIC OUT: XLR-3M
- 3x terminal
Features
- Color: black
- LED light ring: red / green
- Connector
- Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (‚àí), 4 = LED (‚àí), 5 = LED (+)
- Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = ‚àí
- Clip contact: Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
- Weight: approx. 1,206 g, 1526 g
- Current consumption: 3.7 mA
- Output voltage
- Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
- Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V
Specs
- Color: black
- LED light ring: red / green
- Connector
- Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (‚àí), 4 = LED (‚àí), 5 = LED (+)
- Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = ‚àí
- Clip contact: Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
- Weight: approx. 1,206 g, 1526 g
- Current consumption: 3.7 mA
- Output voltage
- Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
- Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V
