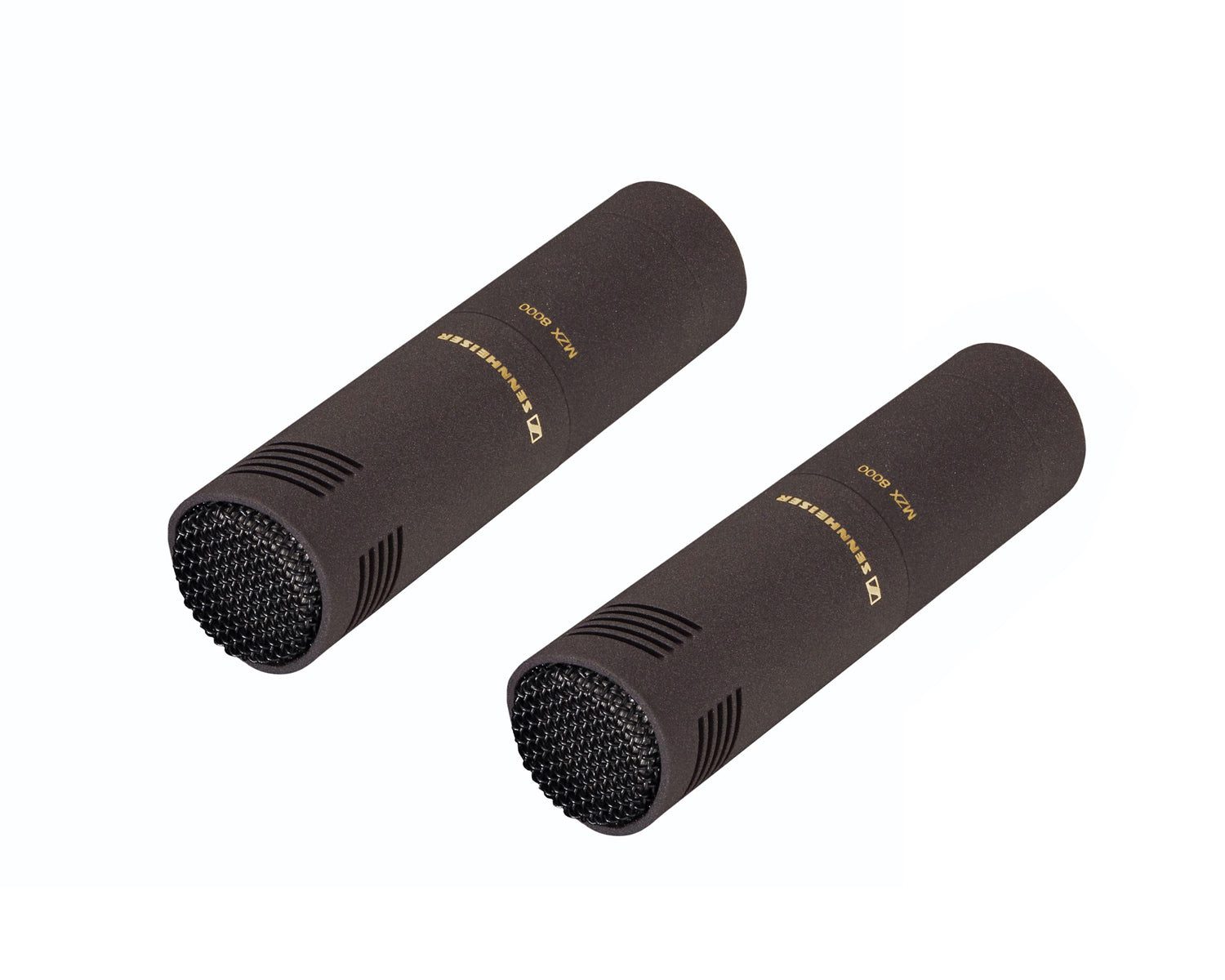

Sennheiser MKH 8040 Stereoset Pair of MKH 8040 Cardioid Condenser Mics

• Stereoset pair of mics
• Cardioid pick-up pattern
• Modular Design
• Wide frequency response: 30 ‚Äì 50,000 Hz
• Extremely low distortion
• Extremely low inherent self-noise
• Balanced frequency response within the pick-up pattern
• Very even directional diagram
• Non-reflective Nextel¬Æ coating
• Ideal as a spot microphone and for surround recordings
• Timbrally identical with the other 8000-series microphones for optimum aural compatibility
• Article No: 506290

General

• Transducer principle (Microphone): RF condenser microphone
• Frequency response: 30 - 50000 Hz
• Audio output: XLR-3M balanced, transformerless, floating
• Pick-up pattern: Cardioid
• Sensitivity in free field, no load (1kHz): 20 mV/Pa (-34 dBV/Pa)
• Nominal impedance: 25 Œ©
• Min. terminating impedance: 1000 Œ©
• Phantom powering: 48 V +/- 4 V
• Equivalent noise level: 13 dB(A)
• Equivalent noise level weighted as per CCIR 468-3: 22 dB
• Maximum sound pressure level (passive): 142 dB SPL
• Current consumption: 3,3 mA

Physical

• Dimensions: √ò 19 mm, L 41 mm (74 mm with XLR module)
• Weight: 25 g (55 g with XLR module)
