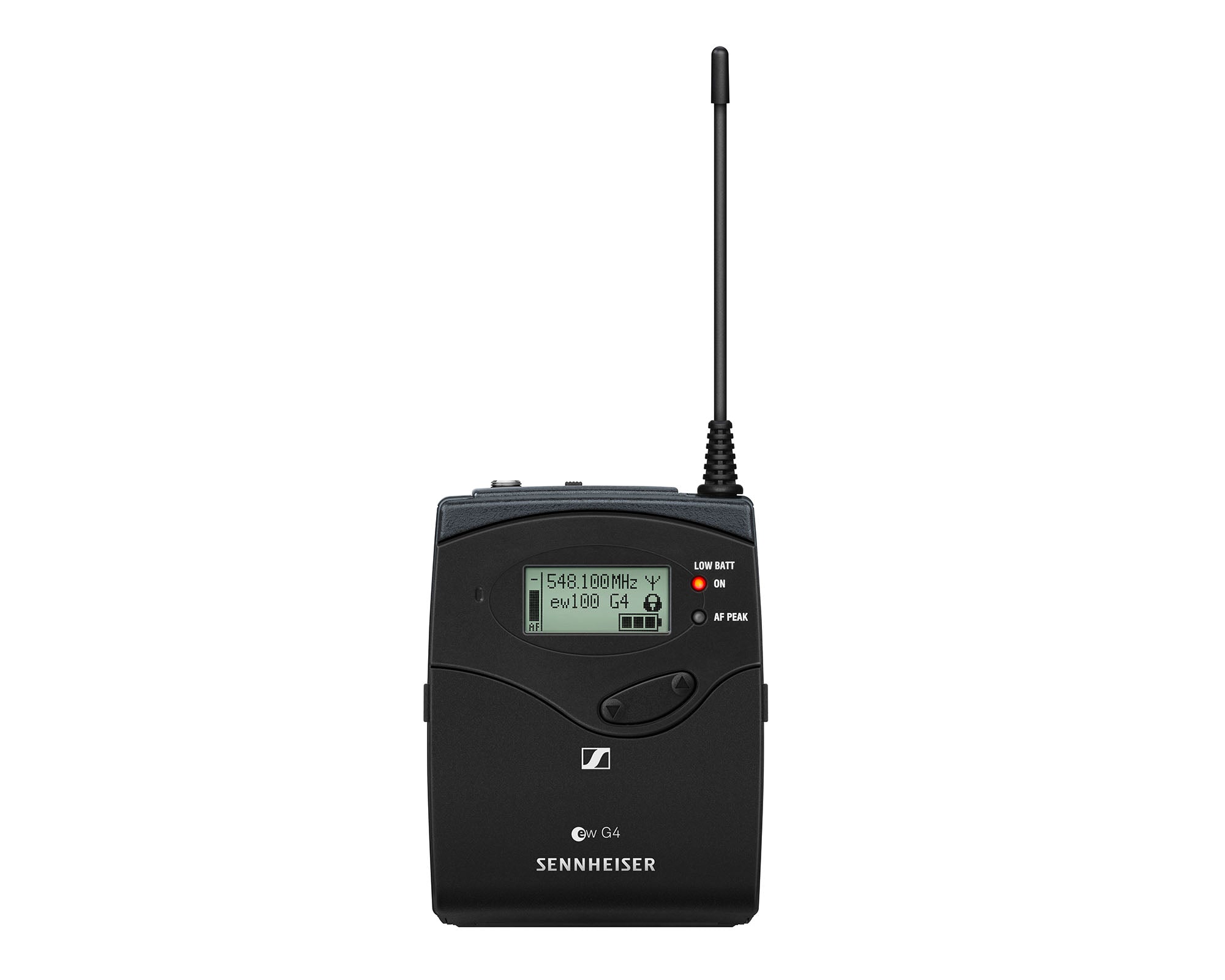

Sennheiser SK100 G4-1G8 100-Series Bodypack Transmitter 3.5mm 1.8GHz

• Robust bodypack transmitter for daily use on stage
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

General

• Modulation: Wideband FM
• Frequency ranges:
  • A1: 470 - 516 MHz
  • A: 516 - 558 MHz
  • AS: 520 - 558 MHz
  • G: 566 - 608 MHz
  • GB: 606 - 648 MHz
  • B: 626 - 668 MHz
  • C: 734 - 776 MHz
  • D: 780 - 822 MHz
  • E: 823 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
  • 1G8: 1785 - 1800 MHz
• Transmission frequencies:
  • Max. 1680 receiving frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
  • 1 frequency bank with up to 12 programmable channels
• Switching bandwidth: up to 42 MHz
• Nominal/peak: deviation ¬±24 kHz / ¬±48 kHz
• Frequency: stability ‚⧠¬±15 ppm
• RF output power at 50 Œ©: Max. 30 mW
• Pilot tone squelch: Can be switched off
• Compander system: Sennheiser HDX
• AF frequency response: Mic: 80 ‚Äì 18,000 Hz Line: 25 ‚Äì 18,000 Hz
• Signal-to-noise ratio (1 mV, peak deviation): ‚â• 110 dBA
• Total harmonic distortion (THD): ‚⧠0.9 %
• Max. microphone/line input voltage: 3 Veff
• Microphone/line input impedance: 40 kŒ©, unbalanced / 1 MŒ©
• Input capacitance: Switchable
• Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
• Temperature range: > -10 ¬∞C to +55 ¬∞C
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage: 3 V battery / 2.4 V rechargeable battery
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ‚⧠25 ¬µA
• Operating time: Typically 8 h

Physical & Dimensions

• Height: 82mm
• Width: 64mm
• Depth: 24mm
• Weight: 160g
