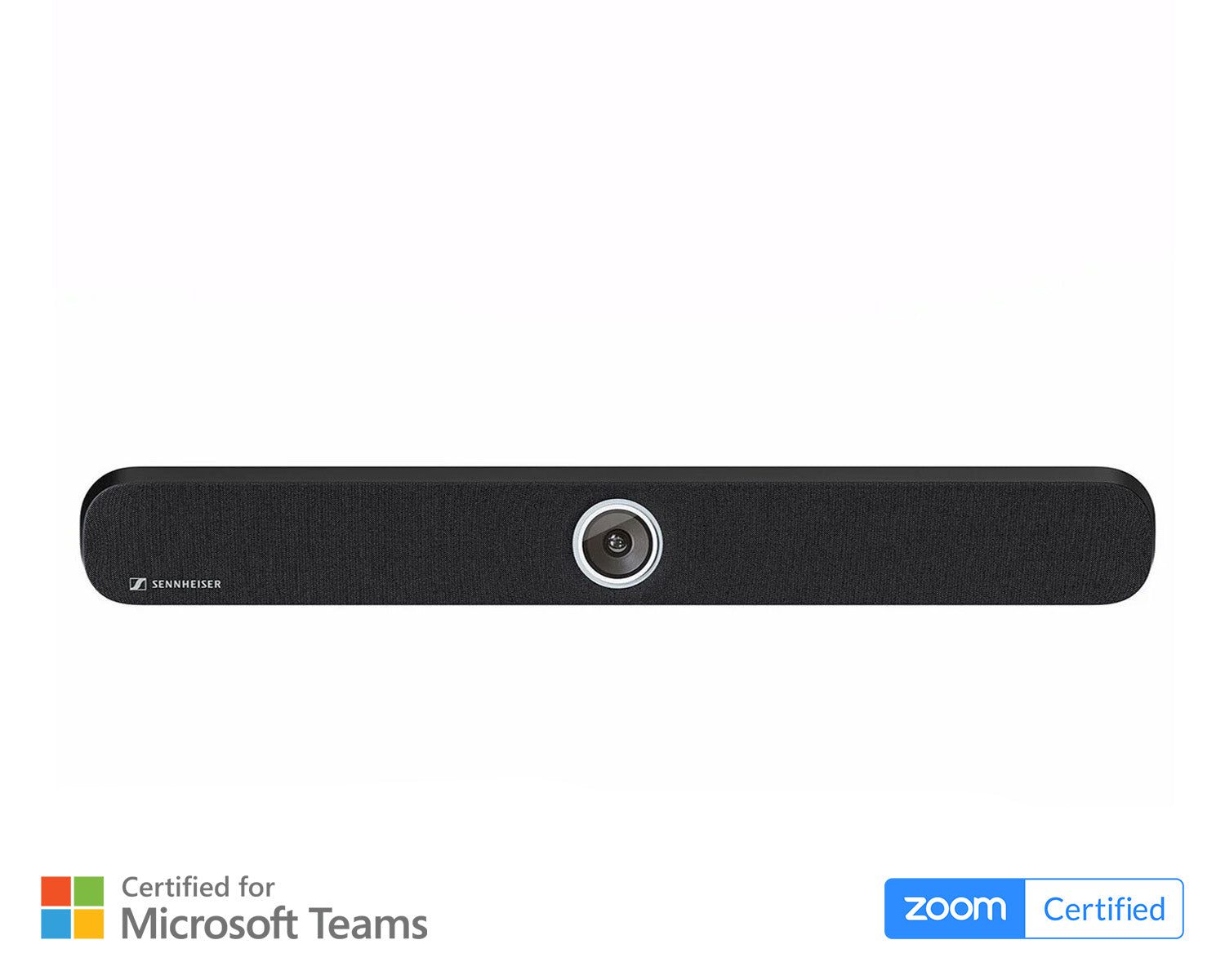

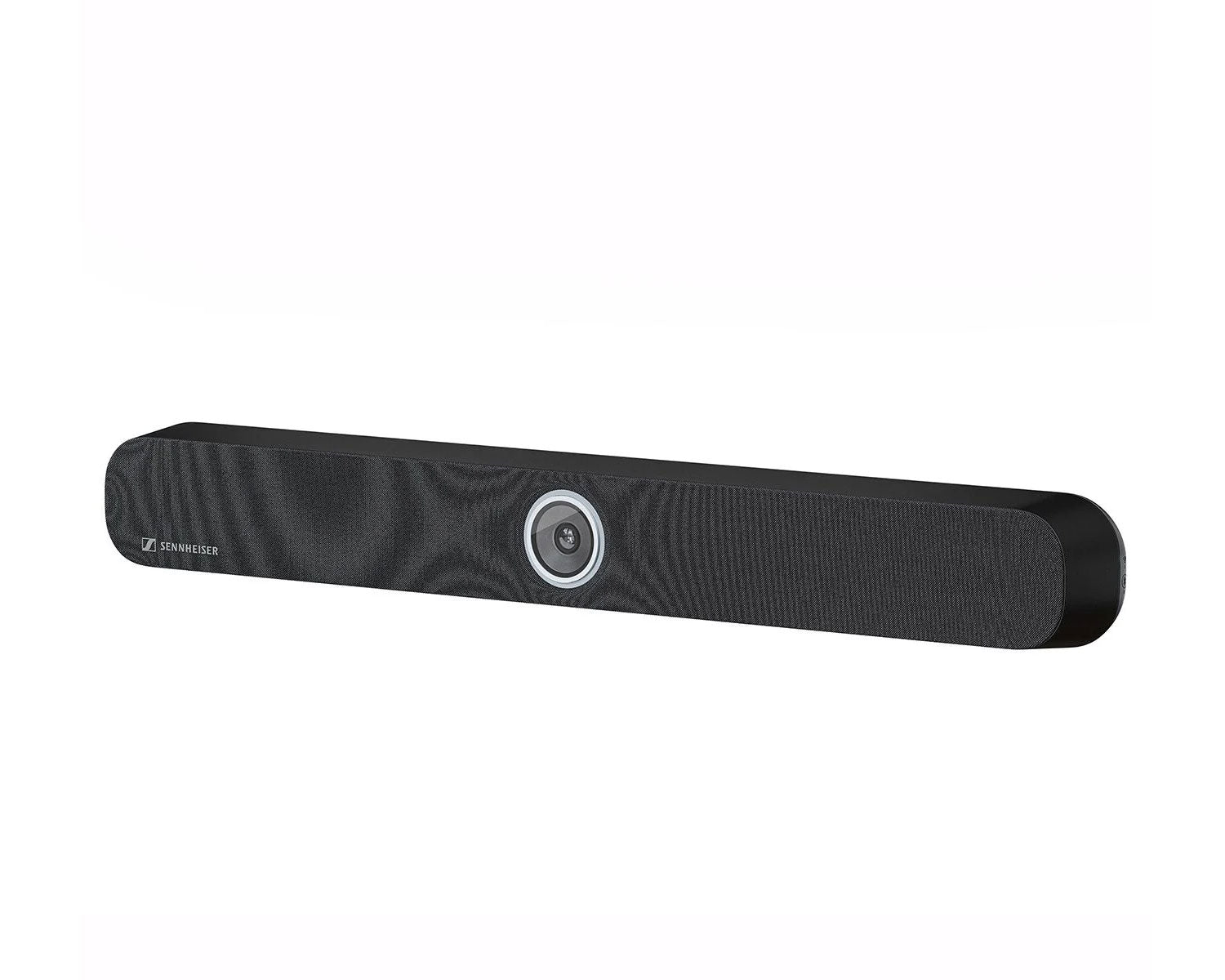

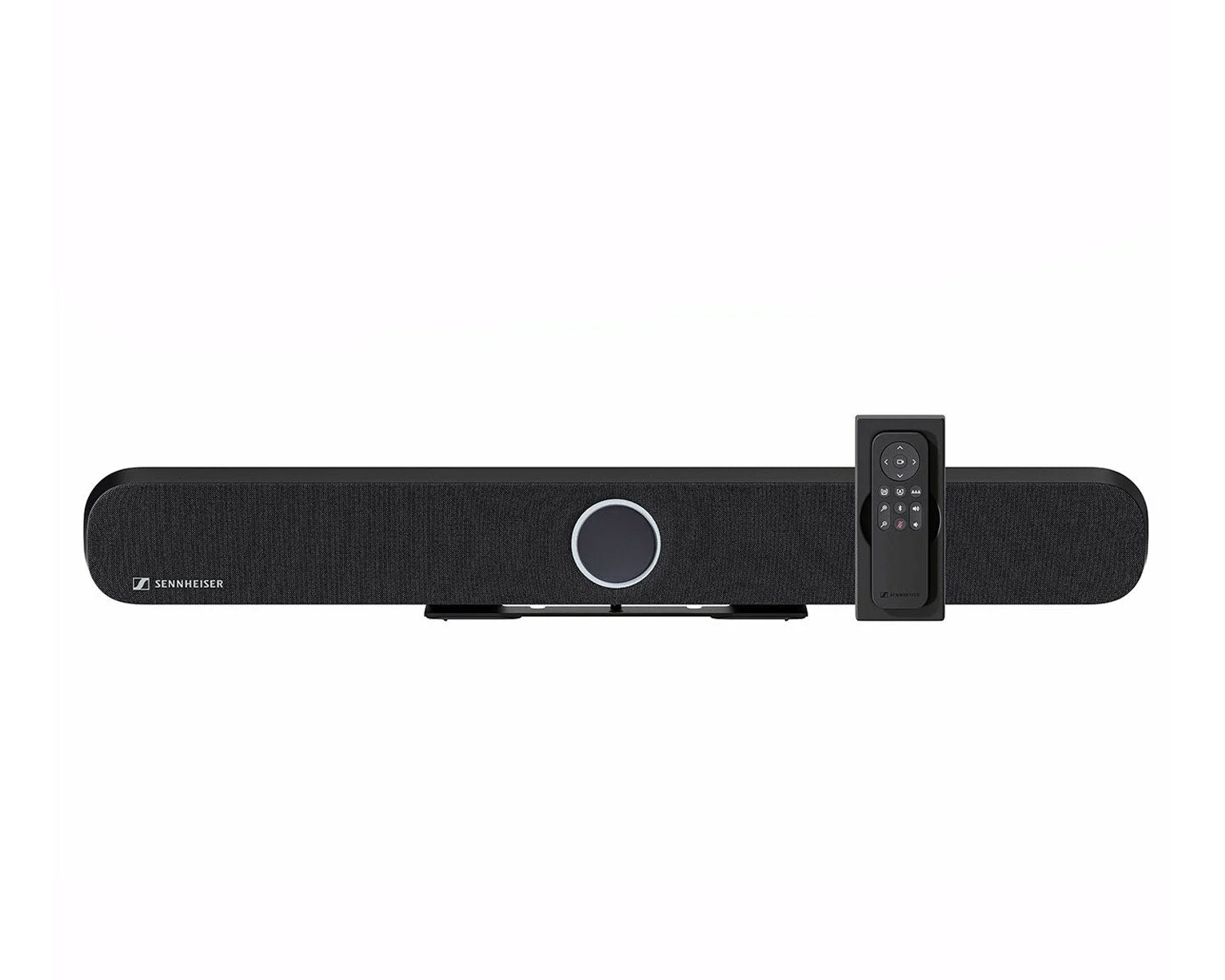

Sennheiser TeamConnect Bar M 4K Conferencing Video Bar for Medium Rooms

• Quick start via USB cable
• Freedom of movement and seamless transition among presenters
• Flexible Extensions using Dante for adding extension mics and/or a 2nd external USB camera
• 4K Ultra HD camera equipped with advanced AI features
• Full-Range Stereo Speakers
• Built-In DSP automatically optimizes room acoustics
• Multiple Mounting Options
• Autoframing and Person Tiling features to clearly see everyone in the room
• Full remote-control access via Sennheiser Control Cockpit
• Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Encrypted control communication and password protected by default for secure content transmission

General

• Dimensions (L x B x H): 750 x 71 x 95 mm
• Weight: 2.5 kg
• Operating temperature: 0 ¬∞C to 40 ¬∞C | 32 ¬∞F to 104 ¬∞F
• Storage temperature: -25 ¬∞C to 70 ¬∞C | -13 ¬∞F to 158 ¬∞F
• Relative humidity operation: 0 to 75 %, non-condensing
• Relative humidity storage: 0 to 95 %, non-condensing
• DC IN: 18 V ‚éì, max. 4 A
• Max. power consumption: 72 W

Loudspeaker

• Total number of speakers: 4 with passive radiator
• Type: fullrange
• Diameter: 50 mm (2")
• Amplifier: Class-D
• Max. SPL (output): 84 dB SPL
• Total Audio Power (RMS/PEAK): 20 W / 40 W
• Frequency response: 100 Hz - 18 kHz
• THD at max. output: <5 %

Microphones

• Transducer principle: MEMS
• Pick-up pattern: Beamforming Array
• Number of microphone capsules: 6
• Frequency range: 100 Hz to 14.5 kHz
• Pickup range: 4.5 m
• Dynamic range: 69 dB (A)

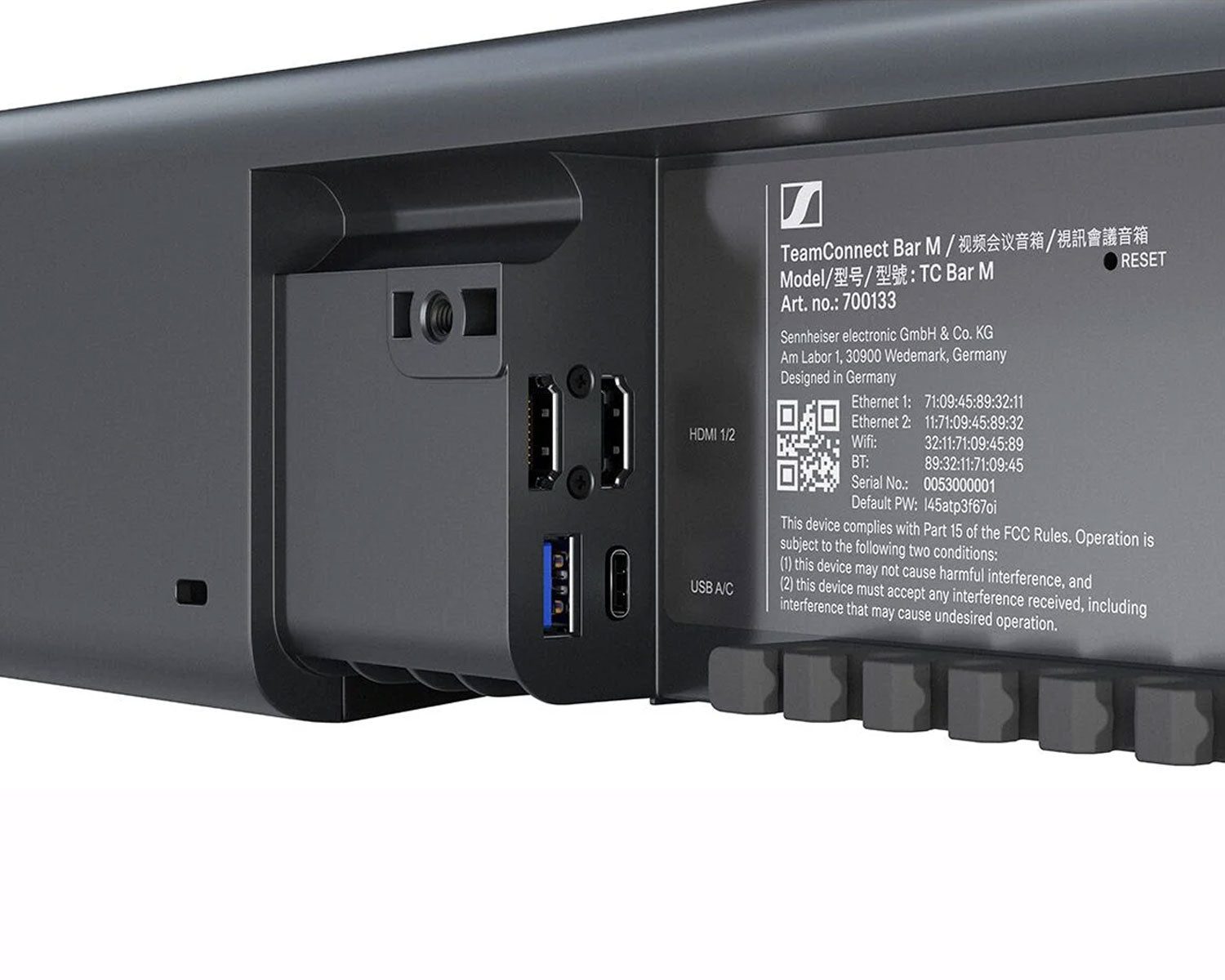

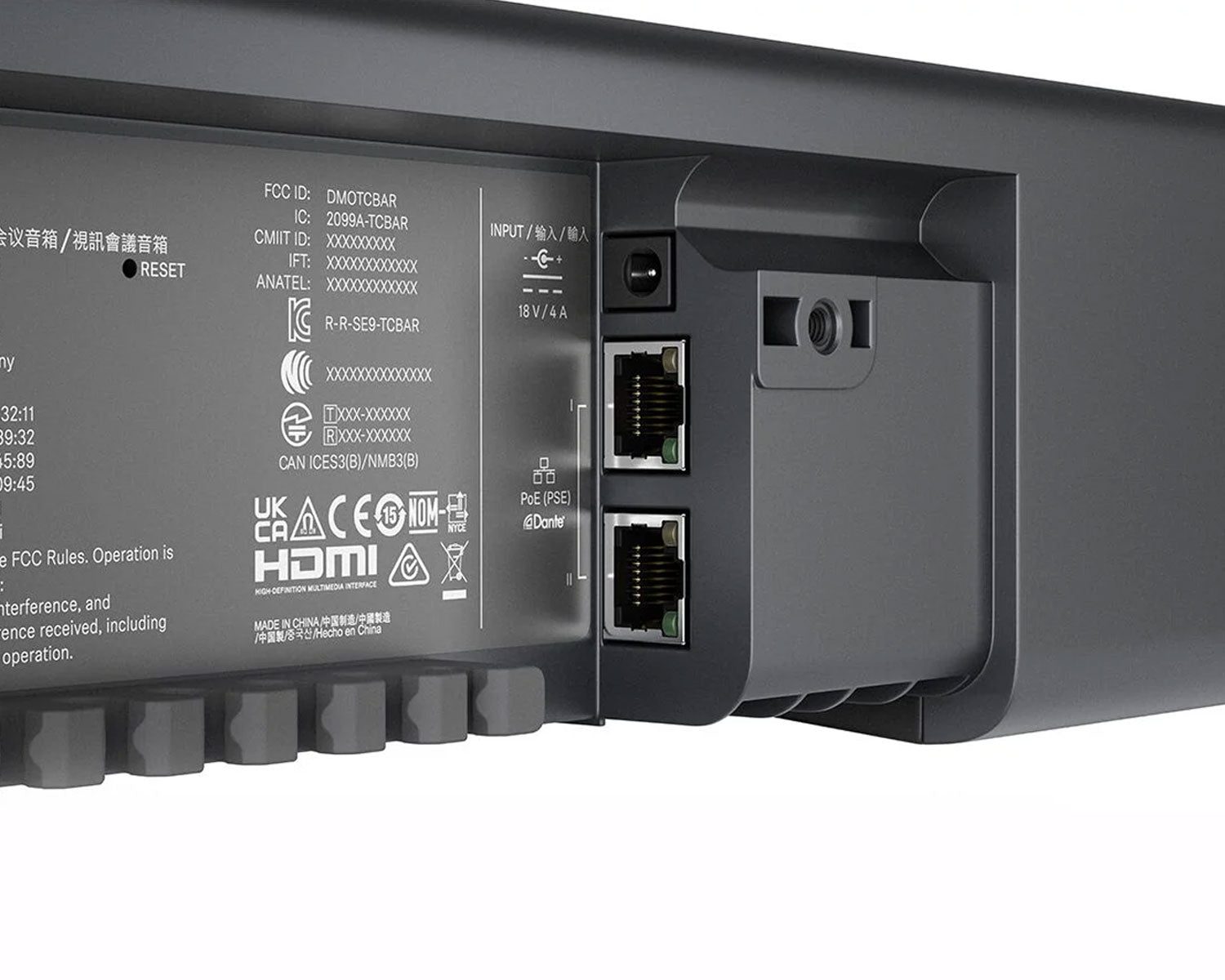

Interfaces

• HDMI out: 2x HDMI 2.0
• USB-C: USB 3.1 (Gen 1)
• USB-A power output: USB 3.1 (Gen1); 5 V ‚éì, max. 900 mA
• DC IN dimension: 5.5 x 2.1 x 10.5 mm
• Ethernet: 2 x 1000/100/10 Mbit/s (RJ45) Note: Only use network cables with the standard CAT5e (F/STP) or better.
• Note: Only use network cables with the standard CAT5e (F/STP) or better.

Camera

• Technology: ePTZ
• Diagonal field of view: 120¬∞
• Horizontal field of view: 115¬∞
• Resolution: UHD 2160p (4K), 1080p, 720p, 960√ó480, 848√ó480, 640√ó480, 640√ó360, 432√ó240
• Zoom: 5x digital zoom
