Sennheiser TeamConnect Bar S 4K Conferencing Video Bar

Product code: 4559

£610.00 inc VAT
£508.33 ex VAT

SKU: 700106
Ordered from supplier, allow 1–3 weeks
FREE delivery by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

The Sennheiser TeamConnect Bar S is an all-in-one 4K conferencing bar, beamforming MEMS microphone array, 120-degree camera and speakers in one unit, the small-room bar. Microsoft Teams certified, with HDMI, USB, Ethernet, Wi-Fi and Bluetooth covering every room-system topology.

Features

All-in-one 4K video bar: camera + beamforming mics + speakers
120° diagonal field of view
Microsoft Teams certified
HDMI, USB 3.1 (C and A), Ethernet, Wi-Fi, Bluetooth 5.1
Beamforming MEMS array, 100Hz-14.5kHz

Specifications

Sennheiser TeamConnect Bar S 4K Conferencing Video Bar specifications
Type 4K video conferencing bar
Model TeamConnect Bar S
Article 700106
Camera 4K, 120° diagonal / 115° horizontal
Zoom 2x digital (Teams certified), optional 3x
Speakers 2 full-range, 10W RMS / 20W peak total, 80dB SPL
Dimensions 450mm x 71mm x 76mm
Weight 1.5kg
Power 15V DC or PoE+ (802.3at), max 30W
Ports HDMI, USB-C/A, 1 x Ethernet

Full features

  • Quick start via USB cable
  • Freedom of movement and seamless transition among presenters
  • Flexible Extensions using Dante for adding extension mics and/or a 2nd external USB camera
  • 4K Ultra HD camera equipped with advanced AI features
  • Full-Range Stereo Speakers
  • Built-In DSP automatically optimizes room acoustics
  • Multiple Mounting Options
  • Autoframing and Person Tiling features to clearly see everyone in the room
  • Full remote-control access via Sennheiser Control Cockpit
  • Certified for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom); Tencent and DingTalk pending
  • Encrypted control communication and password protected by default for secure content transmission

Full specifications

General

  • Dimensions (L x B x H): 450 x 71 x 76 mm
  • Weight: 1.5 kg
  • Operating temperature: 0 °C to 40 °C | 32 °F to 104 °F
  • Storage temperature: -25 °C to 70 °C | -13 °F to 158 °F
  • Relative humidity operation: 0 to 75 %, non-condensing
  • Relative humidity storage: 0 to 95 %, non-condensing
  • DC IN: 15 V ‚éì, max. 2 A
  • Max. power consumption: 30 W

Loudspeaker

  • Total number of speakers: 2 with passive radiator
  • Type: fullrange
  • Diameter: 50 mm (2")
  • Amplifier: Class-D
  • Max. SPL (output): 80 dB SPL
  • Total Audio Power (RMS/PEAK): 10 W / 20 W
  • Frequency response: 100 Hz - 18 kHz
  • THD at max. output: <5 %

Microphones

  • Transducer principle: MEMS
  • Pick-up pattern: Beamforming Array
  • Number of microphone capsules: 4
  • Frequency range: 100 Hz to 14.5 kHz
  • Pickup range: Ø 4 m
  • Dynamic range: 69 dB (A)

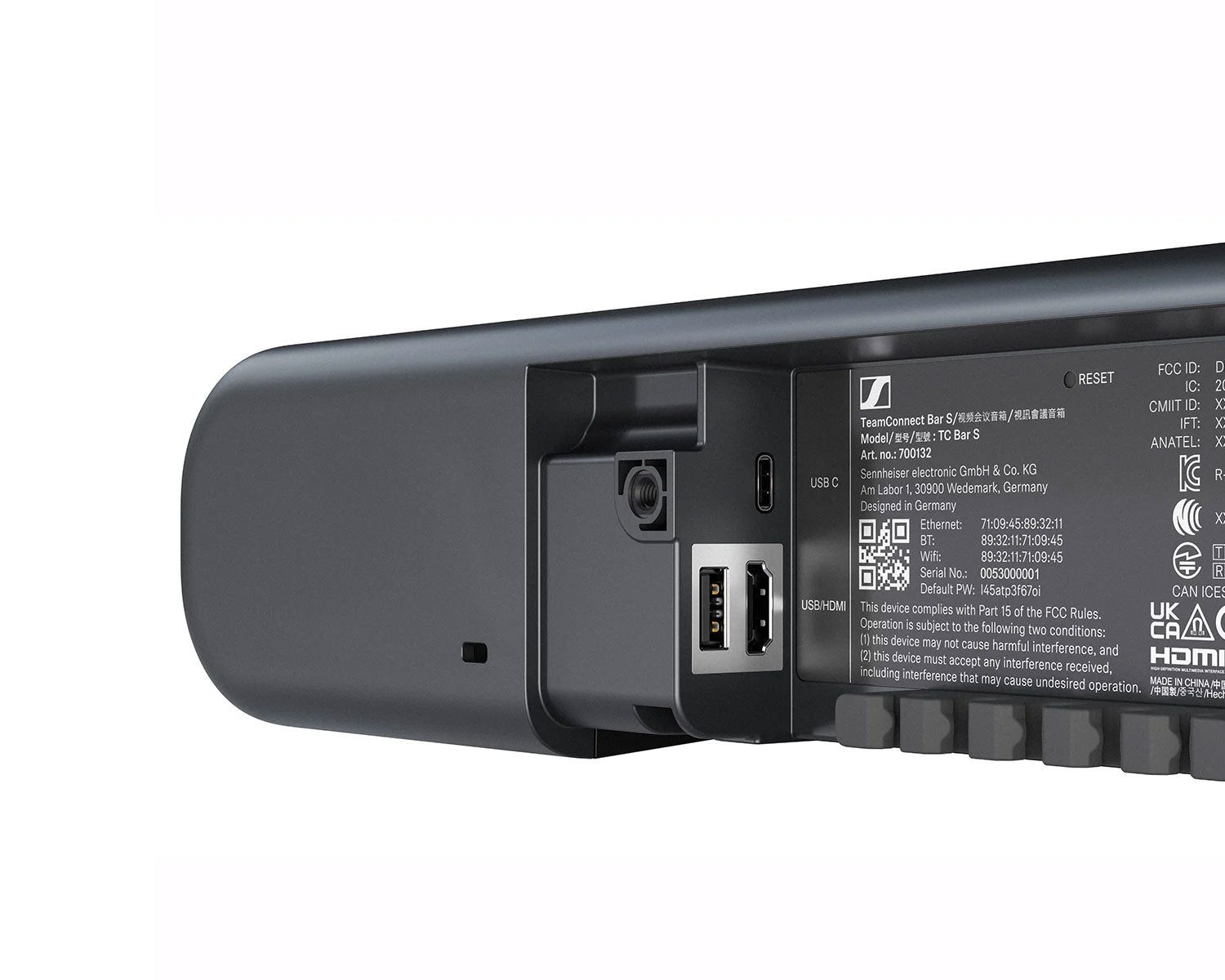

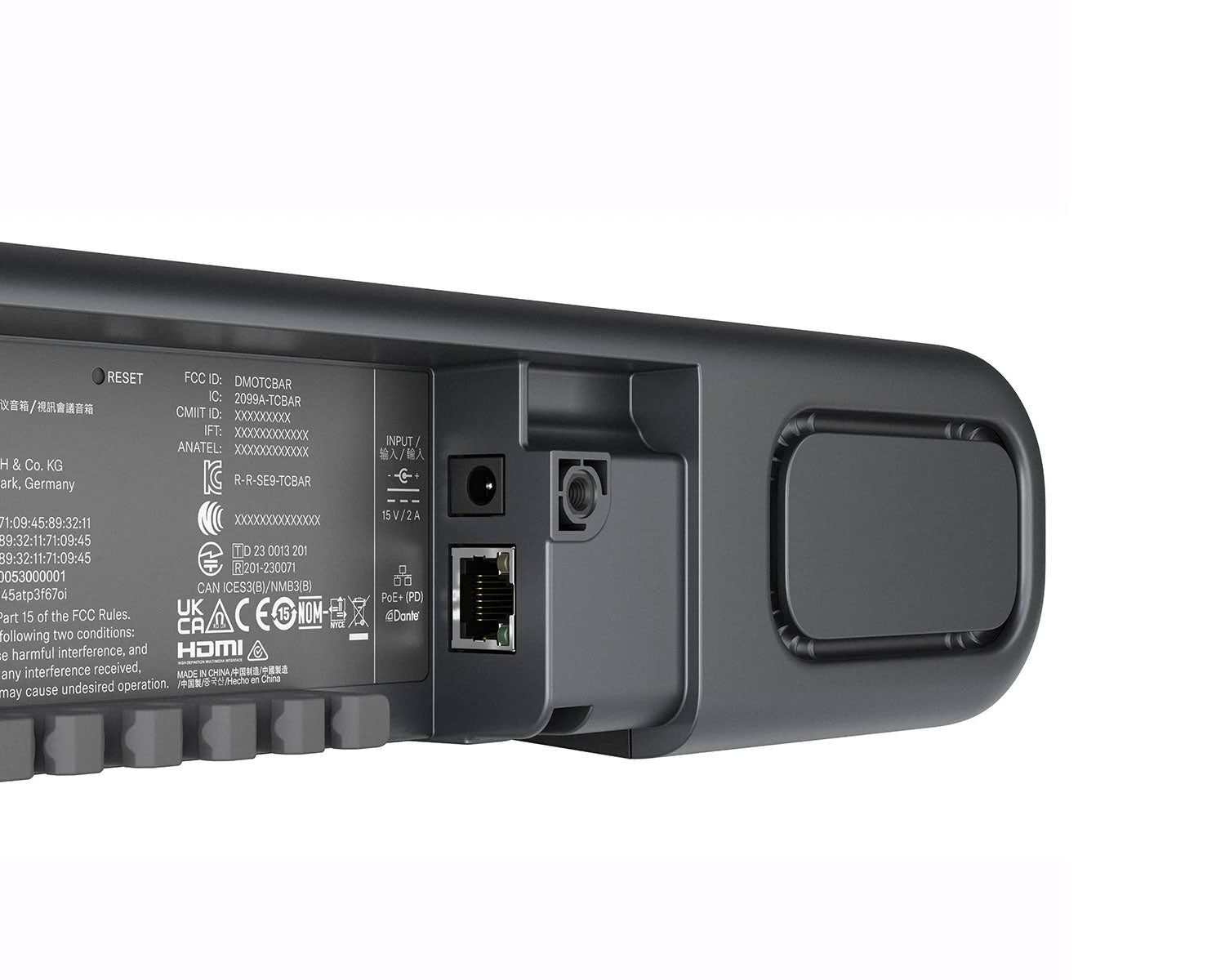

Interfaces

  • HDMI out: 1x HDMI 2.0
  • USB-C: USB 3.1 (Gen 1)
  • USB-A power output: USB 3.1 (Gen1); 5 V ‚éì, max. 900 mA
  • DC IN dimension: 5.5 x 2.1 x 10.5 mm
  • Ethernet: 1 x 1000/100/10 Mbit/s (RJ45) Note: Only use network cables with the standard CAT5e (F/STP) or better.
  • Note: Only use network cables with the standard CAT5e (F/STP) or better.

Camera

  • Technology: ePTZ
  • Diagonal field of view: 120°
  • Horizontal field of view: 115°
  • Resolution: UHD 2160p (4K), 1080p, 720p, 960x480, 848x480, 640x480, 640x360, 432x240
  • Zoom: 3x digital zoom
