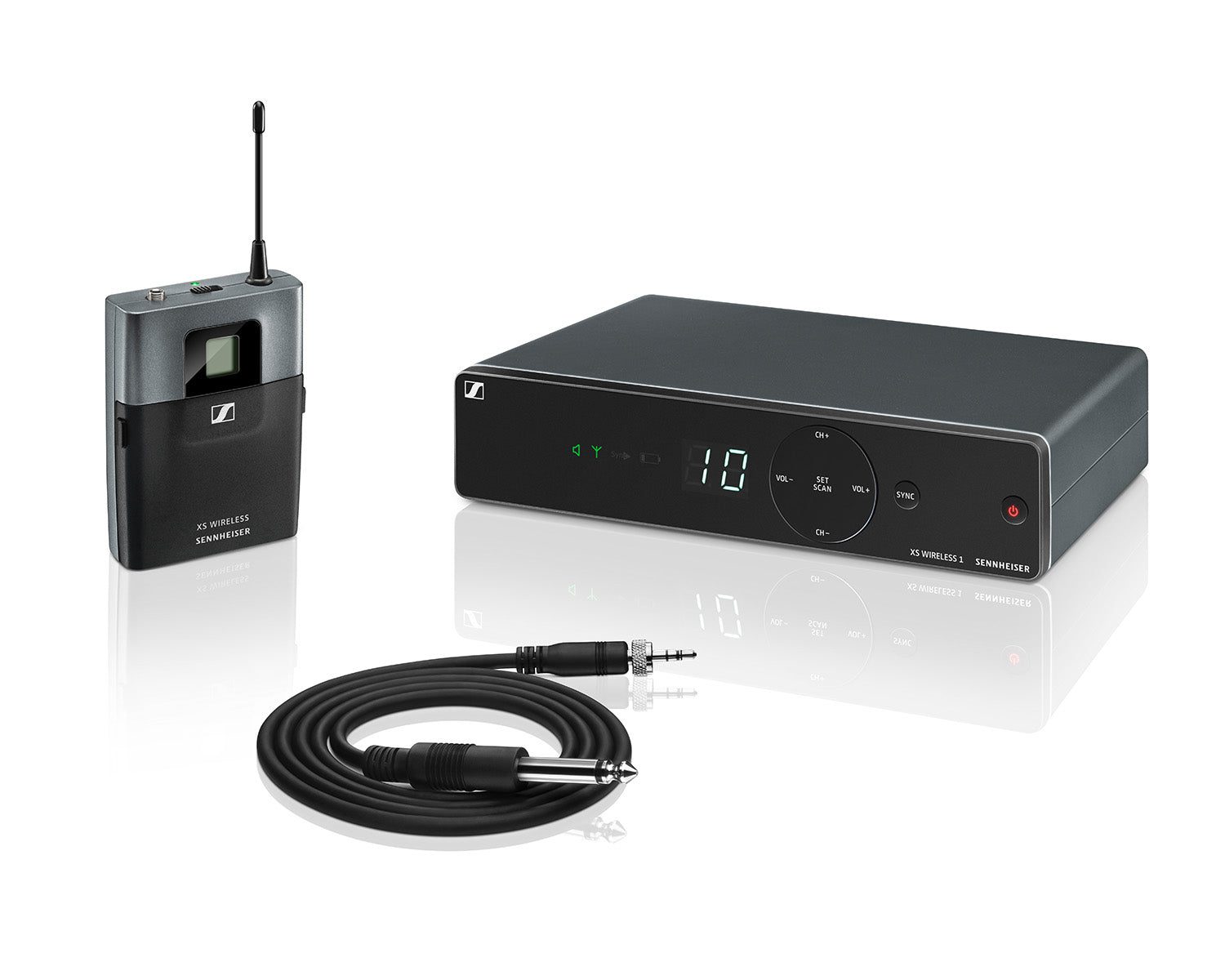

Sennheiser XSW1-Ci1 E Guitar/Instrument System with 1/4″ Jack Cable CH70

• Compact bodypack transmitter, rugged instrument cable
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

General

• THD, total harmonic distortion: ‚⧠0.9%
• Signal-to-noise ratio: ‚â• 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: Wideband FM
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range:
  • A: 548-572 MHz
  • GB: 606-630 MHz
  • B: 614-638 MHz
  • C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
• Sensitivity: < 3 ŒºV at 52 dB(A)rms S/N
• SPL for peak deviation: 130 dB
• Squelch: adjustable from 3 dBŒºV to 28 dBŒºV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• AF frequency response: Receiver: 50 to 16,000 Hz (‚Äì3 dB)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0¬∞C to +40¬∞C, storage: ‚Äì20¬∞C to +70¬∞C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

Physical & Dimensions

• Dimensions

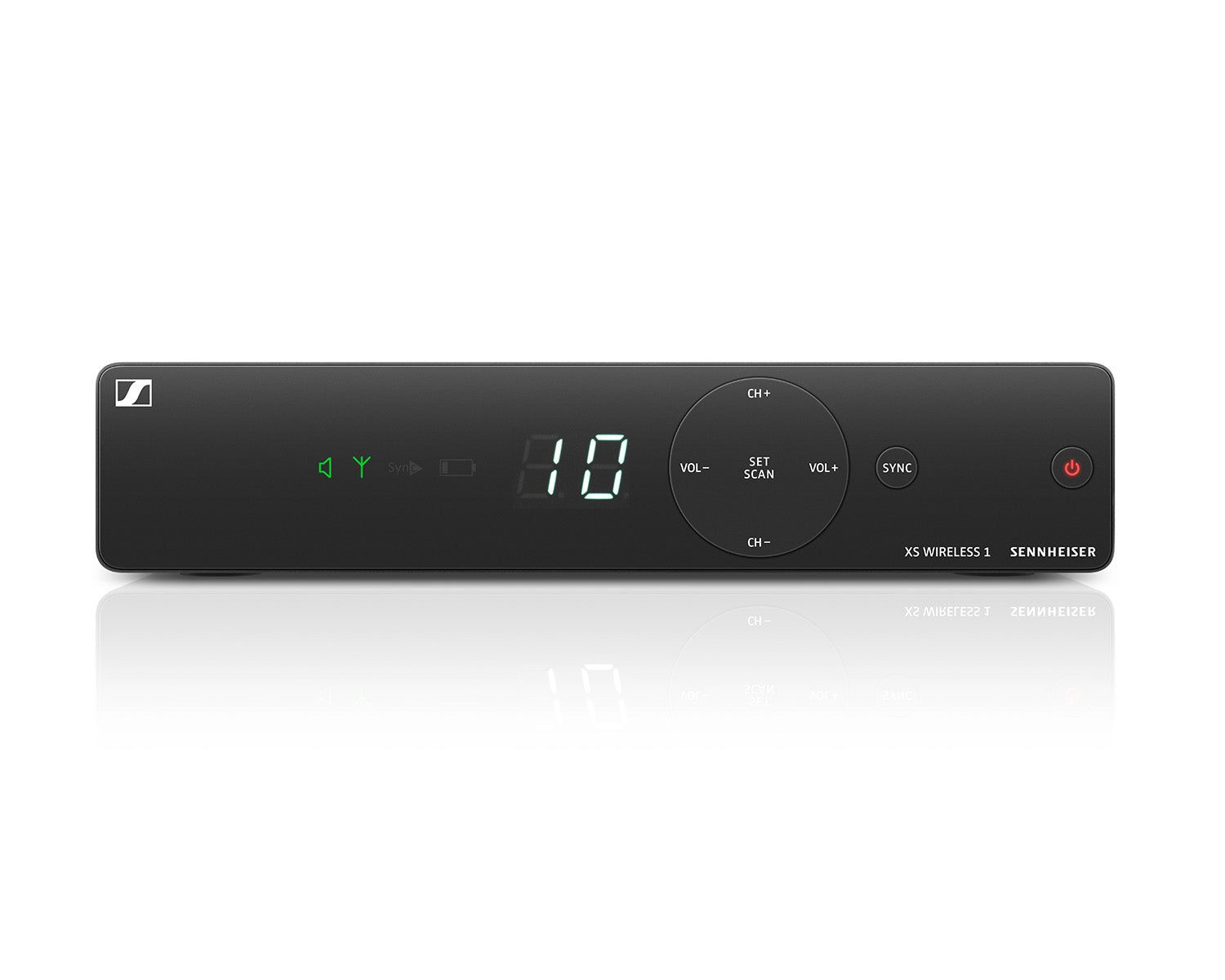

  • Receiver: approx. 200 x 42 x 127 mm

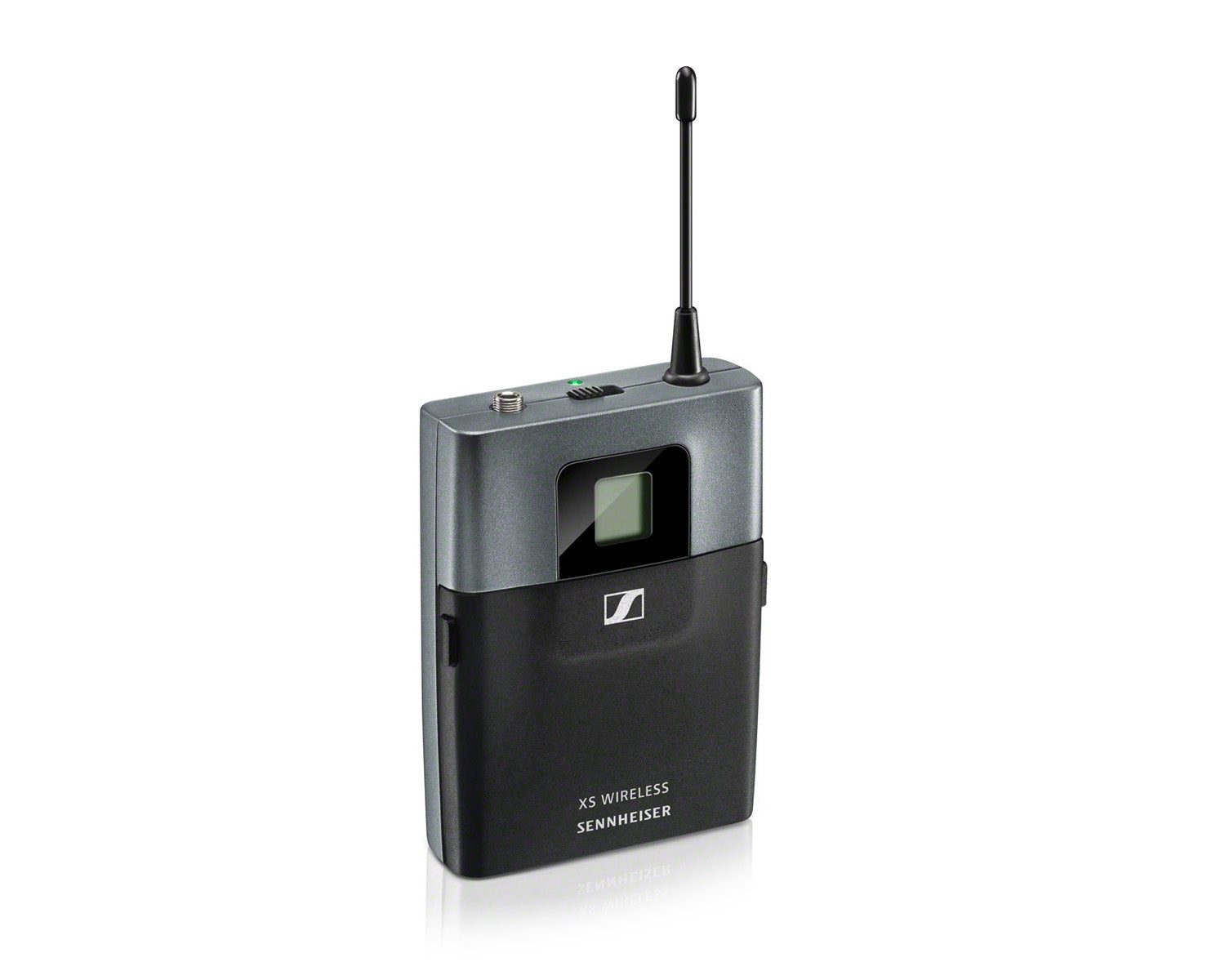

  • Bodypack transmitter: approx. 71 x 96 x 28 mm
• Weight: approx. 340g (receiver), approx. 95g (transmitter)
• Power supply:
  • Receiver: 12 V DC nom. / 300 mA
  • Transmitter: 2 AA size batteries, 1.5 V

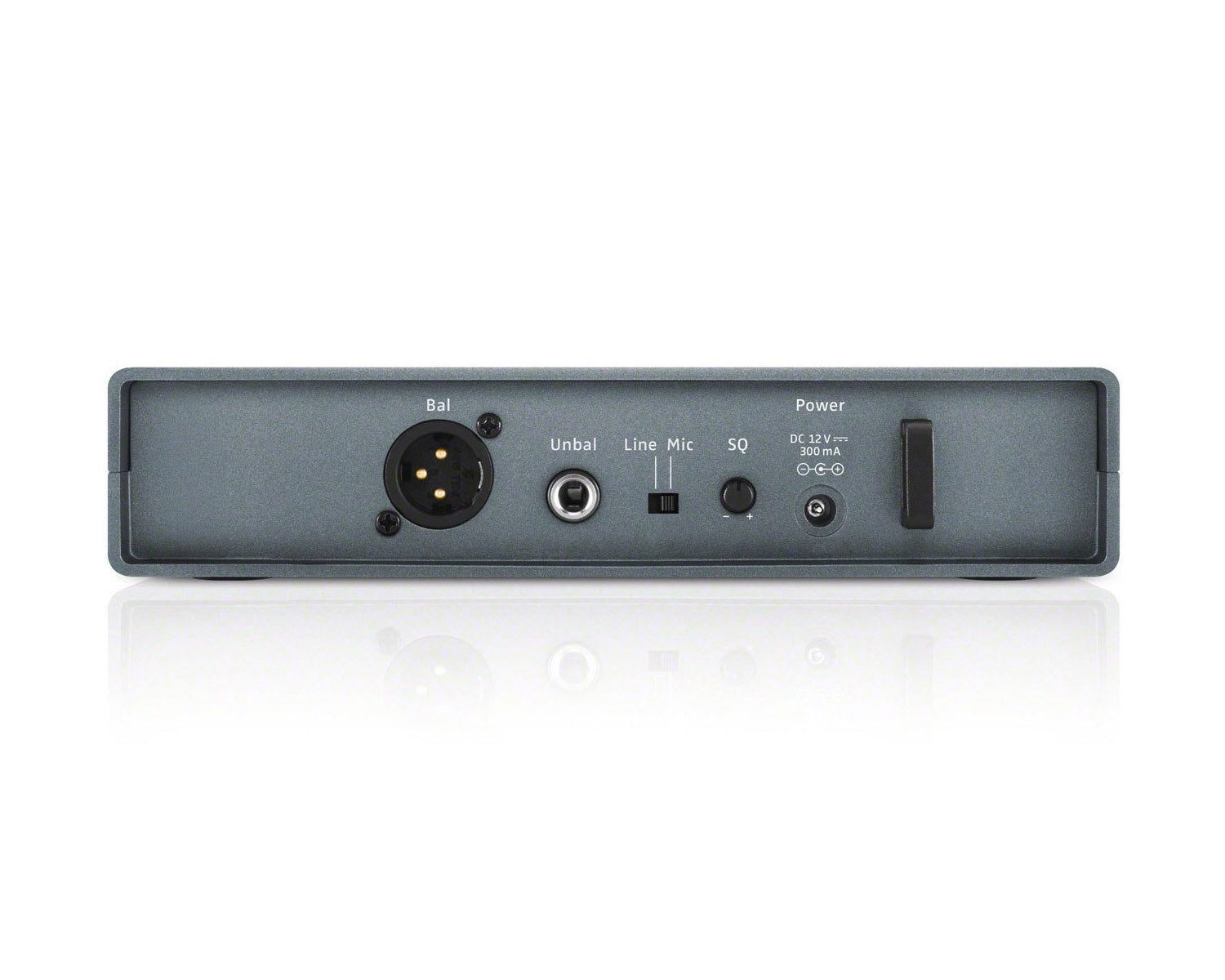

• Output voltage: 1/4‚Äú (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
