Sennheiser EW-D Ci1 (Y1-3) Wireless Instrument Set

Product code: 2087

£559.00 inc VAT
£465.83 ex VAT

SKU: 508739

Ordered from supplier, allow 1–3 weeks

Optional Add-Ons

Sennheiser BA70 Rechargeable Battery for EW-D / EW-DX Bodypack and Handheld Transmitters

BA70 Battery

£39.00 inc VAT
£32.50 ex VAT

Add to basket

L70 USB Charging Station

£58.00 inc VAT
£48.33 ex VAT

Add to basket

Sennheiser EW-D / EW-DX Charging Set with 2 x BA70 Batteries and L70 USB Charger

EW-D Charging Set

£139.00 inc VAT
£115.83 ex VAT

Add to basket

GA3 Rack Mount Kit

£46.00 inc VAT
£38.33 ex VAT

Add to basket

NT 5-20 UCW Mains Power Supply

£15.00 inc VAT
£12.50 ex VAT

Add to basket

AM2 Cable Set

£46.00 inc VAT
£38.33 ex VAT

Add to basket

EW-D ASA 1G8 Antenna Splitter

£583.00 inc VAT
£485.83 ex VAT

Add to basket

AWM 1G8 Active Directional Antenna

£375.00 inc VAT
£312.50 ex VAT

Add to basket

EW-D AB Antenna Booster

£207.00 inc VAT
£172.50 ex VAT

Add to basket

EW-D Half-Wave Dipole Antenna Rod Booster Pair

£29.00 inc VAT
£24.17 ex VAT

Add to basket

CC3 Carry Case

£88.00 inc VAT
£73.33 ex VAT

Add to basket

About this Product

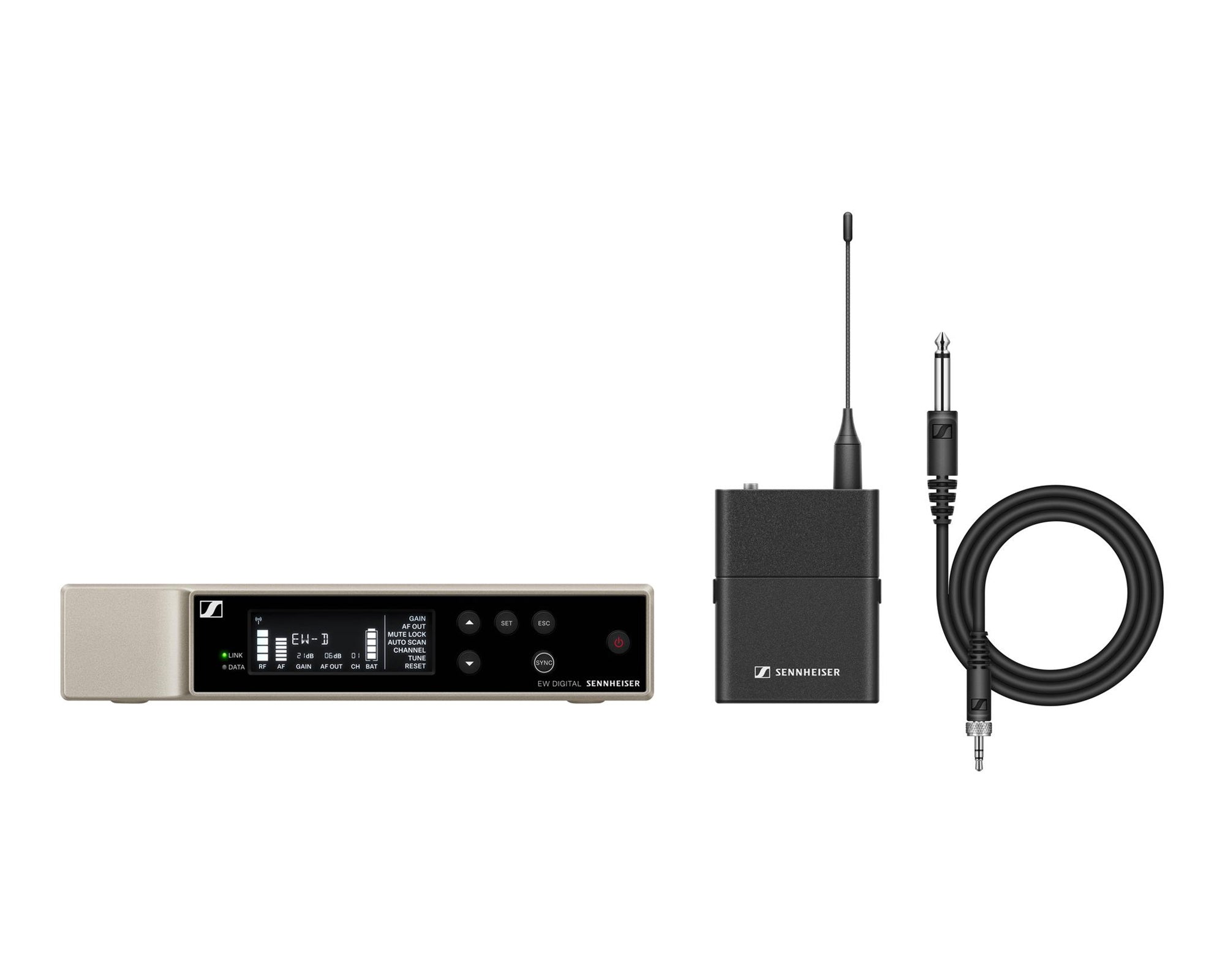

Evolution Wireless Digital (EW-D) is Sennheiser’s entry digital UHF platform, using a 15 MHz tuning range (1785 to 1800 MHz), equidistant frequency grid and 134 dB transmitter dynamic range for gain-structure-free operation. The Smart Assist app handles setup over Bluetooth Low Energy. This set ships as a complete instrument radio system with bodypack transmitter, Ci1 guitar/bass cable, rack receiver, PSU and rackmount hardware. Band variant: Y1-3, 1785 – 1800 MHz. Partly licence-exempt in the UK: 1795-1800 MHz is exempt, 1785-1795 MHz requires the Ofcom Shared PMSE licence.

Key Features

Digital UHF transmission with equidistant frequency grid for dense multi-channel use

15 MHz switching bandwidth (1785 to 1800 MHz)

134 dB transmitter input dynamic range removes the need for gain-structure matching

Smart Assist mobile app handles scan, sync and parameter setup over Bluetooth Low Energy

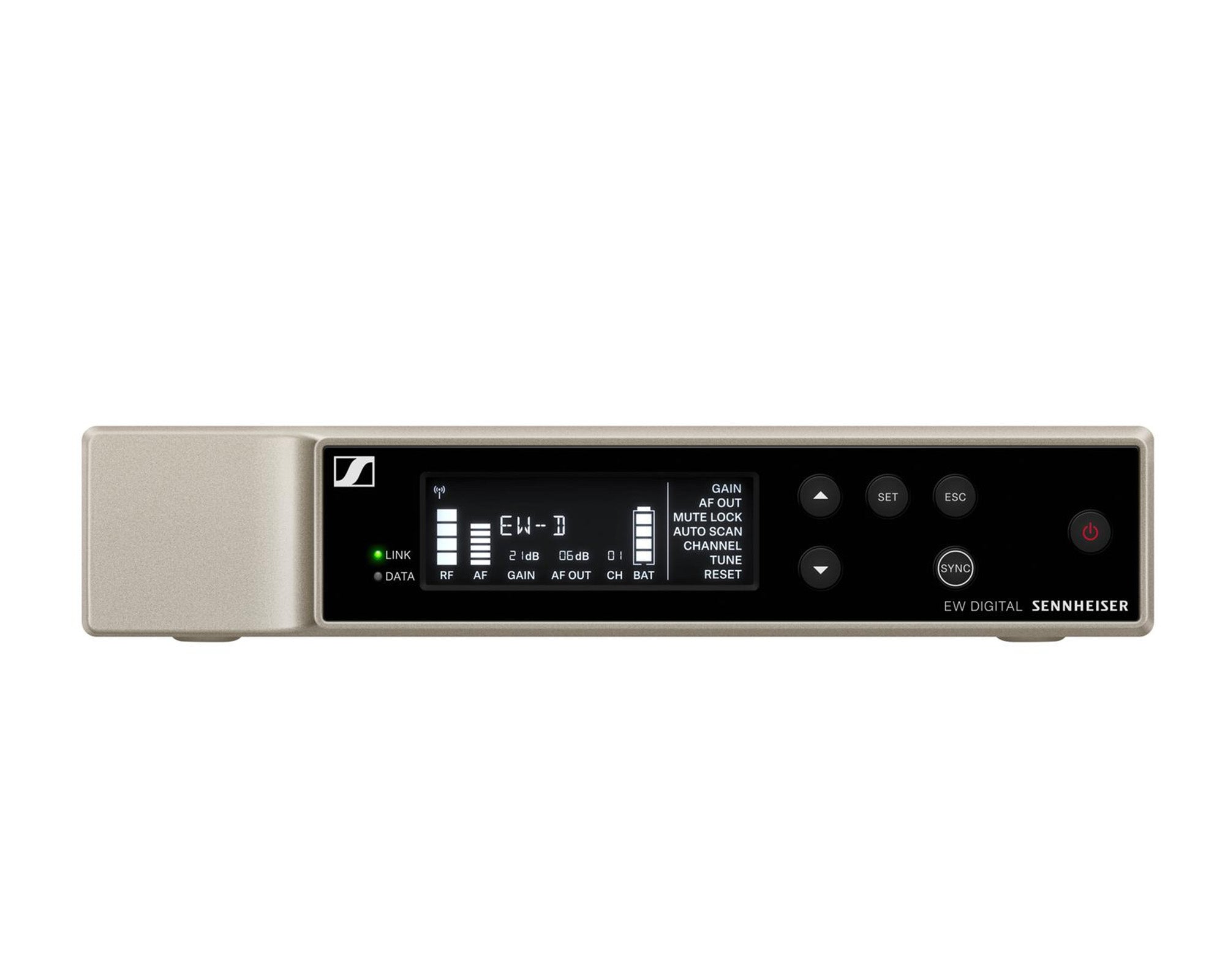

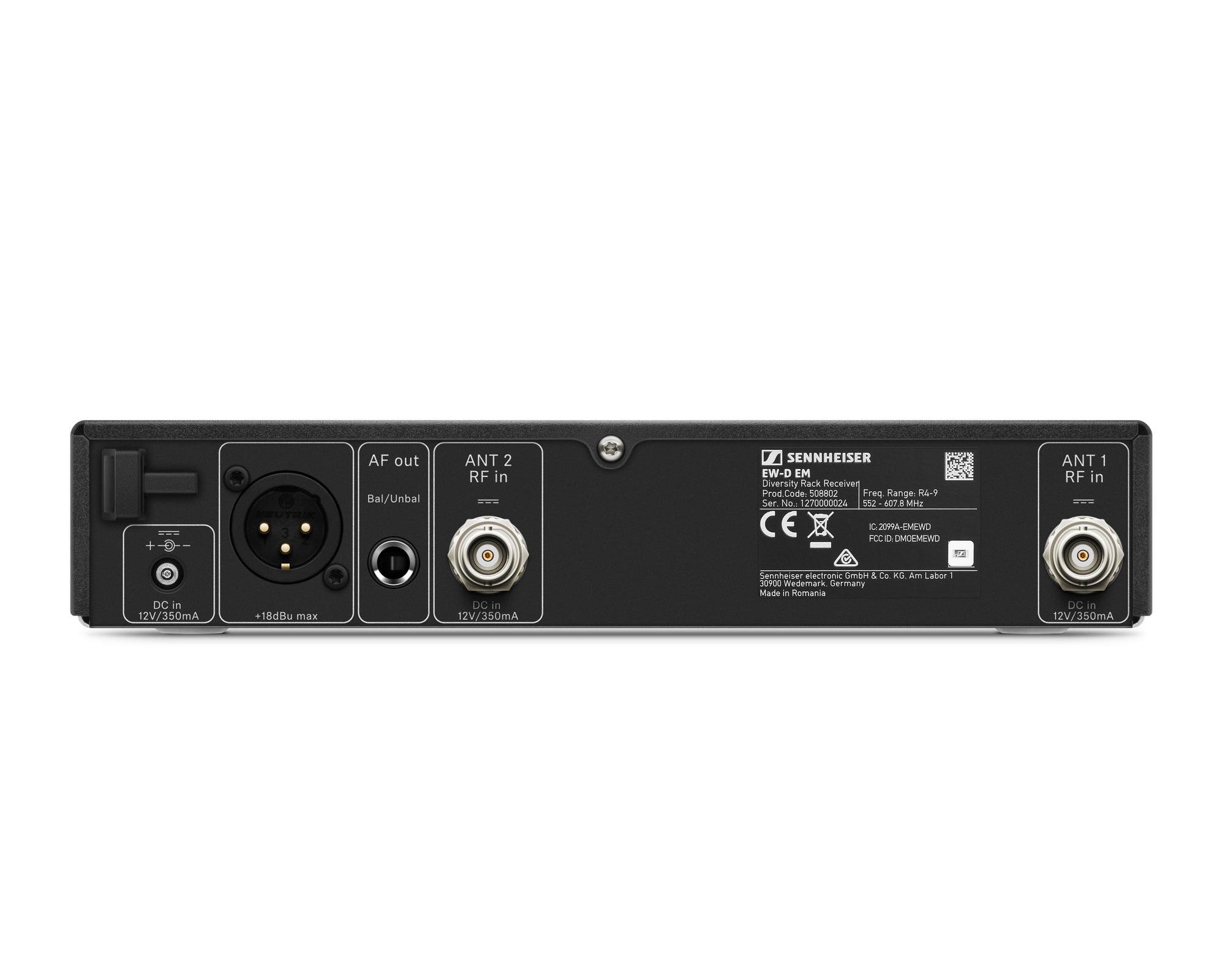

Half-rack metal receiver with detachable BNC antennas and balanced XLR plus 6.3 mm jack outputs

Runs on two AA cells or the optional BA 70 Li-ion pack

UK band Y1-3: 1785 – 1800 MHz

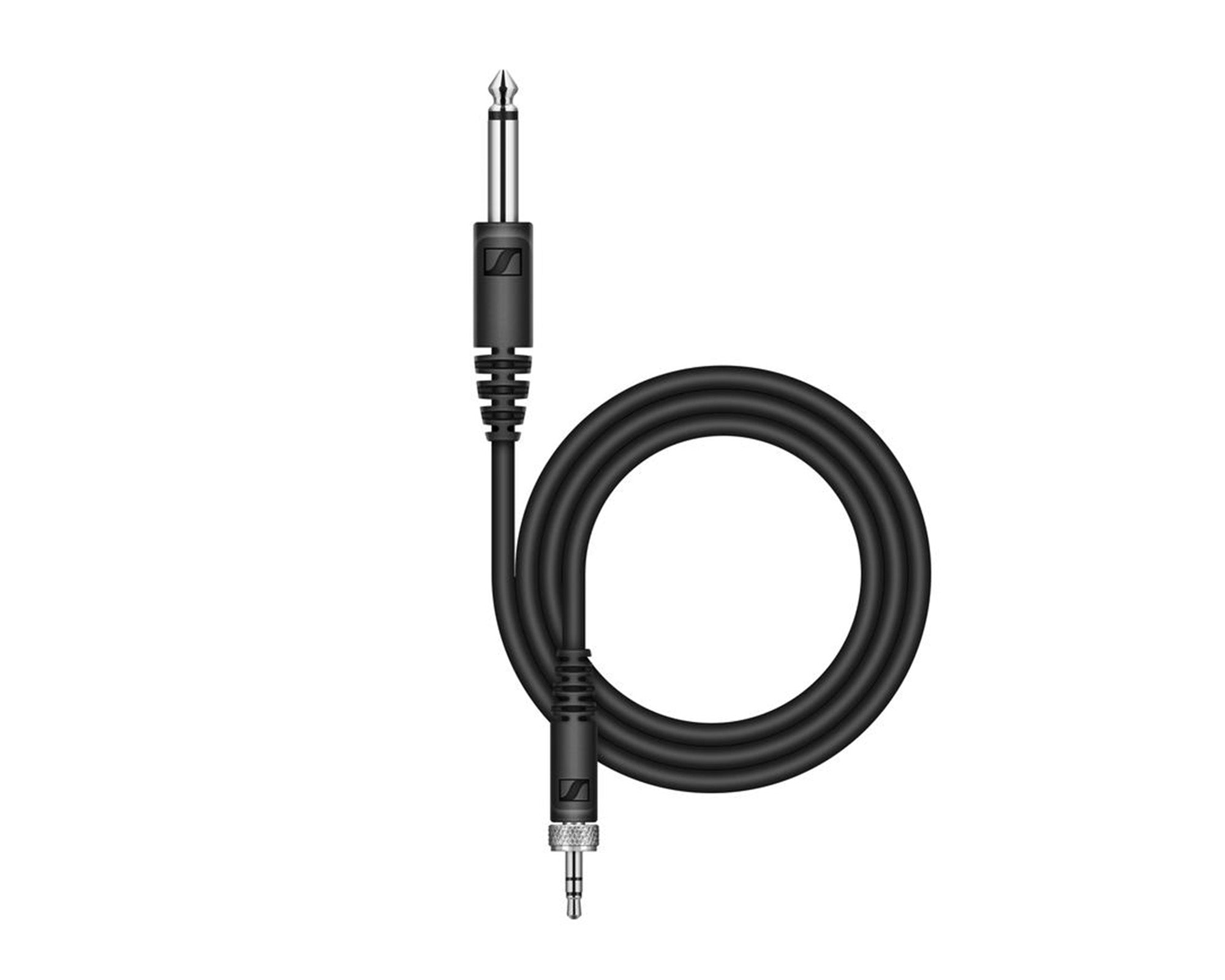

Ci1 capsule: unbalanced instrument cable for guitar/bass connection to a Sennheiser bodypack

RF output: BLE: max. 10 mW EIRP

Occupied bandwidth: 200 kHz

Specifications

Sennheiser EW-D Ci1 (Y1-3) Wireless Instrument Set specifications
System	Audio link frequency ranges
System	1785.2 – 1799.8 MHz
System: Bluetooth Low Energy (BLE) frequency range	2402 – 2480 MHz
System: Audio frequency response	20 Hz – 20 kHz (-3 dB) @ 3 dBfs
System: Audio THD	<= -60 dB for 1 kHz @ -3 dBfs input level
System: Operating temperature	-10 °C – +55 °C (14 °F – 131 °F)
System: Relative humidity	5 – 95 % (non-condensing)
EW-D EM (Rack Receiver): Input voltage	11 – 13 V DC
EW-D EM (Rack Receiver): Input current	<= 300 mA
EW-D EM (Rack Receiver): Transmit power (radiated)	BLE: max. 10 mW EIRP
EW-D EM (Rack Receiver): Audio output power	18 dBu max.
EW-D EM (Rack Receiver): Dimensions	212 x 44 x 189 mm
EW-D EM (Rack Receiver): Weight approx.	1000 g (without antennas and power supply)
EW-D SK (Bodypack Transmitter): Input voltage	2.0 – 4.35 V
EW-D SK (Bodypack Transmitter): Input current	< 300 mA
EW-D SK (Bodypack Transmitter): Power supply	2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
EW-D SK (Bodypack Transmitter): Occupied bandwidth	200 kHz
EW-D SK (Bodypack Transmitter)	Transmit power (radiated)
EW-D SK (Bodypack Transmitter): (Range Y1-3	12 mW ERP)
EW-D SK (Bodypack Transmitter): BLE	max. 10 mW EIRP
EW-D SK (Bodypack Transmitter): Dimensions	63 x 80 x 20 mm (without antenna)
EW-D SK (Bodypack Transmitter): Weight (without batteries)	approx. 120 g
Set in packaging: Dimensions	405 x 350 x 73 mm
Set in packaging: Weight	2.8 kg
Sennheiser part number	508739
UK band	Y1-3 (1785 – 1800 MHz)

Full features

Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Selectable frequencies for fine tuning across the 1785.2 - 1799.8 MHz Y1-3 band
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
Y1-3 tuning range of 1785.2 - 1799.8 MHz gives up to 25 channels on the equidistant 600 kHz preset grid
Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

Full specifications

System

Audio link frequency ranges
- Y1-3: 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ‚â§ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

Input voltage: 11 - 13 V ‚éì
Input current: ‚â§ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight approx.: 1000 g (without antennas and power supply)

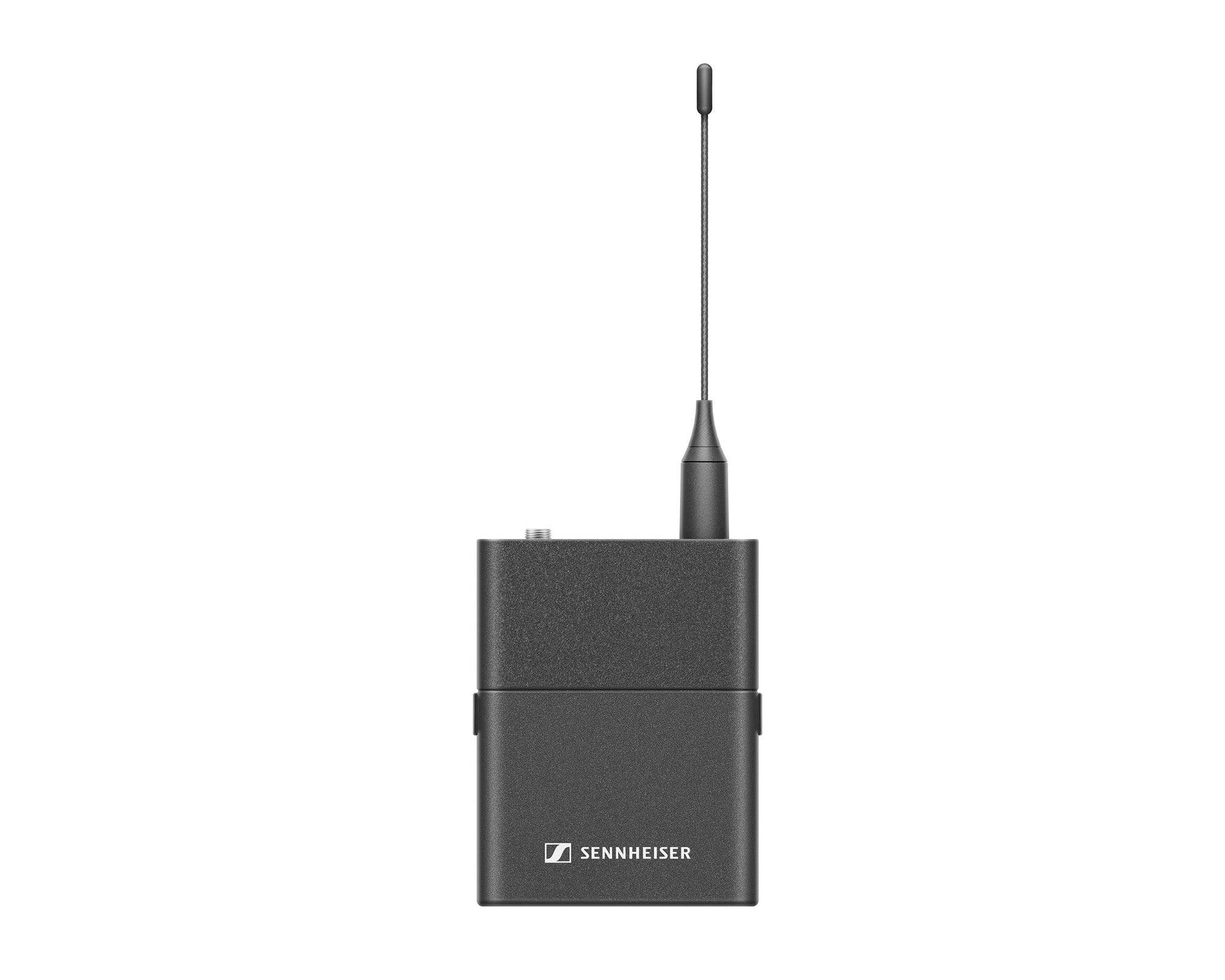

EW-D SK (Bodypack Transmitter)

Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- BLE: max. 10 mW EIRP
Dimensions: 63 x 80 x 20 mm (without antenna)
Weight (without batteries): approx. 120 g

Set in packaging

Dimensions: 405 x 350 x 73 mm
Weight: 2.8 kg
