Description

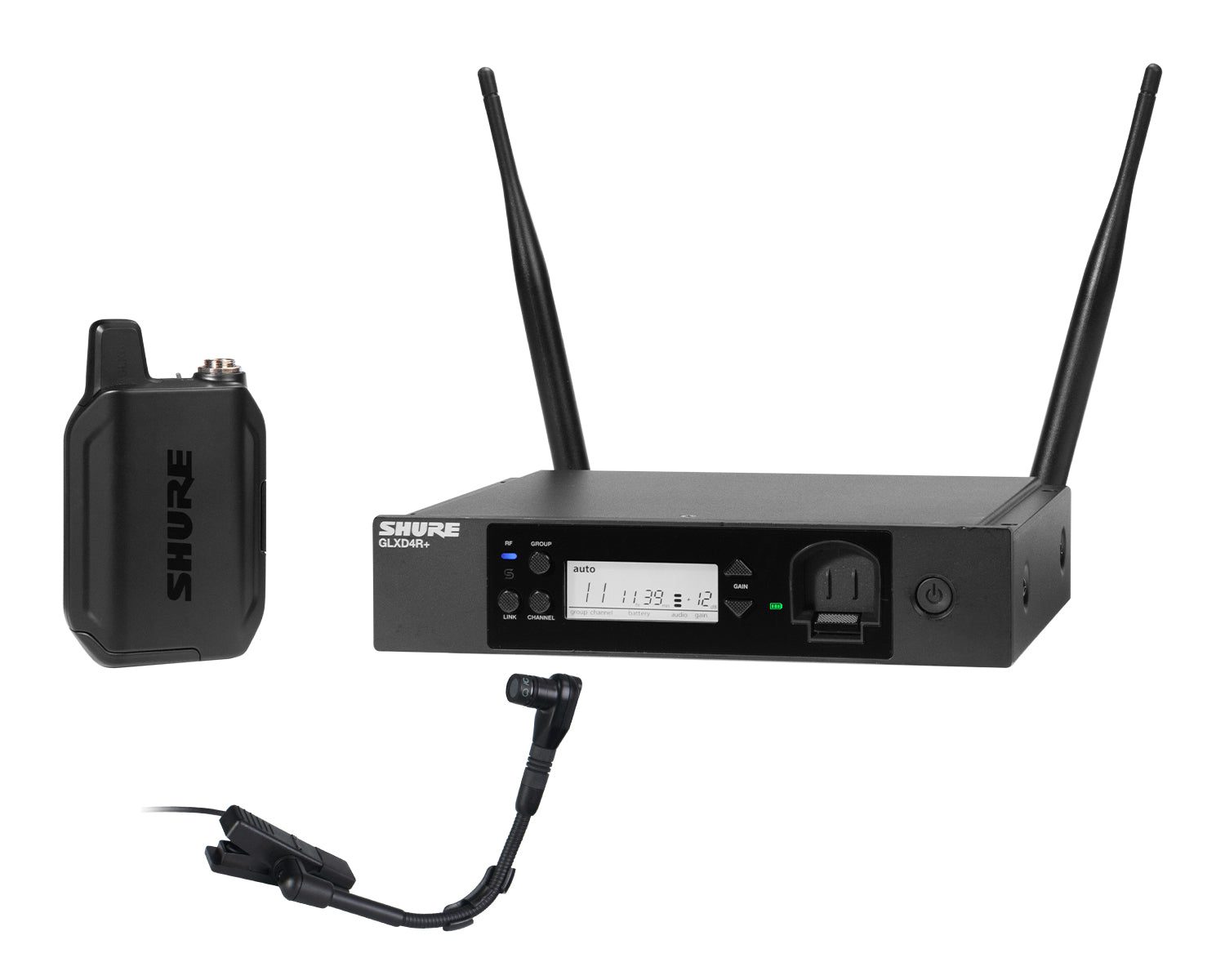

The GLX-D+ Dual Band Wireless Rack System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4R+ half-rack receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
Features
System Features
- Exceptional digital audio clarity
- Compatible with multiple legendary microphone options
- Automatically moves away from interference without audio interruption
- Operates in 2.4 and 5.8 GHz spectrum
- Rechargeable battery delivers up to 12 hours of runtime
- Rock-solid RF performance for multiple system installations
- License-free frequency range

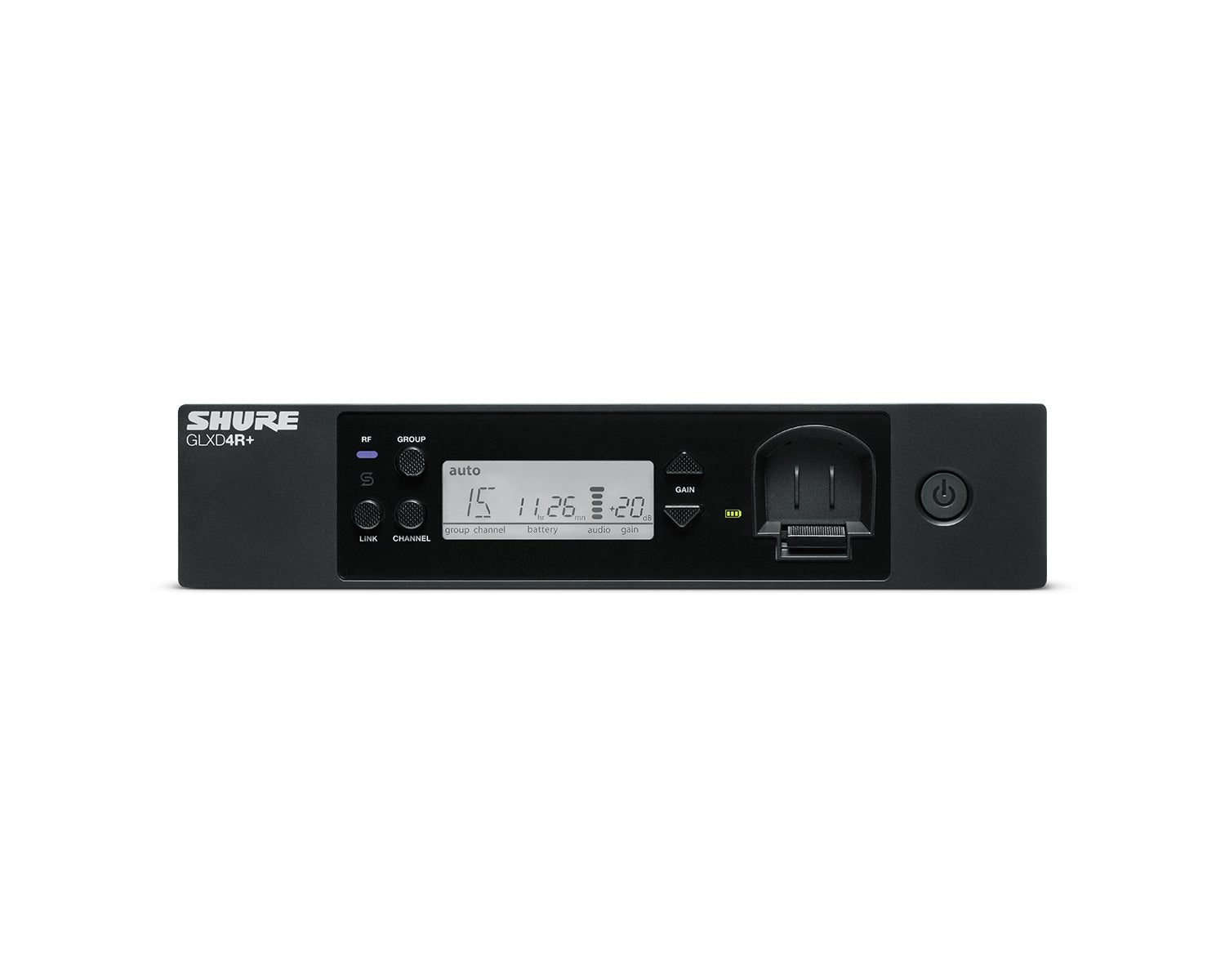

GLXD4R+ Receiver Features
- Rackmount Receiver
- Half-Rack Size
- Built-in Battery Charger Bay
- Detachable Antennas

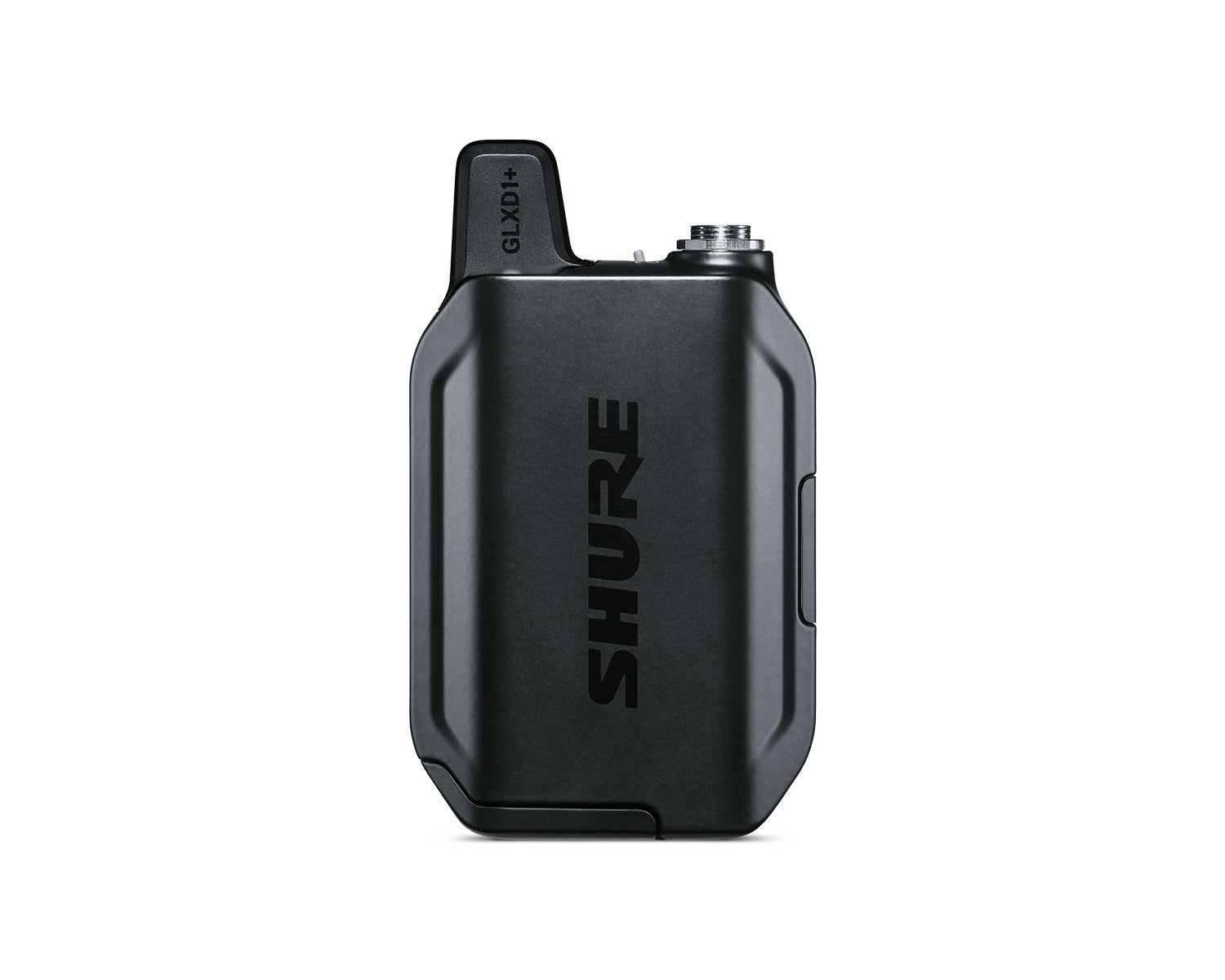

GLXD1+ Bodypack Features
- Rugged Metal Construction
- Included Rechargeable Battery Delivers up to 12 Hours of Runtime
- Compatible with instrument cable, and a variety of headset and lavalier microphone options
- Range: up to 100 feet (30 meters)

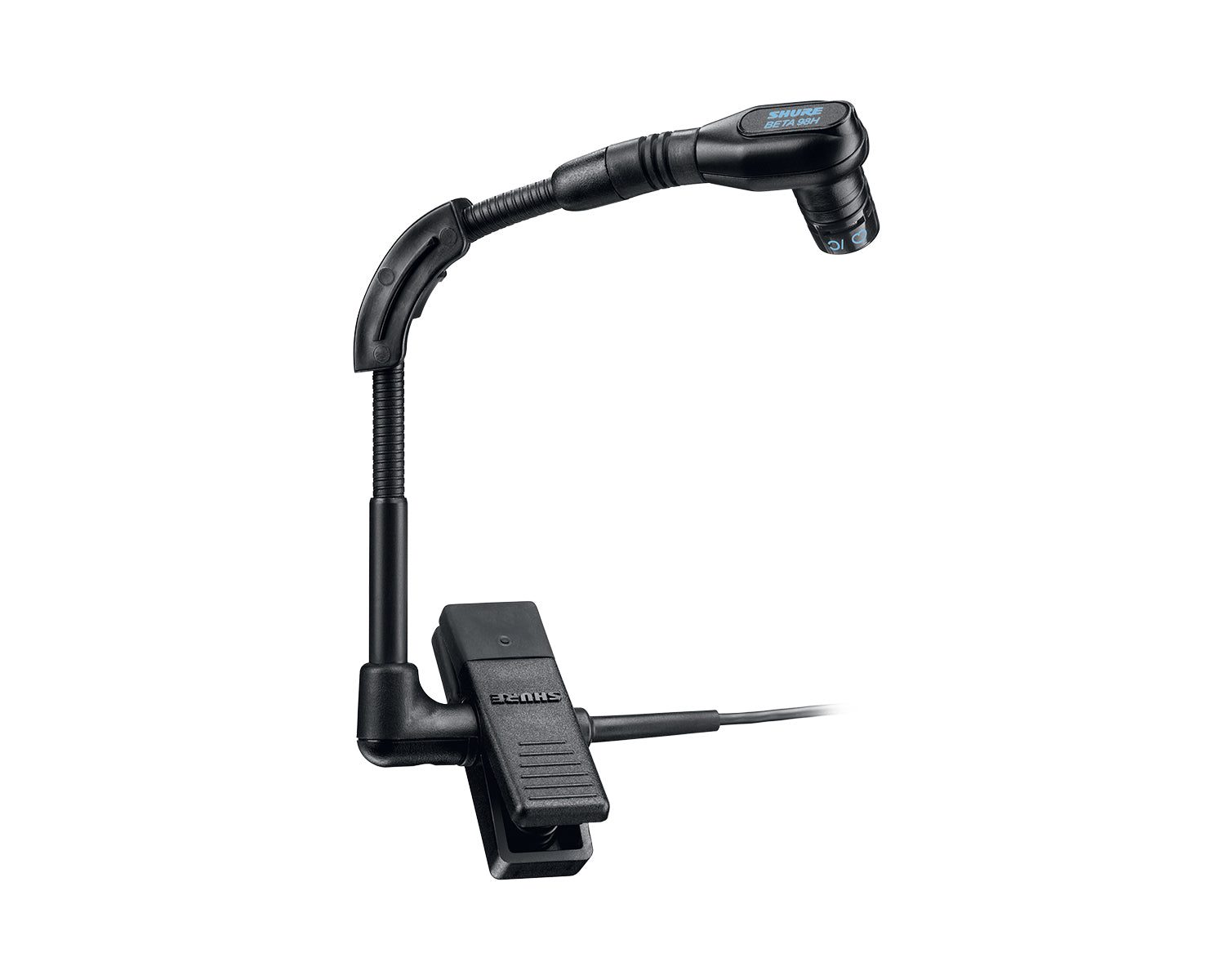

BETA®98H/C Microphone Features
- The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise
- Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments
- Tailored frequency response for open, natural sound reproduction
- Compact, lightweight construction provides a low degree of visibility
- Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
Specs
System Specifications
- Transmit Mode: Shure proprietary digital
- RF Output Power: 10 mW E.I.R.P. maximum
- Ambient Temperature Range:
- Charging: 0°C (32°F) to 40°C (104°F)
- Operating: 0°C (32°F) to 45°C (113°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
- Audio Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: 122 dB, A-weighted
- RF Sensitivity: -88 dBm, typical
- Total Harmonic Distortion: 0.2%, typical
- Battery Life: Up to 11.5 hours
- Channel Count:
- Up to 4 typical, 8 optimal
- 2.4 GHz only: Up to 4 typical, 5 optimal

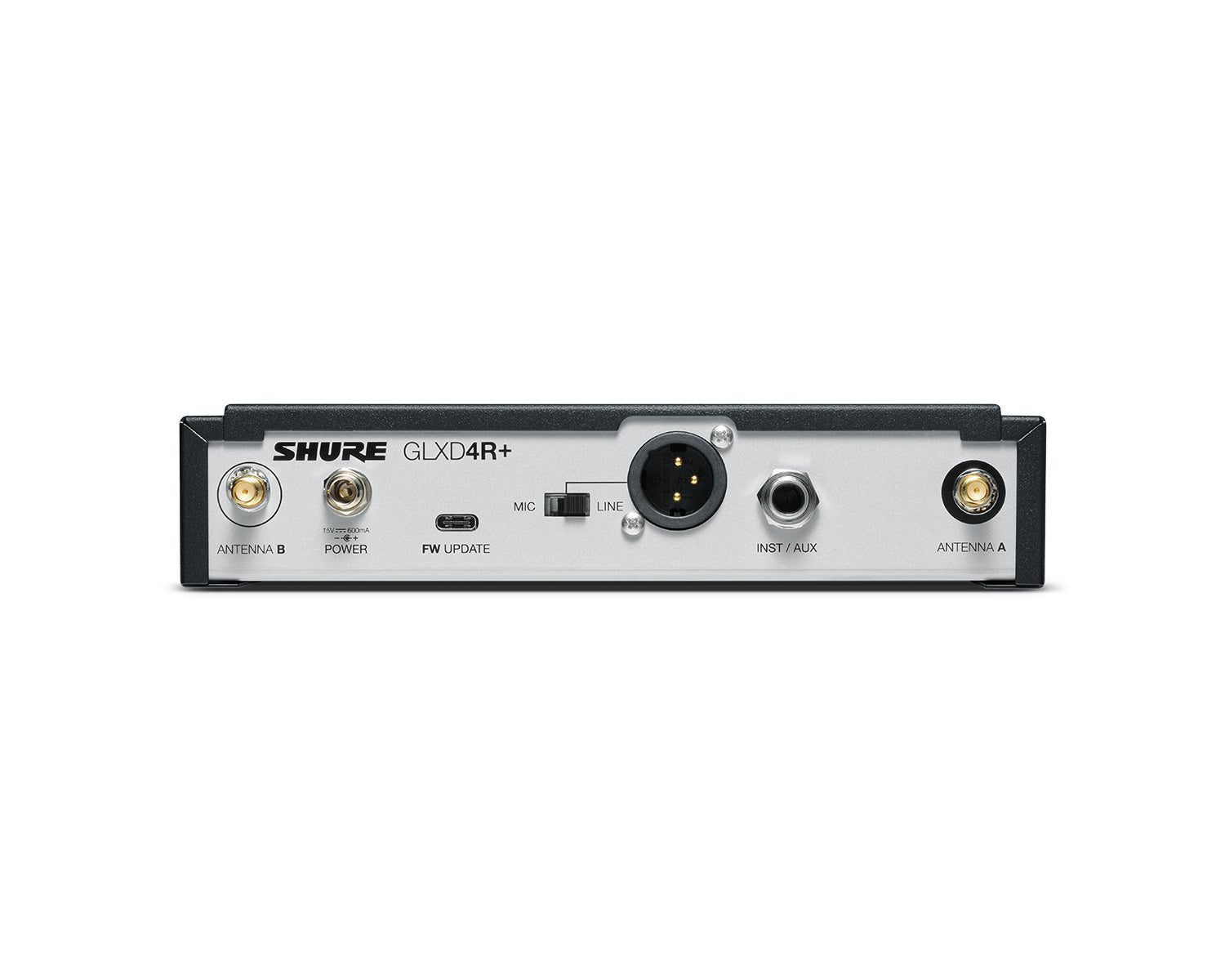

GLXD4R+ Receiver Specifications
- Power Requirements: 14.5 V – 17 V, 600 mA (efficiency level VI power supply)
- Antenna Type: Dual-band ¬Ω Wave Sleeve Dipole
- Dimensions: 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
- Weight: 30.5 oz (866 g)
- Housing: Steel
- Spurious Rejection: > 35 dB, typical
- Gain Adjustment Range: -18 to 42 dB, 1 dB increments
- Phantom Power Protection: Yes
- Audio Output:
- Configuration
- XLR Output: Balanced
- 6.35 mm (1/4") output: Impedance balanced
- Impedance
- XLR Output: 100 Ω
- 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
- Full Scale Output
- 6.35 mm (1/4"): +12 dBV
- XLR: LINE setting = +18 dBV, MIC setting = -12 dBV
- Mic/Line Switch: 30 dB pad
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
- Receiver Antenna Input:
- Impedance: 50 Ω
- Maximum Input Level: -20 dBm

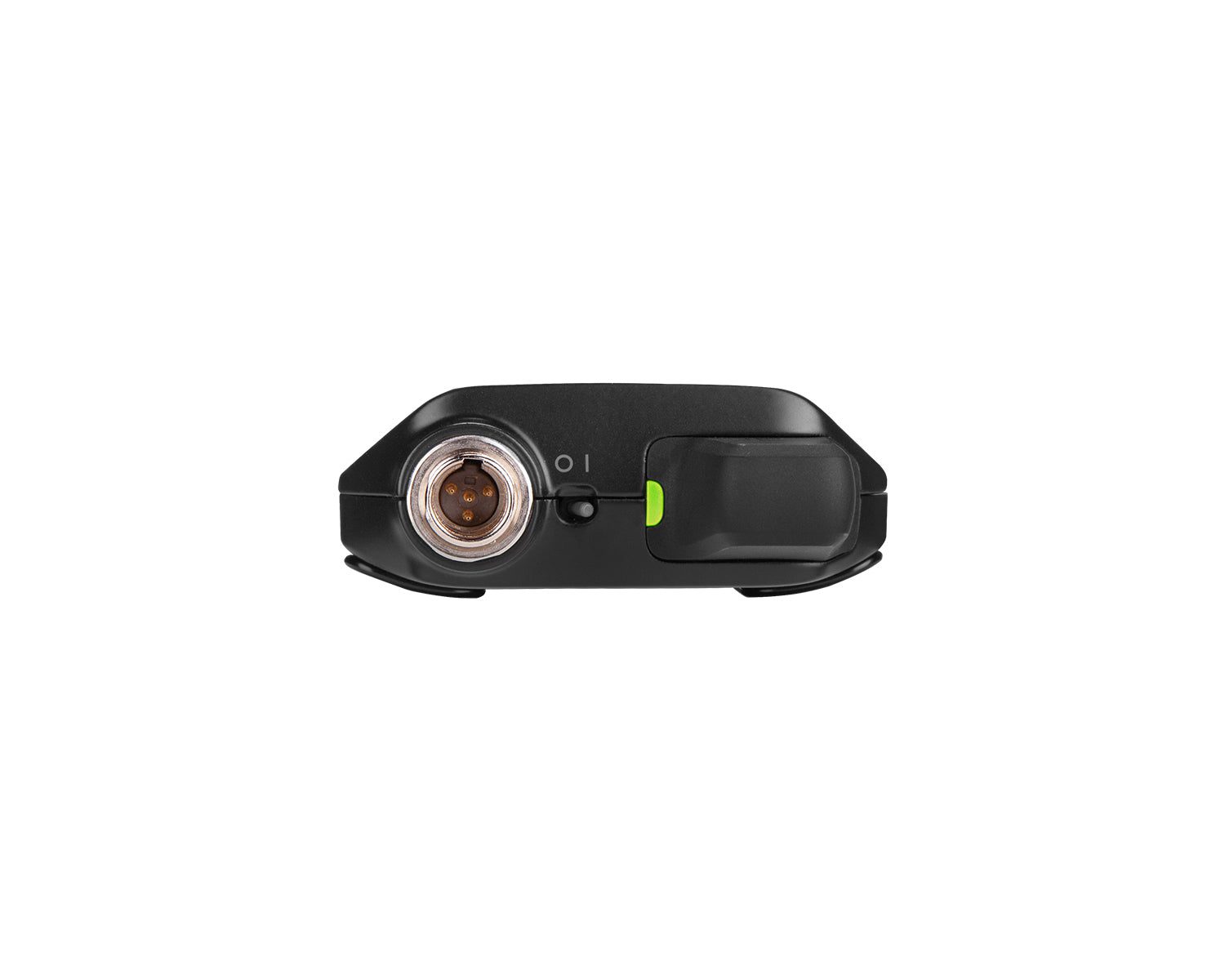

GLXD1+ Bodypack Specifications
- Antenna Type: Dual-band Internal Monopole
- Dimensions: 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
- Weight: 5.4 oz (153.1 g), without battery
- Housing: Aluminium alloy, ABS plastic
- Input Impedance: 900 kΩ
- Connector: 4-pin male mini connector (TA4M)
- Maximum Input Level: +8.4 dBV (7.5 Vp-p)
- Configuration: Unbalanced
- Pin Assignments
- 1: Ground (cable shield)
- 2: + 5 V bias
- 3: Audio
- 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats
BETA®98H/C Microphone Specifications
- Cartridge Type: Electret Condenser
- Frequency Response: 20 to 20,000 Hz
- Polar Pattern: Cardioid
- Output Impedance: 150 Ω
- Sensitivity (at 1 kHz, open circuit voltage): –56 dBV/Pa (1.6 mV) (1 Pascal=94 dB SPL)
- Maximum SPL (1 kHz at 1% THD, 1KΩ load): 155 dB SPL
- Equivalent Output Noise (A-weighted): 31 dB SPL (typical)
- Dynamic Range (at 1 kHz, 1KΩ load):
- 124 dB
- 132 dB
- Clipping Level (1 kHz at 0.25% THD, 1KΩ load): 3 dBV (1.4 V)
- Signal-to-Noise Ratio (Referenced at 94 DB SPL at 1 kHz): 63 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Power Requirements: 11–52 VDC phantom power (IEC-61938), 1.2 mA
