Name: Shure GLXD24+/B87A Wireless Handheld System GLXD2+/B87A Z4
Brand: Shure
SKU: GLXD24+UK/B87A-Z4
Availability: InStock

Shure GLXD24+/B87A Wireless Handheld System GLXD2+/B87A Z4

£752.72£627.27 Incl. VATExcl. VAT

SKU: GLXD24+UK/B87A-Z4 Category: Sets

Description

Featuring the industry standard BETA¬Æ87A vocal microphone, the new GLXD24+/B87A Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Features

System Features

Exceptional digital audio clarity
Compatible with multiple legendary microphone options
Automatically moves away from interference without audio interruption
Operates in 2.4 and 5.8 GHz spectrum
Rechargeable battery delivers up to 12 hours of runtime
Rock-solid RF performance for multiple system installations
License-free frequency range

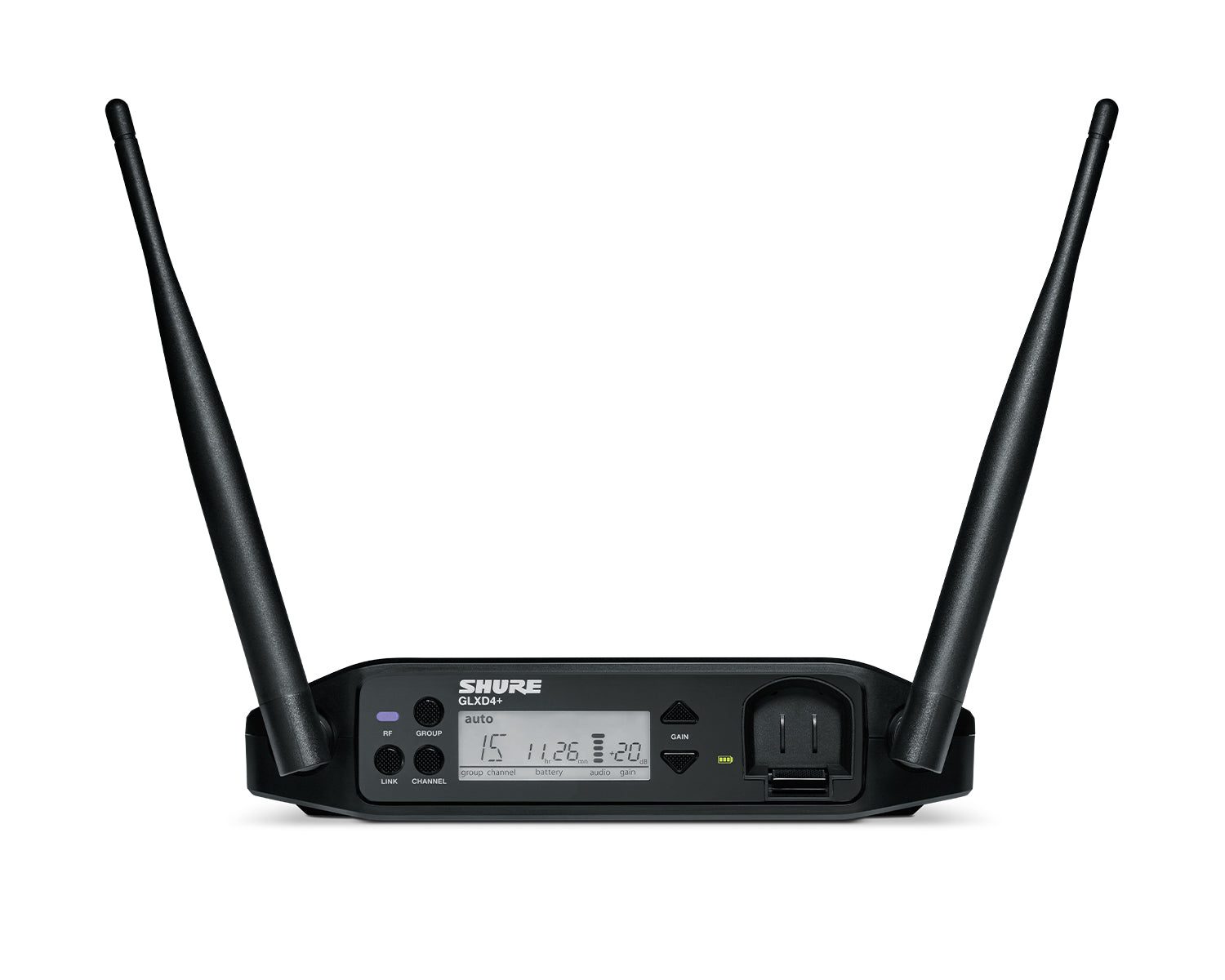

GLXD4+ Receiver Features

Tabletop Receiver
Built-in Battery Charger Bay
Fixed Antennas at Front

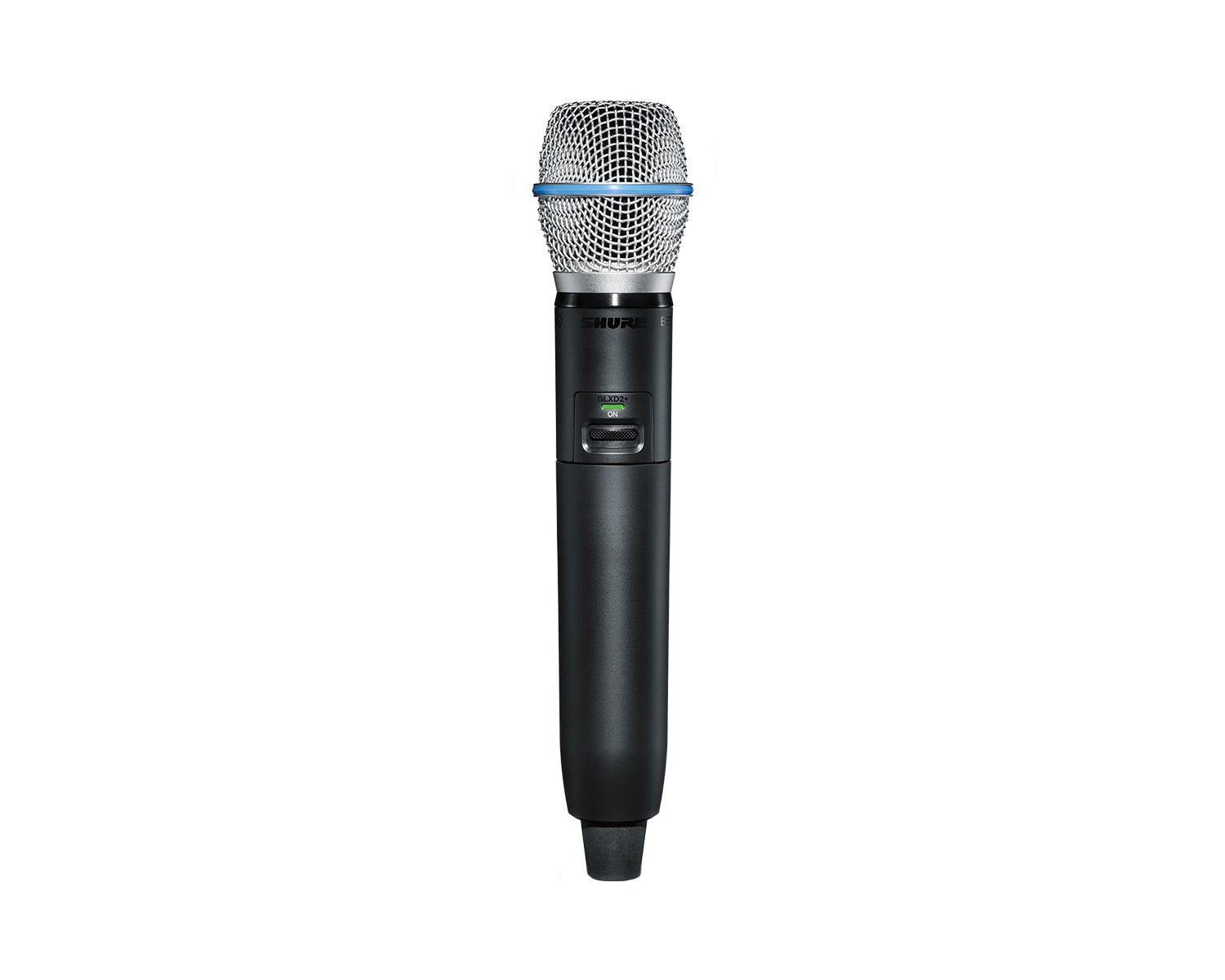

GLXD2+/B87A Handheld Features

Supercardioid Dynamic Microphone
Exceptional Digital Audio Clarity
Rugged Metal Construction
Included Rechargeable Battery Delivers up to 12 Hours of Runtime
Capsule is not Interchangeable
Range: up to 100 feet (30 meters)
Handheld transmitter: fixed head

Specs

System Specifications

Transmit Mode: Shure proprietary digital
RF Output Power: 10 mW E.I.R.P. maximum
Ambient Temperature Range:
- Charging: 0¬∞C (32¬∞F) to 40¬∞C (104¬∞F)
- Operating: 0¬∞C (32¬∞F) to 45¬∞C (113¬∞F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
Audio Frequency Response: 20 Hz ‚Äì 20 kHz
Dynamic Range: 122 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.2%, typical
Battery Life: Up to 11.5 hours
Channel Count:
- Up to 4 typical, 8 optimal
- 2.4 GHz only: Up to 4 typical, 5 optimal

GLXD4+ Receiver Specifications

Power Requirements: 14.5 V ‚Äì 17 V, 600 mA (efficiency level VI power supply)
Antenna Type: Dual-band ¬Ω Wave Sleeve Dipole, non-removable
Dimensions
- Antenna folded: 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
- Antenna opened: 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
Weight: 10.9 oz (310 g)
Housing: PC/ABS
Spurious Rejection: > 35 dB, typical
Gain Adjustment Range: -20 to 40 dB, 1 dB increments
Phantom Power Protection: Yes

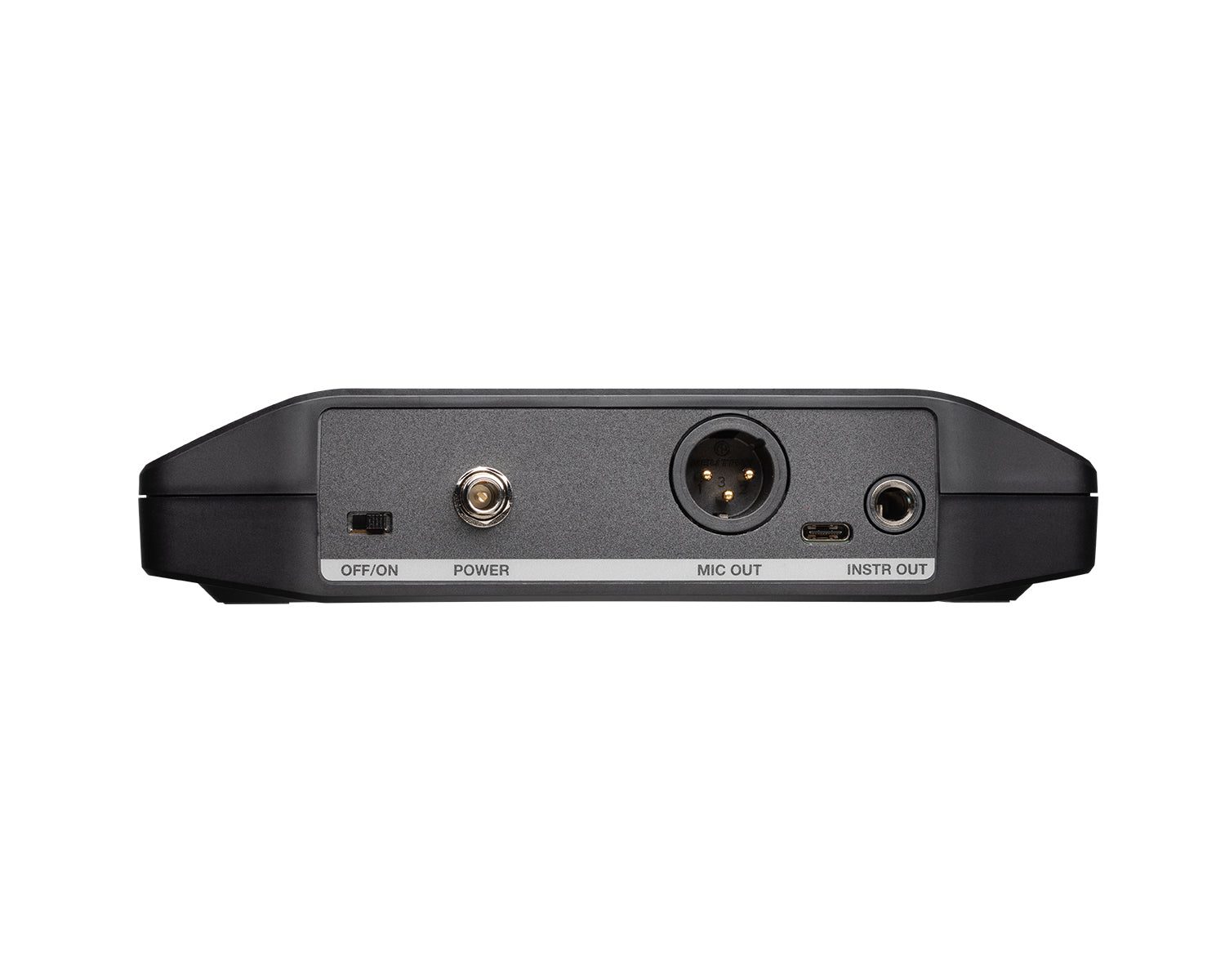

Audio Output:
- Configuration
  - XLR Output: Impedance balanced
  - 6.35 mm (1/4") output: Impedance balanced
- Impedance
  - XLR Output: 100 Œ©
  - 6.35 mm (1/4") output: 100 Œ© (50 Œ©, Unbalanced)
- Maximum Audio Output Level
  - XLR connector: +1 dBV
  - 6.35 mm (1/4") connector: +8.5 dBV
- Pin Assignments
  - XLR Output: 1=ground, 2=hot, 3=cold
  - 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
