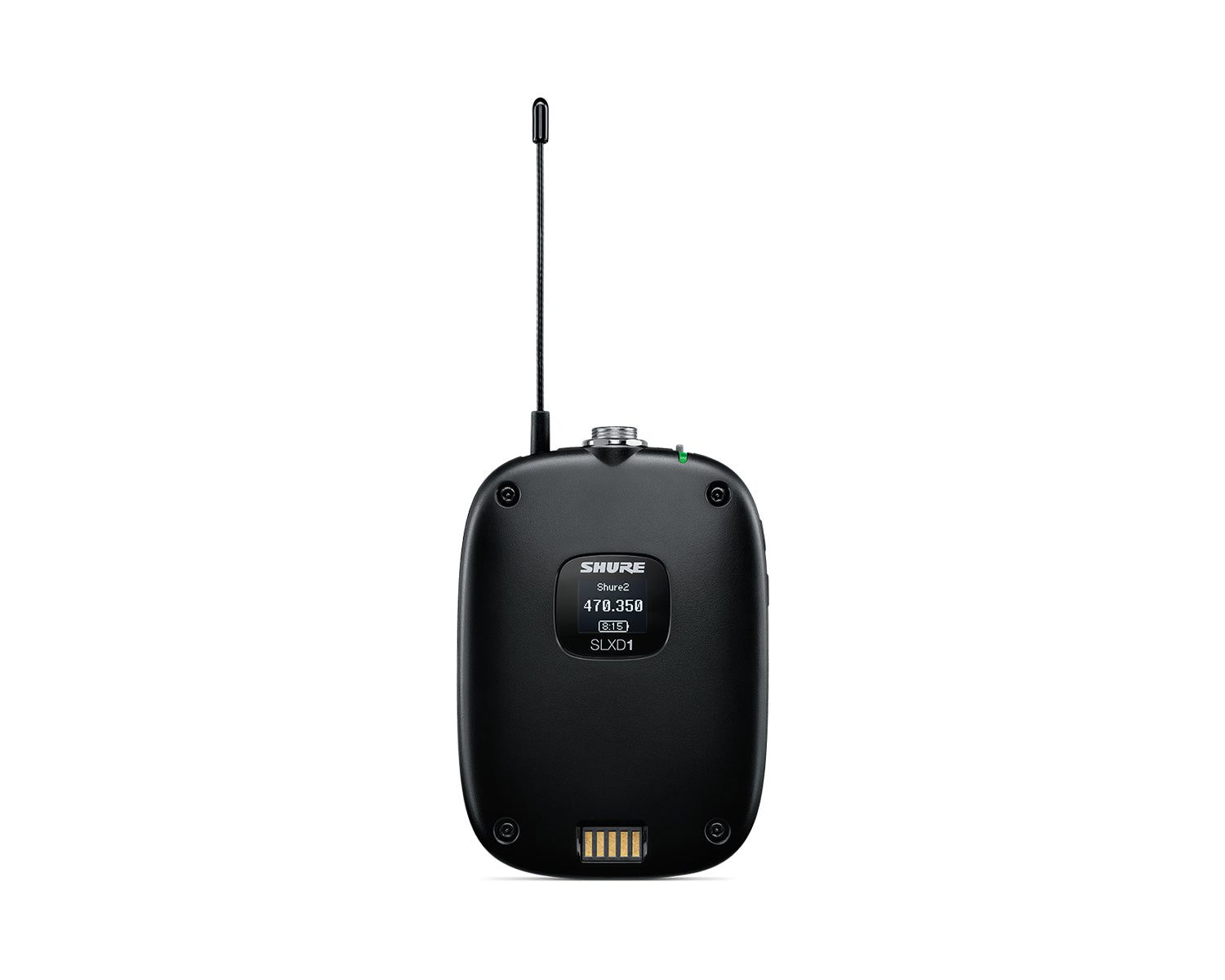

Name: Shure SLXD1 Wireless Bodypack Transmitter K59 606-650 MHz CH38
Brand: Shure
SKU: SLXD1=-K59
Availability: InStock

Shure SLXD1 Wireless Bodypack Transmitter K59 606-650 MHz CH38

£231.59£192.99 Incl. VATExcl. VAT

Description

SLX-D¬Æ Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features

Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over scan and IR sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
TQG connectivity offers a variety of microphone options
Ergonomic, durable plastic construction

Specs

System Specifications

RF
- RF Carrier Frequency Range: K59 (606 - 650MHz)
- Working Range: 100 m (328 ft)
- RF Tuning Step Size:
  - JB Band: 125 kHz
  - All Other Bands: 25 kHz
  - Varies by region.
- Image Rejection: >70 dB typical
- RF Sensitivity: ‚àí97 dBm at 10-5 BER
Audio
- Latency: 3.2 ms
- High-Pass/Low Cut Filter: 150 Hz, ‚Äì12 dB/octave Note: factory default is for the HPF to be off
- Audio Frequency Response: 20 Hz‚Äì20 kHz (+1, ‚àí2 dB)
- Audio Dynamic Range, A-weighted, 20 Hz‚Äì20 kHz, typical: 118 dB @1% THD
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
  - XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
  - TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
Temperature Range
- Operating Temperature Range: 0 ¬∞F to 122 ¬∞F (‚àí18 ¬∞C to 50 ¬∞C)
- Storage Temperature Range: ‚àí20 ¬∞F to 165 ¬∞F (‚àí29 ¬∞C to 74 ¬∞C)

SLXD1 Specifications

Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (H √ó W √ó D): 3.86 √ó 2.68 √ó 1.0 in (98 √ó 68 √ó 25.5 mm)
Weight: 3.1 oz (89 g)
Housing: PC/ABS
Audio Input
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MŒ©
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent Input Noise (EIN): ‚Äì118 dBV
RF Output
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW/10 mW
