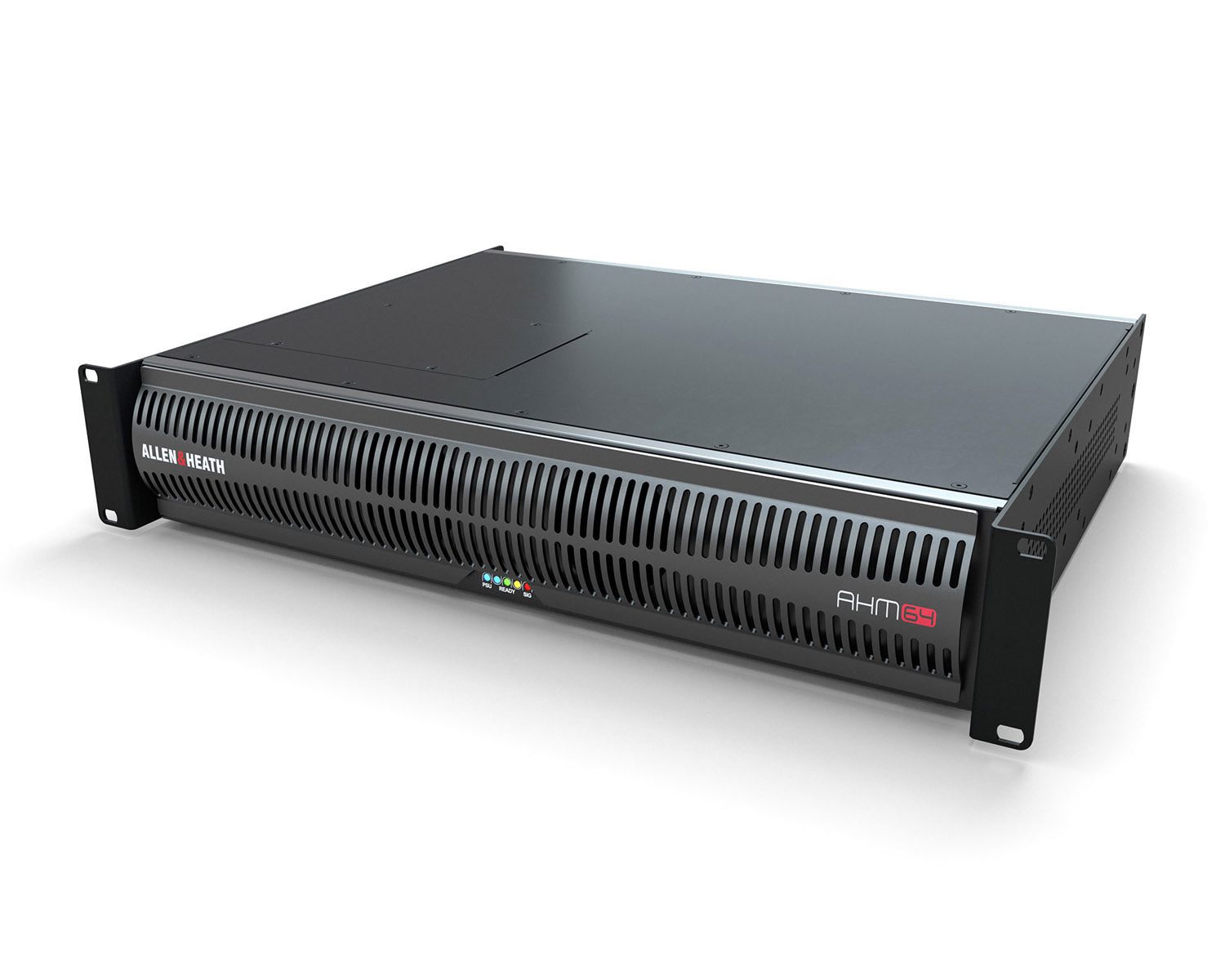

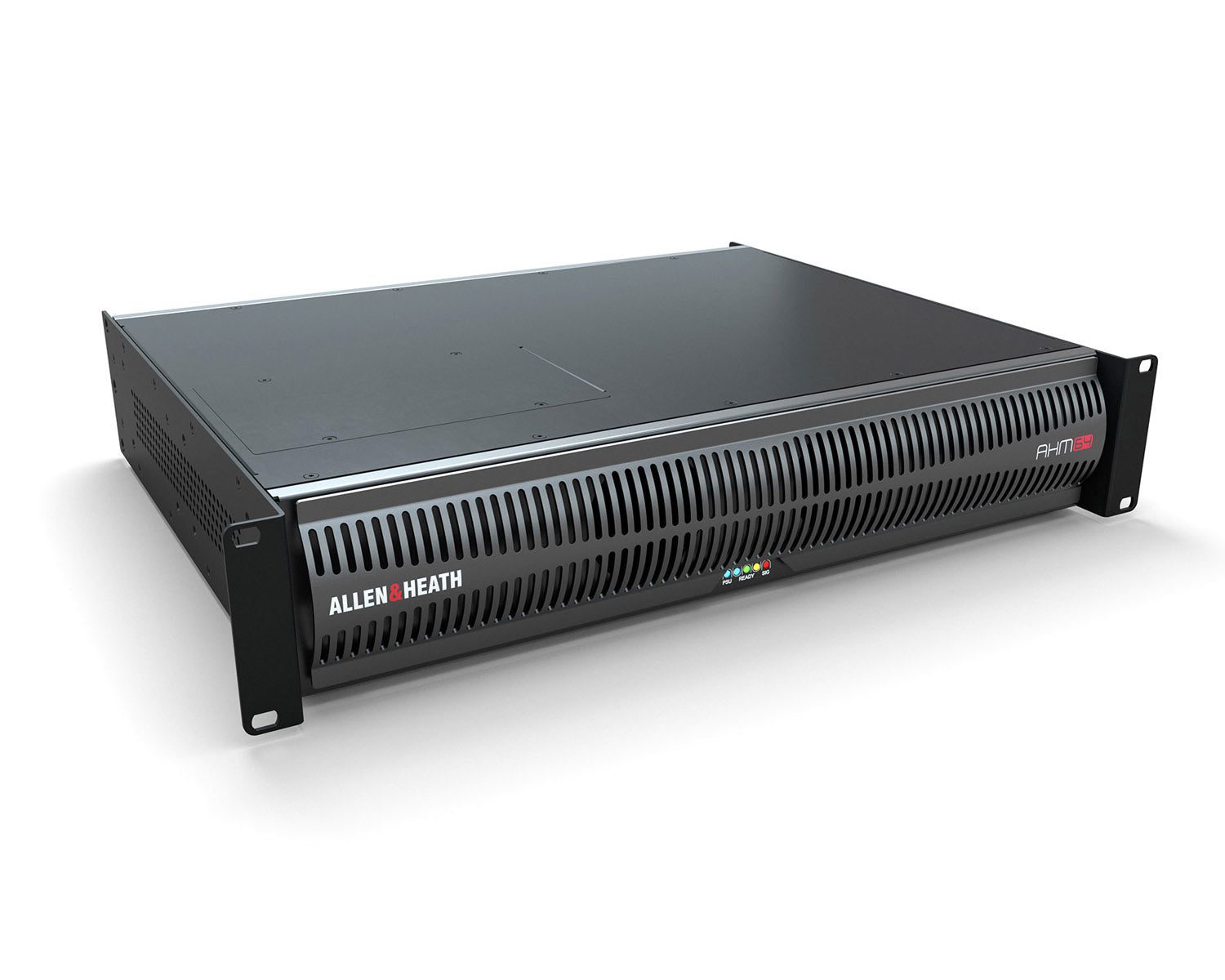

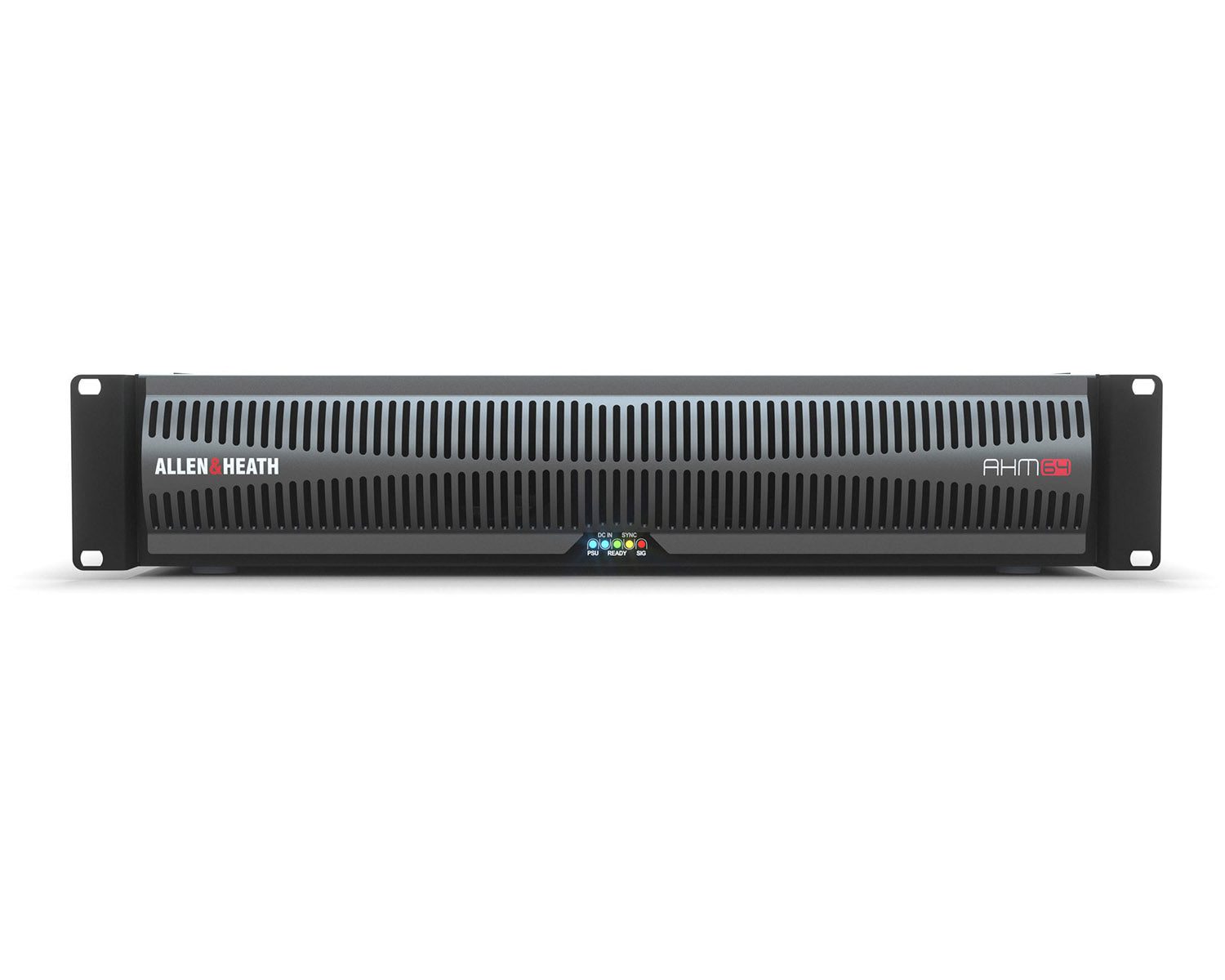

Allen & Heath AHM-64 64×64 Digital Matrix Inc 12×12 Local Analogue I/O 2U
£3,324.97£2,770.81 Incl. VATExcl. VAT
Powerful 64×64 matrix processor for AHM systems. Expands audio control with 12 local I/O ports. Seamless integration for complex routing. Unlock ultimate flexibility.
Elevate your audio processing capabilities with the Allen & Heath AHM 64×64 Matrix Processor. This robust unit delivers unparalleled flexibility and control for complex audio routing and mixing scenarios.
Key Features
- 64×64 matrix for extensive signal routing.
- 12 local I/O channels for direct connectivity.
- Advanced DSP for sophisticated audio manipulation.
- Intuitive user interface for streamlined operation.
The AHM 64×64 is designed for professionals seeking precise audio management. Effortlessly route any of your 64 inputs to any of your 64 outputs, with the added convenience of 12 integrated local I/O channels for seamless integration into your existing setup. Its powerful DSP engine unlocks a world of creative possibilities, from complex zone control to intricate audio distribution.
Ideal for venues, broadcast studios, and live performance environments, this processor ensures pristine audio quality and reliable signal flow. Experience superior control and unlock the full potential of your audio system.
Constructed with premium-grade components for lasting durability and performance.
Inputs
- Mic/Line Inputs: Balanced, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
Outputs
- Analogue Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -94dBu (muted, 20-20kHz), -92dBu (muted, 20-40kHz)
System
- Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
- Dynamic Range: 110dB
- System Signal to Noise: -94dB
- Frequency Response: 20Hz - 25kHz +0/-0.8dB
- THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
- Headroom: +18dB
- Sampling Rate: 96kHz +/- 20 PPM
Physical
- AHM-32 - without box
- Width: 482.6mm/19"
- Depth: 364mm/14.3"
- Height: 91.2mm/3.6"
- Weight: 7kg/15.5lbs
- AHM-32 - with box
- Width: 600mm/23.6"
- Depth: 500mm/19.7"
- Height: 180mm/7.1"
- Weight: 9.5kg/21lbs
- Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mains Power: 100-240V AC, 50-60Hz, 70W max
