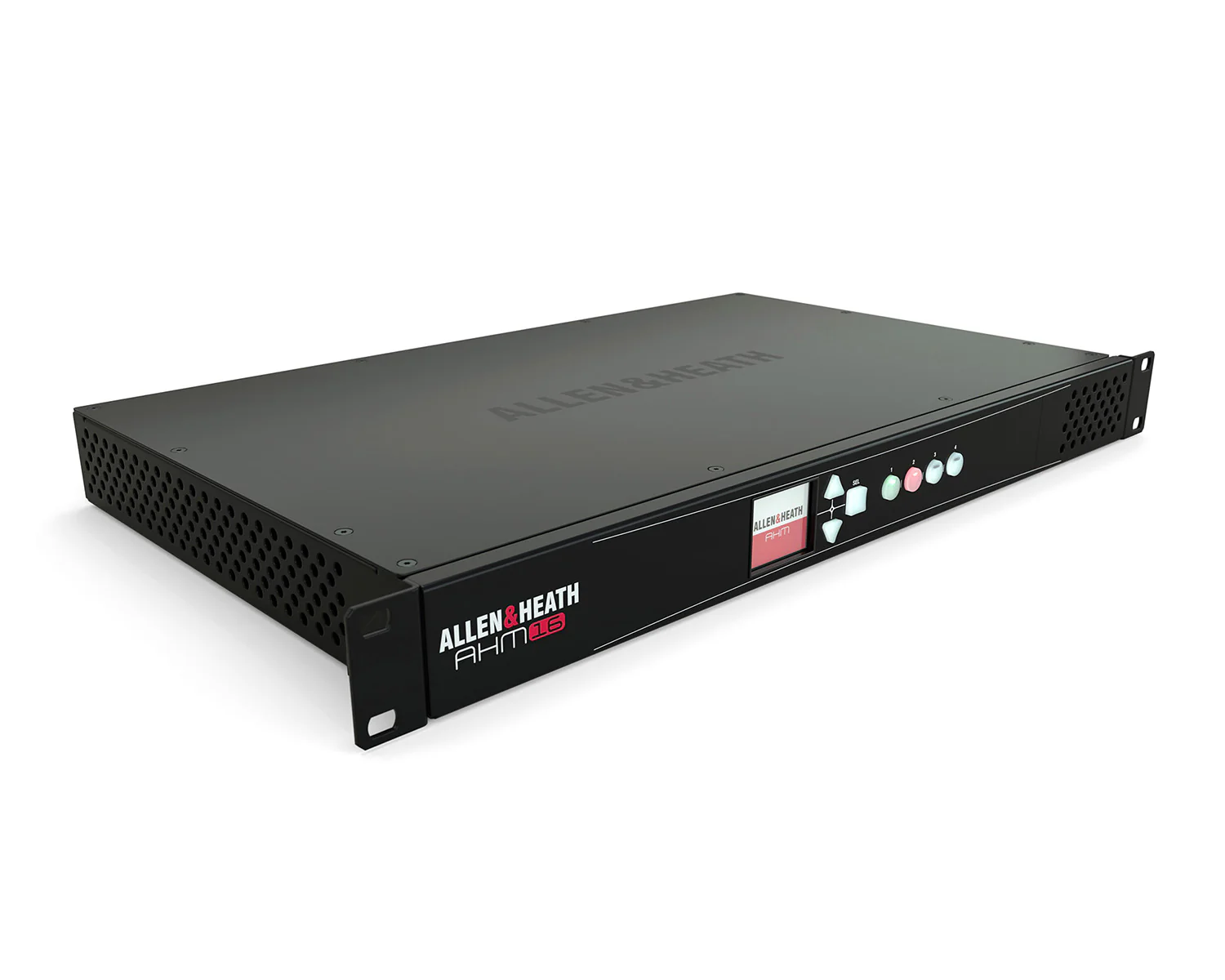

Allen & Heath AHM-16 16x16 Digital Matrix

Product code: 281

£1,375.00 inc VAT
£1,145.83 ex VATWas £1,420.00 inc VAT. Save £45.00

SKU: AHM16/240X
1 in stock (Wembley), 1 more available
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The Allen & Heath AHM-16 is a 16 in / 16 out 96 kHz audio matrix processor built around an FPGA core, with 8 local mic/line inputs and 8 relay-protected line outputs on Phoenix connectors. 16 configurable processing outputs can be used for mono or stereo zones or for full loudspeaker processing (crossover, delay, limiter, EQ), and a networking I/O port supports up to 128 bi-directional channels via Dante, MADI, Waves or SLink cards. Designed for fixed install, houses of worship, conference rooms, bars and multi-zone venues.

Key Features

16 x 16 audio matrix
96 kHz FPGA core with ultra-low latency
8 local mic/line inputs on Phoenix
8 relay-protected line outputs
16 configurable processing outputs for zones or speakers
EQ, dynamics and delay on every input and zone
Speaker processing: crossover, delay, limiter, EQ
Automatic mic mixer and ambient noise compensation
Priority ducking
Networking card slot: Dante, MADI, Waves or SLink
Up to 128 bi-directional networked channels
GPIO and third-party control integration

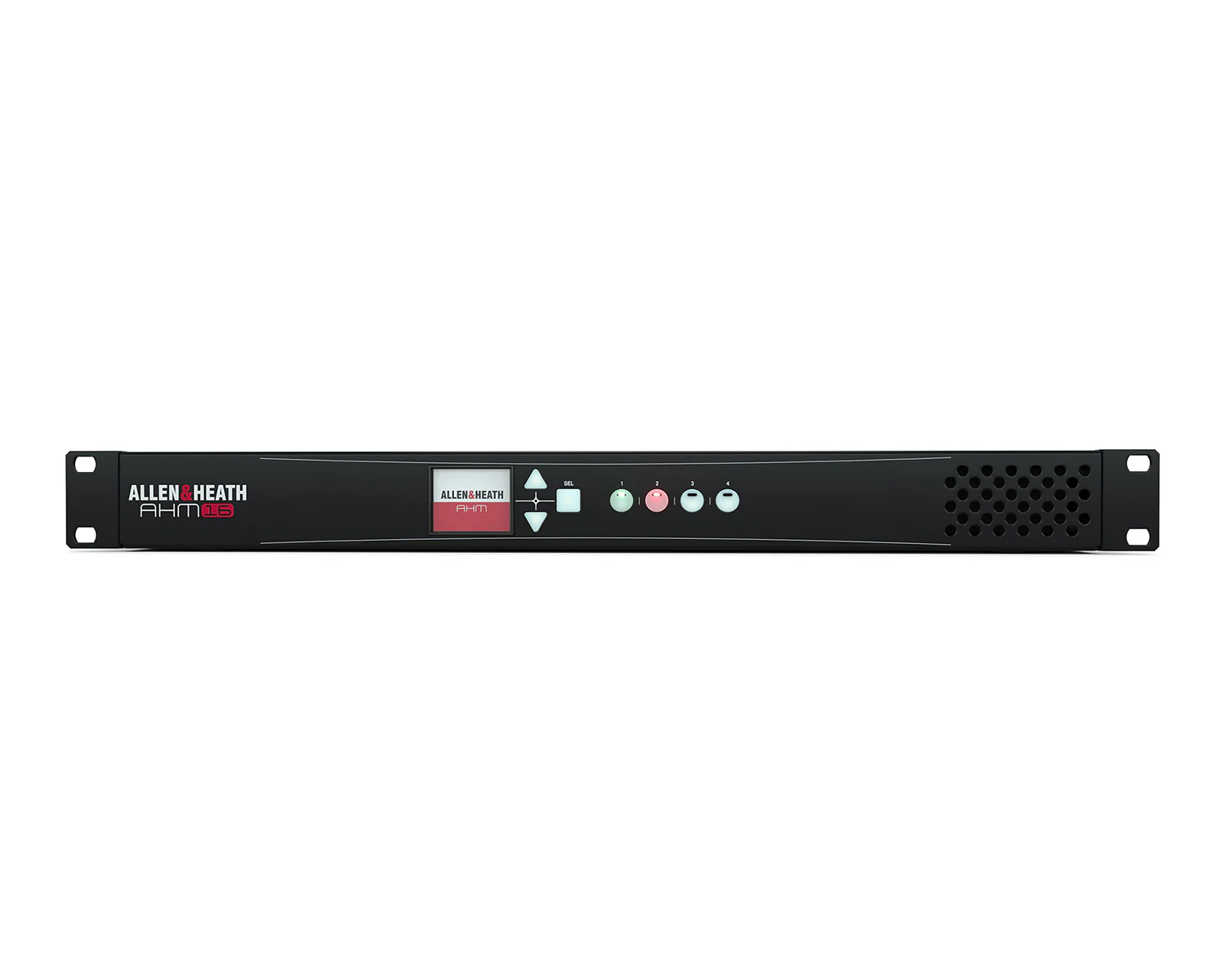

4 programmable front-panel SoftKeys

Specifications

Allen & Heath AHM-16 16×16 Digital Matrix specifications
Matrix 16 x 16
Core 96 kHz FPGA

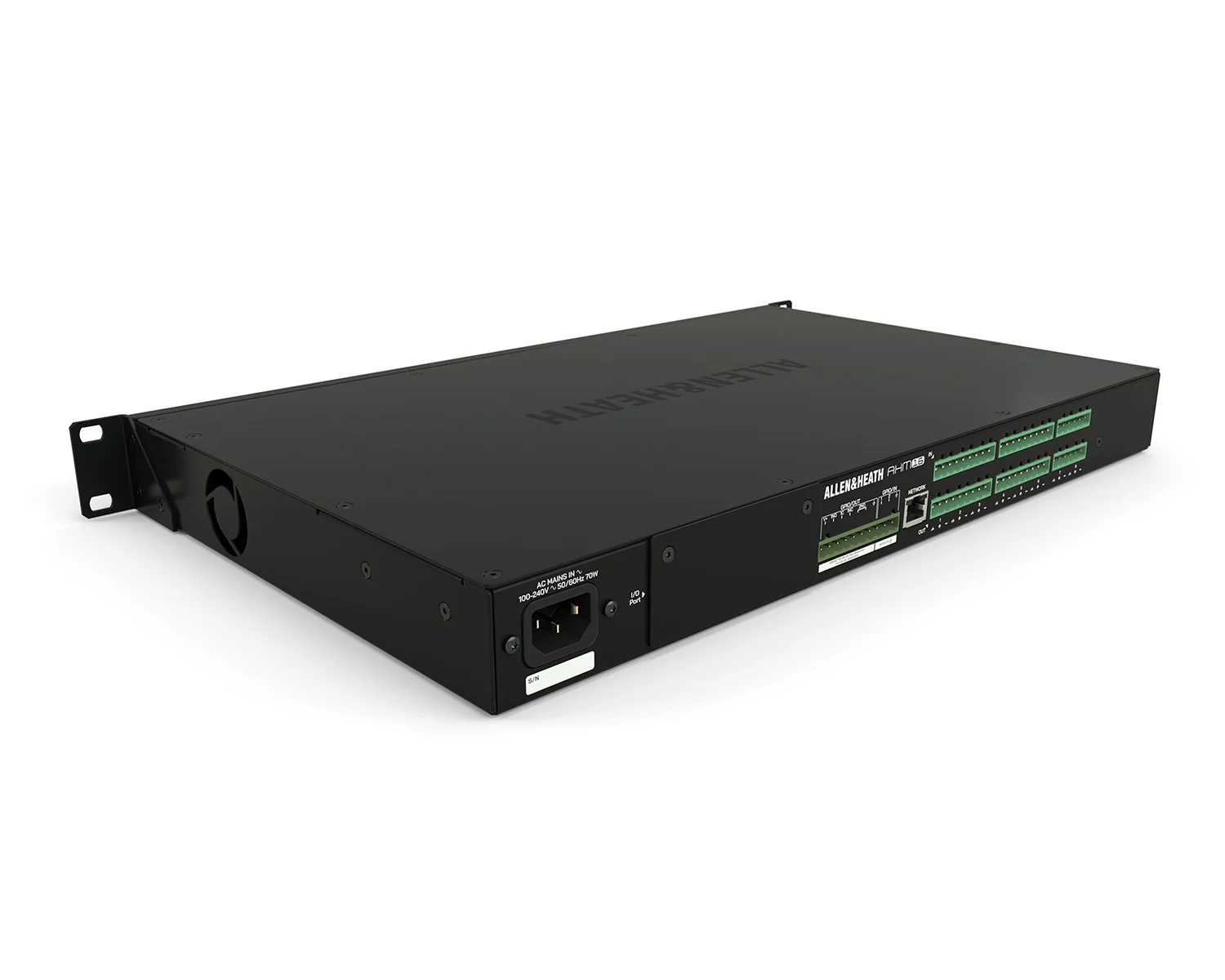

Local I/O 8 x mic/line in, 8 x line out (Phoenix)
Output protection Relay protected
Processing outputs 16 configurable
Card slot Dante / MADI / Waves / SLink
Network capacity Up to 128 x 128
Zones Up to 16 mono / 8 stereo
Latency 1 ms max, analogue in to out
Dante option Minimum 32 x 32 at 96 kHz, AES67 and Dante Domain Manager compliant
Control network RJ45 for System Manager, IP remote controllers, Custom Control app and TCP control
GPIO 2 x inputs (0-10V control) and 2 x relay outputs on pluggable Phoenix; optional 8 x 8 networkable GPIO interface
Remote controllers Compatible with Allen & Heath IP1, IP6, IP8
Presets / events 500 presets, 50 scheduled events
User profiles 4, each with name and password
Playback Internal stereo playback (WAV, mp3, FLAC)
Format 1U rack

Full specifications

nputs

  • Mic/Line Inputs: Balanced, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)
  • Mic EIN: -127dB with 150Ω source

Outputs

  • Analogue Outputs: Balanced, Relay protected
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +21dBu
  • Residual Output Noise: -92dBu (muted, 22-22kHz)

System

  • Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
  • Dynamic Range: 108dB
  • System Signal to Noise: -92dB
  • Frequency Response: 20Hz - 20kHz +0/-0.5dB
  • THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
  • Headroom: +18dB
  • Sampling Rate: 96kHz +/- 20 PPM
  • Acoustic Noise: Typical loading, 22 deg C ambient
  • No I/O Port installed: 31dBA
  • With I/O Port installed: 33dBA

Physical

  • AHM-16 - without box
    • Width: 482.6mm/19"
    • Depth: 270mm/10.63"
    • Height: 44mm/1.73"
    • Weight: 3.8kg/8.38lbs
  • AHM-16 - with box
    • Width: 555mm/21.85"
    • Depth: 405mm/15.9"
    • Height: 150mm/5.9"
    • Weight: 5.45kg/12lbs
  • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Mains Power: 100-240V AC, 50-60Hz, 65W max (internal PSU, IEC mains lead)
Compare the Range
Allen & Heath AHM-16 16×16 Digital Matrix
AHM-16
£1,375.00 inc VAT
£1,145.83 ex VATWas £1,420.00 inc VAT. Save £45.00
Viewing Now
Allen & Heath AHM-32 32×32 Digital Matrix
£1,949.00 inc VAT
£1,624.17 ex VAT
View →
Allen & Heath AHM-64 64×64 Digital Matrix
£3,715.00 inc VAT
£3,095.83 ex VAT
View →
