Allen & Heath AHM-32 32x32 Digital Matrix

Product code: 280

£1,949.00 inc VAT
£1,624.17 ex VATWas £2,025.00 inc VAT. Save £76.00

SKU: AHM32/240X
1 in stock (Wembley), 22 more available
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

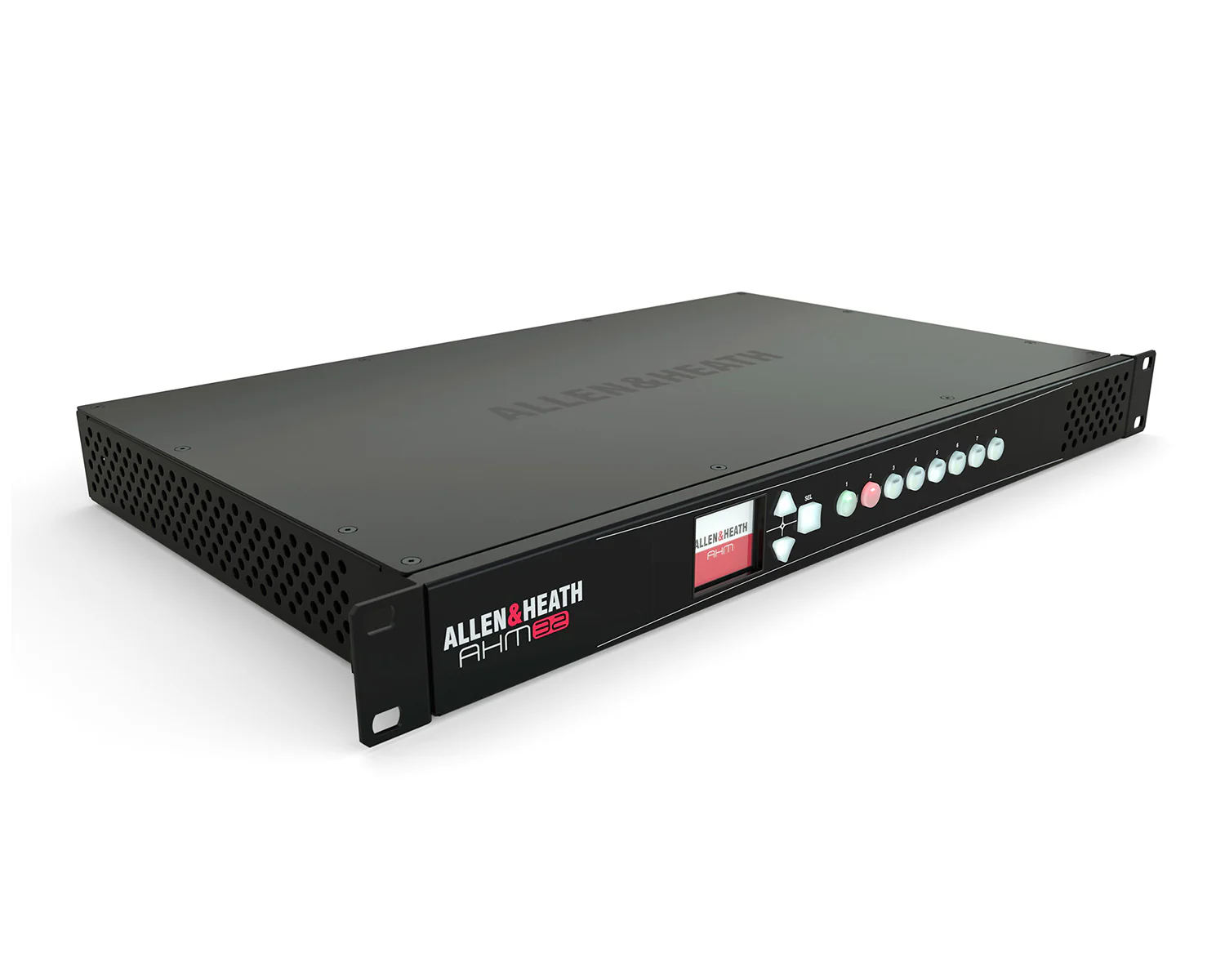

The Allen & Heath AHM-32 is a 32 in / 32 out networked audio matrix processor in a 1U chassis, built on the same 96kHz XCVI core as Avantis. It carries 12 onboard mic/line inputs and 12 line outputs, with an I/O port for expansion or audio networking. Aimed at fixed install sound for smaller hotels, education, retail and houses of worship.

Key Features

32 x 32 networked matrix in 1U
96kHz XCVI processing
12 onboard mic/line inputs and 12 line outputs
I/O port for expansion or audio networking
Configured from AHM System Manager software
PoE remote control with IP1, IP4, CC-7 and CC-10
Custom Control end-user UIs
Scene recall and scheduled events

Specifications

Allen & Heath AHM-32 32×32 Digital Matrix specifications
Channels 32 x 32 matrix

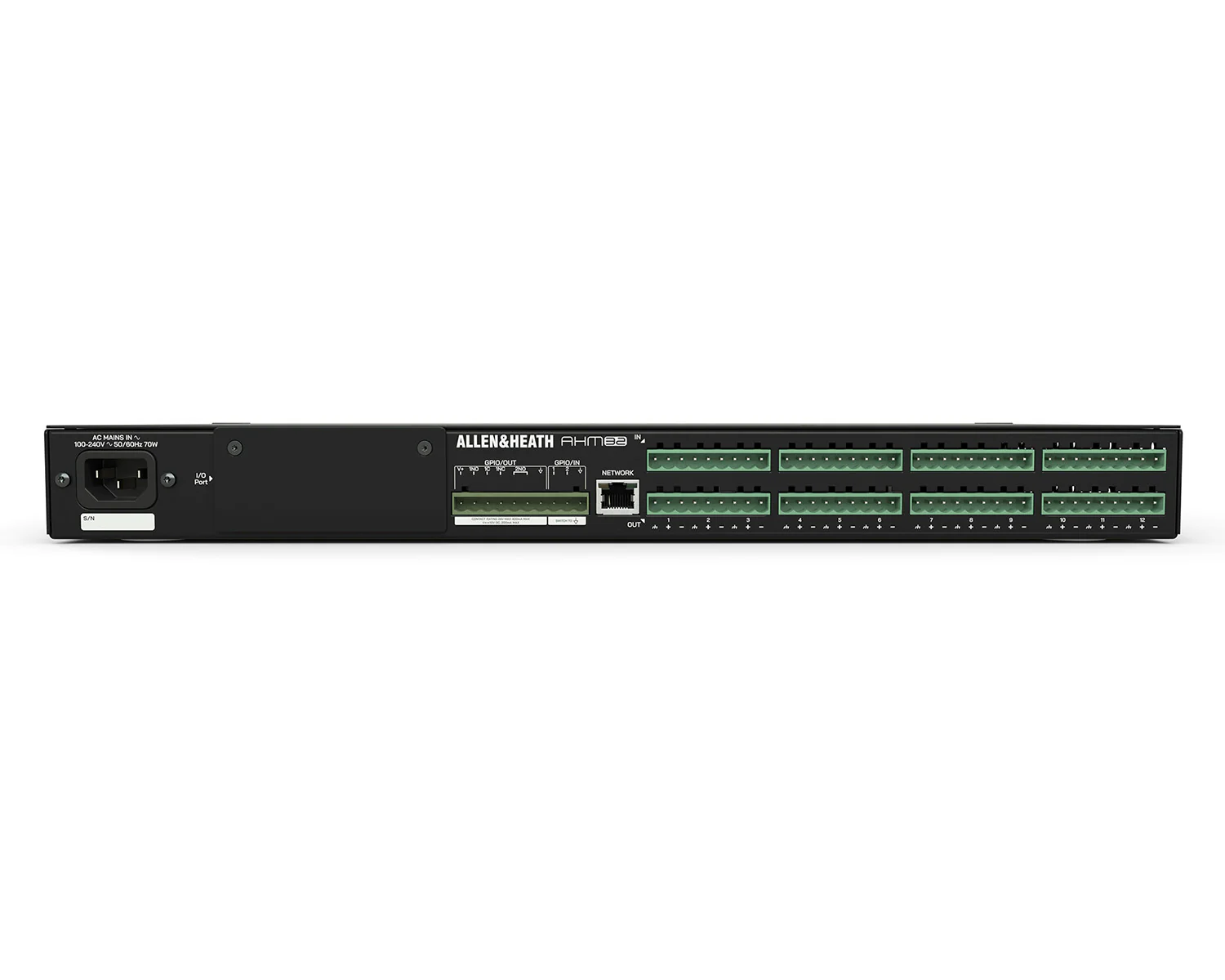

Onboard I/O 12 mic/line in, 12 line out (Phoenix)
Sample rate 96kHz, 24 bit
Option slots 1
Form factor 1U rack
Networking Ethernet plus option slot
Power 100-240V AC mains, IEC inlet
Part number AHM32/240X

Full specifications

Inputs

  • Mic/Line Inputs: Balanced, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)
  • Mic EIN: -127dB with 150Ω source

Outputs

  • Analogue Outputs: Balanced, Relay protected
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +21dBu
  • Residual Output Noise: -92dBu (muted, 22-22kHz)

System

  • Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
  • Dynamic Range: 108dB
  • System Signal to Noise: -92dB
  • Frequency Response: 20Hz - 20kHz +0/-0.5dB
  • THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
  • Headroom: +18dB
  • Sampling Rate: 96kHz +/- 20 PPM
  • Acoustic Noise: Typical loading, 23 deg C ambient
  • No I/O Port or AEC installed ,29: <29dBA
  • With I/O Port and AEC installed: 30dBA

Physical

  • AHM-32 - without box
    • Width: 482.6mm/19"
    • Depth: 270mm/10.63"
    • Height: 44mm/1.73"
    • Weight: 4kg/8.82lbs
  • AHM-32 - with box
    • Width: 555mm/21.85"
    • Depth: 385mm/15.16"
    • Height: 150mm/5.9"
    • Weight: 5.3kg/11.69lbs
  • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Mains Power: 100-240V AC, 50-60Hz, 70W max
Compare the Range
Allen & Heath AHM-32 32×32 Digital Matrix
AHM-32
£1,949.00 inc VAT
£1,624.17 ex VATWas £2,025.00 inc VAT. Save £76.00
Viewing Now
Allen & Heath AHM-16 16×16 Digital Matrix
£1,375.00 inc VAT
£1,145.83 ex VAT
View →
Allen & Heath AHM-64 64×64 Digital Matrix
£3,715.00 inc VAT
£3,095.83 ex VAT
View →

Product Reviews

5.00 1 review · 1 verified purchase
Bought this? It takes a minute.
Review this product

Reviews are checked by our team before they appear.

Ed Chapman April 2026 Verified purchase

Ideal for larger venues, we install these to zone multiple rooms of audio in larger buildings. Pairs great with a tablet with the CC app for complete control
