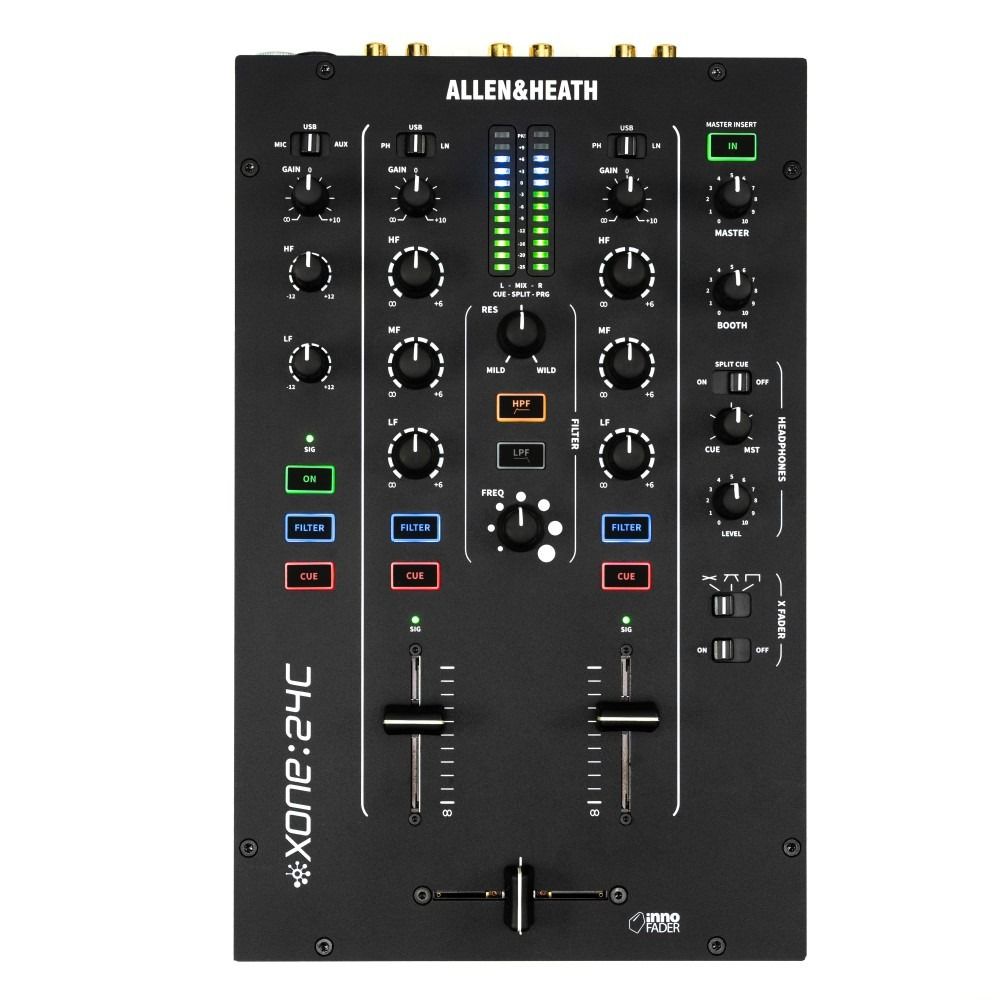

Allen & Heath XONE 24c 2+1 Channel Analogue DJ Mixer with Interface

• 6×6 24-bit/96kHz internal soundcard; 3-in / 3-out, USB2.0, Type-C USB Host-Port
• 3 USB soundcard routing modes; S‚ÄôTREAM‚Äô, ‚ÄòDVS Pro‚Äô and ‚ÄòDAW‚Äô
• Mini innoFADER¬Æ cross fader
• MIDI OUT on channel and cross faders
• XFDR On/Off switch
• DVS PH/LN and channel input source switching
• Master INSERT FX loop
• 2 x USB C Hub-Ports – Replaces X:Link w/ USB power delivery
• HP/LP analogue Xone:VCF filter
• New. MIDI OUT on HPF, LPF, FREQ, FILTER assign
• 3-band isolator EQ per channel – Improved cutoff attenuation and phase coherence
• Independent single LED channel metering
• Dedicated BOOTH and RECORD outputs

Built for smaller spaces, home setups, or mobile rigs, Xone:24C delivers the same core tools found in flagship Xone mixers Рincluding the Xone filter and mini InnoFADER Рin a compact and accessible format. It doesn’t matter if you’re learning your craft, performing live, listening at home, or creating in the studio, the Xone:24C offers a no-compromise path into the world of Xone.

At the heart of the Xone:24C is a carefully engineered all-analogue signal path, designed to deliver the clarity, warmth, and punch that define the signature Xone sound.

High-gain, low-noise RIAA preamps ensure accurate playback of vinyl sources, while balanced Phono/Line inputs allow smooth switching between turntables and digital players without compromising gain structure.

The 3-band isolator EQ provides detailed, expressive control for shaping a mix, from swapping basslines to creating fluid transitions.

All of this is driven by meticulously tuned analogue summing, producing powerful, defined lows and open, detailed highs for a rich, professional sound achievable only through true analogue design.

Whether working with timecode vinyl, streaming live sets, or connecting to a DAW, the Xone:24C provides effortless plug-and-play digital integration while preserving the authentic character and feel of an analogue mixer.

Its class-compliant 96kHz USB audio interface ensures exceptional sound quality and features three straightforward operating modes – Streaming, DAW, and DVS Pro – for a streamlined setup experience.

Powered USB-C hub ports make it easy to connect controllers such as the Xone:K series or other class-compliant USB-C MIDI/audio devices, forming a tidy, centralised connection hub.

In addition, MIDI data is transmitted from key mixer controls directly to the connected host system.

The Xone:24C features the legendary Xone:VCF, delivering creative and precise control over sound shaping. With selectable low-pass and high-pass modes, a smooth frequency sweep, and the signature mild-to-wild resonance control, it employs the same acclaimed filter design used in Allen & Heath’s flagship Xone mixers.

The Xone:24C is equipped with the Mini innoFADER crossfader, renowned among DJs globally for its smooth action and long-lasting reliability. Complemented by backlit switches, responsive metering, and versatile I/O, this mixer is designed to deliver consistent, dependable performance wherever you play.

The Xone:24C adds a new Master Insert FX loop, allowing seamless integration of external effects through rear-panel send/return connections, making it easy to incorporate favourite effects hardware into your mixes. In live settings, the Master Insert can also connect to dynamic processors, providing control over the main output for venue or system management.

• Channels 2 + 1: CH1 & CH2: PHONO/USB/LINE / AUX CH: MIC/USB/LINE
• Frequency Response: ¬±0.5dB (20Hz‚Äì30kHz)

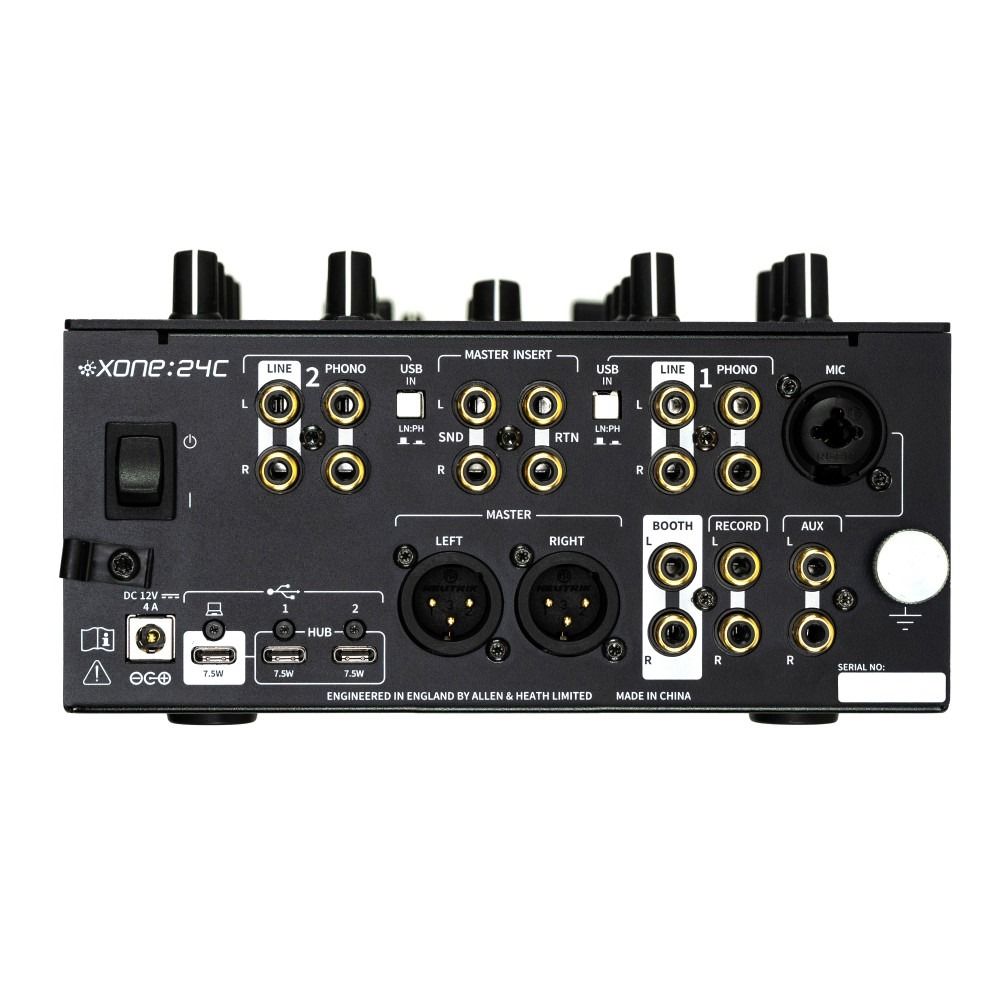

• Inputs: 3 x RCA Line, 2 x RCA Phono, 1 x Combi XLR + TRS Mic
• Outputs: 1 x XLR Balanced Master, 1 x RCA Un-balanced Booth, 1 x RCA Un-balanced Record
• Master Insert: 1 x RCA MASTER INSERT FX Loop
• Send/Return I/O: 1 x RCA MASTER INSERT Send, 1 x RCA MASTER INSERT Return
• Filter: Stereo Analogue Voltage Controlled Filter, HPF / LPF, Adjustable Frequency & Resonance, Assignable CH 1 & CH2 + Aux CH

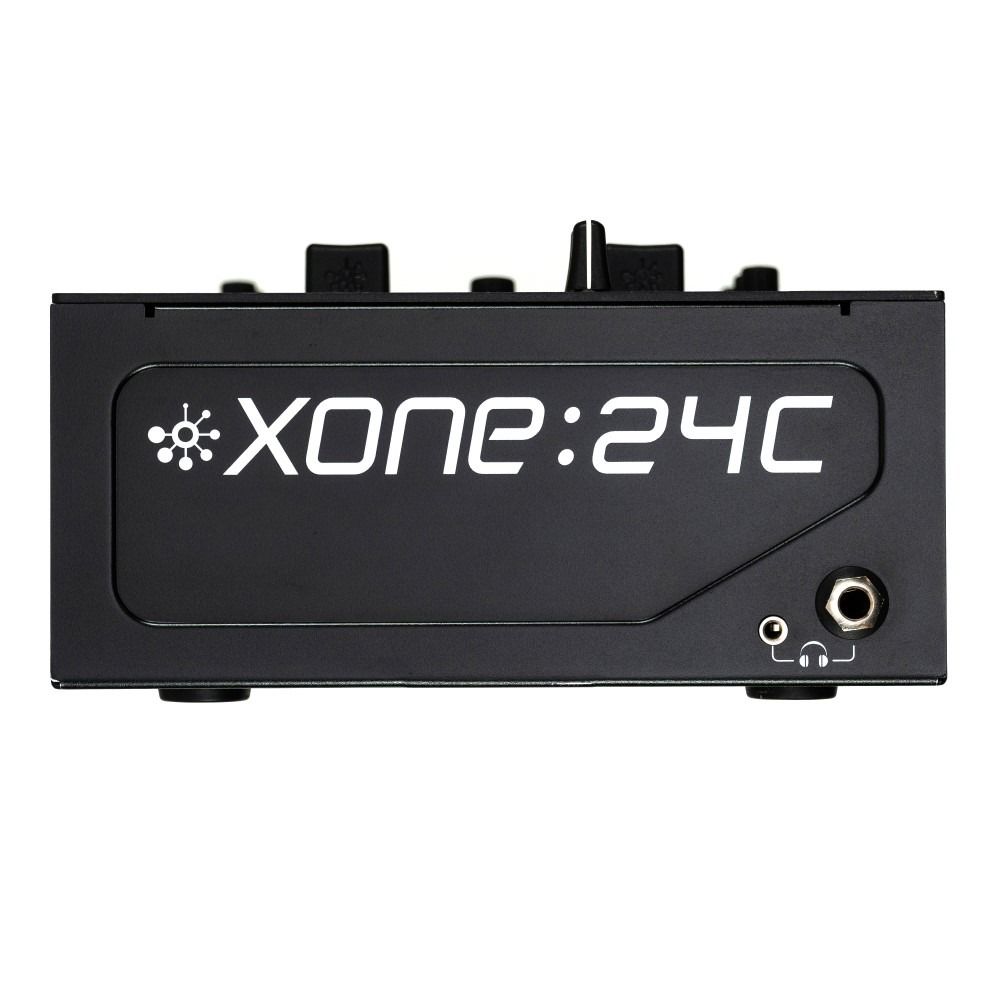

• Headphones: 1 x 6.35mm Stereo Jack, 1 x 3.5mm Stereo Jack, Split Cue Monitoring
• Channel Faders: 45mm Linear Voltage Controlled Amplifier
• Chanel Meters: Single tri-colour LED
• X-Fader: 45mm Linear VCA: mini InnoFADER¬Æ
• X-Fader Curve Settings: 2 Types (Fast-Cut/Blend)
• Internal Soundcard: 6 Channel / 32-bit/96kHz / USB 2.0, 3 x Stereo In (CH1/CH2/Master) / 3 x Stereo Out (CH1/CH2/Aux CH)
• MIDI Assignable: YES: MIDI CC: CH1 & CH2 Faders, Crossfader, VCF FREQ NOTE ON/NOTE OFF: CUE, FILTER, HPF, LPF, MASTER INSERT IN
• MIDI Out: 1 x USB Host Port (Type C), 2 x USB Hub ports: Hub-to-Host/Host-to-Hub only (Type C
• Earth Ground Terminals: x 1
• Power Supply: DC Mains: 100 to 240V, AC 50/60Hz, Consumption 35W max, USB Power delivery: USB Host 7.5W (Type C) / USB Hub 2 x 7.5W (Type C)
• Mains Adaptor: 2 pin DC socket with cable clamp
• Size: 108 x 190 x 314mm
• Weight: 2.8kg
