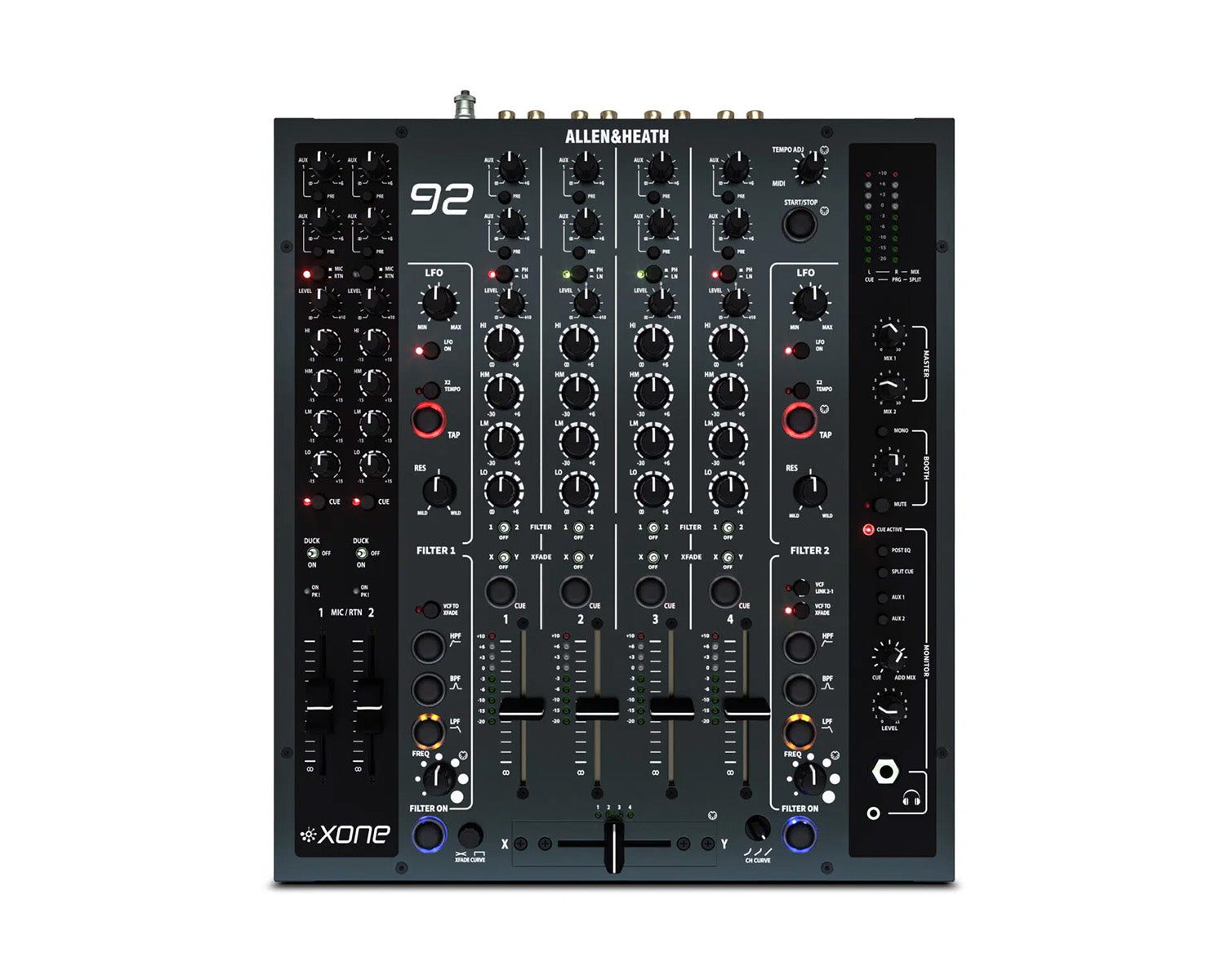

The Allen & Heath Xone:92 MK2 is a fully analogue 4+2 channel club and DJ mixer with 100 percent analogue signal path and analogue bus summing. Four stereo phono/line channels and two mic/return channels each have 4-band EQ with total HF and LF kill, and the two onboard stereo analogue VCF filter banks are assignable across channels with switchable HPF, BPF and LPF response, adjustable frequency, resonance and LFO. It is the reference analogue club mixer used in residency booths and touring riders worldwide.
Key Features
4+2 channel analogue club mixer
100 percent analogue circuitry and bus summing
4 stereo phono/line channels plus 2 mic/return channels
4-band EQ with total HF and LF kill, dual mid controls
Two stereo analogue VCF filter banks
Switchable HPF, BPF and LPF with resonance and LFO
Silent on/off soft switching on filters
4 phono and 4 RCA line inputs (channels 1-4)
2 XLR mic inputs, 2 TRS returns
Club standard with proven touring reliability
Specifications
| Type | Analogue DJ/club mixer |
| Channels | 4+2 (4 phono/line, 2 mic/line) |
| Signal path | 100 percent analogue with analogue summing |
| EQ | 4-band with HF/LF kill, dual mid |
| Filters | 2 stereo analogue VCF, HPF/BPF/LPF, resonance, LFO |
| Phono inputs | 4 x RCA |
| Line inputs | 4 x RCA plus 2 x 1/4″ TRS returns |
| Mic inputs | 2 x XLR |
| Main outputs | MIX 1: stereo, balanced XLR; MIX 2: stereo, 1/4″ TRS jacks |
| Booth output | Stereo, 1/4″ TRS jacks, with mono switch, mute and level |
| Record output | RCA, pre-master level |
| Aux sends | 2 stereo sends on 1/4″ TRS jacks, selectable pre/post |
| Headphone outputs | 1/4″ TRS jack and mini-jack |
| Channel faders | 60mm linear VCA, 3-way global curve switch |
| Crossfader | 45mm mini innoFADER Pro VCA, user replaceable, rotary curve control |
| MIDI | 1 x 5-pin DIN out, MIDI CC and Note On/Off |
| Frequency response | +1/-0.5dB, 20Hz to 30kHz (line in to master out) |
| Distortion | Typically 0.01% at 1kHz 0dBu |
| Power | Internal switch-mode PSU, 100-240V AC 50/60Hz, 30W max, IEC inlet |
| Dimensions (H x W x D) | 106 x 320 x 376mm |
| Weight | 7kg (8.2kg packed) |
| Rack mounting | Optional 19″ rack kit (X:922-RK19/X) |
| In the box | Mixer, mains lead, spare knobs, dual ground adaptor, QR card, safety information |
