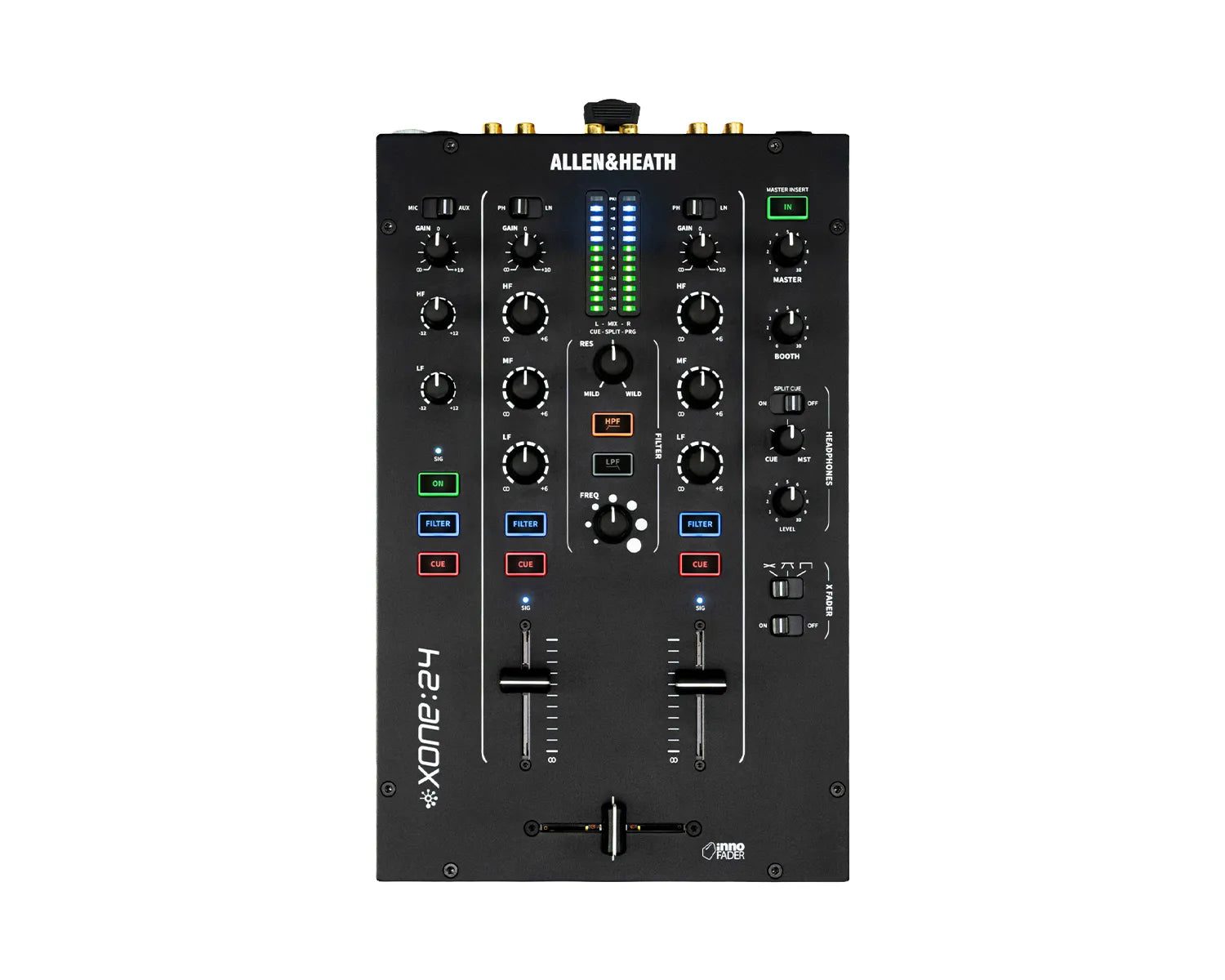

The Allen & Heath Xone:24 is a compact 2+1 channel analogue DJ mixer featuring a single Xone VCF with switchable HPF and LPF modes, frequency sweep and the classic mild-to-wild resonance control, assignable across any combination of channels. It carries two high-gain RIAA phono preamps, a 3-band isolator EQ with Total Kill on channels 1 and 2, a 2-band shelving EQ on the mic/aux channel, a master insert FX loop, two 45 mm VCA faders and a 45 mm Mini InnoFADER crossfader with switchable curves.
Key Features
2+1 channel analogue DJ mixer
Xone VCF with HPF/LPF, frequency sweep and resonance
Filter assignable across channels
High-gain, low-noise RIAA phono preamps
3-band isolator EQ with Total Kill on channels 1 and 2
2-band shelving EQ (±12dB) on the Mic/Aux channel
Master Insert FX loop
2 x 45 mm VCA channel faders
45 mm Mini InnoFADER crossfader, 3 switchable curves
12 V / 1.25 A DC power supply
Specifications
| Type | Analogue DJ mixer |
| Channels | 2+1 |
| Filter | Xone VCF, HPF/LPF, sweep + resonance |
| Phono | High-gain, low-noise RIAA preamps |
| Isolator EQ | 3-band, CH1/CH2 (2-band shelving on Aux) |
| FX loop | Master insert |
| Channel faders | 2 x 45 mm VCA |
| Crossfader | 45 mm Mini InnoFADER, 3 curves |
| Power | 12 V / 1.25 A DC |

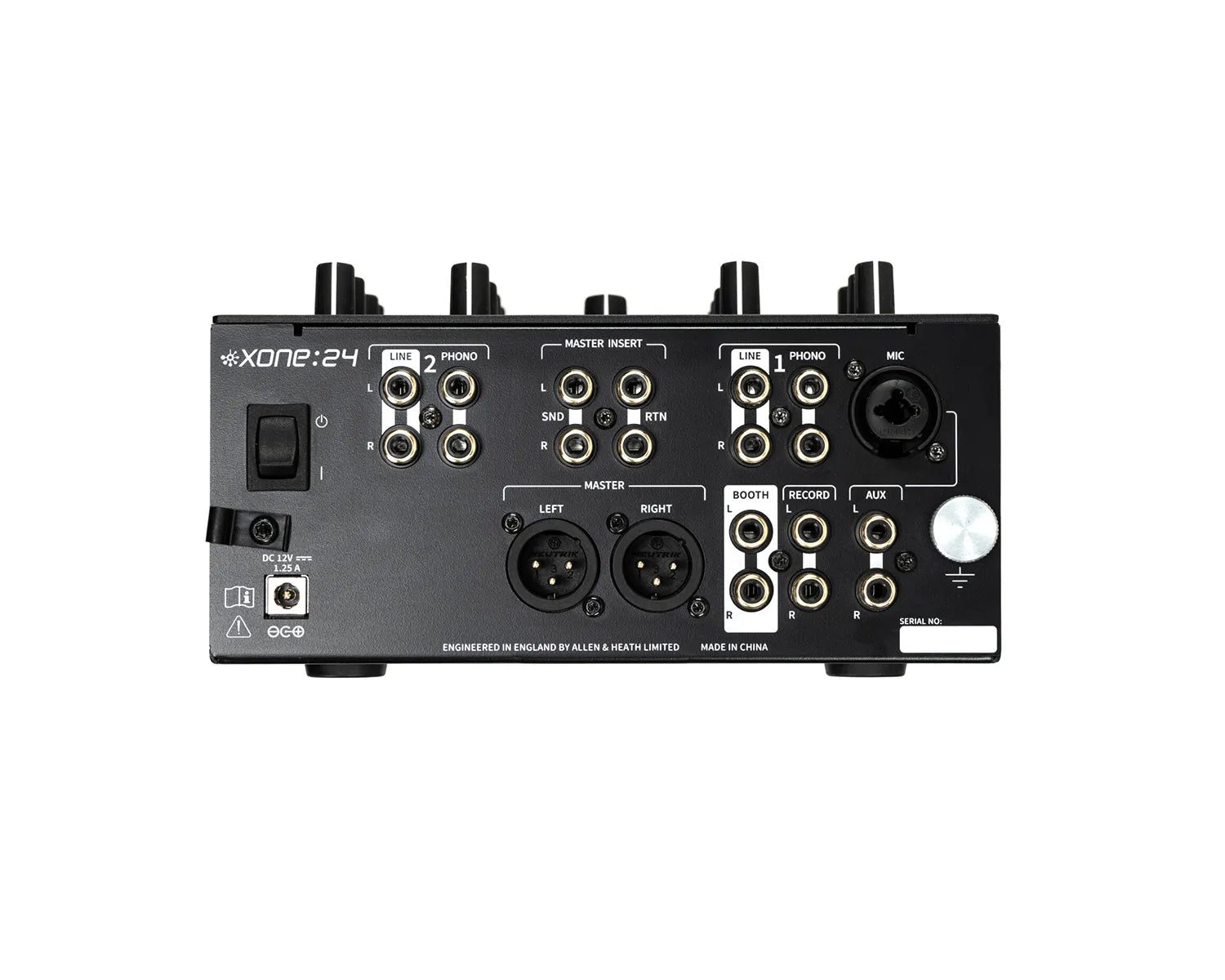

| Line inputs | 3 x stereo RCA, unbalanced (CH1, CH2, Aux) |
| Phono inputs | 2 x stereo RCA, unbalanced (CH1, CH2); RIAA gain +42dB @ 1kHz |
| Mic input | 1 x XLR/TRS combo, balanced; +40dB gain, EIN -115dB; no phantom power |
| Master output | Stereo XLR, balanced; +4dBu nominal, +22dBu max |
| Booth output | Stereo RCA, unbalanced; 0dBu nominal, +18dBu max |
| Record output | Stereo RCA, unbalanced, pre-master; -10dBV nominal |
| Master insert I/O | 2 x RCA send, 2 x RCA return, unbalanced |
| Headphones | 1 x 6.35 mm (1/4″) TRS jack, 1 x 3.5 mm mini-jack (front); split cue |
| Earth terminal | 1 x chassis earth terminal for turntables |
| EQ frequencies | CH1/CH2: HF 3.5kHz, MF 1.1kHz, LF 500Hz, +6dB to Total Kill (-75dB); Aux: HF 4.4kHz, LF 160Hz |
| Frequency response | ±0.5dB, 20Hz to 30kHz (line in to master out) |
| Distortion | Typically 0.01% @ 1kHz, 0dBu |
| Mix meters | 12-segment LED (-25dBu to +12dBu) |
| Mains input | 100-240V AC, 50/60Hz via external PSU; 35W max |
| Dimensions (W x D x H) | 190 x 314 x 108 mm |
| Weight | 2.7 kg (4 kg packed) |
| In the box | Xone:24 mixer, DC power supply and IEC cable, QR card, safety and regulatory information booklet |
