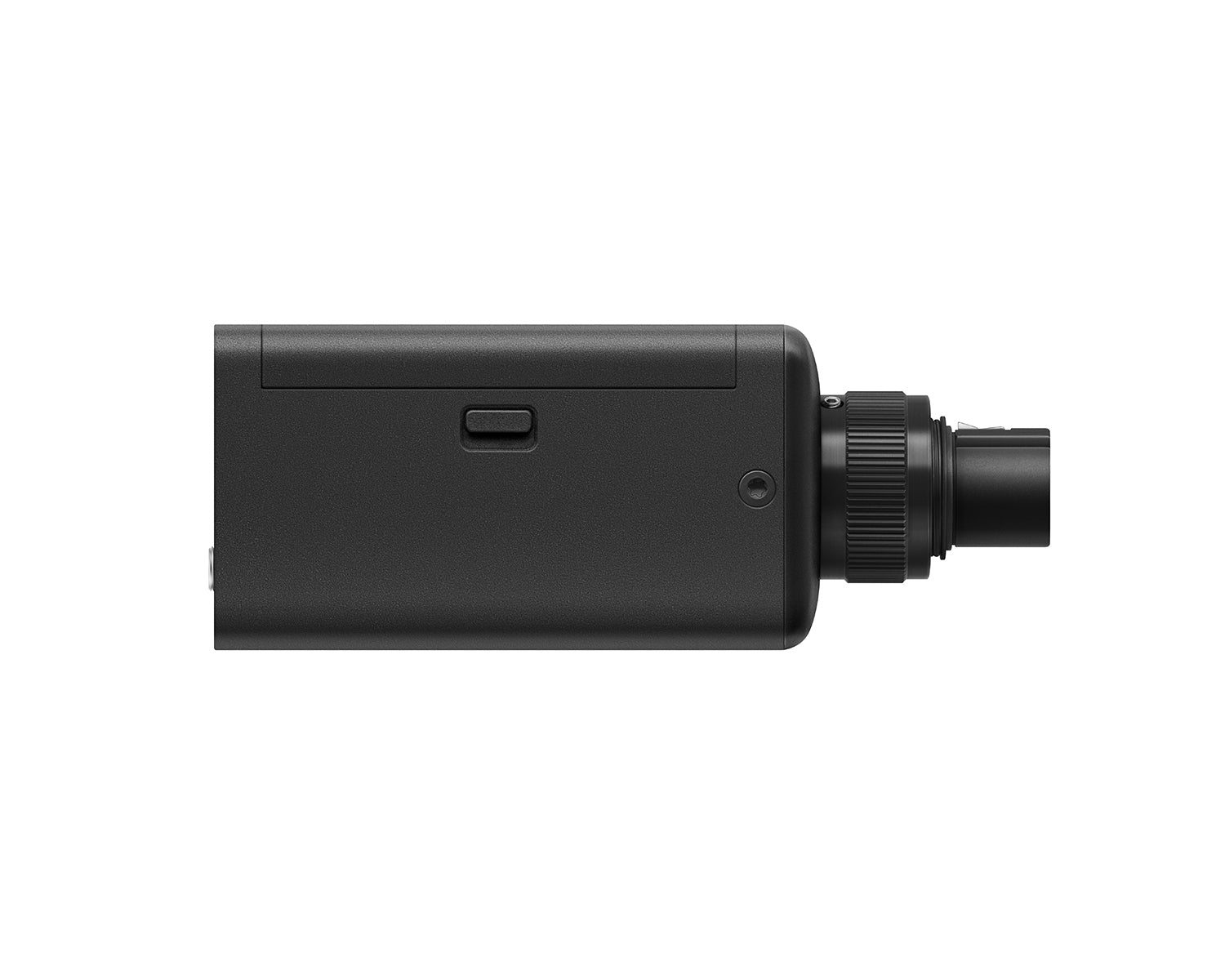

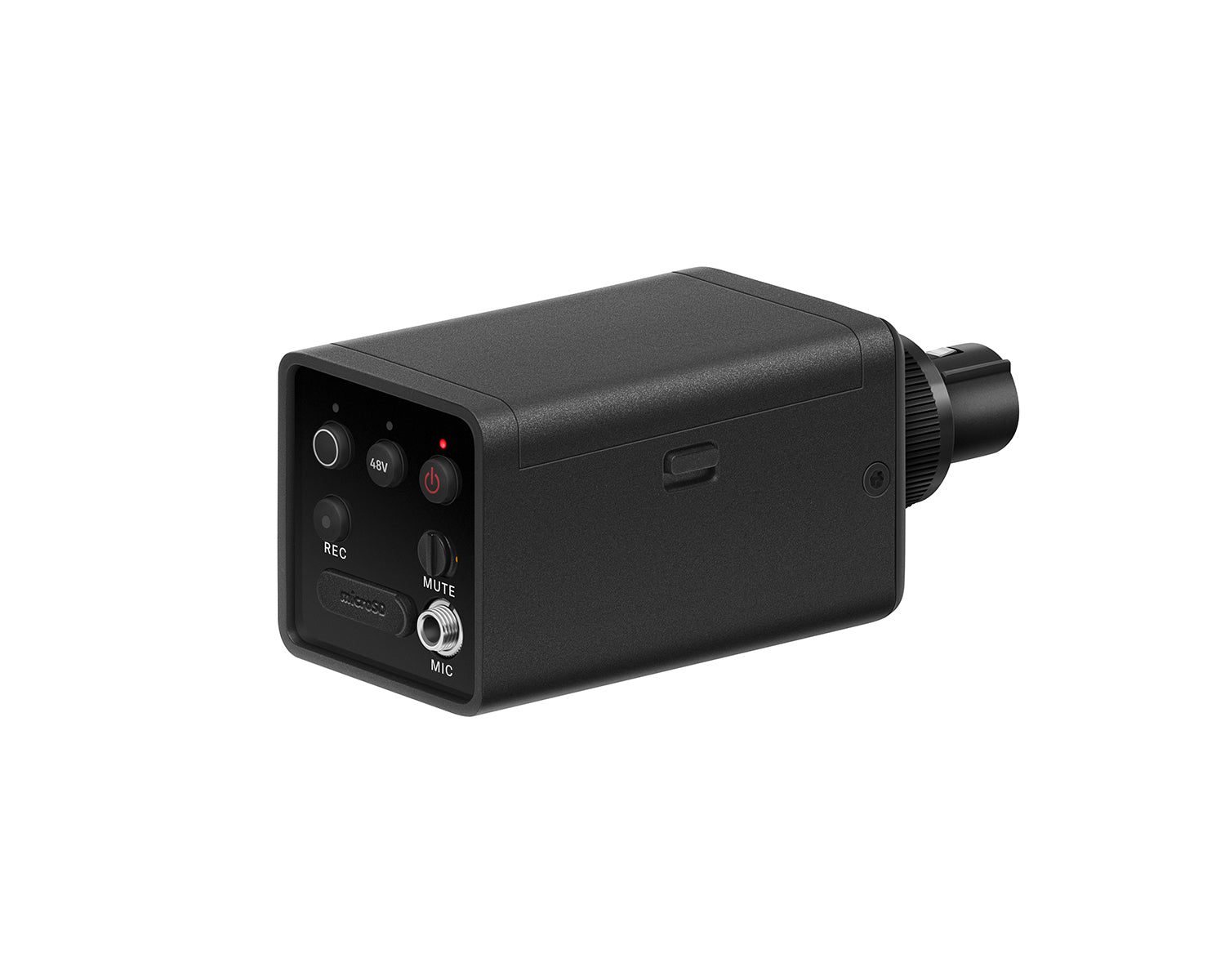

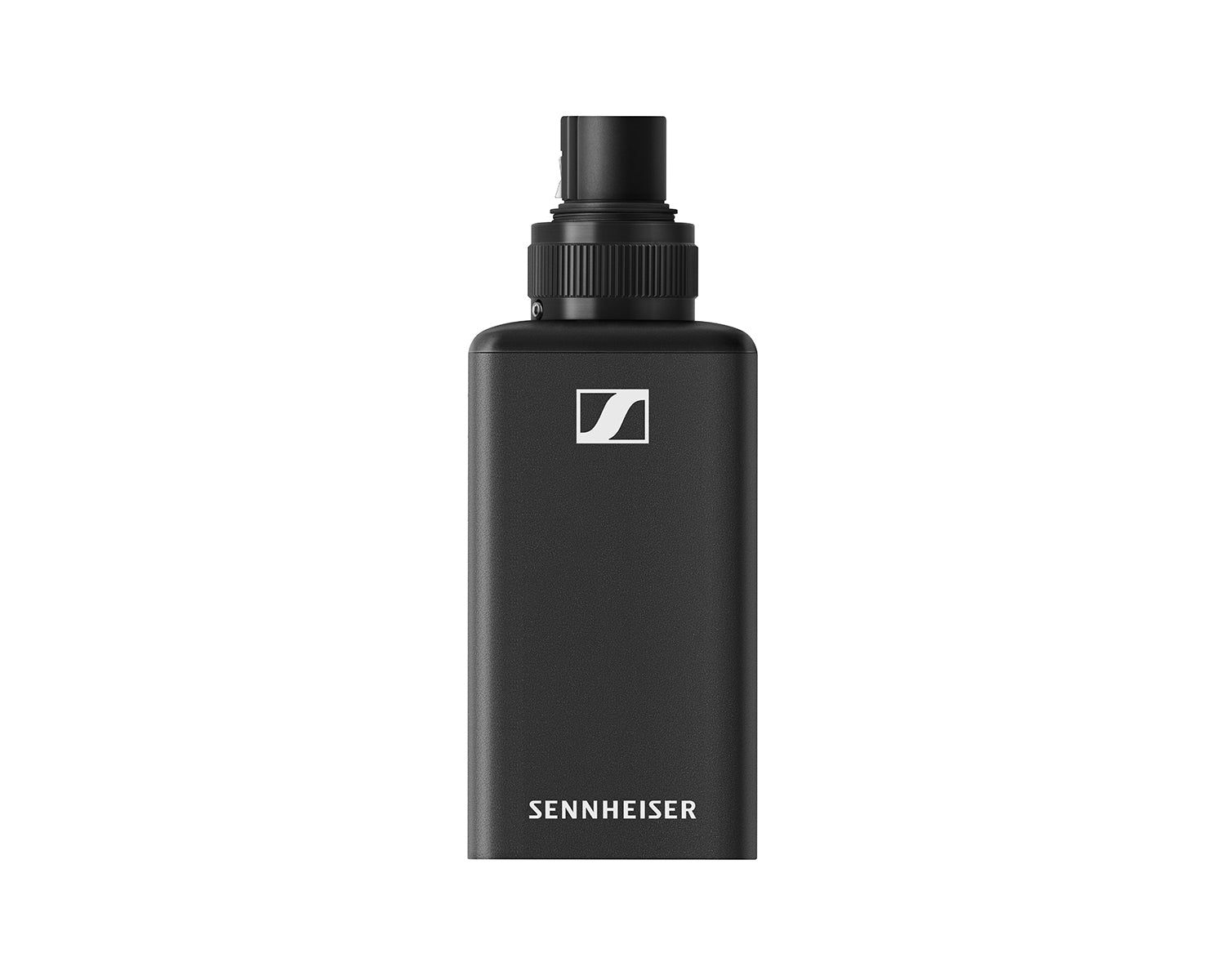

Sennheiser EW-DP SKP Portable XLR Plug-in Wireless Transmitter (S1-7) CH38

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver (SKP up to 6h)
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

System

• Audio link frequency ranges:
  • Q1-6: 470.2 - 526 MHz
  • R1-6: 520 - 576 MHz
  • R4-9: 552 - 607.8 MHz
  • S1-7: 606.2 - 662 MHz
  • S4-7: 630 - 662 MHz
  • S7-10: 662 - 693.8 MHz
  • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4: 925.2 - 937.3 MHz
  • Y1-3: 1785.2 - 1799.8 MHz
• Bluetooth¬Æ Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Audio THD: ‚⧠-60 dB for 1 kHz @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 ¬∞C - +55 ¬∞C (14 ¬∞F - 131 ¬∞F)
• Relative humidity: 5 - 95 % (non-condensing)

EW-DP SKP

• Input voltage: ~ 2.0 - 4.35 V
• Input current: < 300 mA / (without record and P48)
• Power Supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack
• Transmit power:
  • Audio link: 10 mW ERP
  • BLE: max. 10 mW EIRP
• Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
• Output power XLR: max. 10 mA
• Dimensions: 108 x 42 mm
• Weight (without batteries): ca. 163 g (0.36 lbs)
