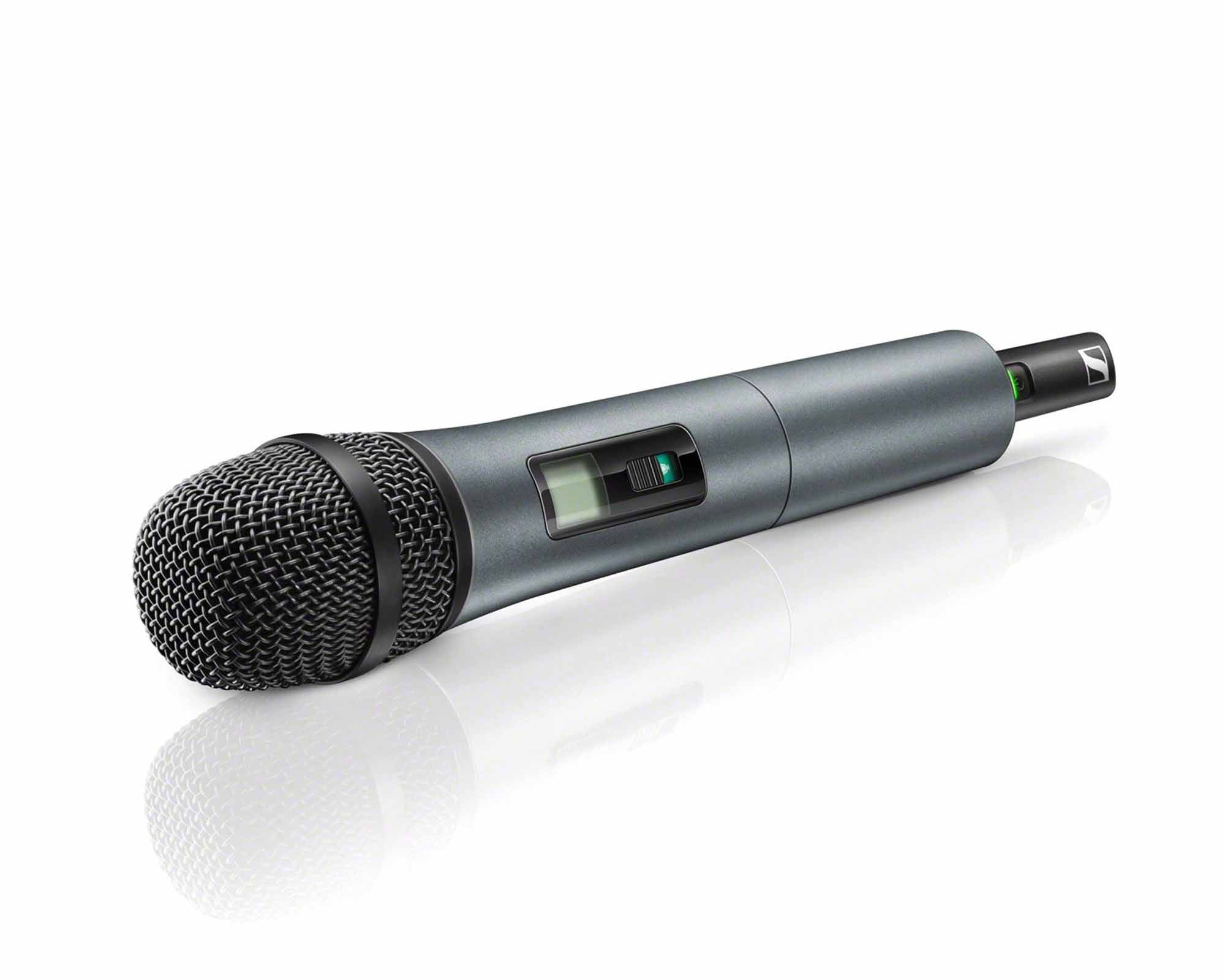

This is the handheld transmitter on its own, intended to add a channel to an existing Sennheiser wireless system or replace a lost unit. Band variant: GB, 606 – 630 MHz (UK CH38). Requires an Ofcom shared PMSE licence in the UK.
Key Features
✓UK band GB: 606 – 630 MHz (UK CH38)
✓e825 capsule: cardioid dynamic vocal capsule for general-purpose live use
✓RF output: 10 mW
✓Audio frequency response: 80 to 14,000 Hz
✓Battery runtime: approx. 10 hours
Specifications
| General: RF output power | 10 mW |
| General: AF frequency response | 80 to 14,000 Hz |
| General | Power supply 2 AA size batteries, 1.5 V |
| General: Operating time | approx. 10 hours |
| General: Microphone type | dynamic |
| General: Input sensitivity (capsule) | 1.5 mV/Pa |
| General: Pick-up pattern | cardioid |
| General: Adjustment range of transmitter sensitivity | 0 to -30 dB, adjustable in 10-dB steps |
| General: Housing material | rugged ABS housing |
| Physical & Dimensions: Length | 260mm |
| Physical & Dimensions: Diameter | 50mm |
| Physical & Dimensions: Weight | 245g |
| Sennheiser part number | 507334 |
| UK band | GB (606 – 630 MHz (UK CH38)) |
