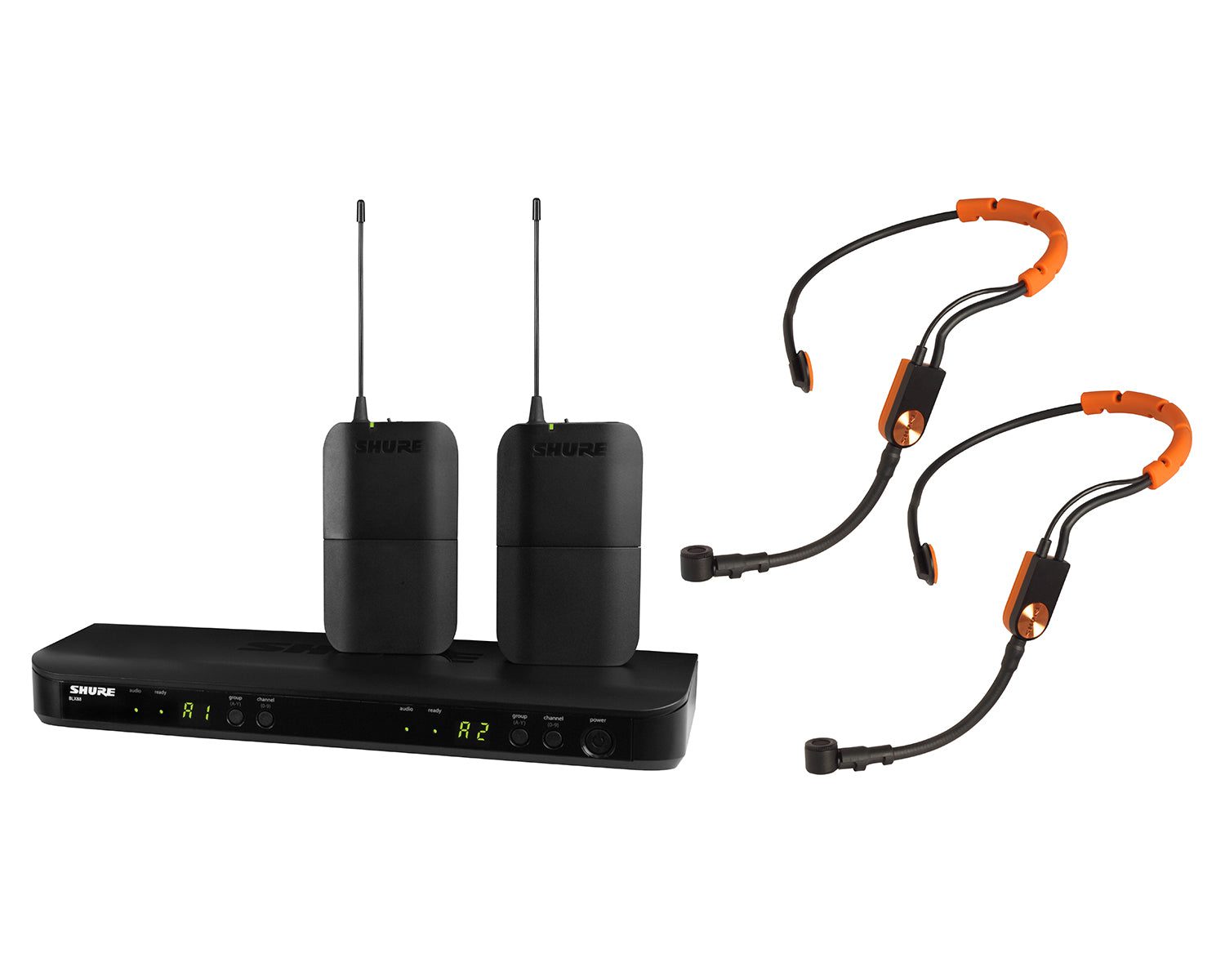

Shure BLX188/SM31 DUAL Wireless Headset System BLX88/2xSM31FH K3E

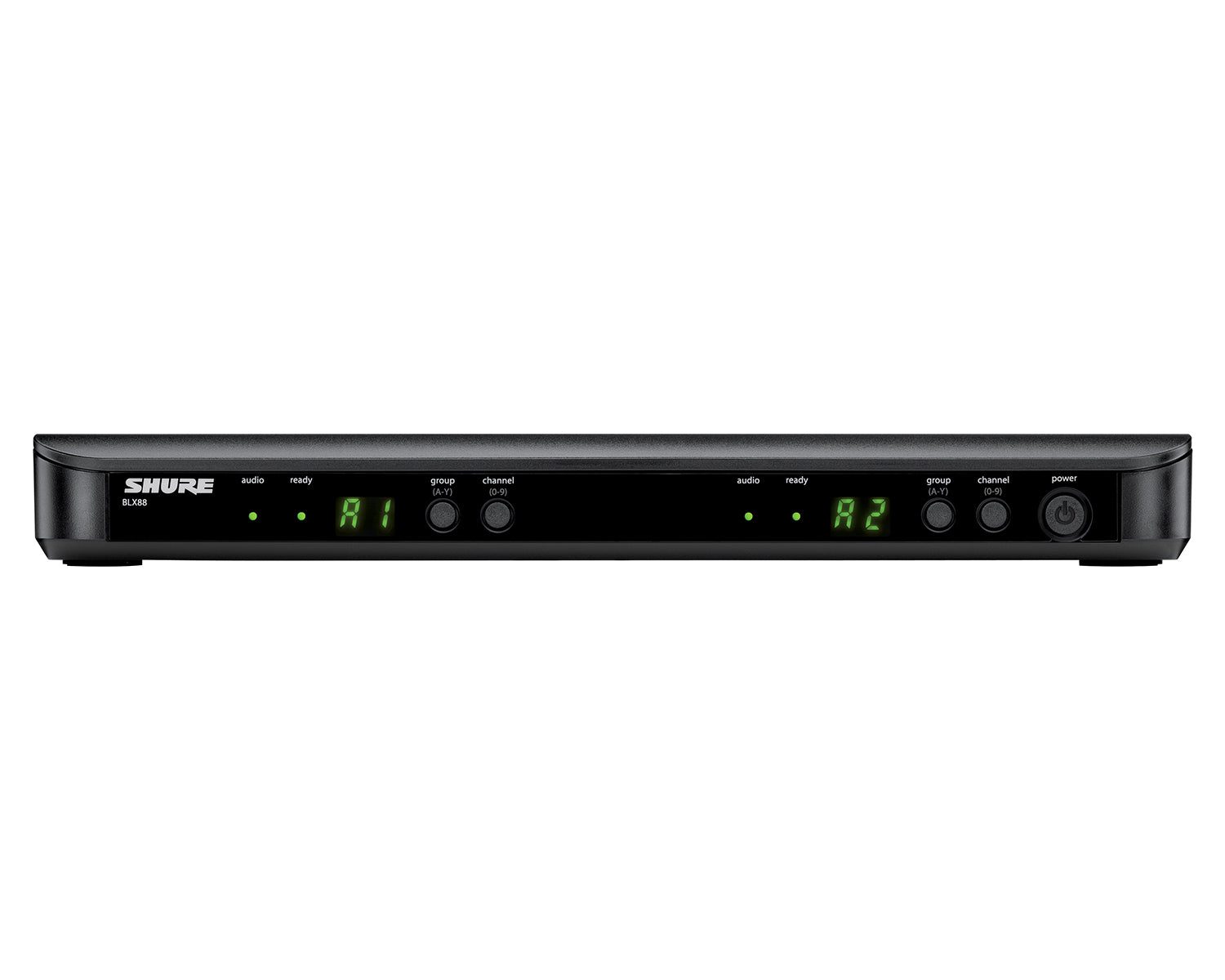

BLX88 Dual Receiver Features

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open Frequency

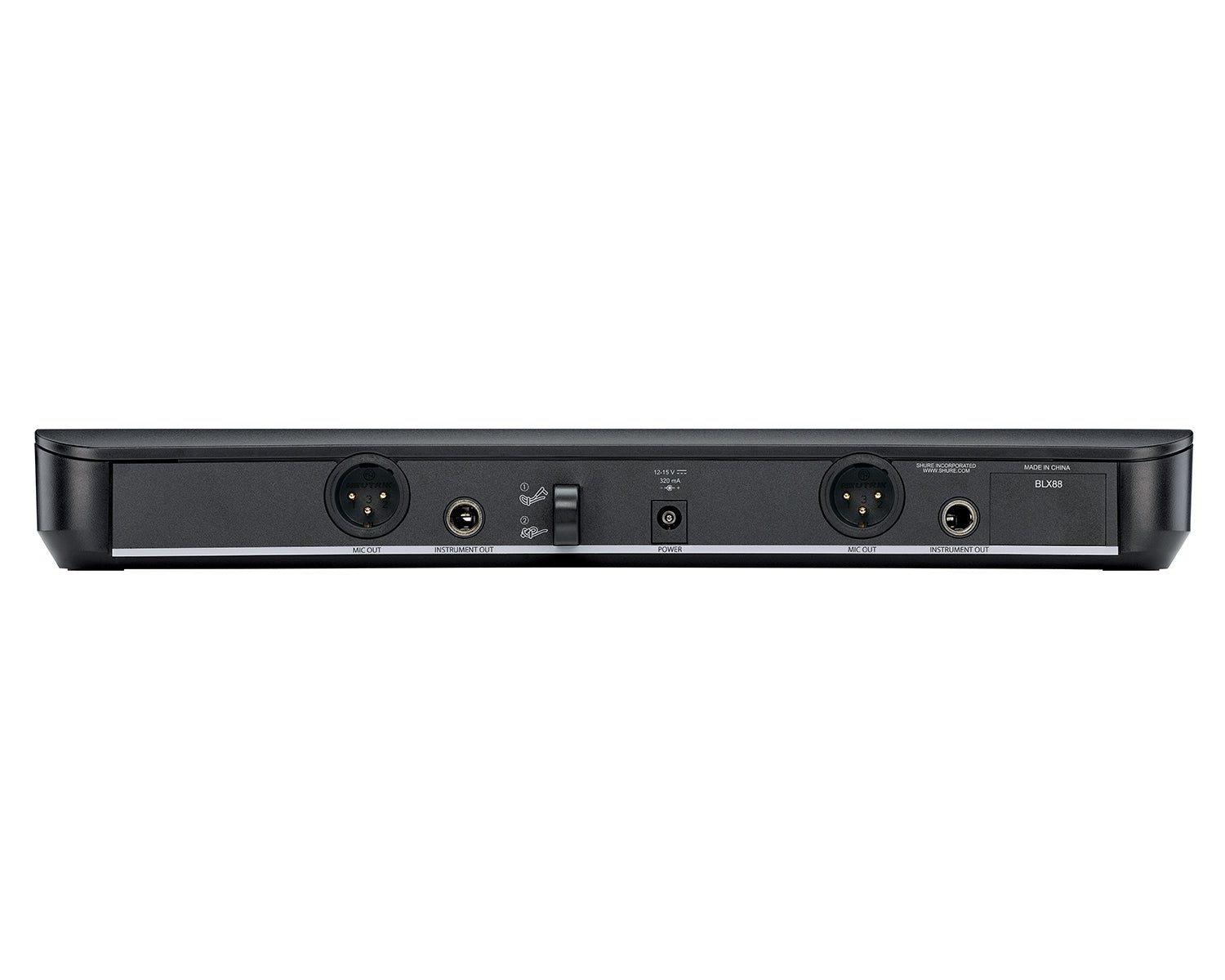

• ¬º" and XLR audio outputs
• Two colour audio status indicator LED
• Green: Normal audio levels
• Red: Excessive audio levels (overload/clipping)
• Not rack mountable

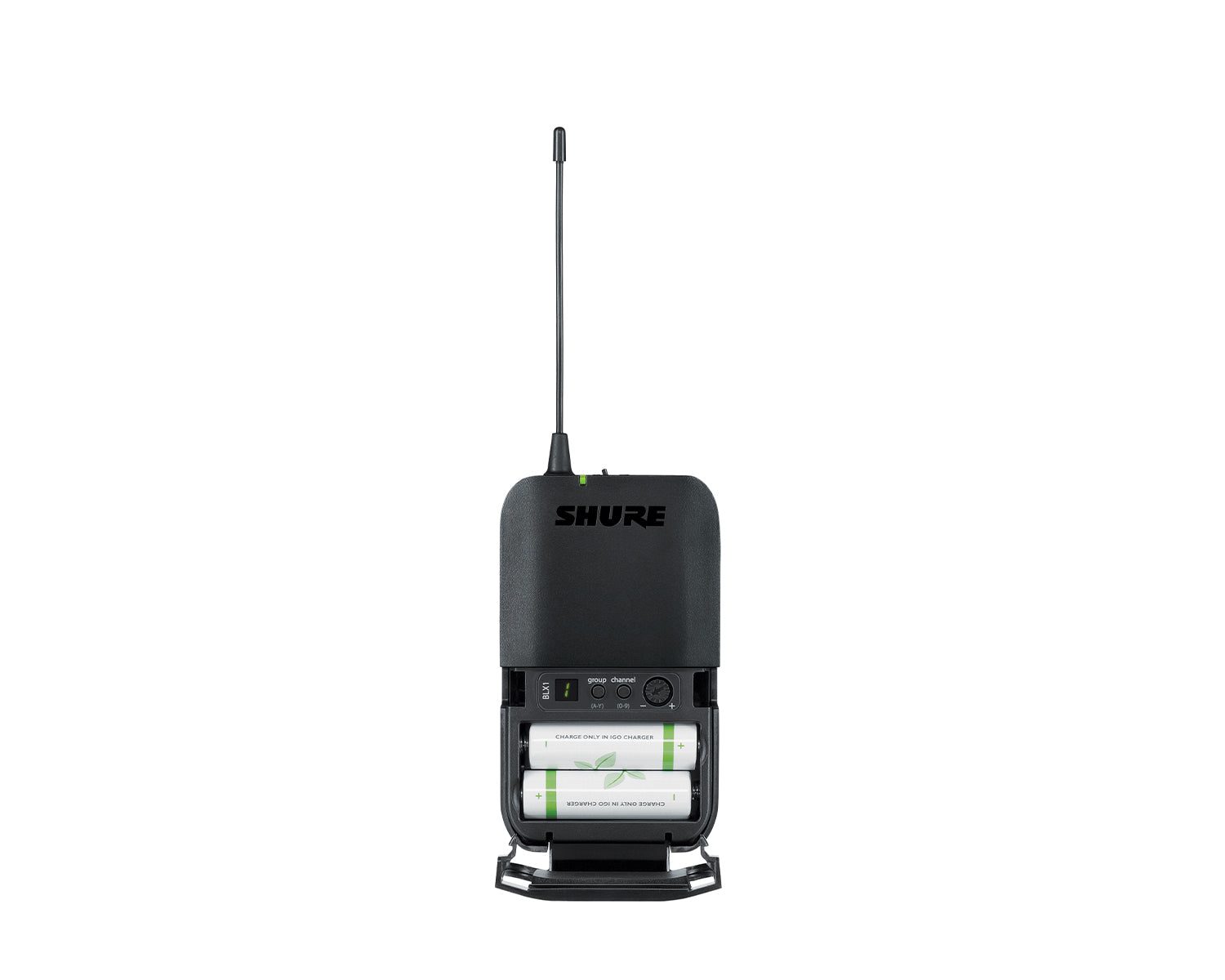

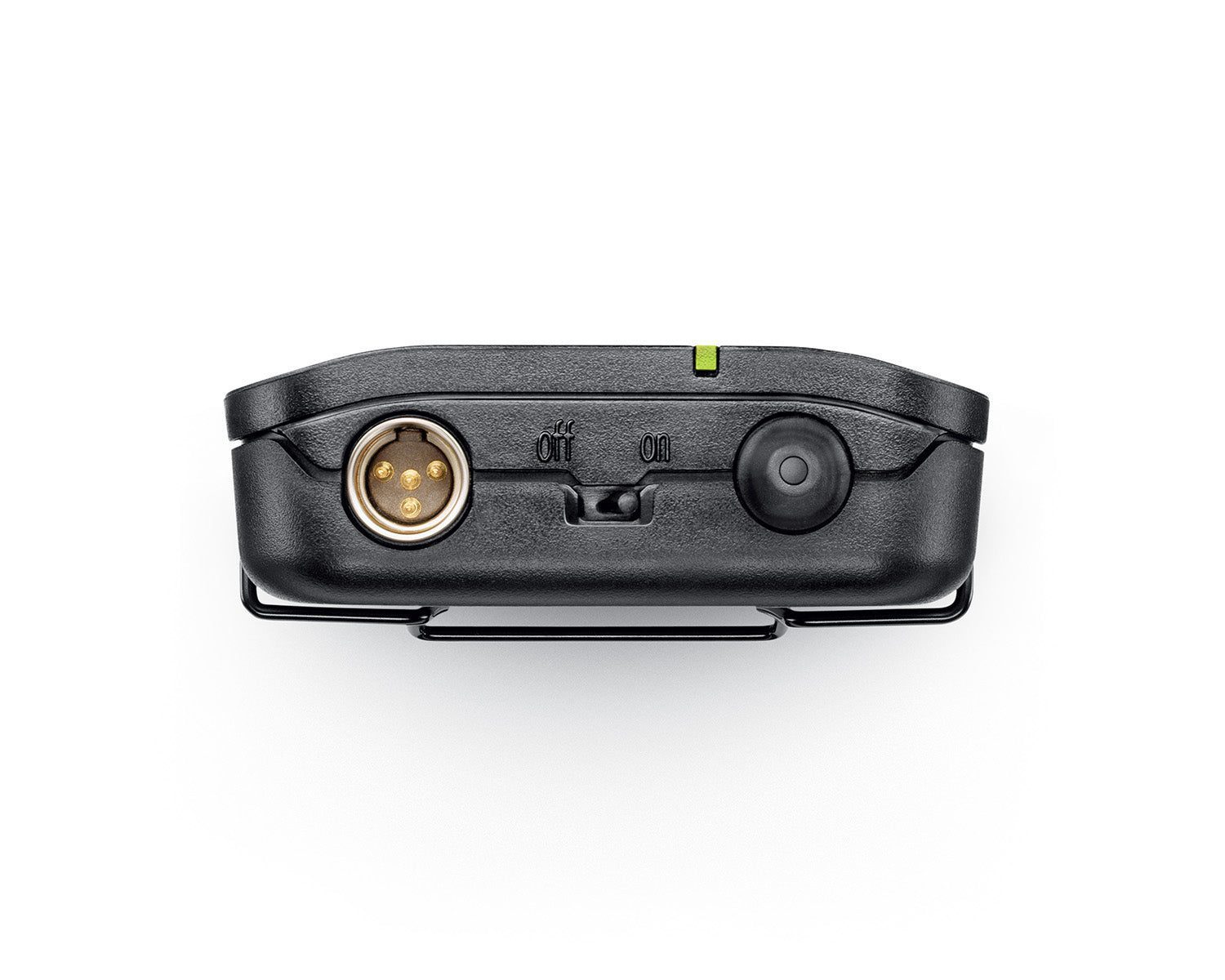

BLX1 Bodypack Features

• For use as part of BLX and BLX-R Analogue Wireless Systems
• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries provide up to 14 hours of continuous use
• 100 m (300 ft.) operating range (line of sight)

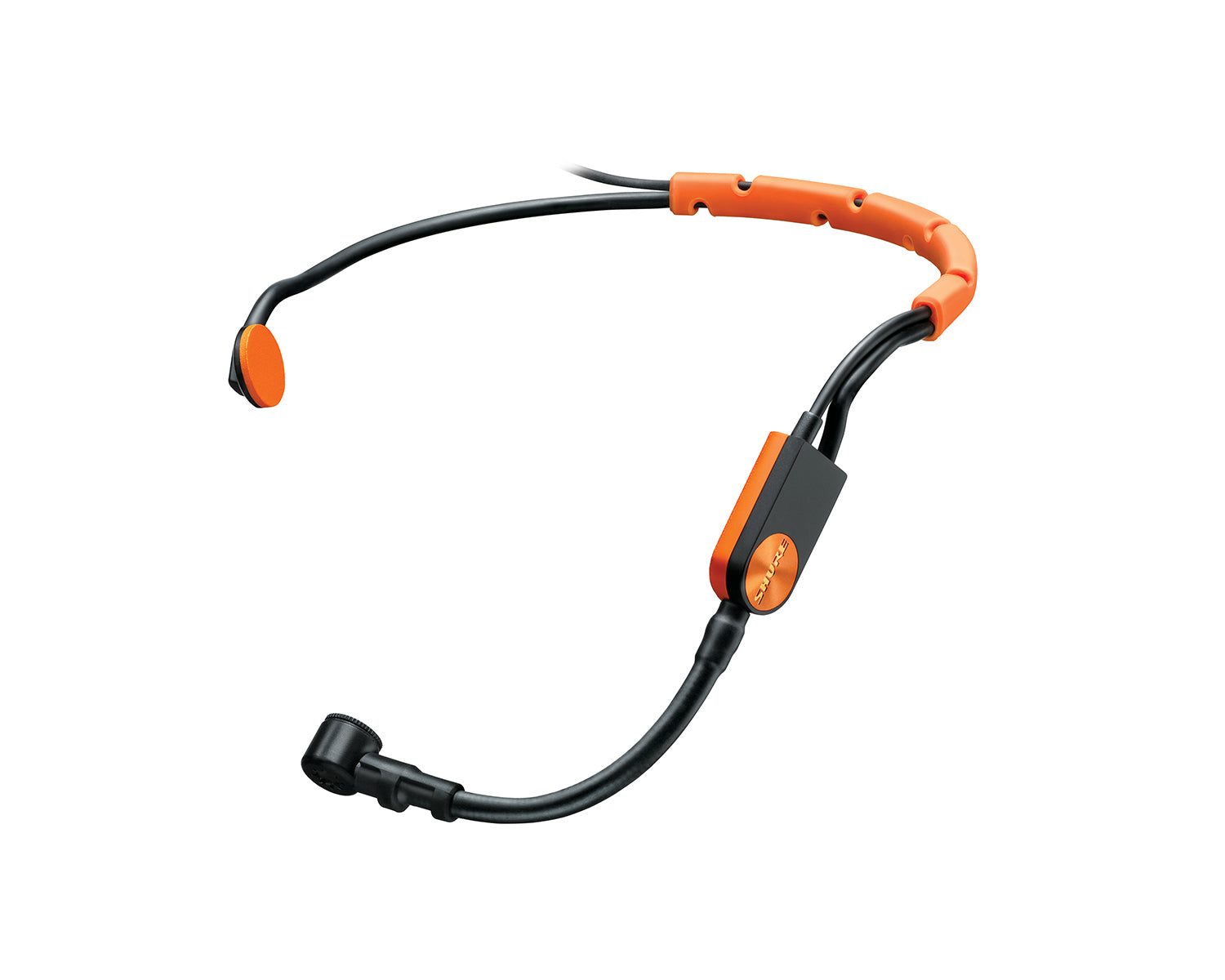

SM31 Headset Features

• Wearable wireframe headset with secure, comfortable fit made for fitness and aerobics instructors
• Integrated moisture-repelling hydrophobic fabric protects the microphone element from harmful corrosion for use in humid environments
• Flexible gooseneck provides discrete adjustment options to optimize placement for greatest isolation
• Lightweight and low-profile form factors stave off fatigue during high-impact use
• Compatible with Shure wireless bodypack systems for direct replacement of TA4F-connected microphones
• Included windscreen tames plosive, breath and wind noises for clean and intelligible sound
• Tailored frequency response refined for crisp and clear vocal reproduction

System Specifications

• Working Range:  91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
• Audio Frequency Response:  50 to 15,000 Hz Note: Dependent on microphone type
• Total Harmonic Distortion:  Ref. ¬±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range:  100 dB, A-weighted, typical
• Operating Temperature:  -18¬∞C (0¬∞F) to 57¬∞C (135¬∞F)
• Polarity:  Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
