Shure UA874WB UHF Active Directional Antenna 470-900 MHz

Product code: 4786

£570.00 inc VAT
£475.00 ex VAT

SKU: UA874WB
11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

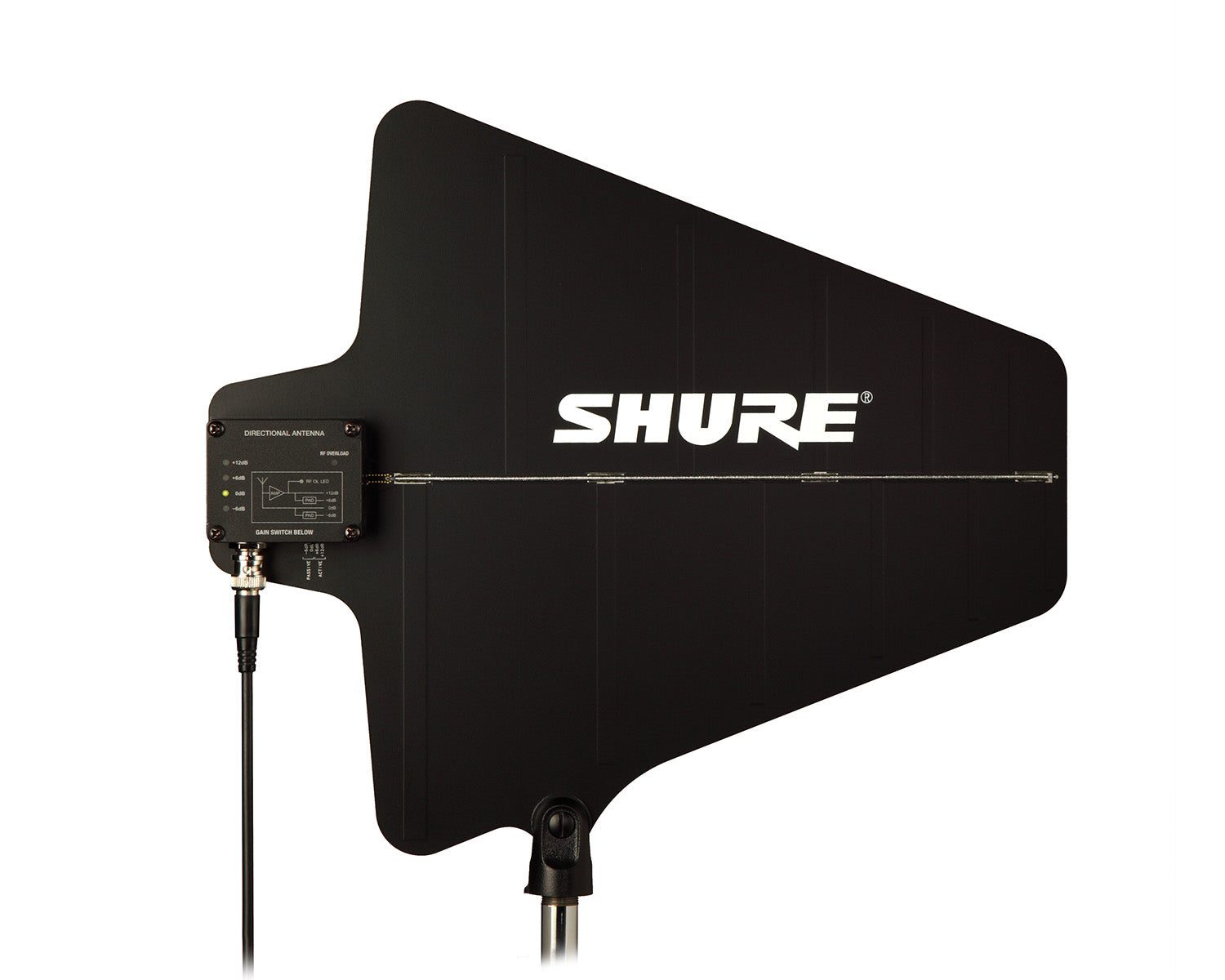

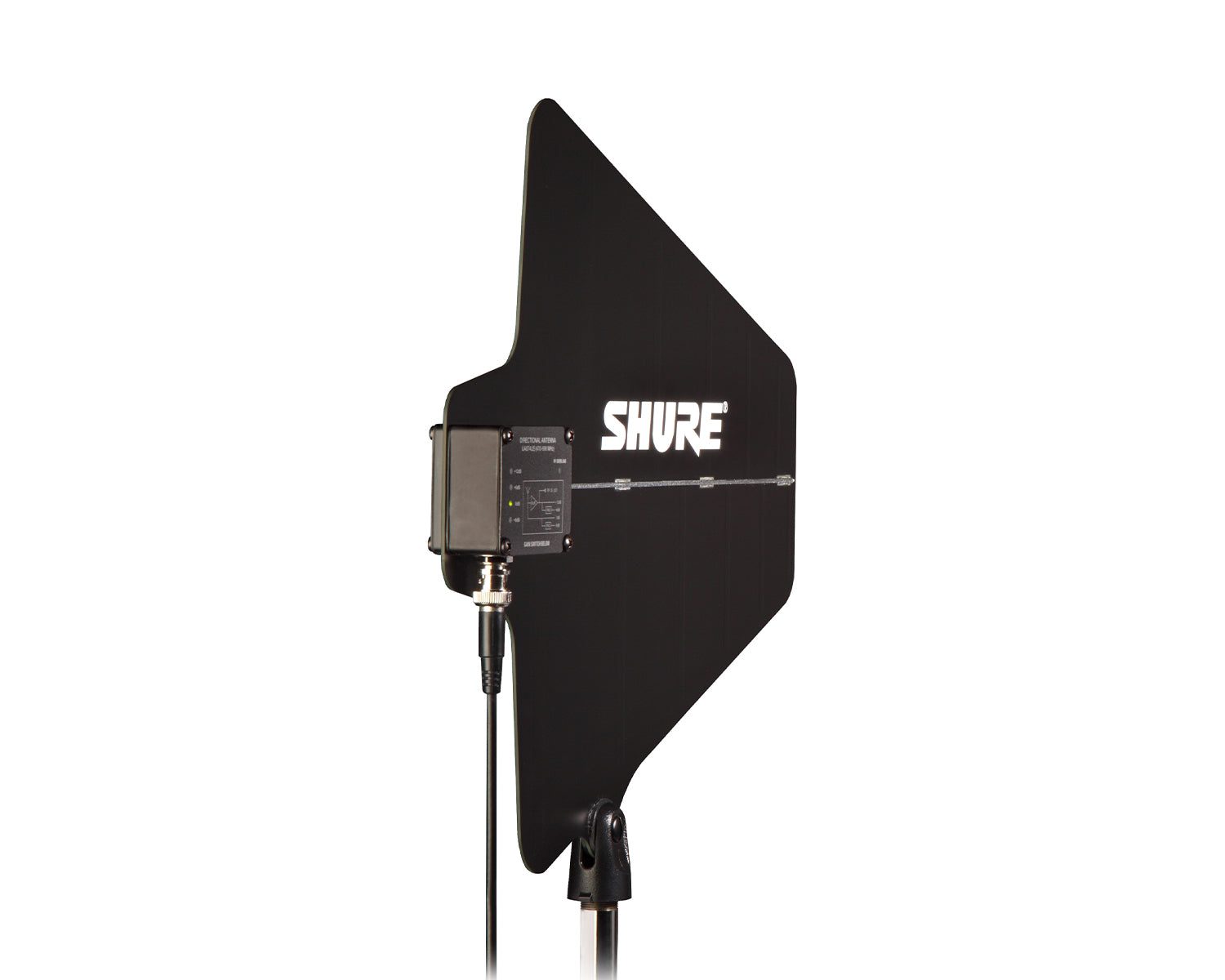

The Shure UA874WB is an active log-periodic directional antenna covering 470-900MHz, the paddle that points 7.5dBi of gain at the stage while its built-in low-noise amplifier cancels out the coax run. A four-position gain switch (+12 to -6dB) matches it to short jumpers or long installs, on a mic-stand thread with integral swivel bracket.

Features

Active log-periodic directional paddle
470-900MHz wideband, 70° beamwidth
7.5 dBi axial gain plus switchable amplifier (+12/+6/0/-6dB)
Mic-stand thread and swivel wall/ceiling bracket
RF overload LED; OIP3 >30dBm
NoteRequires DC bias from the receiver or distro to operate, even at the 0dB setting.

Specifications

Shure UA874WB UHF Active Directional Antenna 470-900 MHz specifications
Type Active directional antenna
SKU UA874WB
Frequency range 470-900MHz
Antenna gain 7.5 dBi axial
Beamwidth 70° (-3dB)
Amplifier +12 / +6 / 0 / -6dB switchable
Connector BNC female, 50Ω
Power 10-15V DC bias via coax (required), 75mA
Dimensions 316mm x 359mm x 36mm, 317g

Full features

  • 470-900 MHz Frequency Range
  • Compatible with all Shure wireless receivers and antenna distribution systems that provide 10-15V DC bias

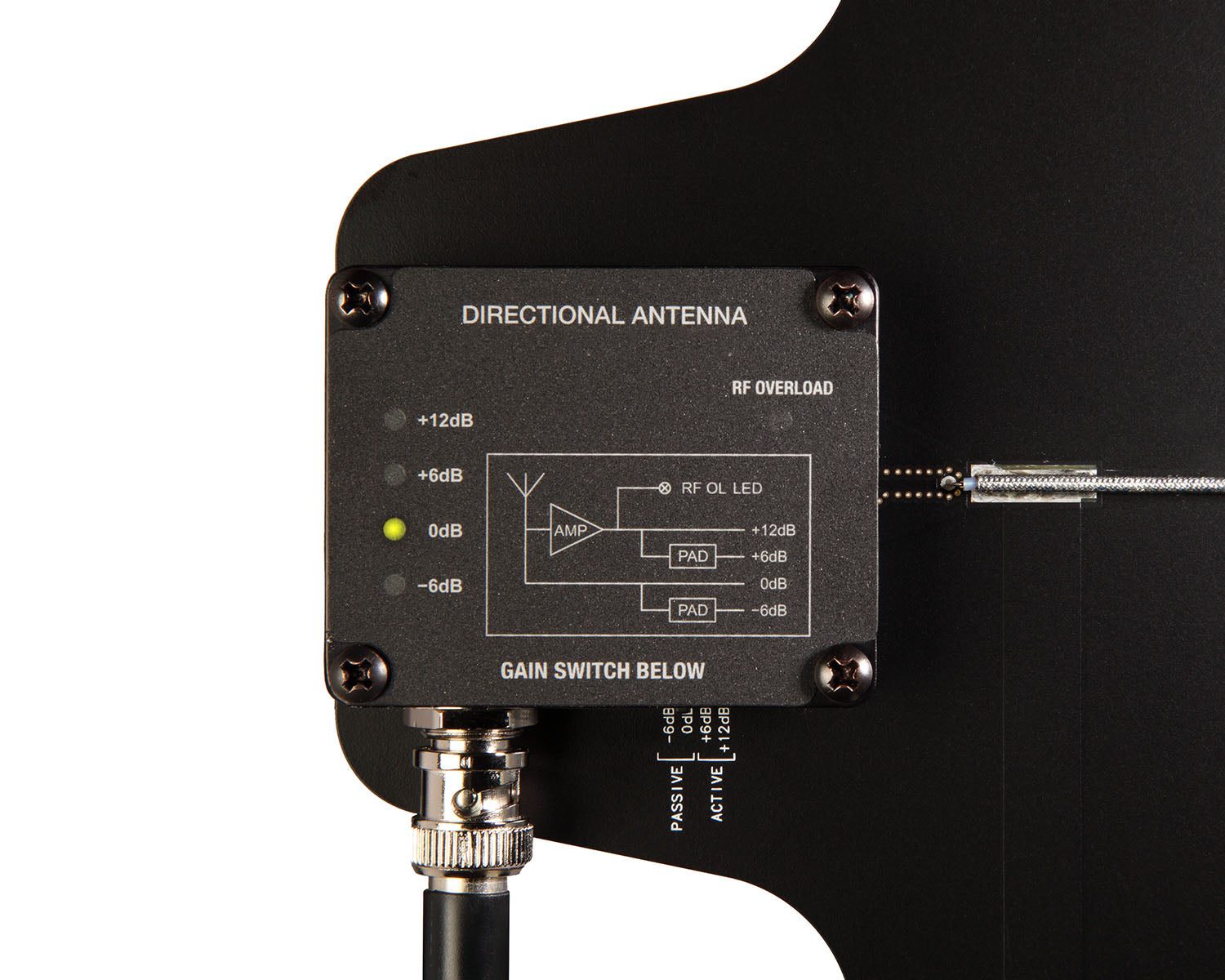

  • Four-position gain selector switch
  • Low-noise signal amplifier compensates for transmission loss in coaxial cable
  • Integrated threaded adapter mounts easily to microphone stands
  • Can be mounted on a microphone stand, suspended from the ceiling, or mounted to a wall

Full specifications

  • Connector Type: BNC, Female
  • Impedance: 50 ohms
  • Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
  • Reception Pattern: 70 degrees
  • Third-order Intercept Point: >30 dBm
  • Antenna Gain (On Axis): 7.5 dBi
  • Signal Gain +/- 1dB: Switchable
    • Active: +12 dB, +6 dB
    • Passive: 0 dB, -6 dB
  • RF Overload LED Threshold: -5 dBm
