Name: Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone
Brand: Shure
SKU: MX396/C-DUAL
Availability: InStock

Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone

£581.00£484.17 Incl. VATExcl. VAT

SKU: MX396/C-DUAL Category: Conference Systems

Type: Electret Condenser
Frequency Response: 50‚Äì17000 Hz
Polar Pattern: MX396/C-DUAL: Cardioid (x2)
Output Impedance: 170 Œ©
Output Configuration: Active Balanced
Sensitivity:
- @ 1 kHz, open circuit voltage
- ‚àí35 dBV/Pa (18 mV)
- 1 Pa=94 dB SPL
Maximum SPL 1 kHz at 1% THD, 1 kŒ© load: 122 dB
Self Noise A-weighted: 30 dB SPL
Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 64 dB
Dynamic Range 1 kŒ© load, @ 1 kHz: 92 dB
Common Mode Rejection:
10 to 100,000 kHz
45 dB, minimum
Clipping Level at 1% THD: ‚Äì7 dBV (0.5 V)
Mute Switch: ‚àí50 dB minimum
Logic Connections:
- LED IN: Active low (‚â§1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC-OUT: Active low (‚â§0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3kŒ©).
Cable: 6.1 m (20 ft), attached, unterminated, three shielded audio pairs and three shielded conductors for logic control
Weight: 594 g (1.3 lbs)
Environmental Conditions:
- Operating Temperature: ‚Äì18‚Äì57¬∞C (0‚Äì135¬∞F)
- Storage Temperature: ‚Äì29‚Äì74¬∞C (‚Äì20‚Äì165¬∞F)
Relative Humidity: 0‚Äì95%
Power Requirements: MX396/C-DUAL: 48‚Äì52 V DC, 19.0 mA

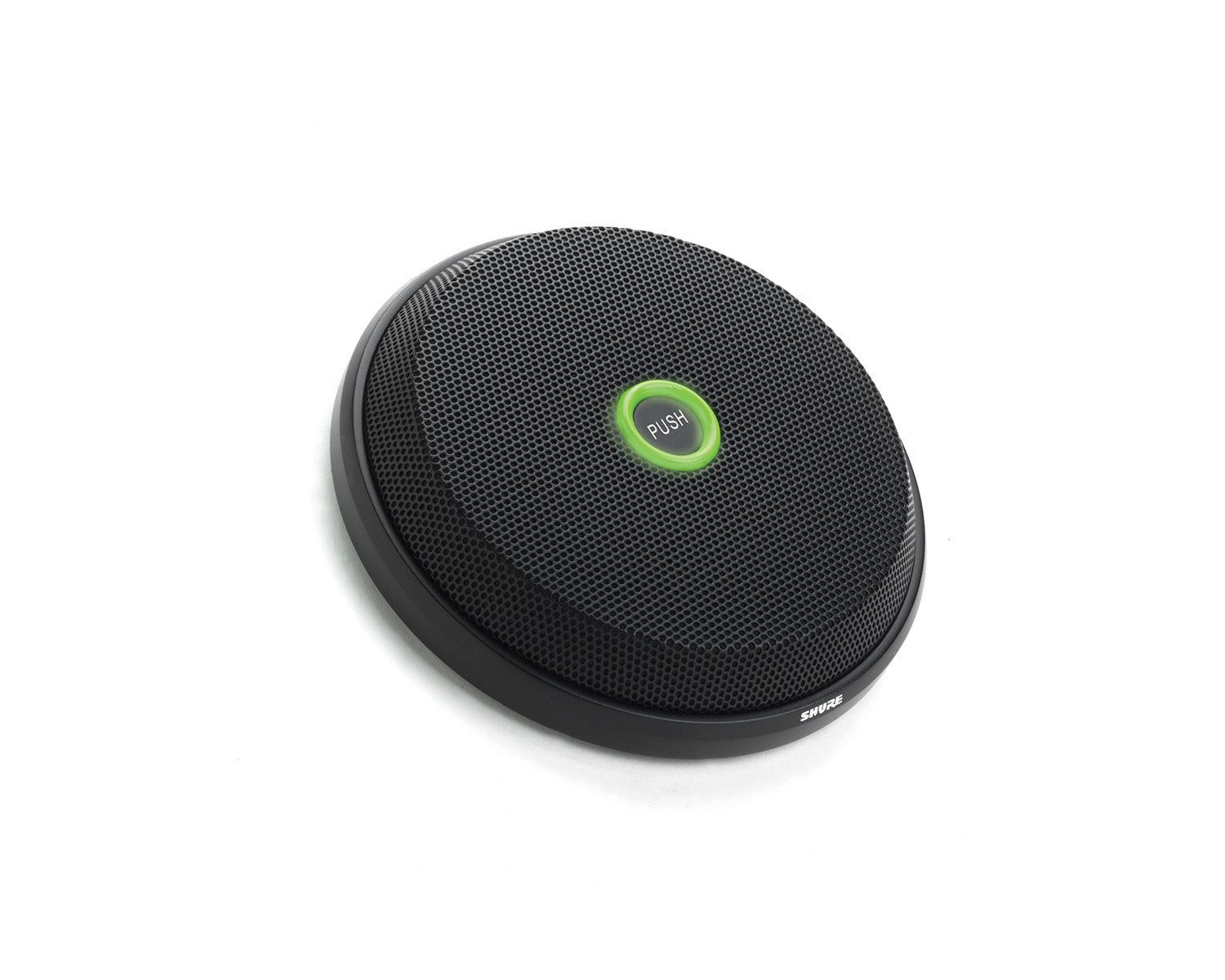

Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone - Image 1

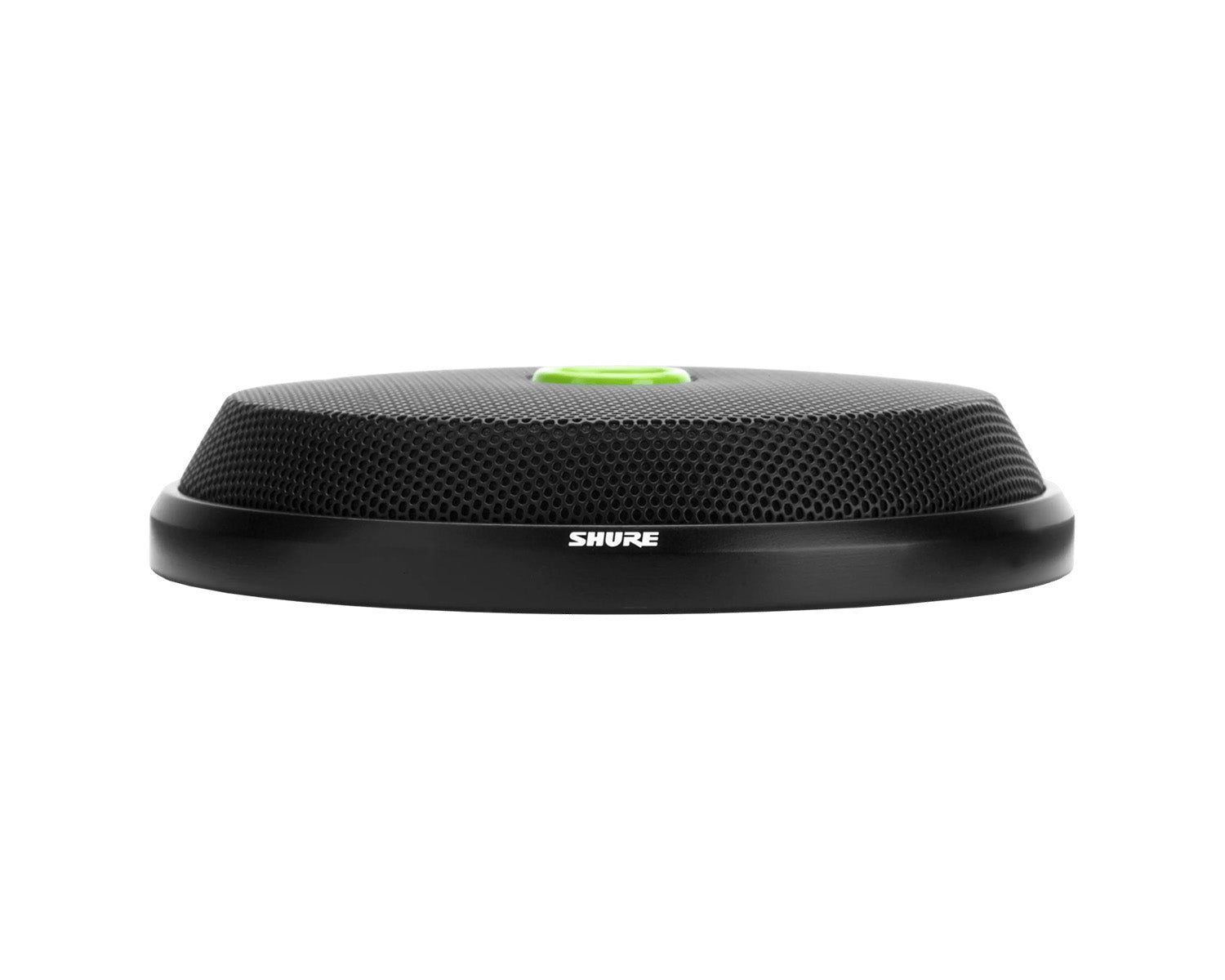

Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone - Image 2

Click to enlarge

Add to compare

Add to wishlist

Description

Microflex Multi-Element Boundary microphones deliver a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three-element configurations, combining the coverage of multiple microphones into one small, compact package.

Features
