Does this microphone need phantom power?

Yes. It is a condenser design, so switch 48V phantom power on for that channel. A silent or very quiet channel is the usual sign that phantom has been left off. More on phantom power.

What pickup pattern is this, and when does it matter?

Cardioid. It picks up in front and rejects sound from behind, which is what makes it the standard choice on a live stage where monitors sit behind the microphone. How to stop feedback.

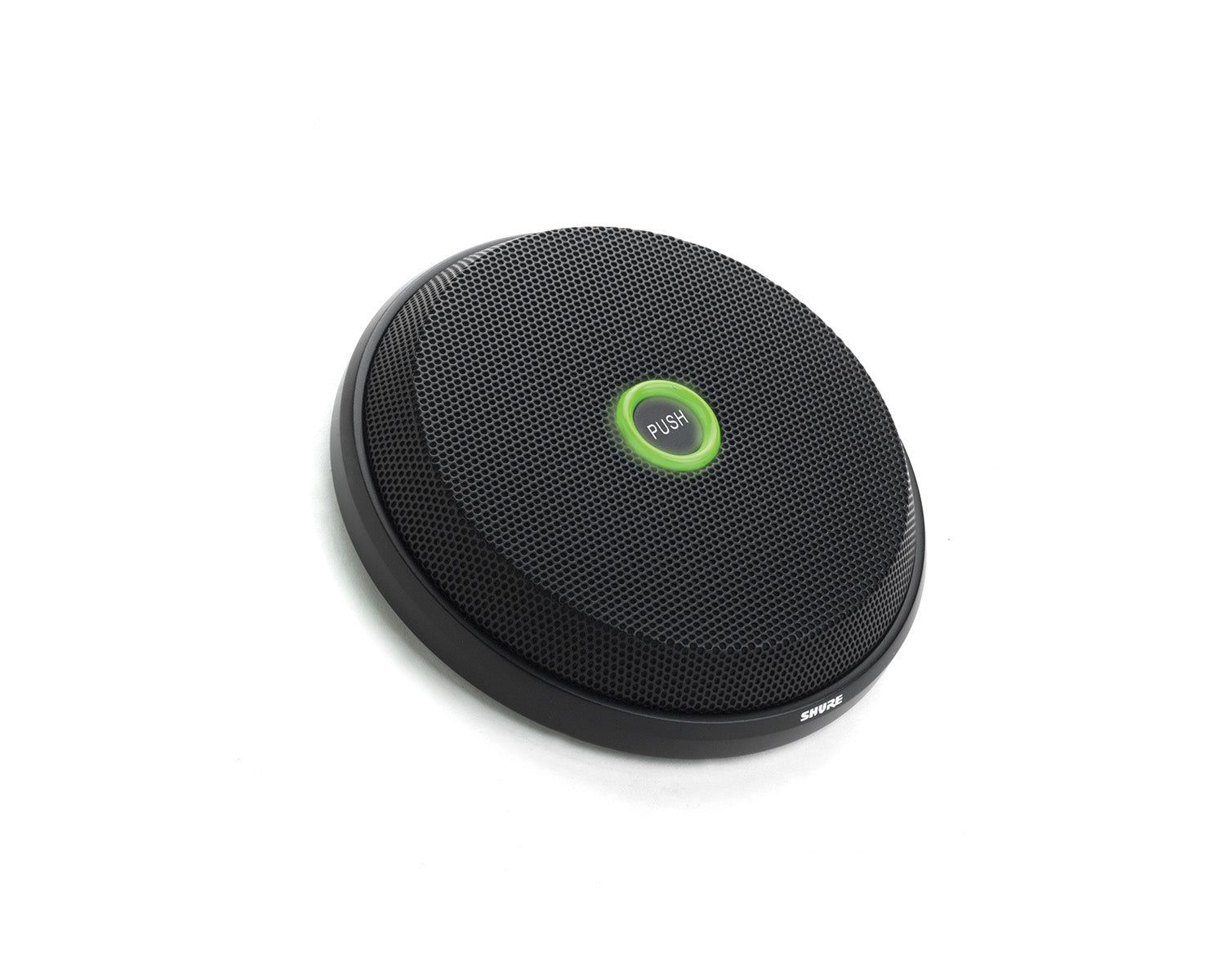

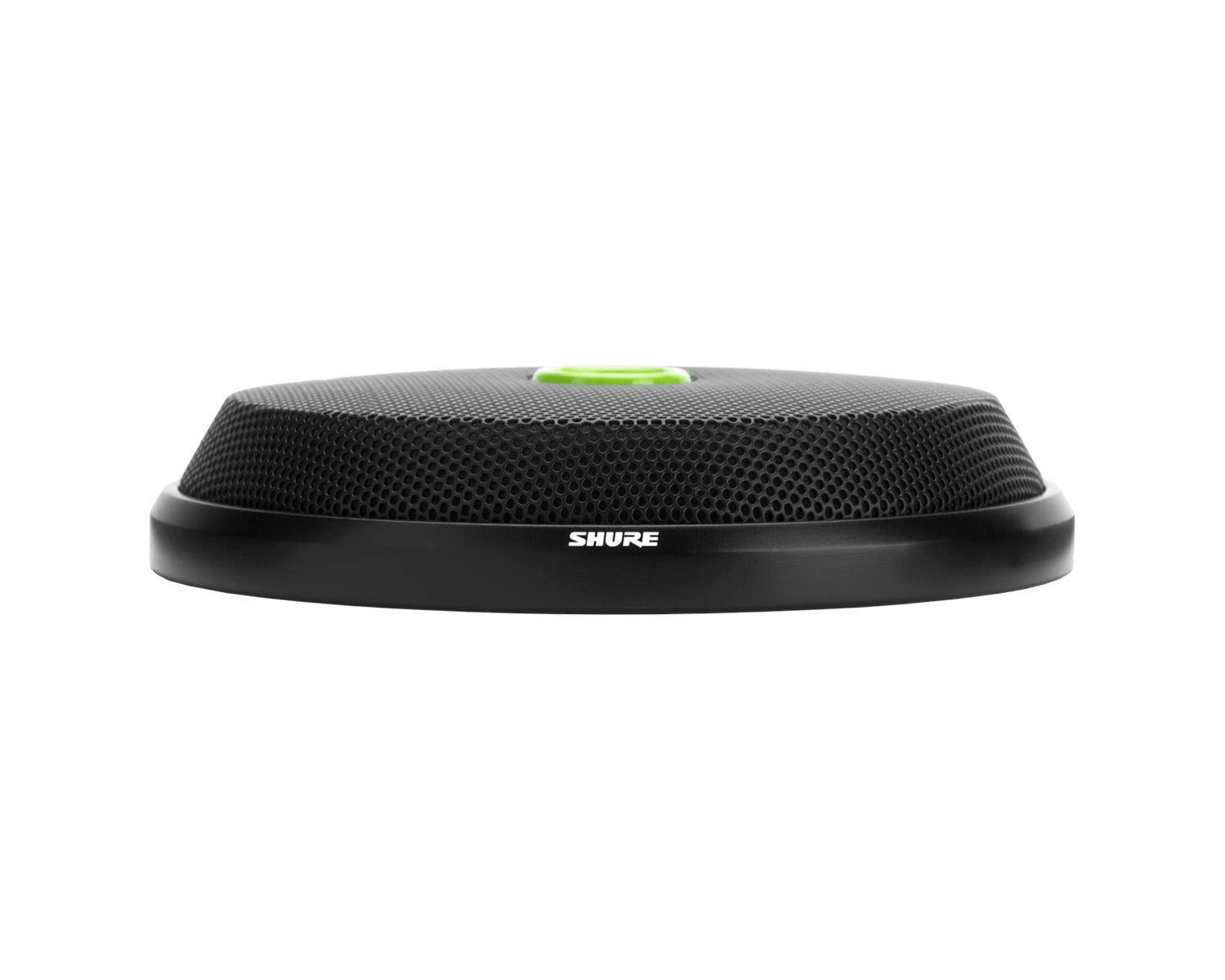

Shure MX396/C-TRI Microflex Tri-Element Cardioid Boundary Microphone

Product code: 6165

£704.00 inc VAT
£586.67 ex VAT

SKU: MX396/C-TRI

Ordered from supplier, allow 1–3 weeks

About this Product

The Shure MX396/C-TRI is a multi-element boundary condenser combining 3 cardioid capsules in one low-profile housing, it covers three directions from one housing, and the elements can be physically repositioned inside the grille for 360-degree coverage. A configurable mute button with bi-colour LED works locally or hands control to an automatic mixer over the logic lines, and the 6.1m unterminated cable carries separate audio pairs per element for the installer to land on the DSP.

Features

3 cardioid elements in one boundary housing

Configurable mute button with bi-colour LED

TTL logic in/out for automatic mixers

Separate audio pair per element on a 6.1m install cable

CommShield RF filtering, 150Hz low-cut option

Elements repositionable for 360° coverage

NoteEach element lands on its own console/DSP input, don’t parallel the elements into one phantom-powered input.

Specifications

Shure MX396/C-TRI Microflex Tri-Element Cardioid Boundary Microphone specifications
Type	Multi-element boundary condenser
SKU	MX396/C-TRI
Elements	3 x cardioid
Frequency response	50Hz-17kHz
Sensitivity	-35 dBV/Pa (18mV)
Max SPL	122dB
Cable	6.1m attached, unterminated (per-element pairs)
Power	48-52V phantom, 22.0mA
Weight	594g

Full features

3 x Cardioid Elements
End-Of-Table and Centre-Of-Table Coverage
Low profile, aesthetic design
Wide dynamic range and smooth frequency response
Configurable mute switch with logic output
Logic input for external LED control
RF filtering with CommShield technology

Full specifications

Type: Electret Condenser
Frequency Response: 50-17000 Hz
Polar Pattern: MX396/C-TRI: Cardioid (x3)
Output Impedance: 170 Ω
Output Configuration: Active Balanced
Sensitivity:
- @ 1 kHz, open circuit voltage
- -35 dBV/Pa (18 mV)
- 1 Pa=94 dB SPL
Maximum SPL 1 kHz at 1% THD, 1 kΩ load: 122 dB
Self Noise A-weighted: 30 dB SPL
Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 64 dB
Dynamic Range 1 kΩ load, @ 1 kHz: 92 dB
Common Mode Rejection:
10 to 100,000 kHz
45 dB, minimum
Clipping Level at 1% THD: -7 dBV (0.5 V)
Mute Switch: -50 dB minimum
Logic Connections:
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC-OUT: Active low (≤0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3kΩ).
Cable: 6.1 m (20 ft), attached, unterminated, three shielded audio pairs and three shielded conductors for logic control
Weight: 594 g (1.3 lbs)
Environmental Conditions:
- Operating Temperature: -18-57°C (0-135°F)
- Storage Temperature: -29-74°C (-20-165°F)
Relative Humidity: 0-95%
Power Requirements: MX396/C-TRI: 48-52 V DC, 22.0 mA
