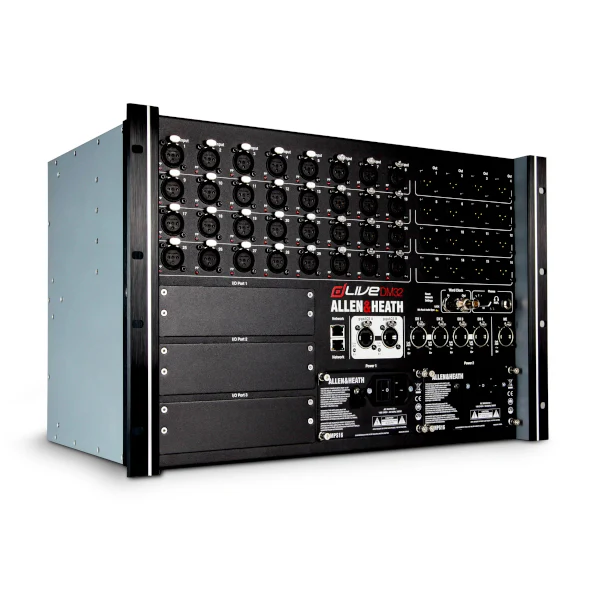

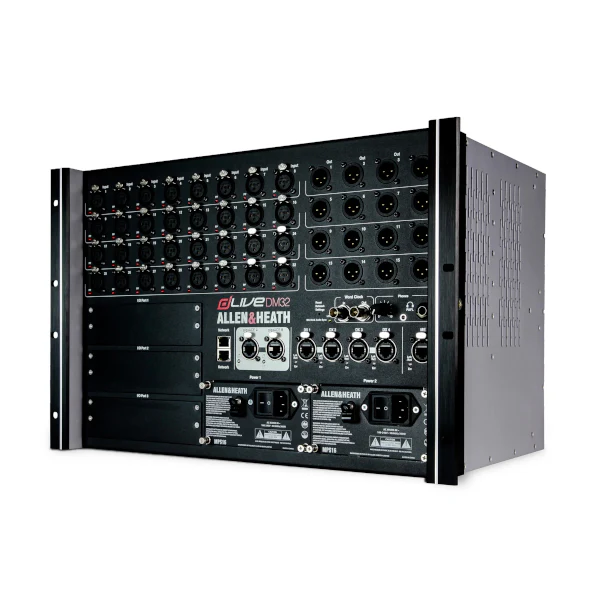

Allen & Heath dLive DM32U MixRack with UltraFX

The DM32U dLive Mixrack / Mainframe has 32 analogue inputs and 16 analogue outputs of local I/O.

Like all dLive V2 MixRacks, DM32U has a 128 Input x 64 Output matrix, all with full processing, all running¬†at a 96kHz sample rate and featuring a 96Bit accumulator.¬†Up to 48 I/O endpoints can be created via Allen & Heath networked I/O boxes running the DX and¬†gigaACE protocols. Almost any external control system capable of making a TCP/IP connection can¬†be used to control DM32, in addition to Allen & Heath’s own IP remote controllers and dLive¬†Surfaces.

Features:

• UltraFX Inside!
• 128 Input x 64 output matrix
• 64 channels of Auto Mic Mixing
• Ethernet based audio expansion
• Redundant PSU & audio connections
• External control drivers available
• 32 Analogue inputs, 16 analogue outputs
• 3x 128ch I/O ports for Dante, MADI,
• Waves SoundGrid etc.
• Over 800×800 networked audio I/O
• Compatible with IP remote controllers
• Extremely low latency (<0,7mS)
• High end audio quality
