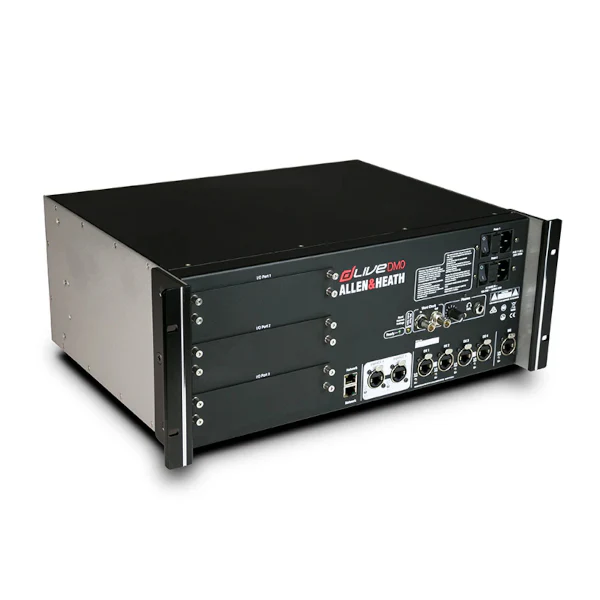

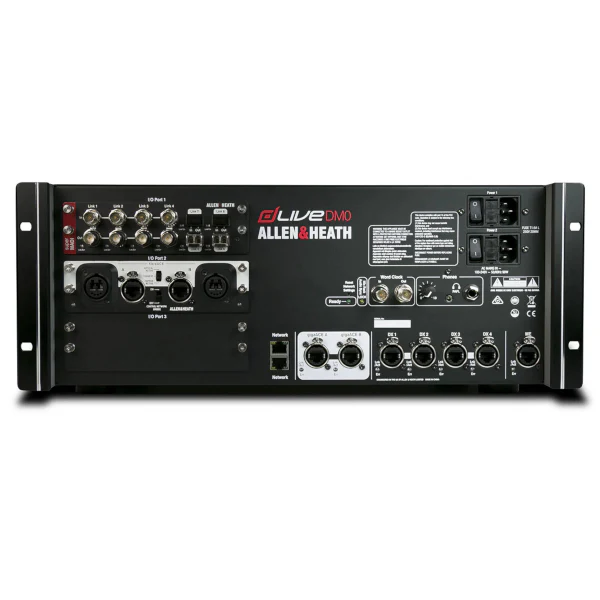

The dLive DM0 is the smallest MixRack in the dLive range, measuring just 4U high with no local analogue I/O. It houses the full dLive XCVI processing core with UltraFX, making it the ideal choice for systems where all audio I/O is provided by networked DX expanders or digital option cards, common in large distributed installations, broadcast facilities, and touring rigs with remote stageboxes.
128 x 64
Processing · Input x output matrix
96 kHz
Sample Rate · 96-bit accumulator
< 0.7 ms
Latency · Ultra-low
4U
Height · No local analogue I/O
I/O ExpansionThe DM0 has no local analogue I/O, all audio connectivity comes via DX expanders on its 2 redundant DX links, plus 3 x 128-channel I/O ports for option cards such as Dante, MADI, and Waves SoundGrid. Up to 28 DX I/O expanders can be added via DX Hub modules or DX Link cards, and the system handles over 800 inputs and outputs in total.
Compatible Surfaces
Control from any dLive surface or IP controller
S7000
S5000
S3000
C3500
C2500
C1500
CTi1500
Option Card Slots
3 x 128-channel I/O ports
Dante
MADI
Waves SoundGrid
fibreACE
gigaACE
Features
128 input x 64 output matrix with full processing on every channel
RackUltra FX card fitted: 8 RackUltra FX engines plus 16 RackExtra FX
64 channels of automatic mic mixing
Redundant hot-swappable power supplies
Redundant audio connections throughout
Compatible with Allen & Heath IP remote controllers
Third-party control via TCP/IP
Over 800 system inputs and outputs via expanders and networking
Specifications
| Processing Matrix | 128 inputs x 64 outputs, full processing |
| Sample Rate | 96 kHz |
| Accumulator | 96-bit |
| Latency | < 0.7 ms |
| Local Analogue I/O | None |
| Option Card Slots | 3 x 128-channel I/O ports |
| Auto Mic Mixing | 64 channels |
| Power Supply | Dual redundant, hot-swappable |
| Rack Height | 4U |
| SKU | DLIVE-DM0U/240X |
