Rated 4.9 (99 reviews)

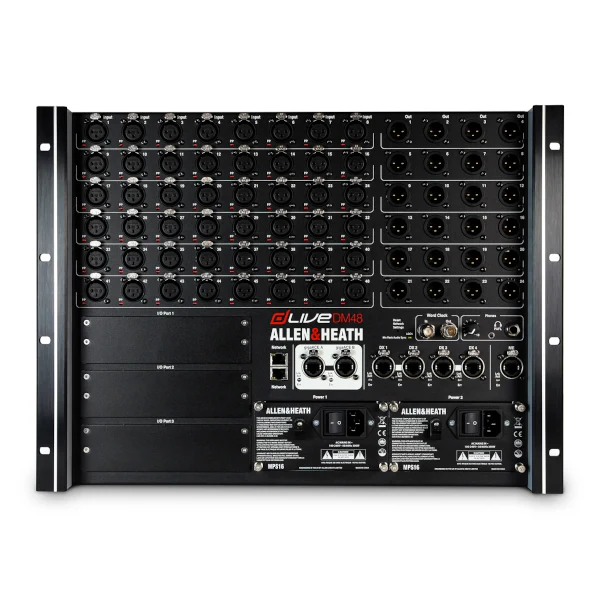

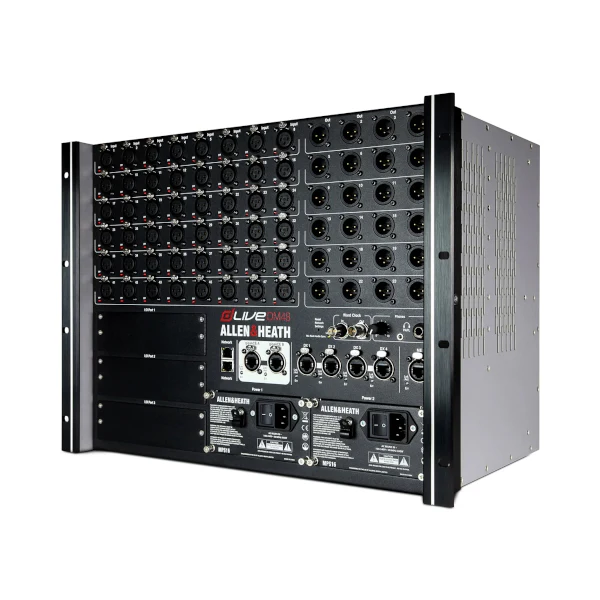

The dLive DM48U MixRack provides 48 mic/line inputs and 24 line outputs of local analogue I/O alongside the full dLive XCVI processing core with UltraFX. It covers the I/O requirements of most mid-to-large productions out of the box, making it a popular choice for touring sound companies, festivals, and large venues that need a high local channel count with room to expand via networked expanders.
48
Local Inputs · Mic/line
24
Local Outputs · Line
128 x 64
Processing · Full matrix
< 0.7 ms
Latency · 96 kHz / 96-bit
Compatible Surfaces
Control from any dLive surface or IP controller
S7000
S5000
S3000
C3500
C2500
C1500
CTi1500
Option Card Slots
3 x 128-channel I/O ports
Dante
MADI
Waves SoundGrid
fibreACE
gigaACE
Features
128 input x 64 output matrix with full processing on every channel
UltraFX engine included
64 channels of automatic mic mixing
48 local mic/line inputs and 24 local line outputs
Redundant hot-swappable power supplies
Redundant audio connections throughout
Over 800 x 800 networked audio I/O capacity
Third-party control via TCP/IP
Specifications
| Local Analogue Inputs | 48 mic/line |
| Local Analogue Outputs | 24 line |
| Processing Matrix | 128 inputs x 64 outputs, full processing |
| Sample Rate | 96 kHz |
| Accumulator | 96-bit |
| Latency | < 0.7 ms |
| Option Card Slots | 3 x 128-channel I/O ports |
| Auto Mic Mixing | 64 channels |
| Power Supply | Dual redundant, hot-swappable |
| SKU | DLIVE-DM48U/240X |
