Allen & Heath dLive CDM32U MixRack with UltraFX

Product code: 201

Enquire for price

SKU: DLIVE-CDM32U/240X
1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
3 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

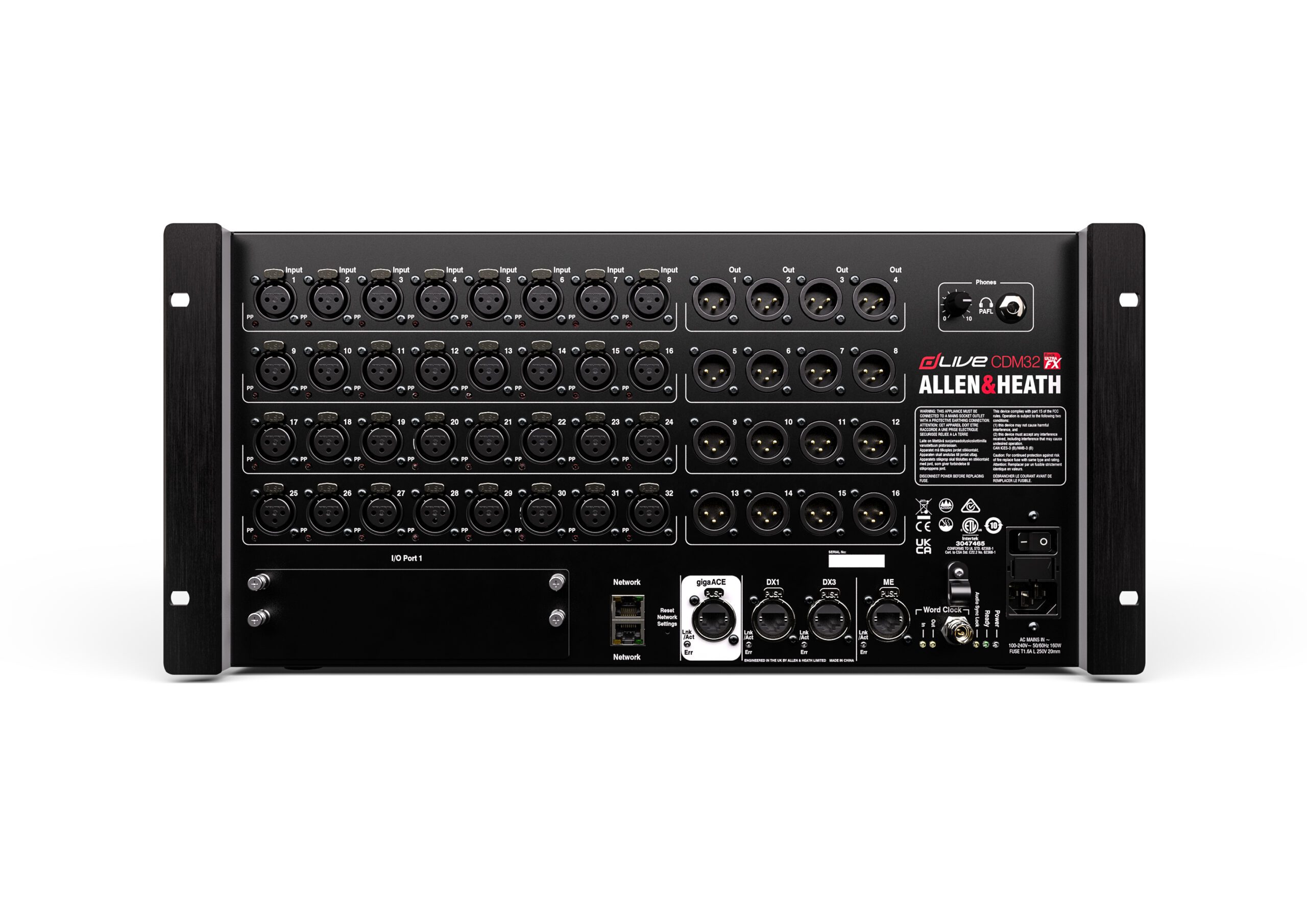

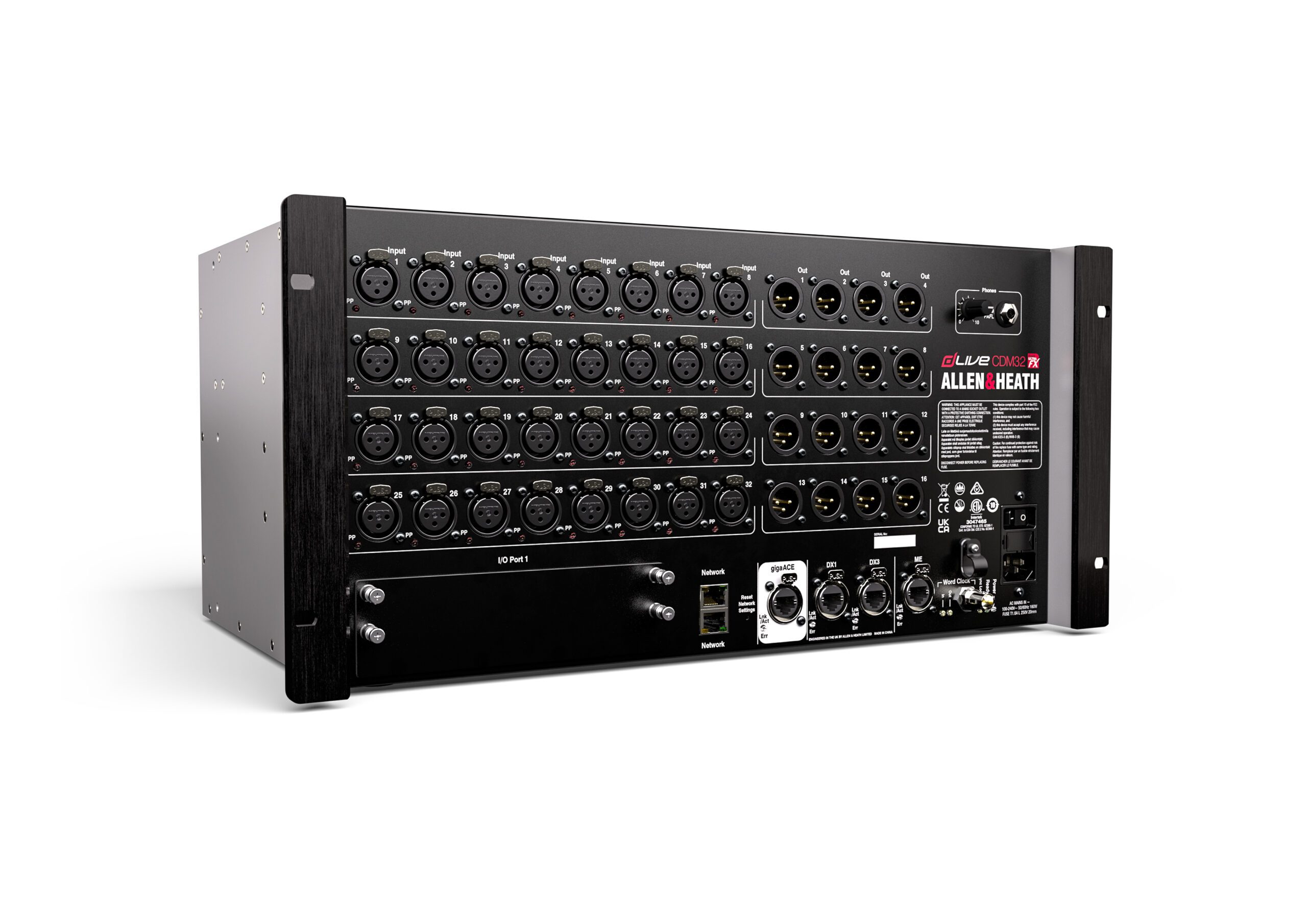

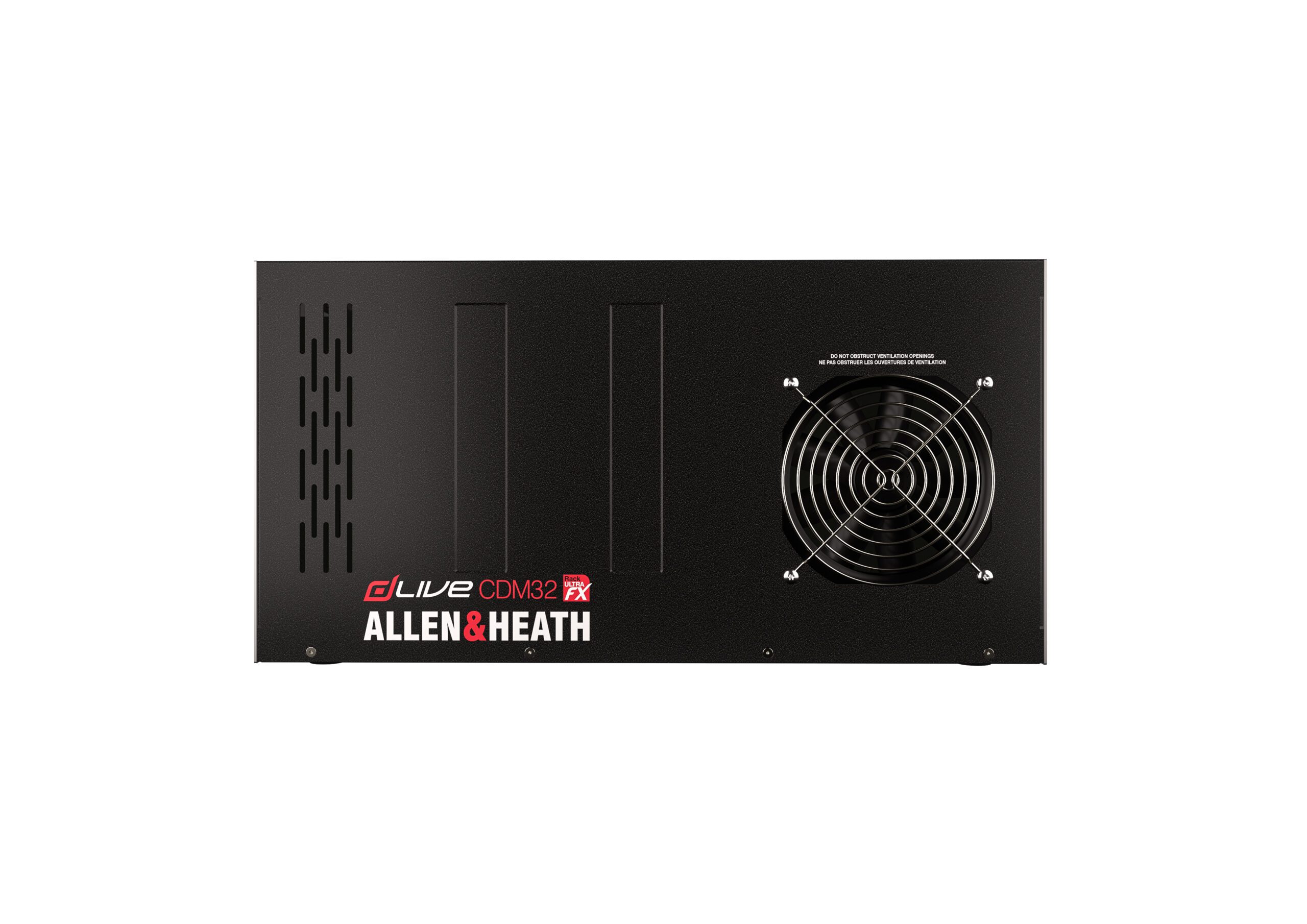

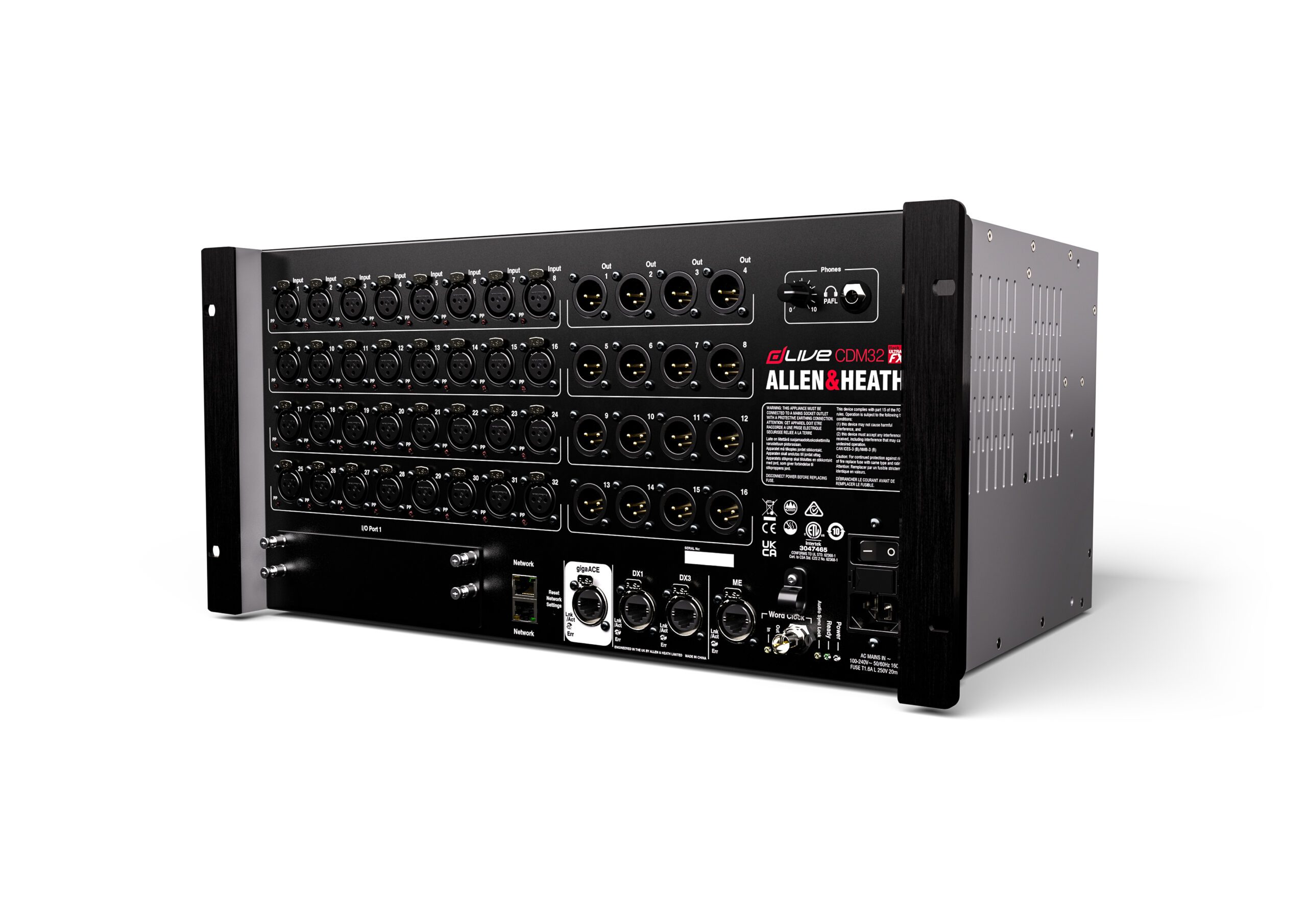

The dLive CDM32U is the entry-level C Class MixRack, providing 32 mic/line inputs and 16 line outputs of local analogue I/O in a compact chassis. It houses the XCVI processing core with 8 RackUltra FX and delivers the same 128-channel mix engine as the larger DM MixRacks, making it an excellent match for C Class surfaces in installed applications, smaller touring rigs, and corporate AV systems.

32
Local Inputs · Mic/line
16
Local Outputs · Line
128 x 64
Processing · Full matrix
< 0.7 ms
Latency · 96 kHz / 96-bit
XCVI Processing CoreThe CDM32U runs the same XCVI FPGA processing core as all dLive MixRacks. This provides 128 input channels and 64 mix outputs with full processing, a configurable 64-bus architecture supporting group, FX, aux, matrix, and mains buses, LR/LCR and up to 5.1 mains modes, 24 DCAs, and automatic mic mixing across up to 64 channels. The 16 RackExtra FX slots provide dedicated stereo returns.

Control Options

Surface, laptop, iPad, or third-party controller

dLive Surfaces
IP Controllers
TCP/IP
Laptop / iPad

Expansion

Add I/O via DX expanders and option cards

DX expanders
Dante
MADI
Waves SoundGrid

Features

128 input channels and 64 mix outputs with full processing
XCVI FPGA core with variable bit-depth precision
8 RackUltra FX with dedicated stereo sends and returns
16 RackExtra FX with dedicated stereo returns
24 DCAs
Automatic mic mixing, up to 64 channels across 1, 2, or 4 zones
LR, LCR, and up to 5.1 mains modes
Compact form factor, designed to pair with C Class surfaces

Specifications

Allen & Heath dLive CDM32U MixRack with UltraFX specifications
Local Analogue Inputs 32 mic/line
Local Analogue Outputs 16 line
Processing Core XCVI FPGA
Input Channels 128 with full processing
Mix Outputs 64 with full processing
Sample Rate 96 kHz
Accumulator 96-bit
Latency < 0.7 ms
DCAs 24
SKU DLIVE-CDM32U/240X

Full features

  • 32 Mic/Line Inputs, 16 Line Outputs
  • XCVI 160x64 FPGA Core
    • 96kHz Sample Rate
    • Variable Bit-Depth For Ultimate Precision And Noise Performance
    • Virtually Infinite Mix Headroom Thanks To 96bit Accumulator
    • Class Leading, Ultra-Low Latency At 0.7ms
  • 128 Input Channels With Full Processing
  • 64 Mix Outputs With Full Processing
  • Configurable 64 Bus Architecture (Group, FX, Aux, Matrix, Mains)
    • LR, LCR And Up To 5.1 Mains Mode
    • Multiple PFLs
  • 16 RackExtra FX With Dedicated Stereo Returns
  • 24 DCAs
  • Built-In Signal Generator And RTA
  • New Preamp Design For Extra Transparency
  • Unique Active PAD Circuit For Consistent Performance With Any Source
  • Connection Hub
    • GigaACE Gigabit Link To Surface
    • 2x DX Links For I/O Expansion
    • I/O Port - 128 Ch 96 KHz
    • Dedicated ME-1 48kHz Port
    • 2x Network Ports
    • Wordclock BNC I/O
  • Flush Front Panel With Ultra Quiet Fan
  • Reversible Rack Ears Design
