Allen & Heath dLive CDM64U MixRack
£11,773.08£9,810.90 Incl. VATExcl. VAT
Description

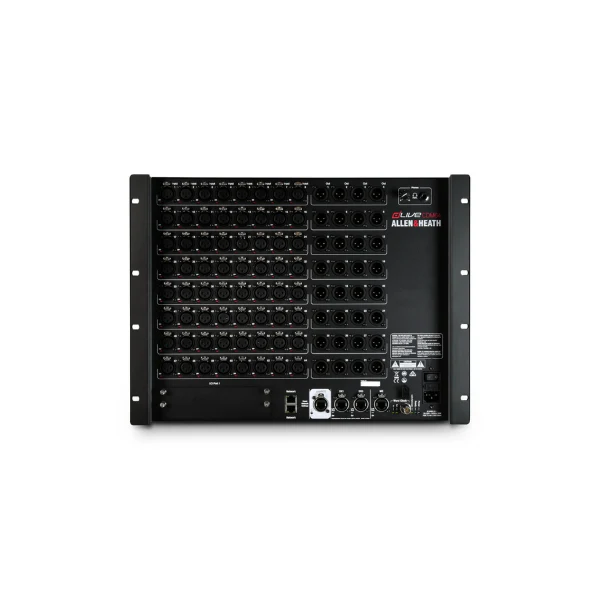

The CDM64U dLive Mixrack / Mainframe has 64 analog inputs and 32 analog local I/O outputs.
Like all V2 dLive MixRacks, CDM64U has a matrix of 128 inputs x 64 outputs, all with full processing, all operating at a sampling frequency of 96 kHz, a 96-bit accumulator and the new UltraFX expansion already installed!
Up to 48 I/O endpoints can be created via Allen & Heath network I/O boxes running DX and gigaACE protocols.
Almost any external control system capable of establishing a TCP/IP connection can be used to control the CDM64U, in addition to Allen & Heath’s IP remote controls and dLive surfaces.
Features:
- UltraFX Expansion inside!
- 128 Input matrix x 64 outputs
- 64 channels for automatic microphone mixing
- Ethernet-based audio extension
- External control drivers available
- 64 analog inputs, 32 analog outputs
- 128-channel I/O port for Dante, MADI, Waves
- SoundGrid etc.
- Compact and economical
- More than 800×800 networked audio I/O
- Compatible with IP remote controls
- Extremely low latency time (<0.7mS)
- High-quality audio quality
- Small footprint
Features
Product specifications
- Allen & Heath dLive CDM64
- digital mix rack
- 128 channels input and 64 channels output available
- +48V phantom power
- main mode input LR, LCR and up to 5.1 programmable
- 16 rack effects with stereo return
- multiple PFLs
- 24 DCAs
- built-in signal generator, RTA and spectrogram
- dual, extra-quiet cooling fans
- rack ears can be rotated for optimal positioning
- technical information
- XCVI 160x64 FPGA core
- sample rate: 96 kHz with variable bit rate
- headroom: virtually unlimited thanks to 96-bit accumulator
- DEEP processing
- frequency response: 20 Hz to 30 kHz
- dynamic range: 110 dB
- S/N ratio: -92 dB
- THD+N: 0.0015%
- headroom: 18 dB
- sample rate: 96 kHz, 24-bit AD/DA
- latency: 0.7 ms
- XCVI 160x64 FPGA core
- connectors:
- 64x mic/line in (XLR)
- 2x DX link (EtherCon RJ45)
- ME link (EtherCon RJ45)
- 2x network cable (RJ45)
- word clock I/O (BNC)
- audio interface port
- 32x line out (XLR)
- headphone: jack
- power cable
- height: 8U
- dimensions: 481 x 309 x 354 mm
- weight: 13.5 kg
- included: rack ears, 10x M6 screws and washers, power cable, quick start user guide
