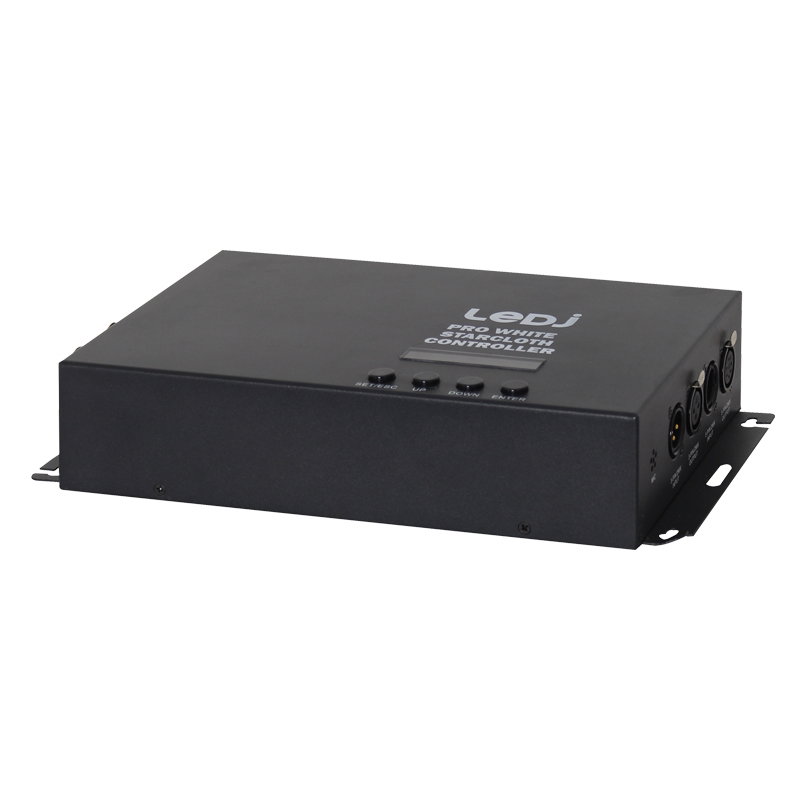

The dedicated drive unit for LEDJ PRO starcloths, giving you DMX or standalone control over intensity, chase speed, programs, dimming and colour mixing. Eight groups of LEDs can be addressed independently over DMX, so you can build twinkle and sweep effects rather than just running the cloth flat. Link several controllers and multiple drapes run fully synchronised across a backdrop.
DMX CHANNELS
12
8 LED groups
POWER
48W
max consumption
CAPACITY
2 cloths
STAR41/42/43
WEIGHT
2.3kg
61 x 271 x 178mm
Power and data

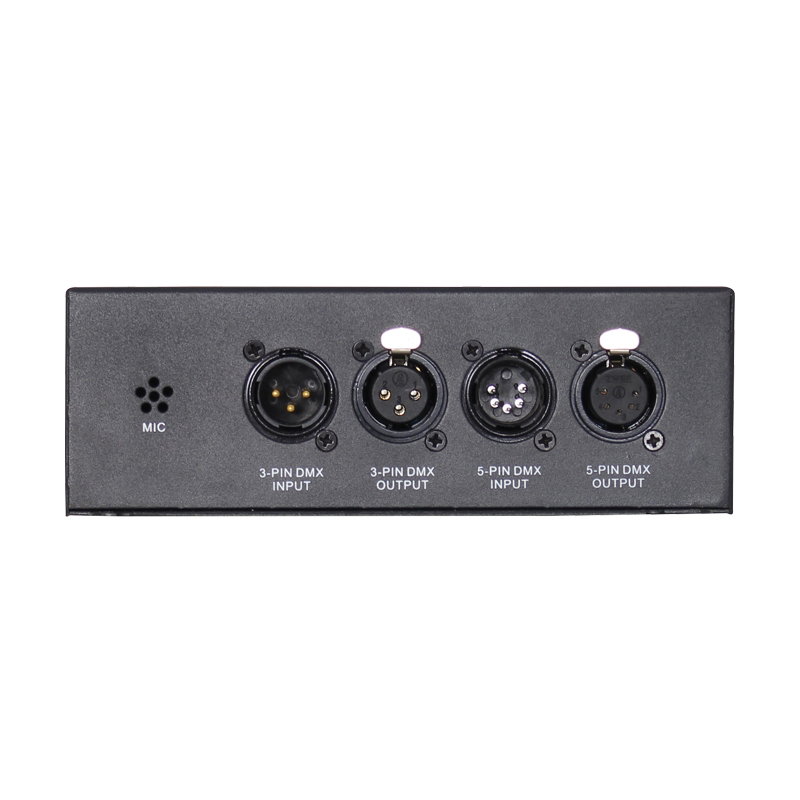

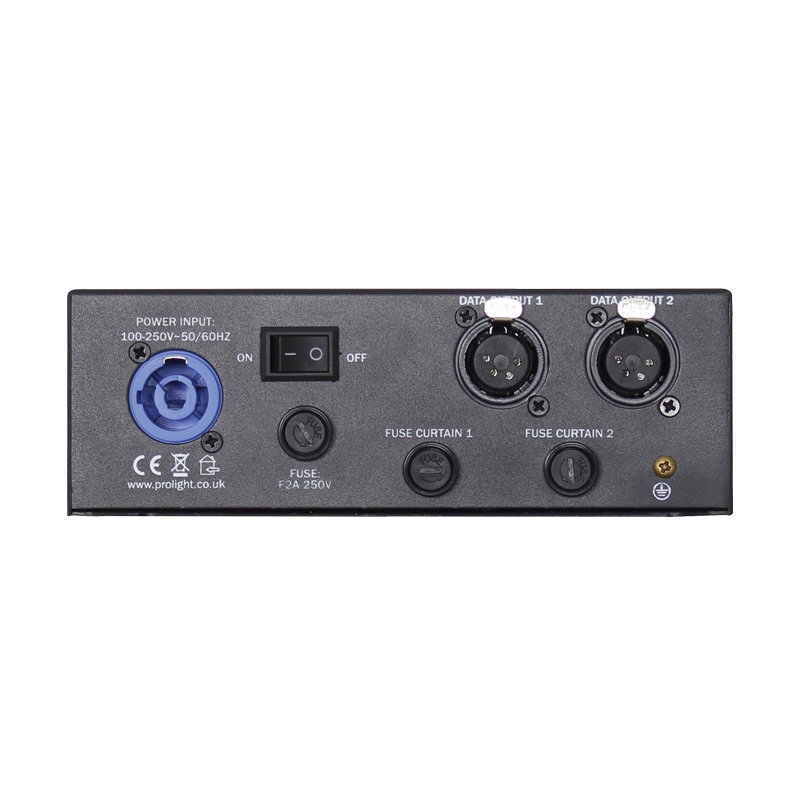

Universal 100-240V 50/60Hz supply on a powerCON input, with both 3-pin and 5-pin XLR in and out. That covers UK 230V mains and either DMX standard without adaptors, so the unit drops straight into an existing control run.
Features
✓
12 DMX channels
12 DMX channels
✓
Independent DMX control of 8 groups of LEDs
Independent DMX control of 8 groups of LEDs
✓
Sound active, auto and master/slave modes
Sound active, auto and master/slave modes
✓
0-100% dimming
0-100% dimming
✓
Variable strobe
Variable strobe
✓
4 button menu with LCD display
4 button menu with LCD display
✓
powerCON input
powerCON input
✓
3-pin and 5-pin XLR input and output
3-pin and 5-pin XLR input and output
✓
Drives up to two STAR41, STAR42 or STAR43 cloths
Drives up to two STAR41, STAR42 or STAR43 cloths
✓
Link multiple units for fully synchronised drapes
Link multiple units for fully synchronised drapes
Note
Starcloths are sold separately. LEDJ PRO cloths (STAR41, STAR42, STAR43) will not illuminate without this controller, so budget one unit per pair of drapes.
Specifications
| DMX channels | 12 |
| Control modes | DMX, sound active, auto, master/slave |
| Data connections | 3-pin XLR in/out, 5-pin XLR in/out |
| Power input | powerCON |
| Power supply | 100-240V, 50/60Hz |
| Power consumption | 48W max |
| Compatible cloths | Up to two STAR41, STAR42 or STAR43 |
| Dimensions (H x W x D) | 61 x 271 x 178mm |
| Weight | 2.3kg |
