Cable testers. The Palmer MCT XLV 2 tests the leads a production carries most: XLR 3 and 5-pin, speakON 4 and 8-pin, 3.5mm and 6.35mm jack (TS and TRS), RCA, DIN/MIDI, USB, RJ45 and S-Video, in automatic or manual mode with dual LED strips. Its probes reach other connectors and installed wiring. The Palmer MCT DMX checks 3-pin and 5-pin DMX cables for continuity, its 3-pin sockets also test XLR microphone leads, and it comes with L-brackets for mounting. Testing leads as they come back from a job finds faults at the bench, not at line check (looking after your cables).

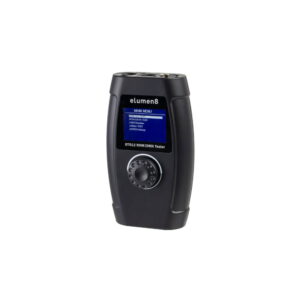

DMX and RDM testers. The City Theatrical DMXcat pairs over Bluetooth with iOS and Android apps to work as a DMX controller, RDM controller, fixture controller and DMX tester from a phone, with around 20 hours on its rechargeable battery. The Elumen8 DT512 tests one universe of DMX and RDM, has 5-pin DMX in and out, works as an RDM controller and includes a 3-pin XLR cable tester. The Showtec Assistant adds Art-Net testing and DMX record and playback on an SD card, and the Assistant CRMX adds a LumenRadio transceiver for wireless DMX. DMX explained covers addressing, universes and cables.
HDMI and AV testers. The CYP XA-3P is a handheld 4K HDMI analyser, pattern generator, cable tester and EDID manager; its cable test shows whether a lead will pass 18Gbps. The XA-8P covers HDMI 2.1 up to 8K, with 40 output resolutions, 20 test patterns and HDCP and SCDC monitoring. The XA-FAK kit adds a 4K repeater, an EDID manager, two certified 8K HDMI cables and a hard case to the XA-3P.

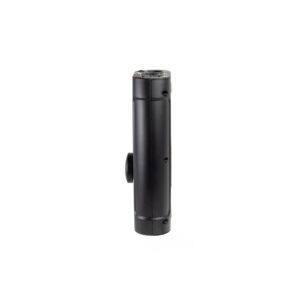

Power test plugs. A test plug brings each conductor of a power connector out to shrouded 4mm sockets, so a multifunction installation tester can take polarity, continuity, loop impedance, RCD and voltage readings at an outlet, distro, generator or cable, for BS 7671 and BS 7909 testing. Test Event plugs are made in the UK and cover CEEform from 16A to 125A in 110V yellow, 230V blue and 400V red, plus powerCON (blue and white) and powerCON TRUE1. Elumen8 test plugs cover CEEform from 16A to 125A, single-pole Powerlock plugs for L1, L2, L3, N and E so each pole of a three-phase feed can be tested, and a 19-pin Socapex test plug with a rotary switch to test each of the six circuits in turn. The PCE 32A 400V diagnostic plug shows phase presence, rotation and neutral and earth continuity on LEDs: a fast pre-use check, not a substitute for a proper test. Event power distribution explained and Socapex explained cover the connectors.
Meters. A digital multimeter, and a battery tester that measures under load for checking radio mic and IEM batteries.
The cables these check are in DMX Cables, Power Cables and Power Distribution, and replacement connectors in Powerlock and Socapex.
Cable Testers & Test Equipment FAQs
What cable test equipment do I need? For audio, video and data leads, a multi-connector tester such as the Palmer MCT XLV 2. For a lighting department, add a DMX tester (Palmer MCT DMX for cables, DMXcat or DT512 for signals and RDM). For temporary power, test plugs to suit your connectors and a multifunction tester. The cable testers guide sets out which does what.
What is a test plug? A plug or socket that mates with a power connector and brings line, neutral and earth (and each phase on three-phase types) out to 4mm sockets for the leads of a multifunction tester. The tester does the measuring; the plug gives it a safe connection to CEEform, powerCON, Powerlock or Socapex.
Can a cable tester check DMX cables? Yes. The Palmer MCT DMX and MCT XLV 2 test 3-pin and 5-pin XLR continuity, which covers DMX cable wiring. A DMX tester such as the DMXcat or Elumen8 DT512 also checks the signal itself and talks to fixtures over RDM.
How do I test an HDMI cable? With an HDMI tester such as the CYP XA-3P, whose cable test mode shows whether a lead will pass 18Gbps for 4K. For HDMI 2.1 and 8K systems, the XA-8P analyses the signal up to 40Gbps.
Is a diagnostic plug enough to prove a supply is safe? No. A diagnostic plug such as the PCE 32A shows phase presence, rotation and neutral and earth continuity, which catches a reversed rotation before it reaches a motor. It will not detect a high-resistance earth and does not replace testing with a multifunction tester. PAT testing for event equipment covers the equipment side.
