Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black

SKU: F.01U.385.532

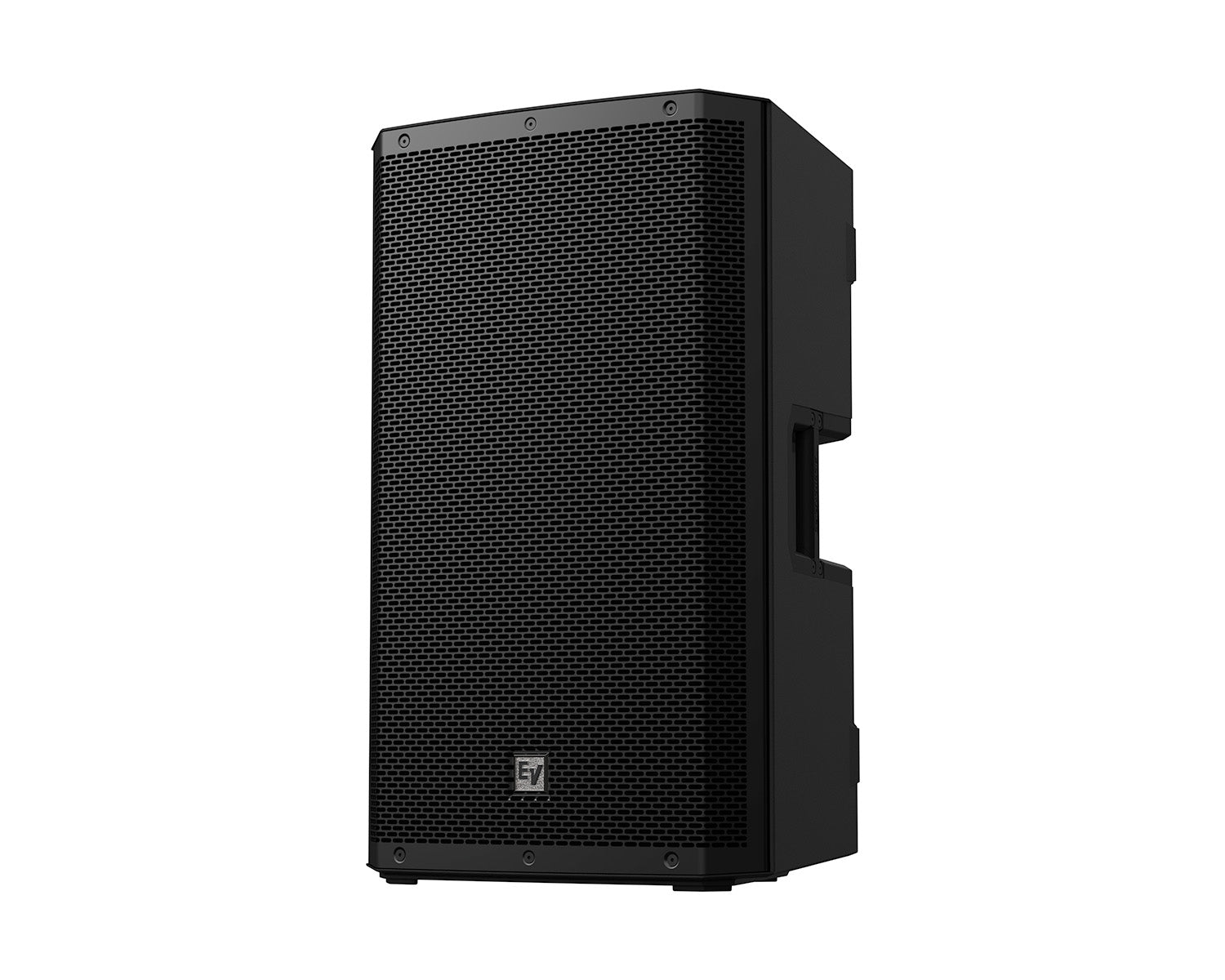

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 1

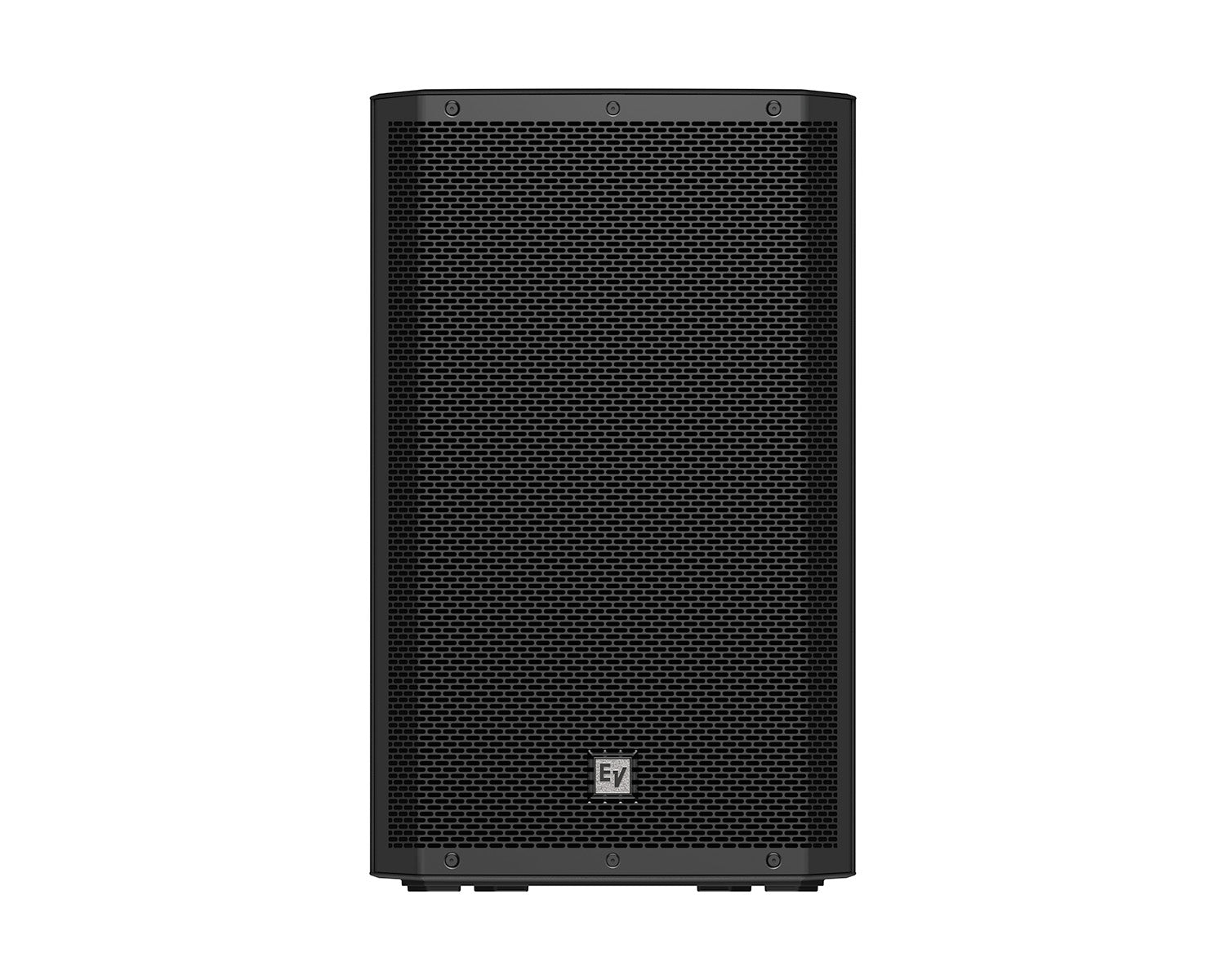

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 2

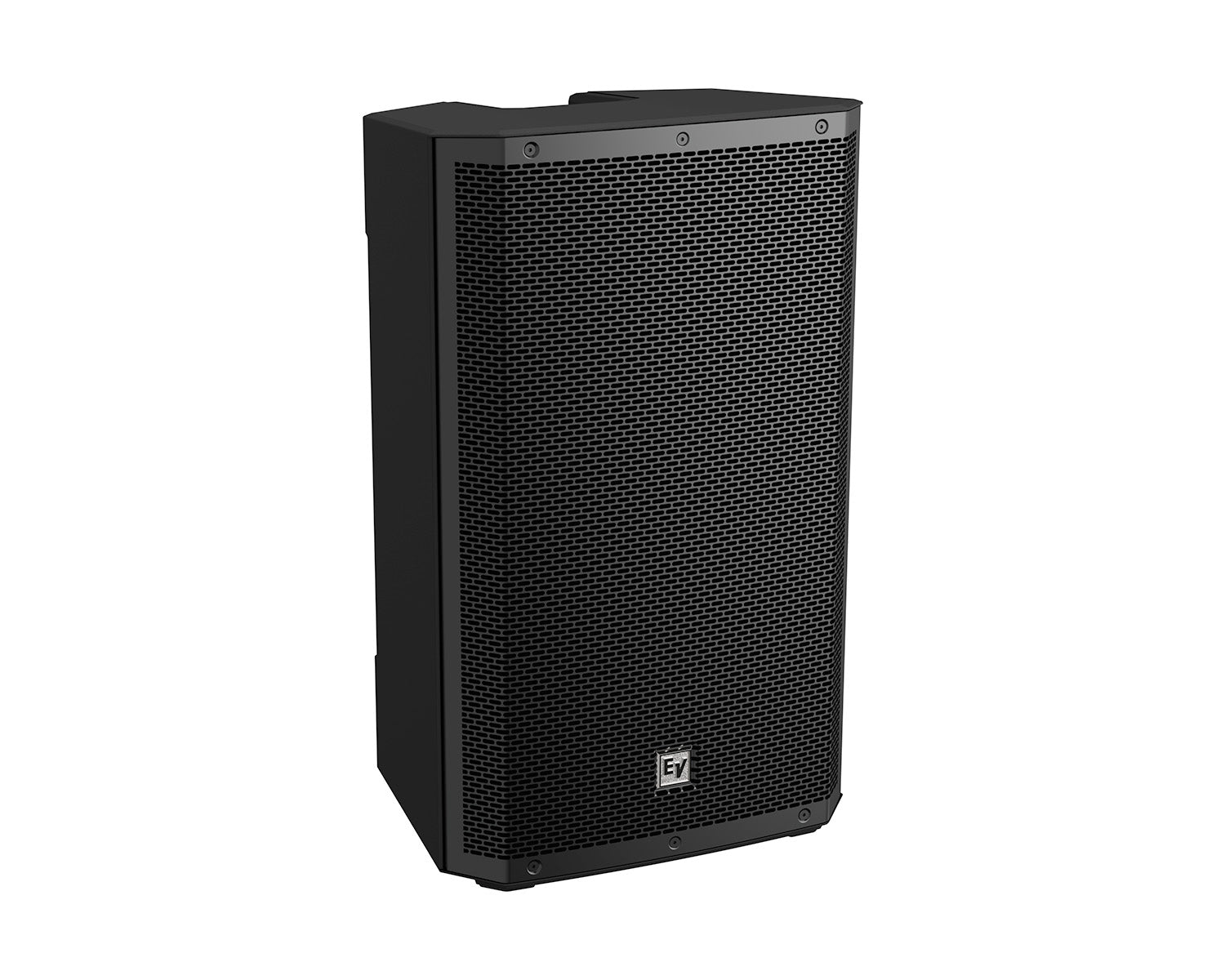

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 3

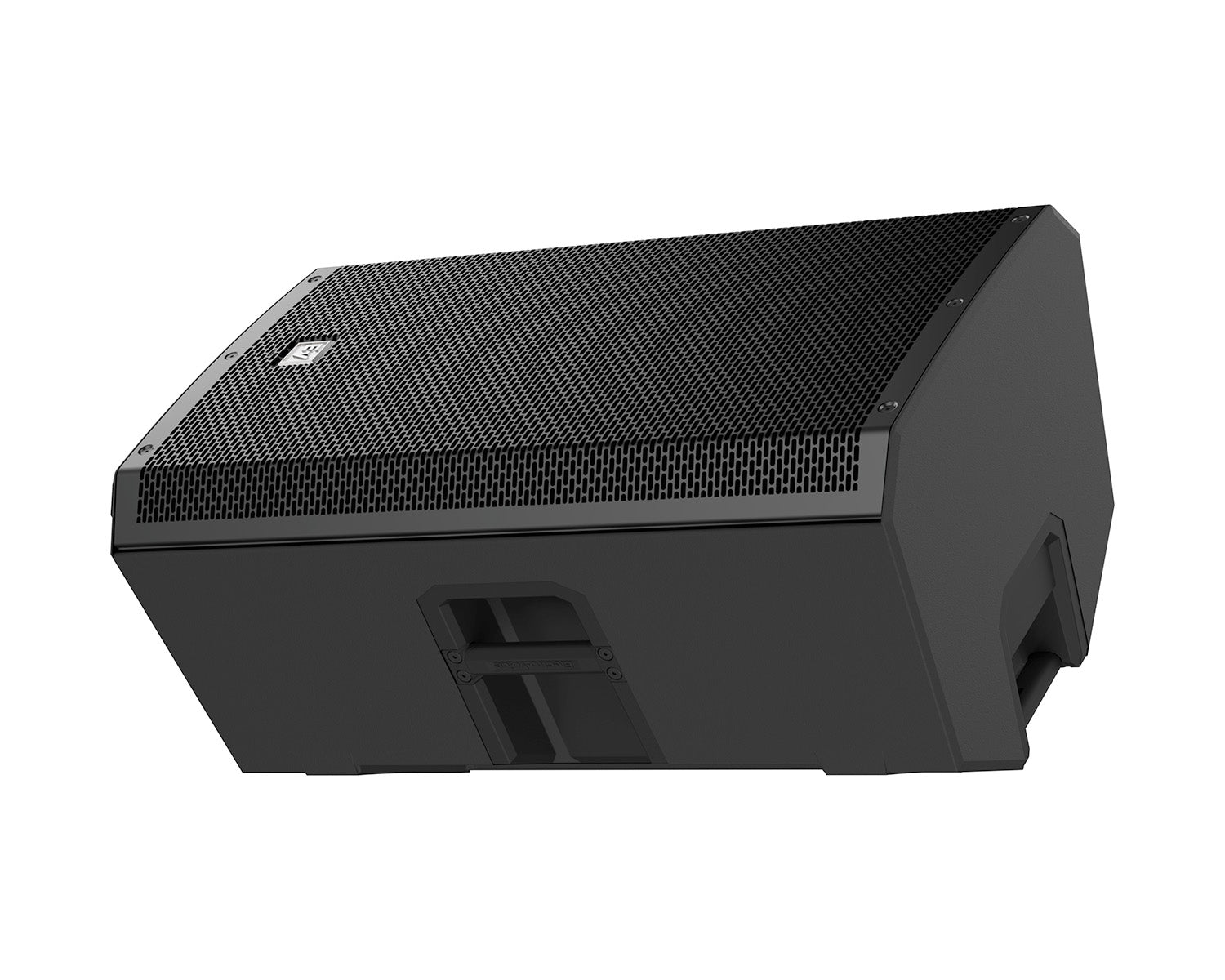

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 4

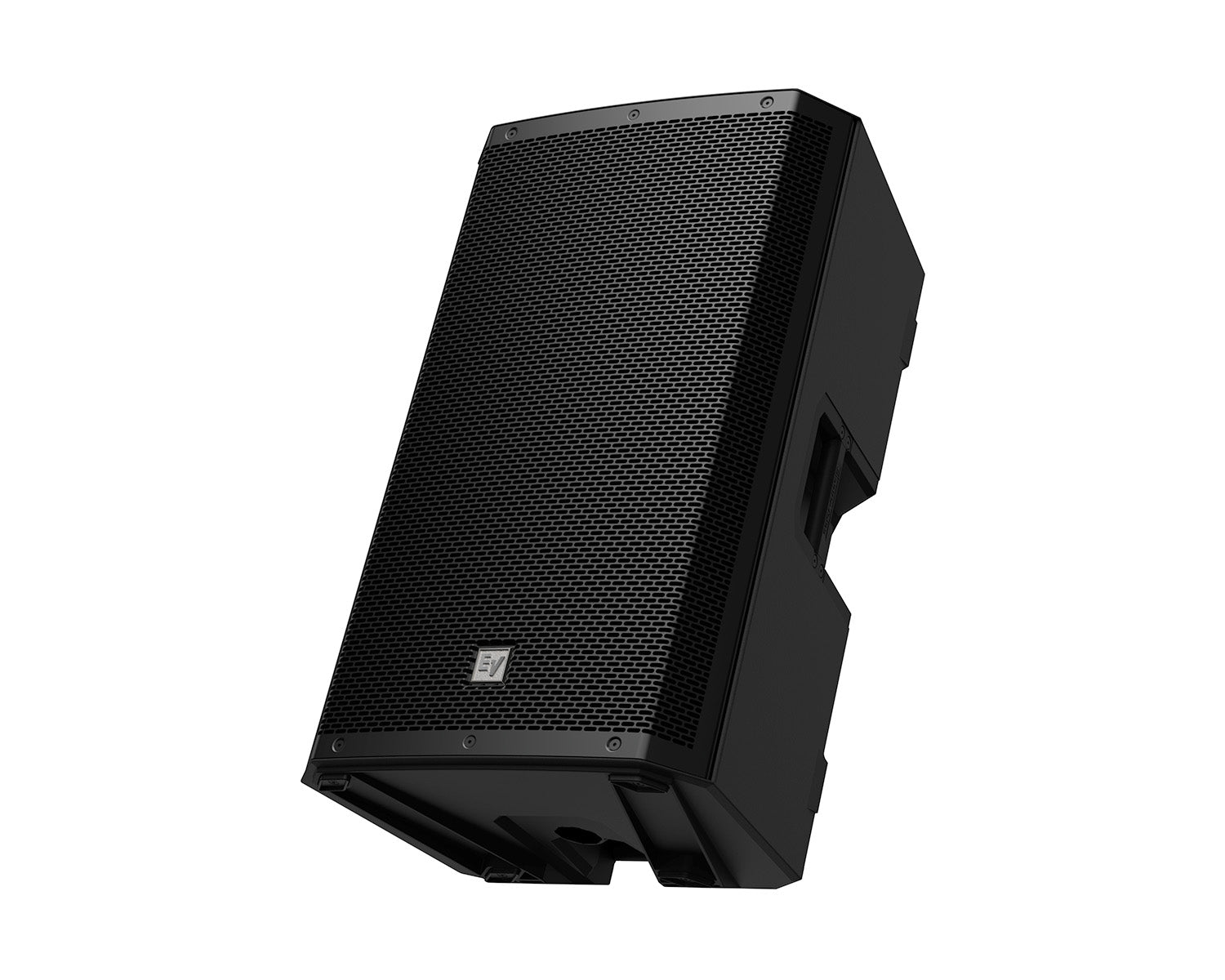

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 5

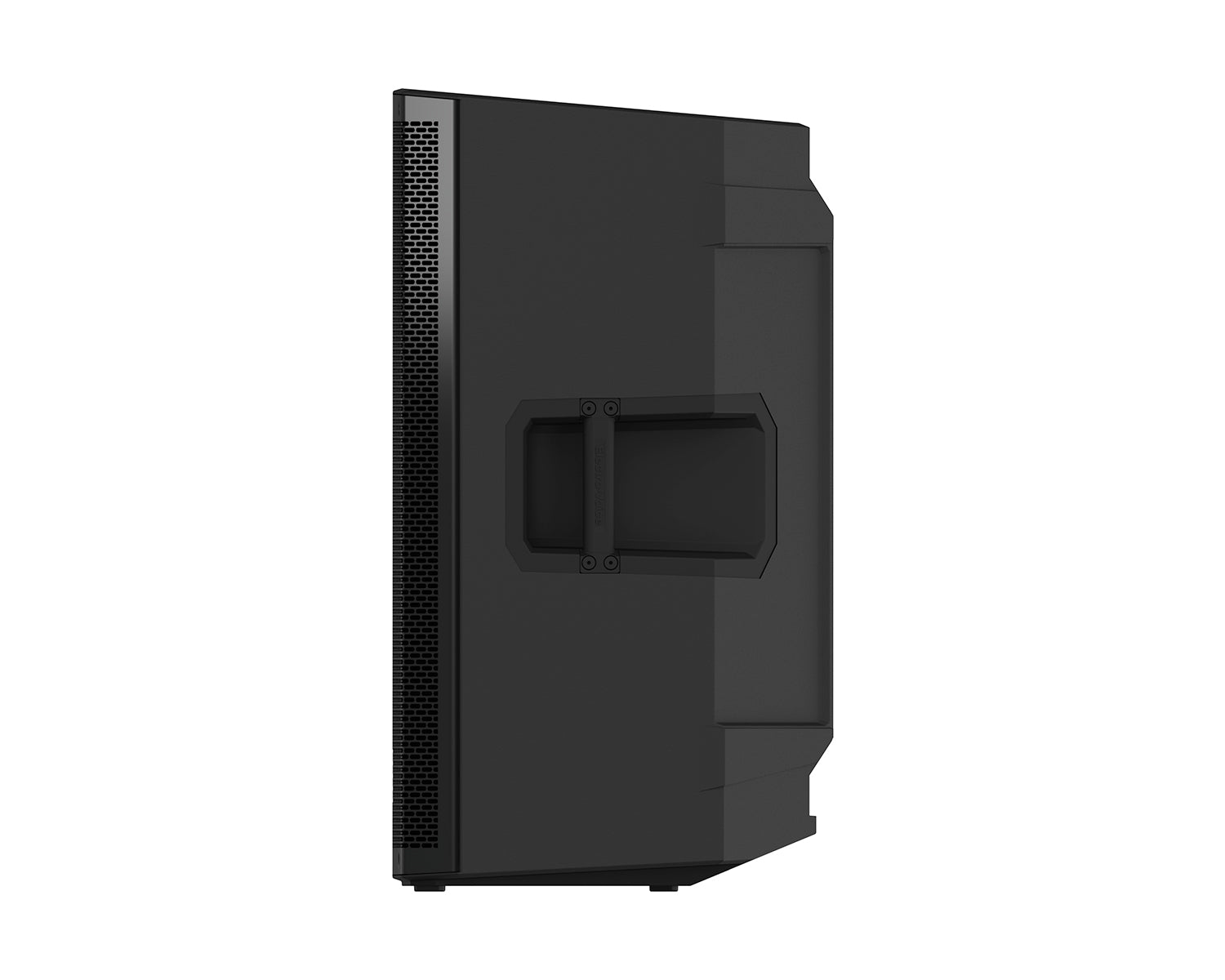

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 6

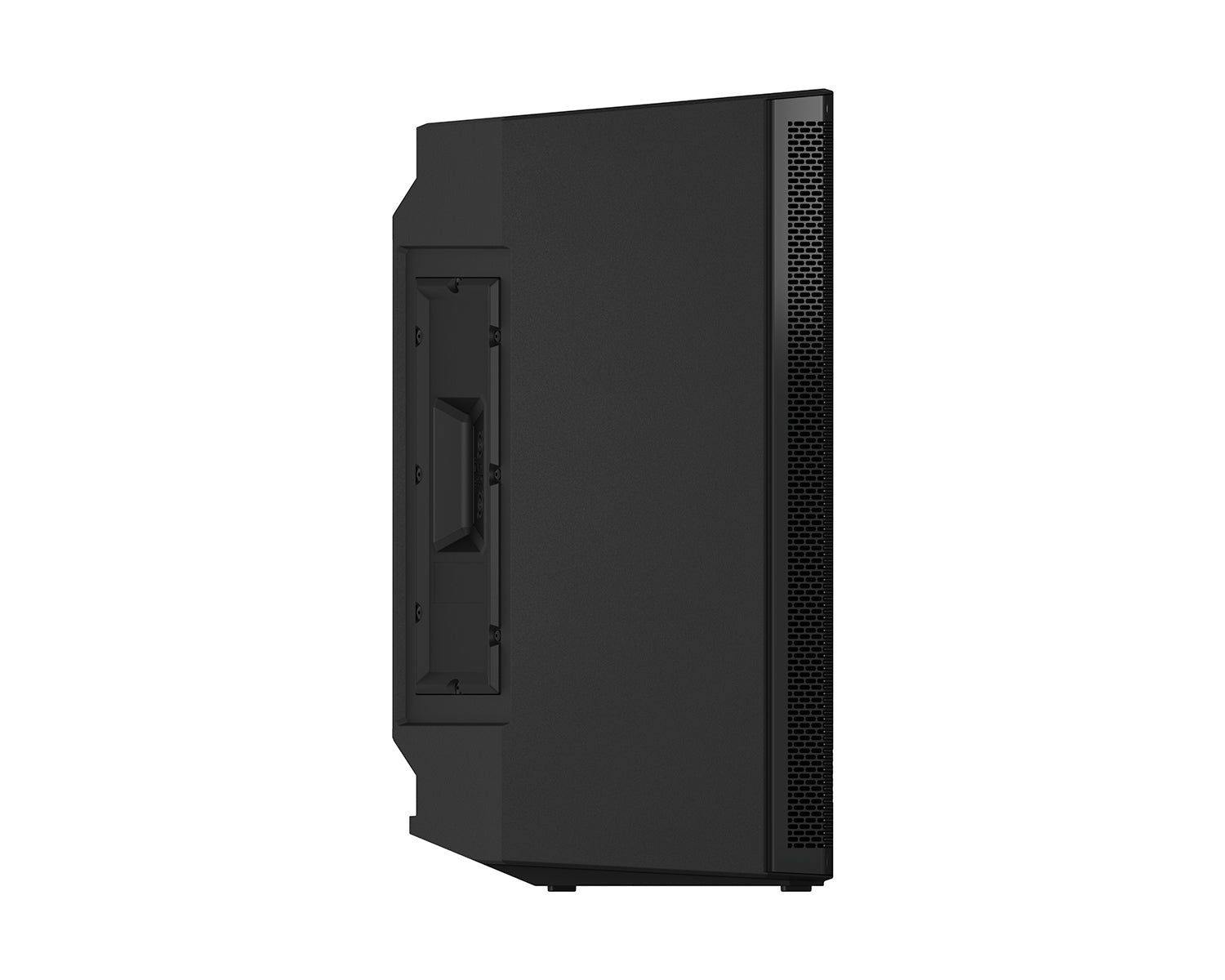

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 7
Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 8

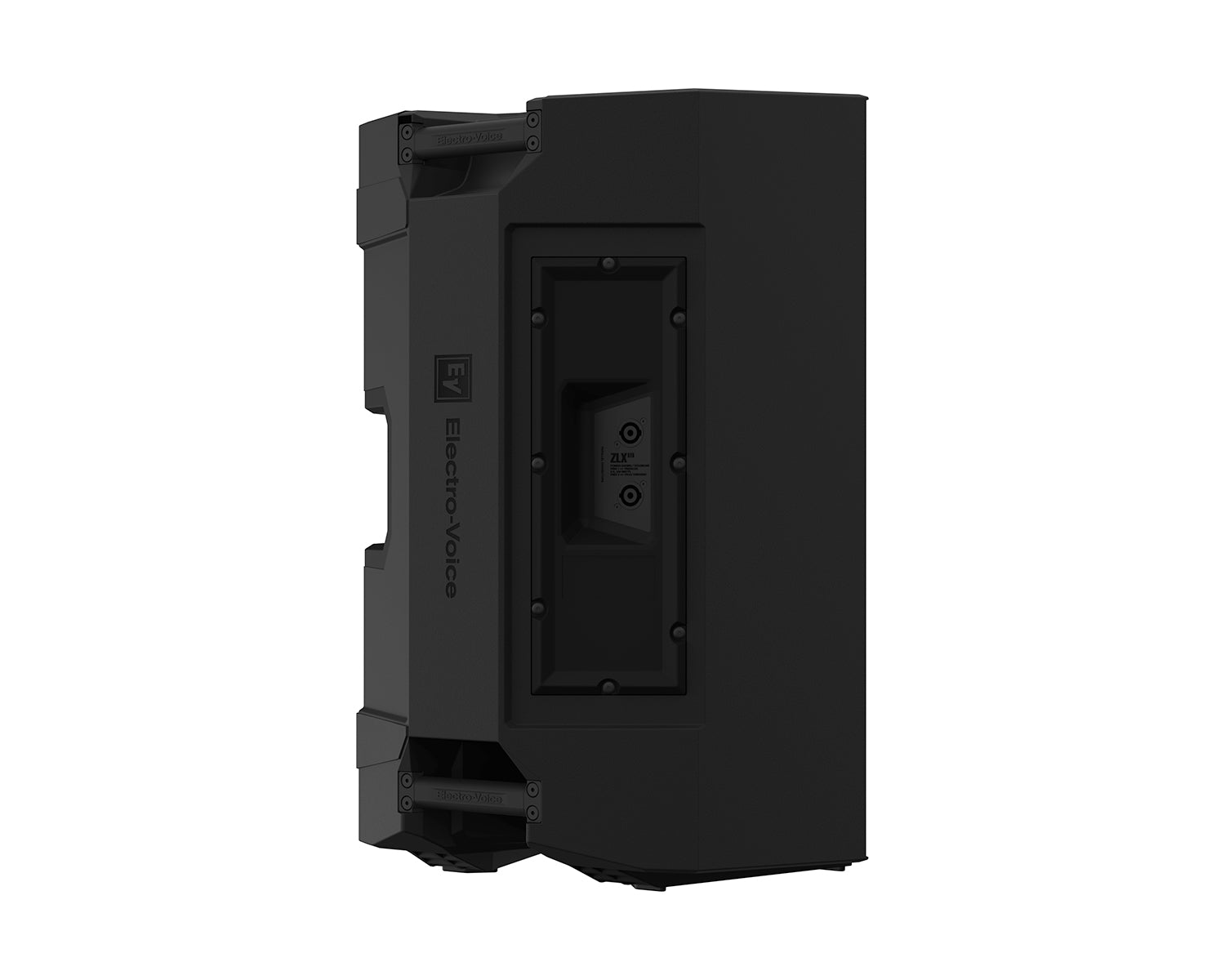

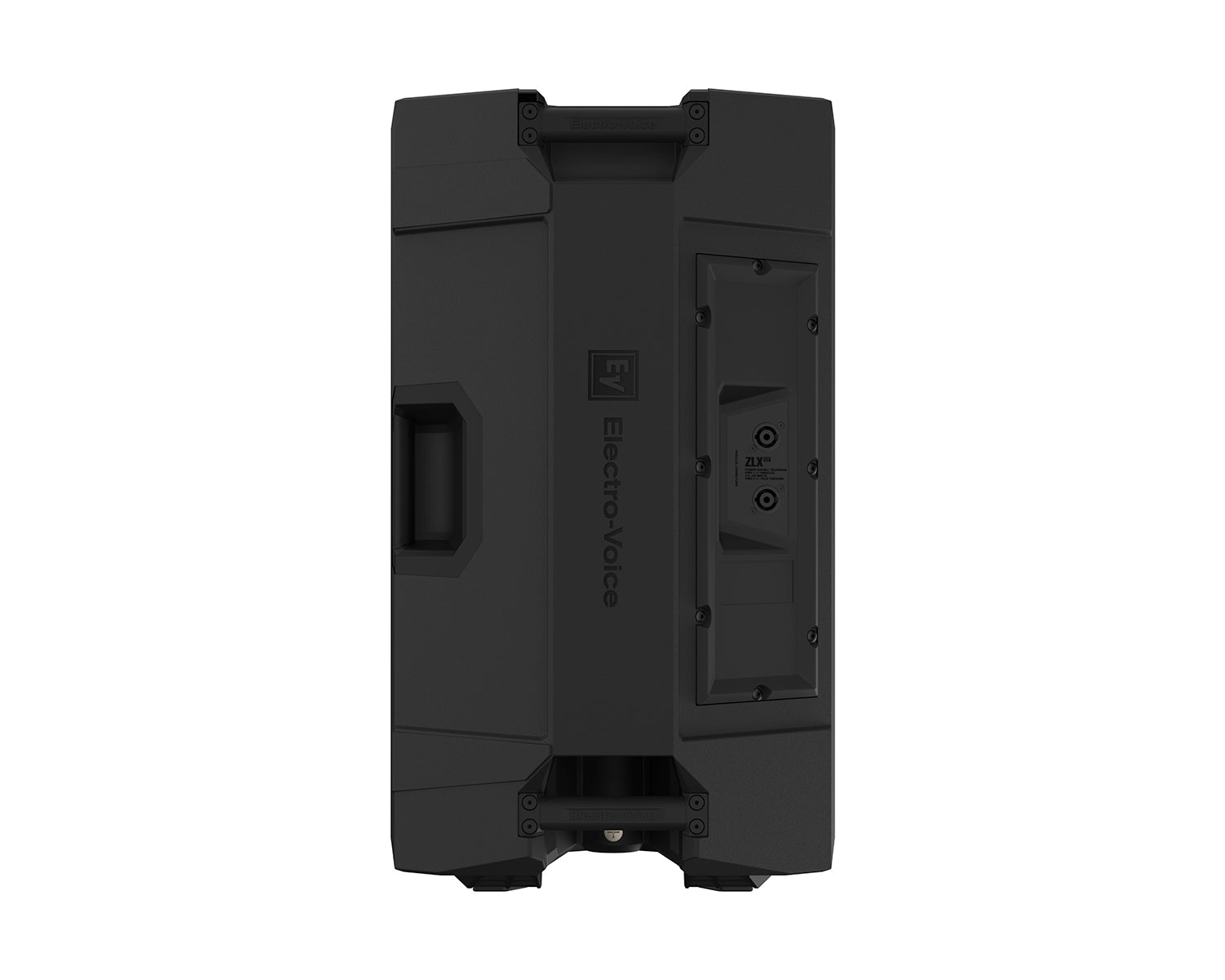

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 9

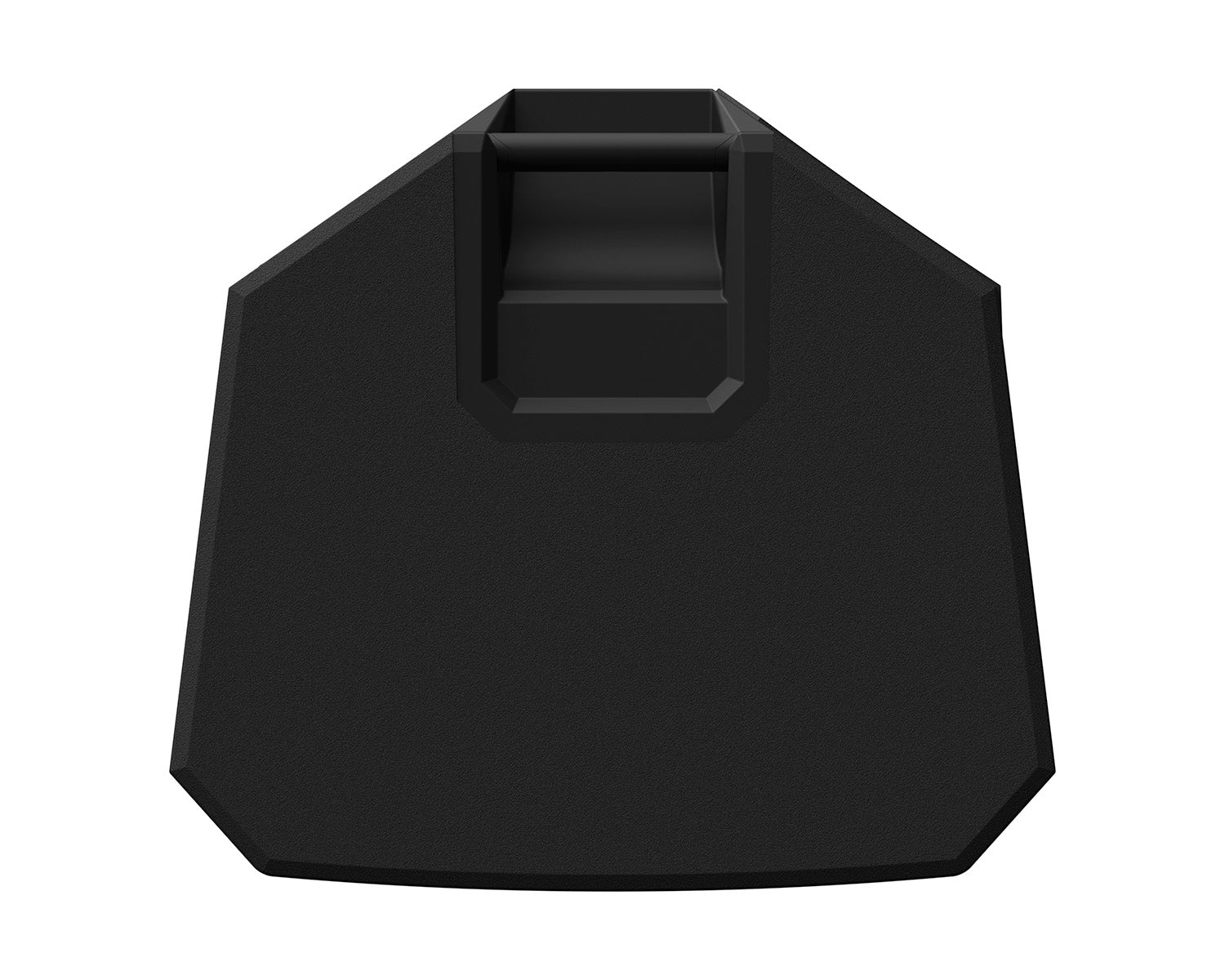

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 10

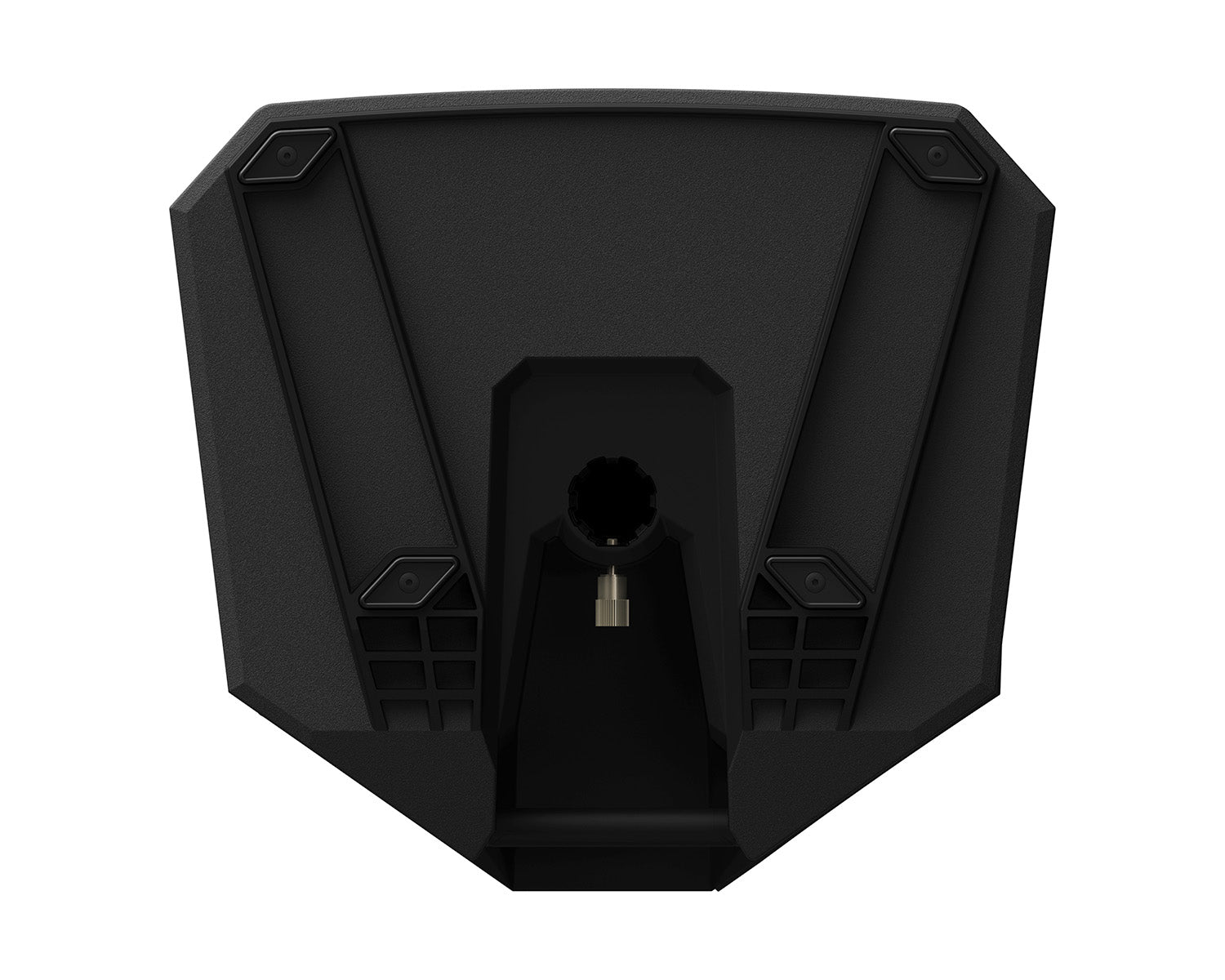

Electro-Voice ZLX-15-G2 15" 2-Way Passive Speaker, Black - Image 11
Click to enlarge

    £459.00 inc VAT
    £382.50 ex VAT

    10 in stock (more available subject to additional lead time)

    21 available online
    More available from supplier in 1–3 weeks
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    ZLX-15-G2 is the passive 15″ model in Electro-Voice’s second-generation ZLX range, combining a WECA2158 ferrite woofer with a DH-1K 1.4″ titanium compression driver on EV’s SST waveguide. It handles 250W continuous and 1000W peak into 8 ohms, with 95 dB sensitivity and 126 dB maximum SPL. The cabinet has a 55° monitor angle plus a kickback angle for wedge use, and two parallel NL4 connectors for linking.

    250W / 1000W
    Continuous / peak
    126 dB
    Maximum SPL
    95 dB
    Sensitivity (1W/1m)
    90° x 60°
    Coverage
    Passive: amplifier requiredThe ZLX-15-G2 has no built-in amplifier. EV’s frequency response figures are measured with its recommended preset, and EV recommends a Dynacord DSP power amplifier loaded with the ZLX-15-G2 settings from the SONICUE speaker database.
    Features
    15″ WECA2158 woofer with DH-1K 1.4″ titanium compression driver
    250W continuous / 1000W peak power handling, 8 ohm
    126 dB maximum SPL, 95 dB sensitivity (1W/1m)
    90° x 60° coverage from EV’s patented SST design
    55° monitor angle plus a kickback monitor angle
    Two parallel NL4 connectors passing all pins
    Optimised Dynacord amplifier settings available in SONICUE
    Specifications
    Brand Electro-Voice
    Model ZLX-15-G2
    Manufacturer part number F.01U.385.532
    Type Passive 2-way full-range
    Drivers WECA2158 15″ ferrite LF; DH-1K 1.4″ titanium compression driver HF
    Frequency response (-3 dB) 68 Hz-18 kHz (with recommended preset)
    Frequency range (-10 dB) 53 Hz-20 kHz (with recommended preset)
    Axial sensitivity (1W/1m) 95 dB
    Maximum SPL 126 dB
    Coverage (H x V) 90° x 60°
    Power handling 250W continuous / 1000W peak
    Nominal impedance 8 Ω
    Crossover frequency 2 kHz
    High-pass frequency 40 Hz
    Connectors 2x NL4 (parallel)
    Dimensions (H x W x D) 697.6 x 422.8 x 383.1 mm
    Net weight 16.44 kg
    Colour Black

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • 15" LF Driver, 1.4" HF Driver
    • Frequency response (-3 dB): 68 Hz – 18,000 Hz
    • Max SPL: 126dB
    • 55-degree monitor angle and “Kickback” 25-degree angle
    • ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
    • Increased maximum SPL output and extended frequency response
    • Robust and ergonomic design for day-to-day durability and portability
    • Recommended to use with Dynacord DSP power amplifiers
    • SONICUE integration - optimized speaker settings for best performance
