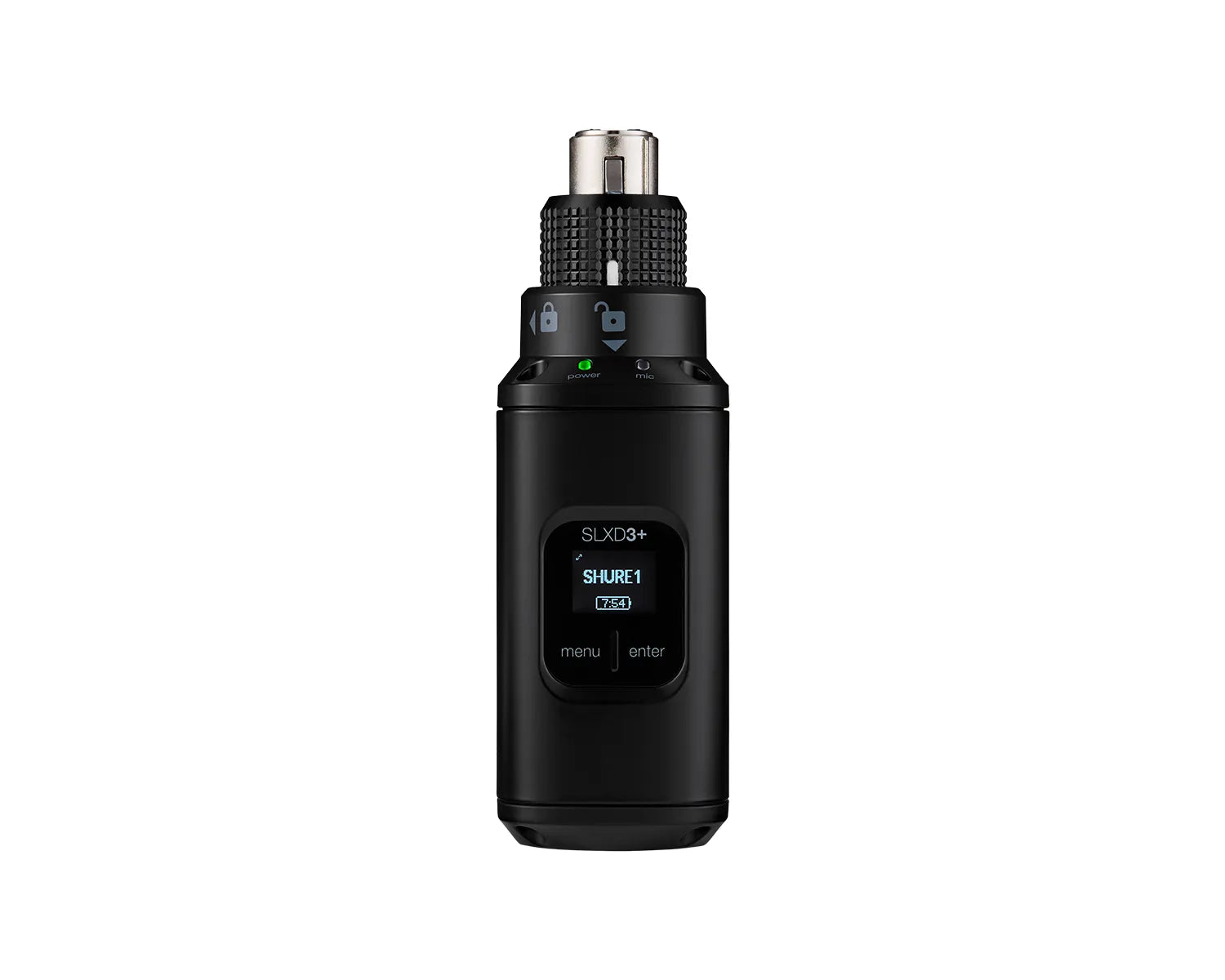

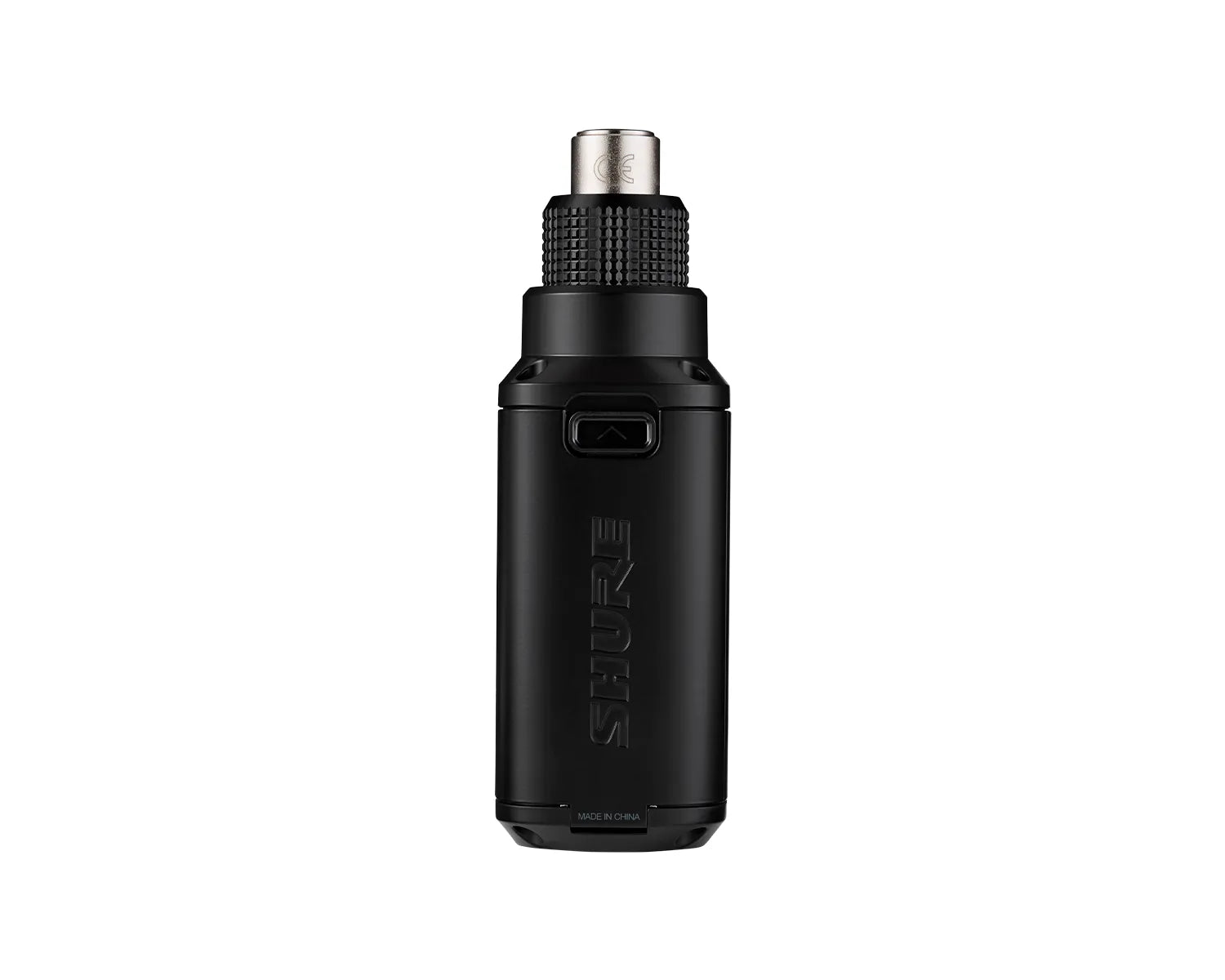

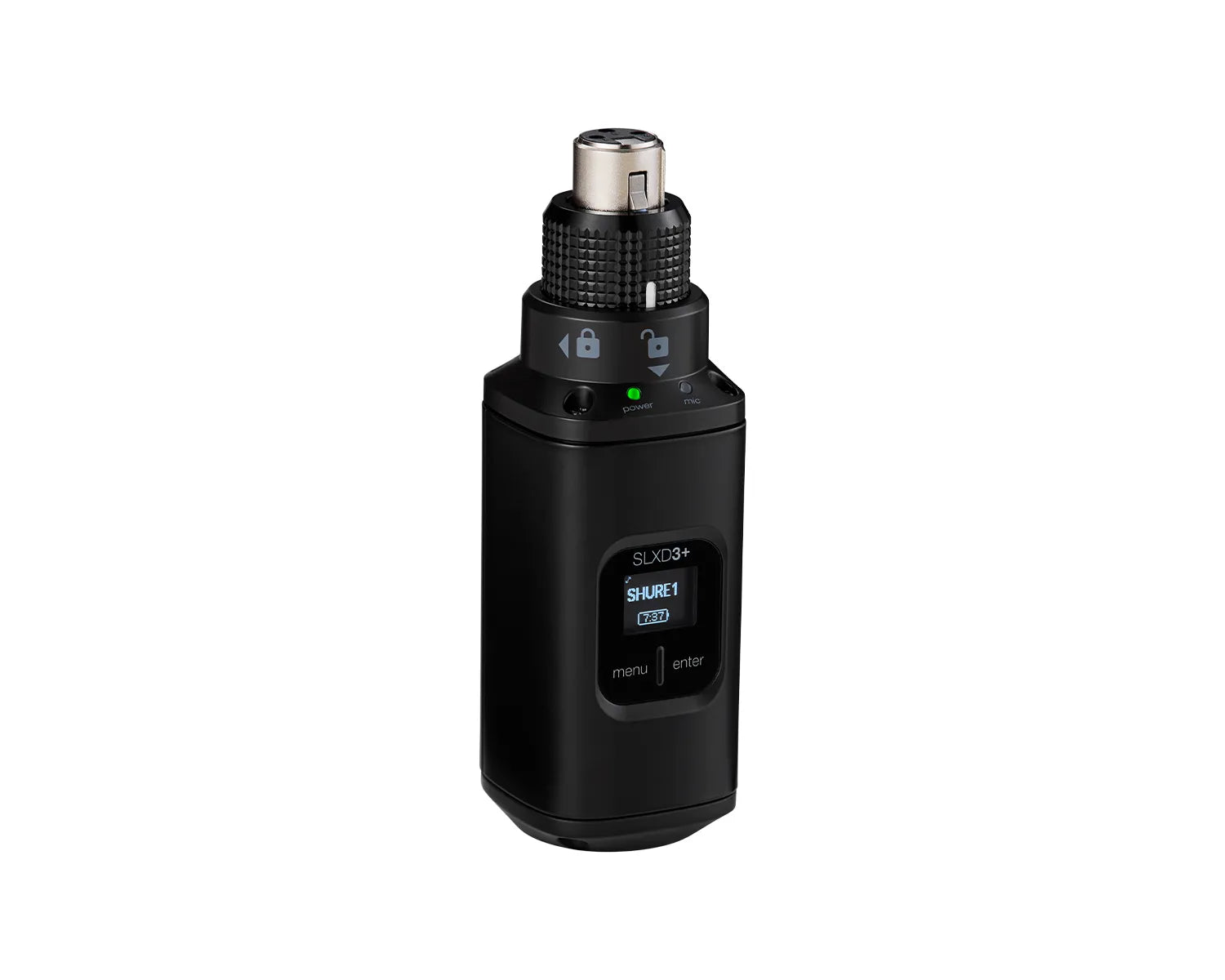

The SLXD3+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
Optimal Audio BackBoxOn On-Wall Back Box for ZonePad
£3.59 inc VAT
£2.99 ex VAT
£2.99 ex VAT
Audix APS2 2-Channel 48VDC Phantom Power Supply 110/220V
£129.00 inc VAT
£107.50 ex VAT
£107.50 ex VAT
£469.00 inc VAT
£390.83 ex VAT
Ordered from manufacturer. Allow 2–3 weeks






About this Product
More Information
- K55 Frequency Band (606-694 MHz)
- Convert any XLR source for use within SLX-D+ wireless systems
- Provides +12–48 VDC phantom power for use with condenser microphones
- Patented locking mechanism for secure, wobble-free connection
- Transparent 24-bit digital audio quality with >118 dB dynamic range
- Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
- Up to 11 simultaneous systems in 6 MHz TV bands
- Up to 14 simultaneous systems in 8 MHz TV bands
- Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
- With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
- Changing the transmitter frequency once open frequency is identified
- Adjust power output level
- Lock and unlock transmitter controls
- Transmitter firmware updates
- Monitor RF status and control receiver and transmitter parameters with Wireless
- Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
- Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind

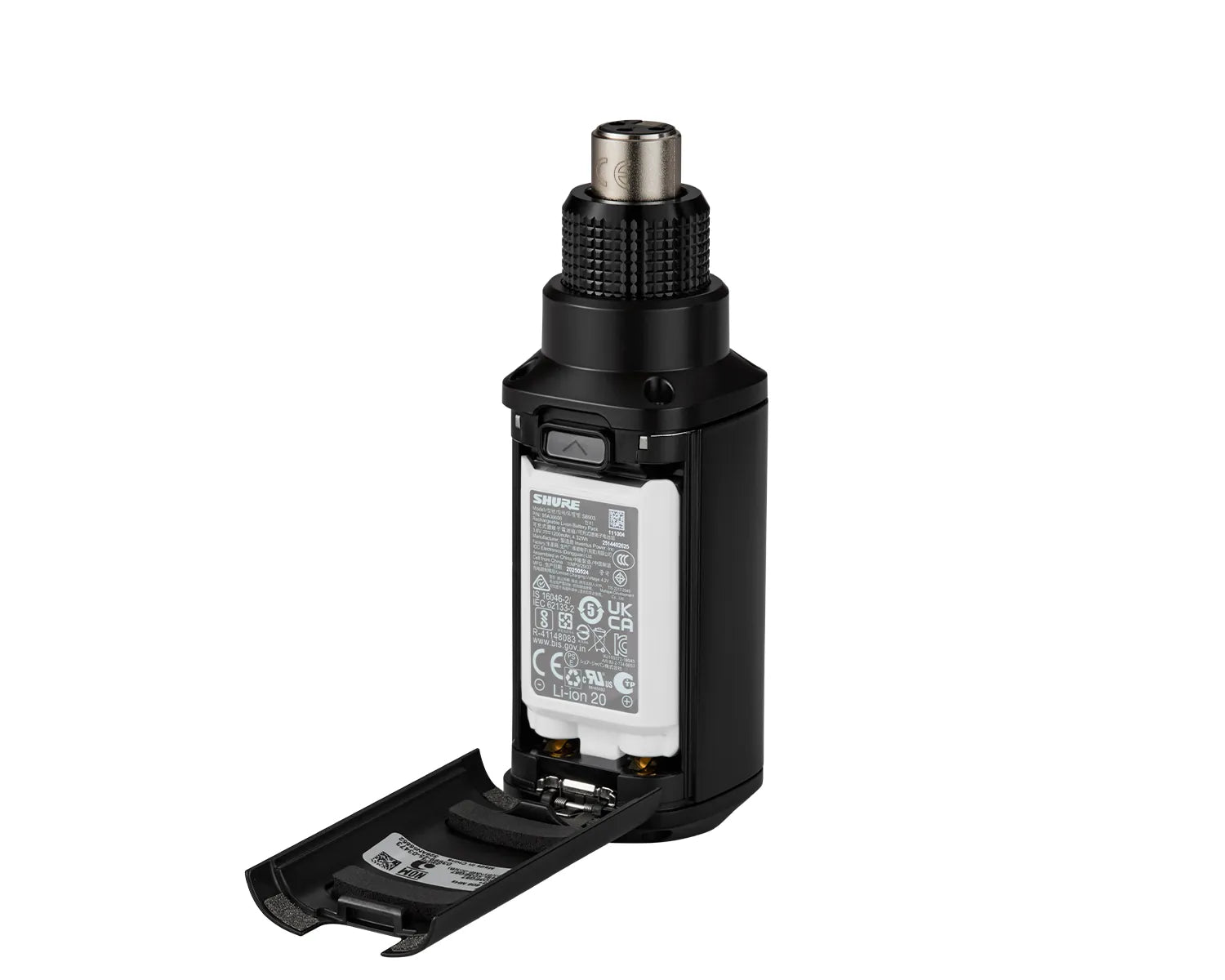

- Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
- Ergonomic and durable plastic construction
System Specifications
-
RF
- RF Carrier Frequency Range: 606 to 694 MHz
- Working Range: 100 m (328 ft). Note: Actual range depends on RF signal absorption,
- reflection and interference.
- RF Tuning Step Size
- JB Band: 125 kHz
- All Other Bands: 25 kHz Varies by region.
- Image Rejection: >85 dB typical
- RF Sensitivity: −97 dBm at 10-5 BER
-
Audio
- Latency: 2.8 ms
- High-Pass/Low Cut Filter: 160 Hz, –12 dB/octave Note: factory default is for the HPF to be off
- Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
- Audio Dynamic Range A-weighted, 20 Hz–20 kHz, typical: 118 dB @1% THD
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
-
Temperate Range Note: Battery characteristics may limit this range.
- Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)
- Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)
SLXD3+ Specifications
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions (L x W x D): 4.9 × 1.6 × 1.6 in (126 × 41 × 41 mm)
- Weight: 7.0 oz. (200 g)
- Housing: Aluminium, Zinc Alloy, PC/ABS
- Audio Input
- Configuration: XLR
- Maximum Input Level 1 kHz @ 1% THD:
- Pad -12 dB: 20.5 dBV
- 0 dB: 8.5 dBV
- Boost +12 dB: -3.5 dBV
- Note: Dependent on Microphone Type
- Phantom Power
- +48 V (7 mA maximum)
- +12 V (15 mA maximum)
- RF Output
- Antenna Type Dipole
- Occupied Bandwidth <200 kHz
- Modulation Type Shure Proprietary Digital
- Power: 1 mW/10 mW/30 mW
- Specific Absorption Rate (SAR): <0.17 W/kg
