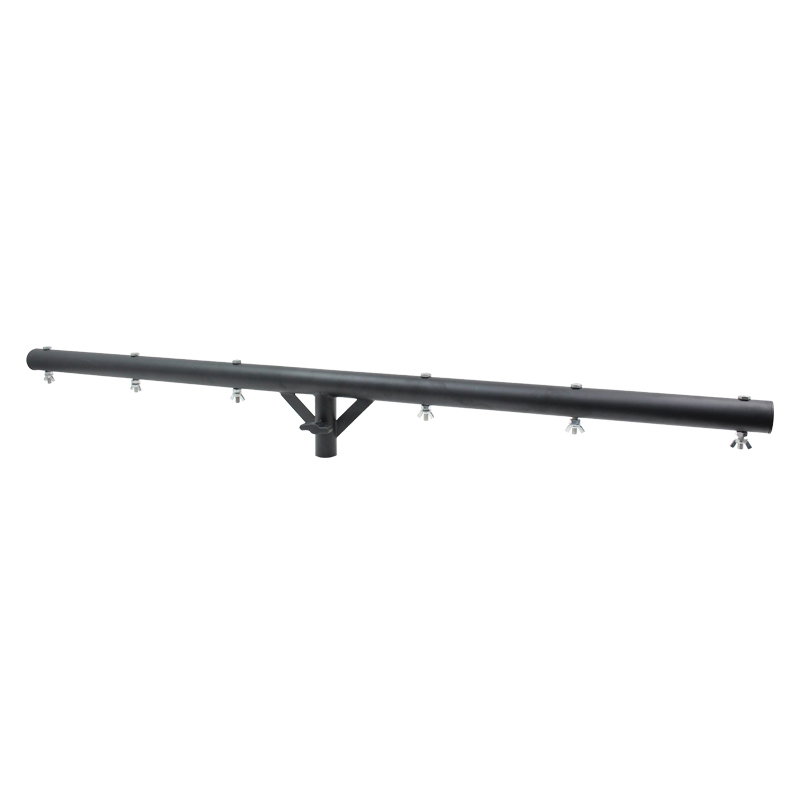

A universal 1500mm T-bar with a 35mm socket, designed to drop onto most standard lighting stands including the Equinox STAN91 and STAN93. The 50mmØ round horizontal bar takes standard hook clamps, or you can bolt fixtures straight through the six pre-drilled holes using the M10 x 80mm hardware supplied. Welded braces at the centre keep it rigid under a loaded bar.
BAR LENGTH
1500mm
1.5 metres
BAR DIAMETER
50mmØ
Standard clamp size
SOCKET
35mm
Fits 35mm stands
WEIGHT
3.4kg
Bar only
Mounting Options
Two ways to rig fixtures to the bar
Standard hook clamps on 50mmØ
Direct bolt-through, six holes
Direct bolt-through, six holes
Supplied With
Fixing hardware included
6 x M10 x 80mm hex head bolts
Nuts
Washers
Wing-nuts
Nuts
Washers
Wing-nuts
Features
✓
1500mm horizontal bar for multi-fixture loads
1500mm horizontal bar for multi-fixture loads
✓
35mm socket fits most standard lighting stands
35mm socket fits most standard lighting stands
✓
Compatible with Equinox STAN91 and STAN93
Compatible with Equinox STAN91 and STAN93
✓
50mmØ round bar accepts standard hook clamps
50mmØ round bar accepts standard hook clamps
✓
Six pre-drilled holes for direct bolt-through mounting
Six pre-drilled holes for direct bolt-through mounting
✓
Six M10 x 80mm bolts, nuts, washers and wing-nuts supplied
Six M10 x 80mm bolts, nuts, washers and wing-nuts supplied
✓
Welded braces for extra rigidity
Welded braces for extra rigidity
✓
3.4kg, easy to handle on a one-person get-in
3.4kg, easy to handle on a one-person get-in
Note
T-bar only – the lighting stand is not included. Always work within the load rating of the stand you fit it to, and keep the load balanced across the bar rather than weighted to one end.
Specifications
| Type | Universal lighting stand T-bar |
| Dimensions (H x W) | 1500 x 50Ømm |
| Stand socket | 35mm |
| Mounting holes | Six |
| Hardware supplied | 6 x M10 x 80mm hex head bolts, nuts, washers, wing-nuts |
| Known compatibility | Equinox STAN91, STAN93 and most 35mm lighting stands |
| Weight | 3.4kg |
