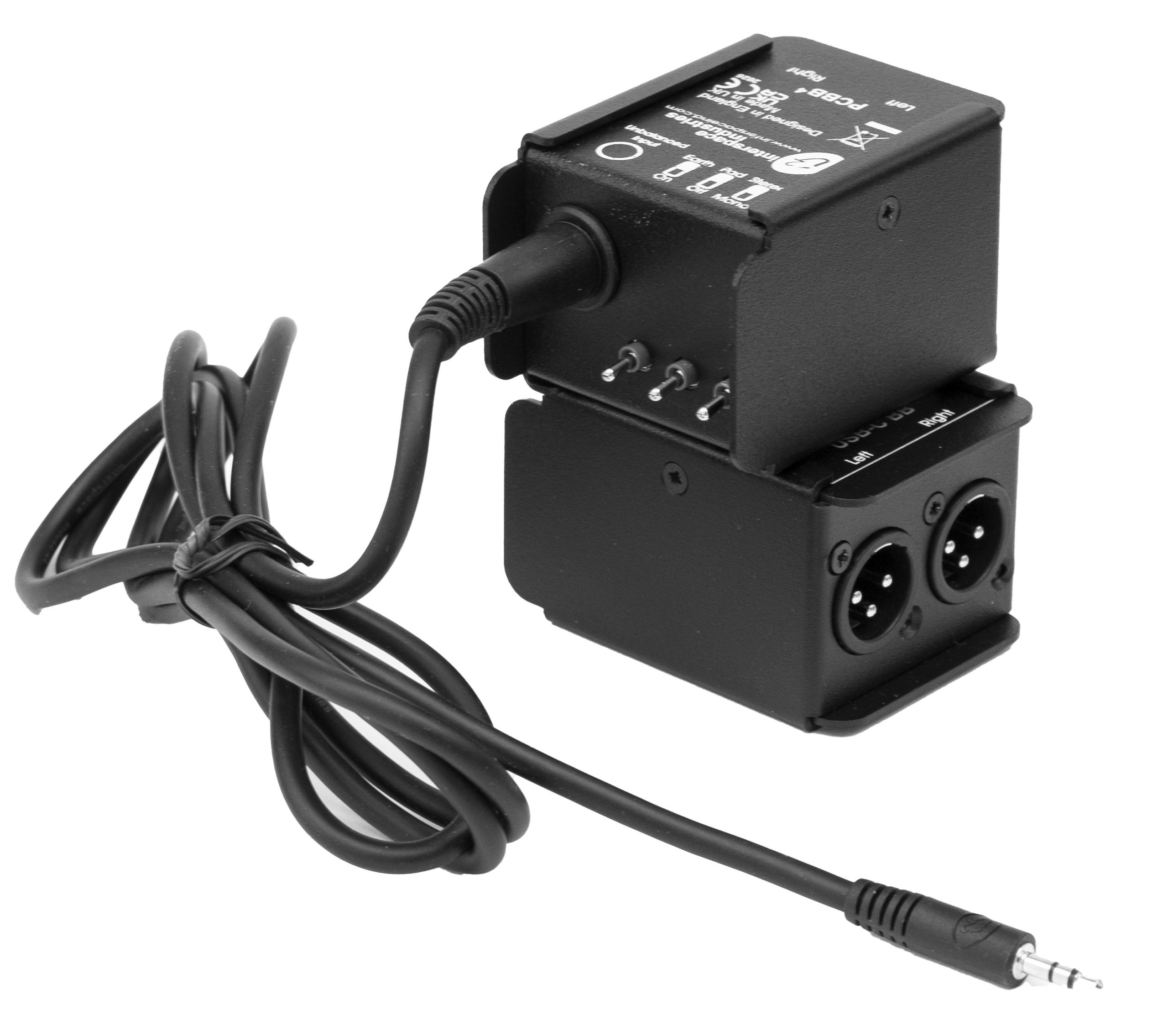

Balance box and hum eliminator for taking audio out of a presentation PC. Hum is not just a long-cable problem, power supplies, lighting and neighbouring equipment all inject noise into an unbalanced input. This box breaks the loop with no compromise on bandwidth, holding 20Hz to 20kHz, and, unlike the earlier PCBB3, its captive input lead joins via an internal plug and socket so it can be replaced if damaged. It takes a 3.5mm stereo jack to two male XLR outputs, with a stereo/mono switch, a 32dB pad so you can feed a line or mic input, an earth lift and DC blocking on the outputs, and it needs no power.
Features
Specifications
| Brand | Interspace Industries |
| Manufacturer part number | PCBB4 |
| Type | Balance box / hum eliminator |
| Model | PCBB4 |
| Frequency response | 20Hz–20kHz |
| Input | 3.5mm stereo jack on 1.8m captive lead; outputs 2 x male XLR |
| Input level | 0dB, 1V RMS unbalanced stereo |
| Output pad | -6dB / -35dB |
| Dimensions | 71 x 64 x 40mm (main unit) |
| Weight | 218g |
| In the box | PCBB4 with captive lead; XLR cables not included |
| Warranty | 3-year limited factory warranty |
