Equinox Fusion Quick Rig Omega Pole Mount Bracket 4mm Steel 50kg WLL (CLAM300)

Product code: 163001

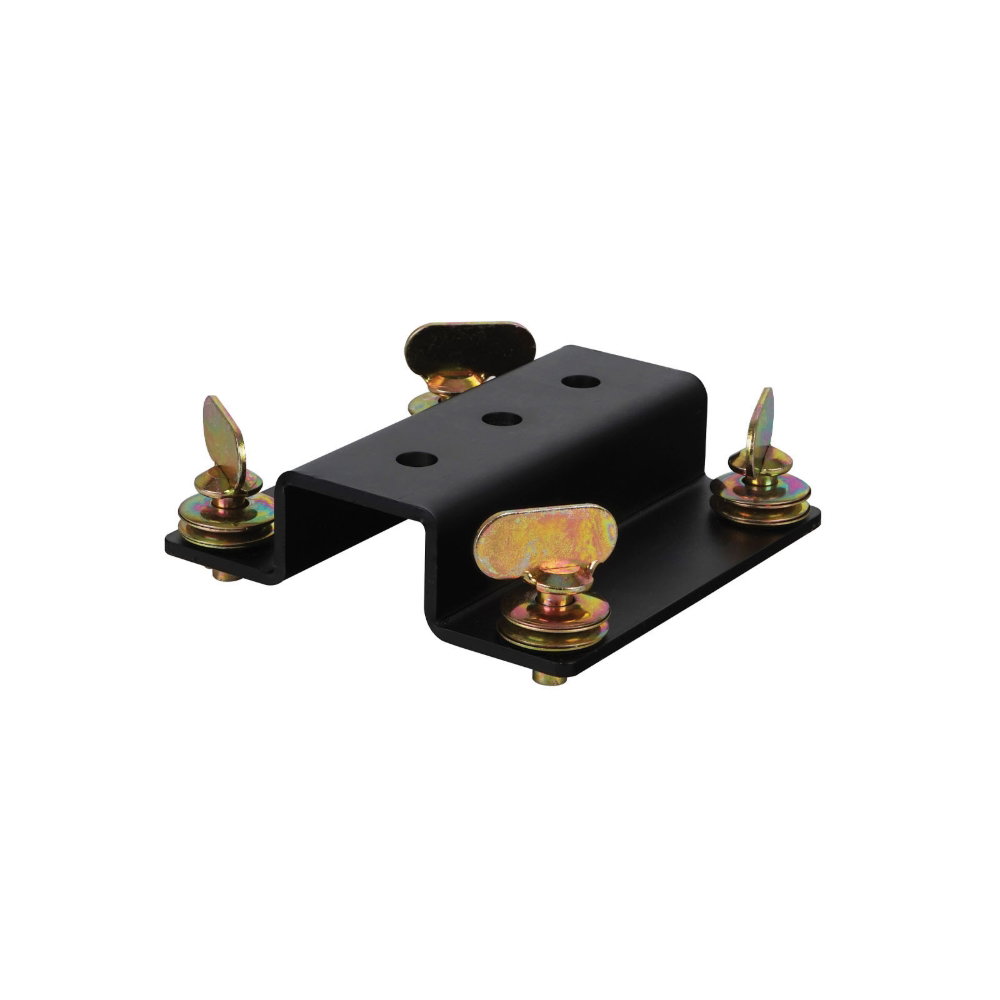

Equinox Fusion Quick Rig Omega Pole Mount Bracket 4mm Steel 50kg WLL (CLAM300)
Click to enlarge

    £21.00 inc VAT
    £17.50 ex VAT

    SKU: CLAM300
    88 available online
    Delivered by WednesdayOrder by 3pm
    Click & Collect tomorrow ›Collect from us in Wembley
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Fusion Quick Rig is a 4mm steel pole-mounting bracket for select fixtures in the Equinox Fusion range, using a quarter-turn omega quick-lock system so fixtures drop on and lock without tools. Three M10 holes in the baseplate let you bolt it to a pole plate, wall bracket or custom mounting point, making it equally at home on a touring rig and in a permanent install.

    50kg
    WLL · Working load limit
    4mm steel
    Material · Matte black
    3 x M10
    Mounting · Fixing holes
    0.95kg
    Weight · Bracket only
    Mounting hardwareNo mounting hardware is supplied. Specify your own M10 bolts, washers and fixings to suit the pole plate, wall or structure you are fixing to, and have the fixing method signed off where the bracket is going into a permanent installation.

    Features

    Quarter-turn OMEGA quick-lock connector system
    Tool-free rigging and de-rigging of Fusion fixtures
    Enables pole-mounting configurations
    Heavy 4mm steel baseplate
    Matte black powder-coated finish
    Three M10 holes for secure installation
    50kg working load limit
    Compact 135 x 135 x 50mm footprint
    NoteThe omega quick-lock system works with selected fixtures in the Equinox Fusion range. Check your fixture takes an omega bracket before ordering.

    Specifications

    Equinox Fusion Quick Rig Omega Pole Mount Bracket 4mm Steel 50kg WLL (CLAM300) specifications
    Material 4mm steel
    Finish Matte black powder coating
    Mounting 3 x M10 holes
    System Quarter-turn OMEGA quick-lock
    Working load limit 50kg
    Dimensions (H x W x D) 135 x 135 x 50mm
    Weight 0.95kg

    Full features

    • ¼-turn “OMEGA” quick-lock connector system
    • Bracket enables pole-mounting configurations
    • Steel baseplate with matte black finish
    • Three M10 holes for secure installation
    • No mounting hardware included
    • WLL: 50kg
    • Material: 4mm steel
    • Finish: Matte black powder coating
    • Mounting: 3 x M10 holes
    • System: ¼-turn “OMEGA” quick-lock
    • Dimensions (H x W x D): 135 x 135 x 50mm
    • Weight: 0.95kg
