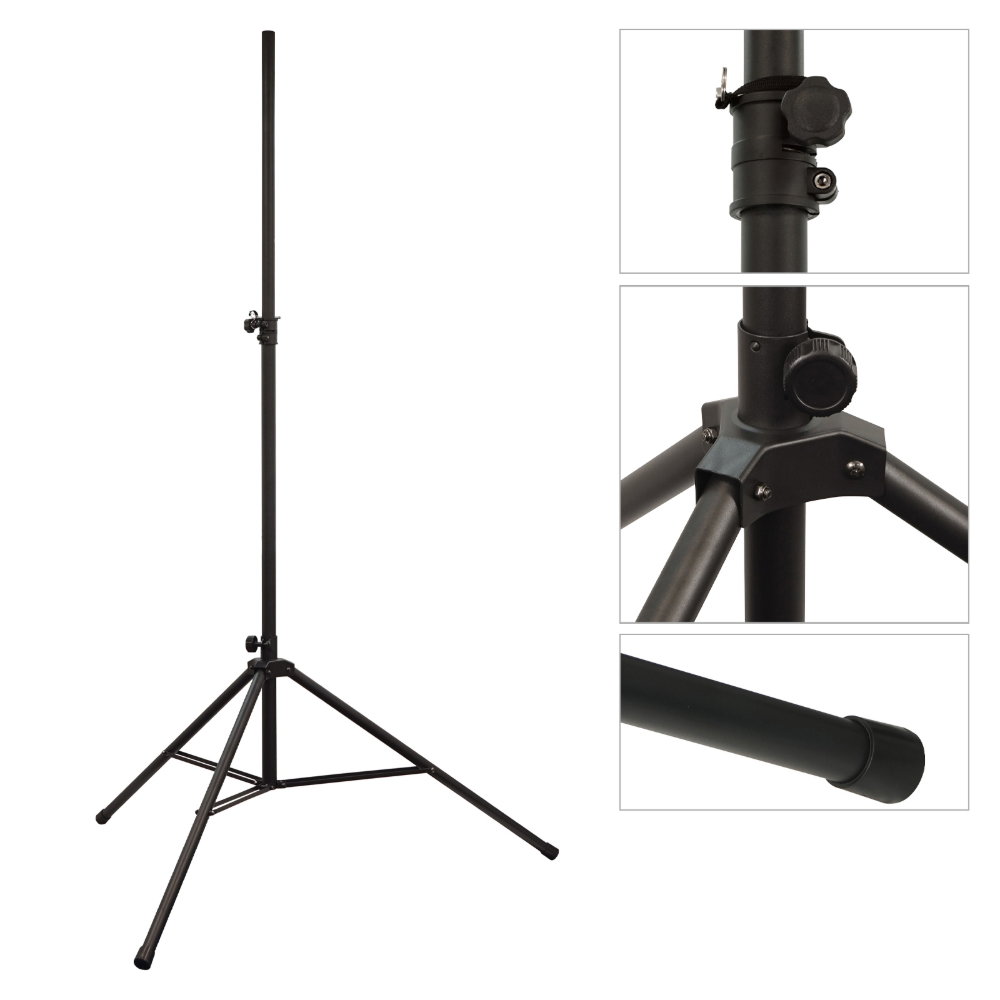

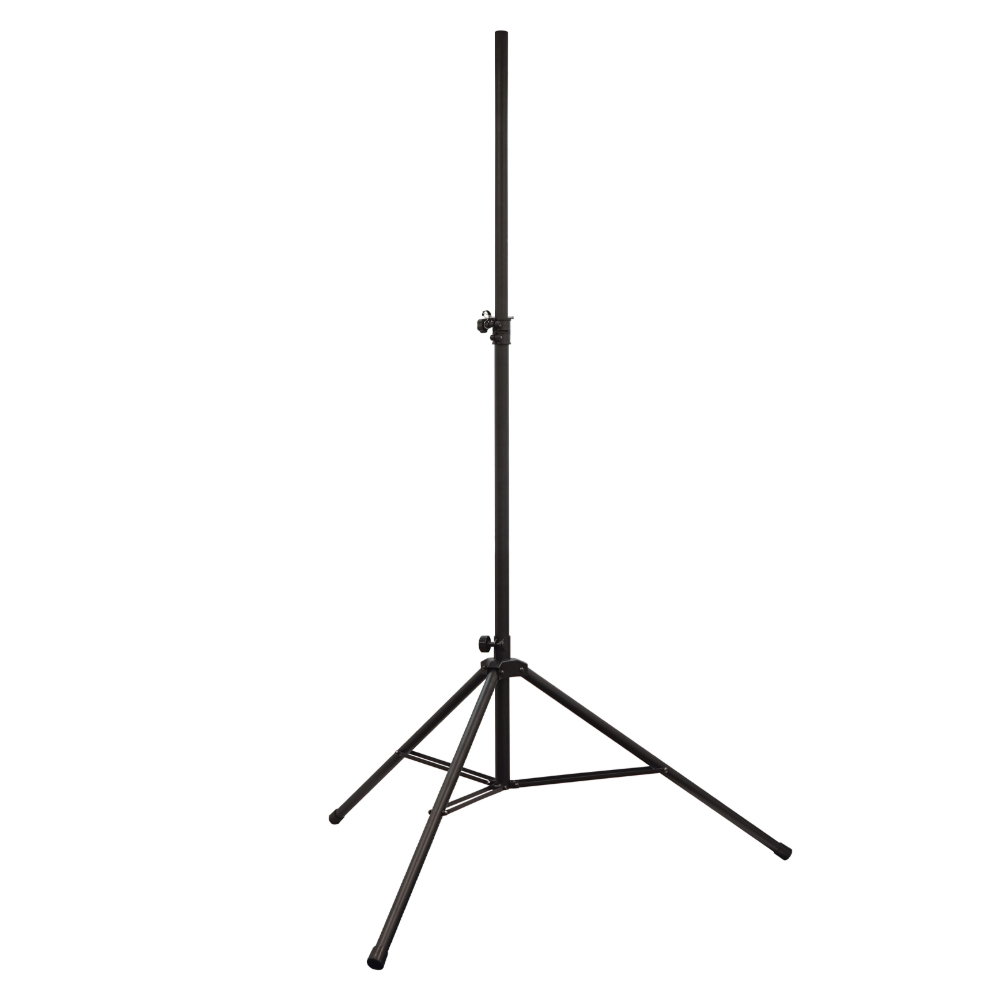

A telescopic steel tripod stand with a 35mm extendable tube, suited to both lighting bars and speaker top boxes. It runs from 1250mm collapsed to 2350mm fully extended with a 20kg working load limit, making it a straightforward workhorse for mobile DJs, small venues and function bands.
HEIGHT
1250 – 2350mm
Telescopic
WLL
20kg
Working load limit
TUBE
35mm
Standard adaptor fit
FOOTPRINT
1350mm
Maximum leg spread
Features
✓
Accepts any standard 35mm stand adaptor or top hat
Accepts any standard 35mm stand adaptor or top hat
✓

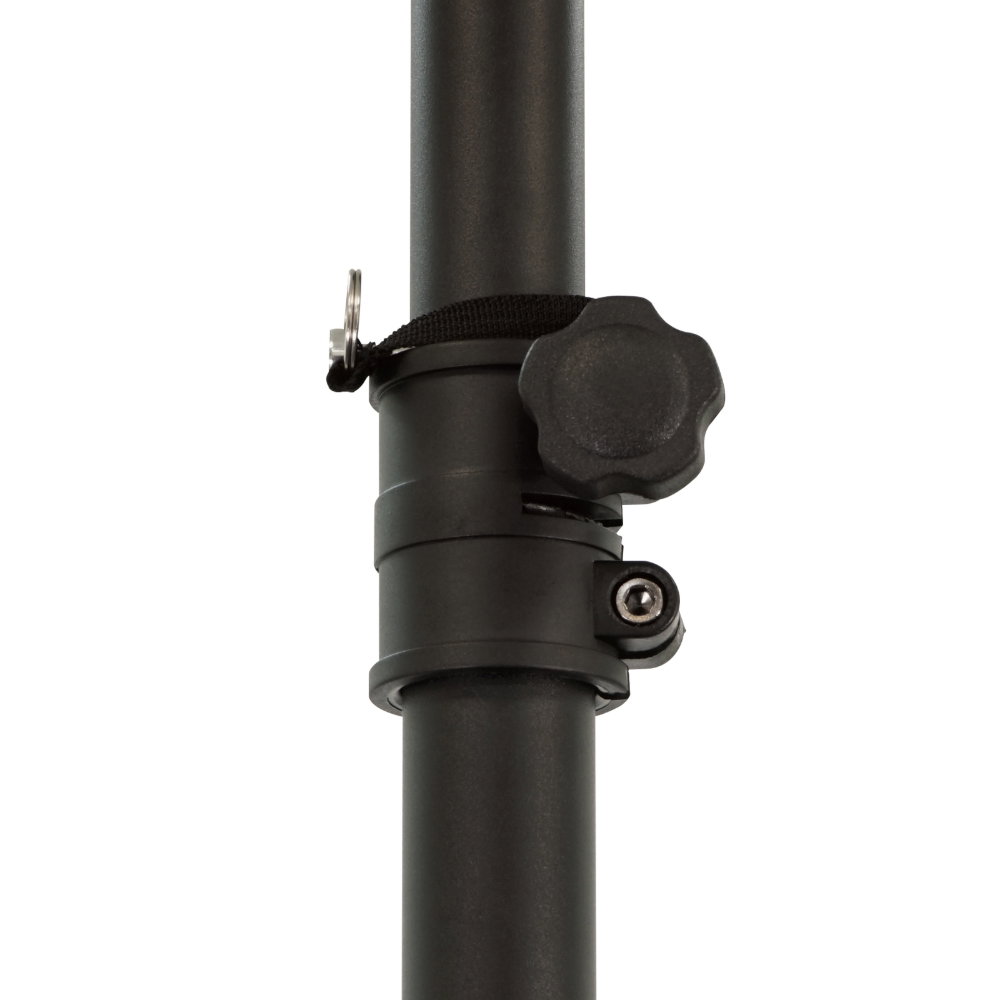

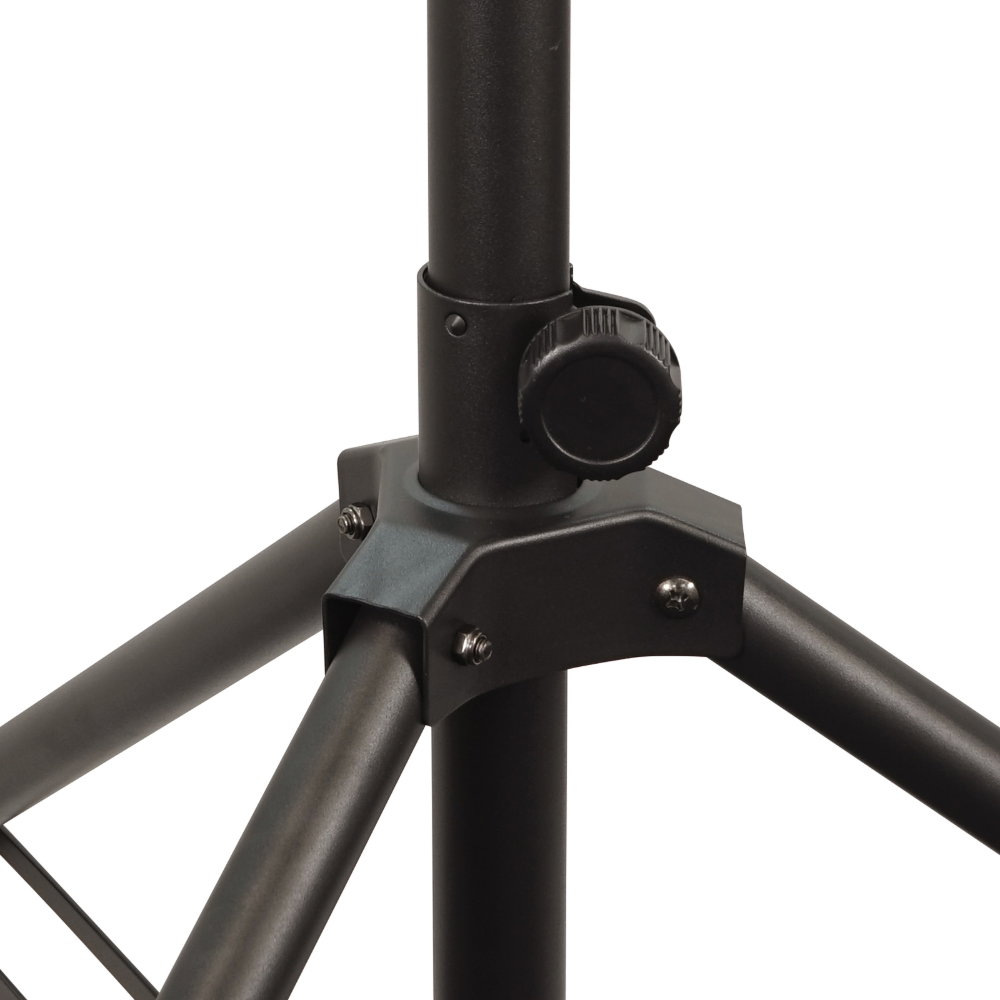

Dual locking mechanism for a secure hold at height
Dual locking mechanism for a secure hold at height
✓
Steel construction with a black powder coated finish
Steel construction with a black powder coated finish
✓
1.1m of height adjustment to clear heads and set beam angles
1.1m of height adjustment to clear heads and set beam angles
✓
1350mm maximum footprint gives a stable base on flat floors
1350mm maximum footprint gives a stable base on flat floors
✓
Suits lighting T-bars and speaker top boxes alike
Suits lighting T-bars and speaker top boxes alike
✓

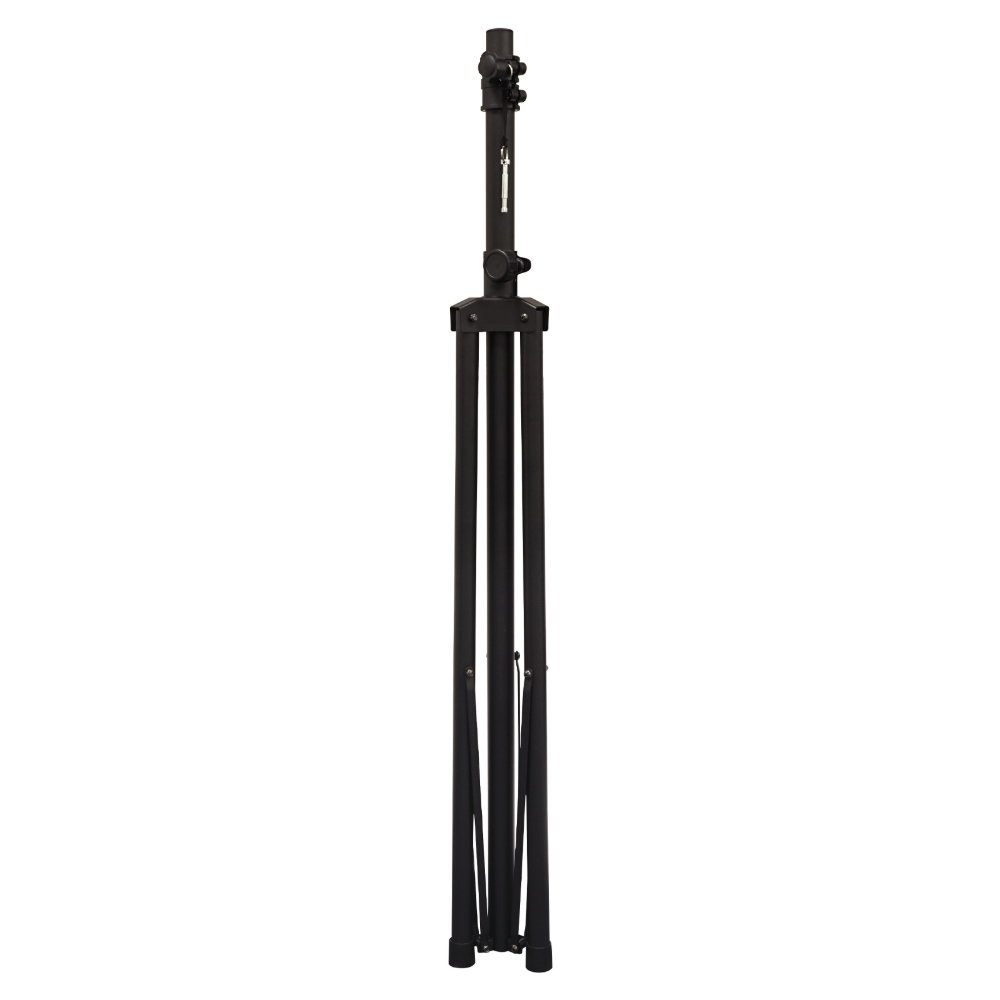

Folds to 1250 x 130 x 130mm for transport
Folds to 1250 x 130 x 130mm for transport
✓
4.8kg, one-person handling for load in and out
4.8kg, one-person handling for load in and out
Note
The 20kg WLL is the total load on the stand. If you are hanging a T-bar with several fixtures, count the bar, clamps and cable weight as well as the fixtures.
Specifications
| Type | Telescopic tripod stand |
| Height range | 1250 – 2350mm |
| Collapsed dimensions (H x W x D) | 1250 x 130 x 130mm |
| Tube diameter | 35mm |
| Working load limit | 20kg |
| Maximum footprint | 1350mm |
| Construction | Steel, black powder coated |
| Weight | 4.8kg |
