Equinox TC 100S Aluminium Half Coupler 48-51mm 100kg WLL Silver (CLAM31)

SKU: CLAM31
Equinox TC 100S Aluminium Half Coupler 48-51mm 100kg WLL Silver (CLAM31)
Equinox TC 100S Aluminium Half Coupler 48-51mm 100kg WLL Silver (CLAM31)
Equinox TC 100S Aluminium Half Coupler 48-51mm 100kg WLL Silver (CLAM31)
Click to enlarge

    £7.00 inc VAT
    £5.83 ex VAT

    182 in stock (more available subject to additional lead time)

    Order in 14h 28m 56s for delivery by Friday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

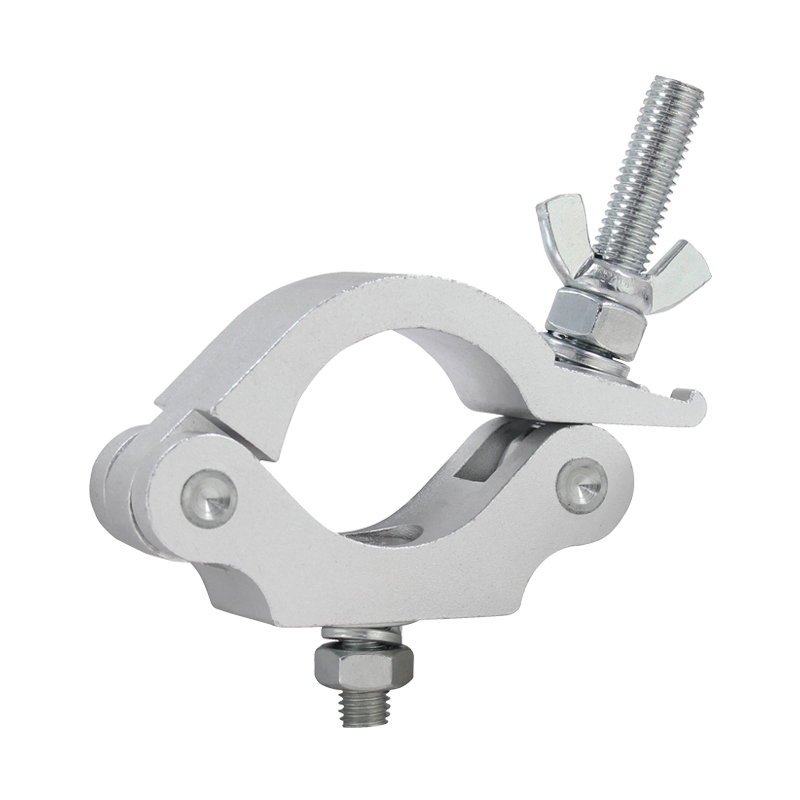

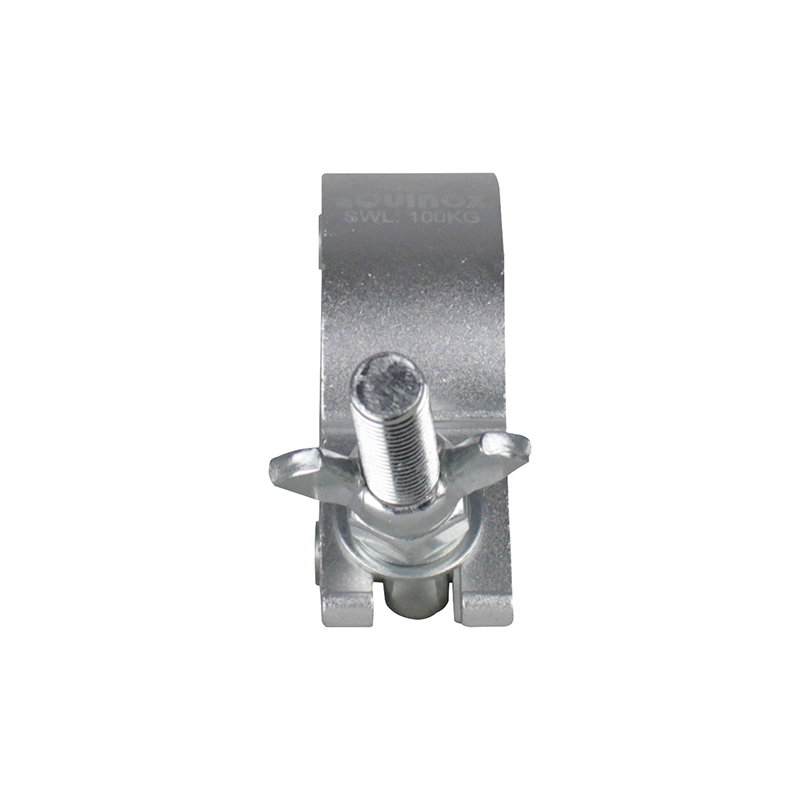

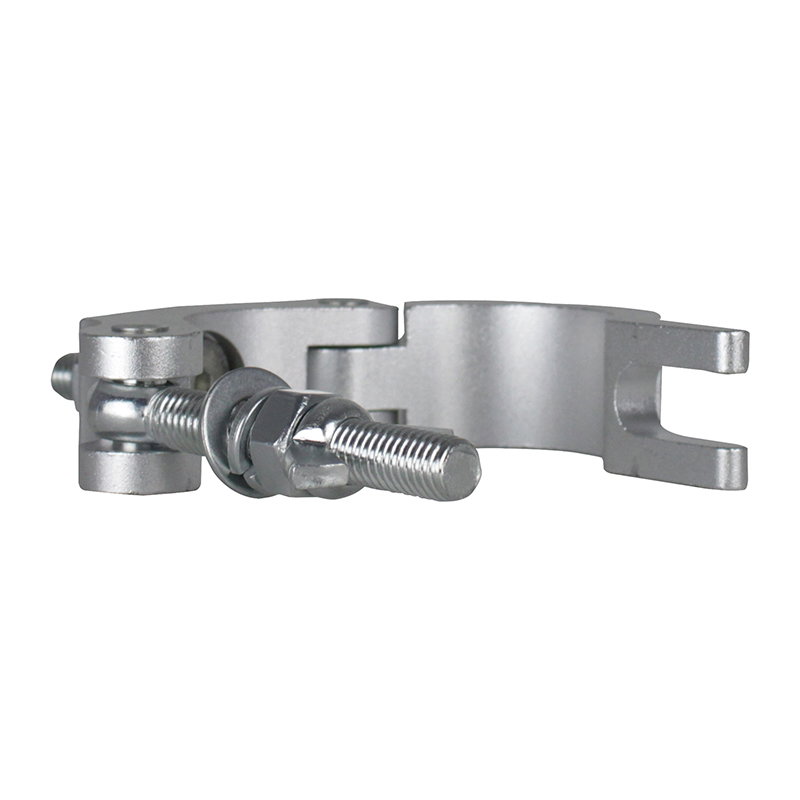

    The Equinox TC 100S is a slimline aluminium half coupler for 48-51mm truss and scaff tube, rated to a 100kg working load limit. The silver anodised finish makes it the natural choice on raw aluminium truss where you want the hardware to disappear into the structure. Wing nut closure means no spanner needed on a get-in.

    Working load limit
    100kg
    WLL per coupler

    Tube range
    48-51mm
    Diameter

    Width
    30mm
    Slimline body

    Weight
    0.35kg
    Aluminium body

    Features
    ✓
    100kg WLL, sized for moving heads and heavier washes
    ✓
    Fits tubes 48-51mm in diameter, covering standard truss and scaff
    ✓
    Silver anodised finish, blends with raw aluminium truss
    ✓
    Wing nut closure for fast tool-free rigging
    ✓
    Lightweight aluminium body at 0.35kg keeps rig weight down
    ✓
    M10 light fixing, the standard yoke bolt size
    ✓
    Supplied complete with M10 bolt, washer, spring washer and nut
    ✓
    30mm slim body fits multiple couplers on a short truss run

    Specifications
    Stock code CLAM31
    Model TC 100S
    Finish Silver
    Tube diameter 48-51mm
    Working load limit 100kg
    Closure Wing nut
    Light fixing M10
    Supplied with M10 bolt, washer, spring washer and nut
    Dimensions 120 x 125 x 30mm
    Weight 0.35kg
    Warranty 1 year

    More Information

    • For tubes 48-51mm in diameter
    • Wing nut closure
    • WLL: 100kg
    • Width: 30mm
    • Light fixing: M10
