Equinox TC 50B Aluminium Half Coupler 48-51mm 50kg WLL Black (CLAM04B)

SKU: CLAM04B
Equinox TC 50B Aluminium Half Coupler 48-51mm 50kg WLL Black (CLAM04B)
Click to enlarge

    £5.00 inc VAT
    £4.17 ex VAT

    839 in stock (more available subject to additional lead time)

    Order in 8h 18m 27s for delivery by Friday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

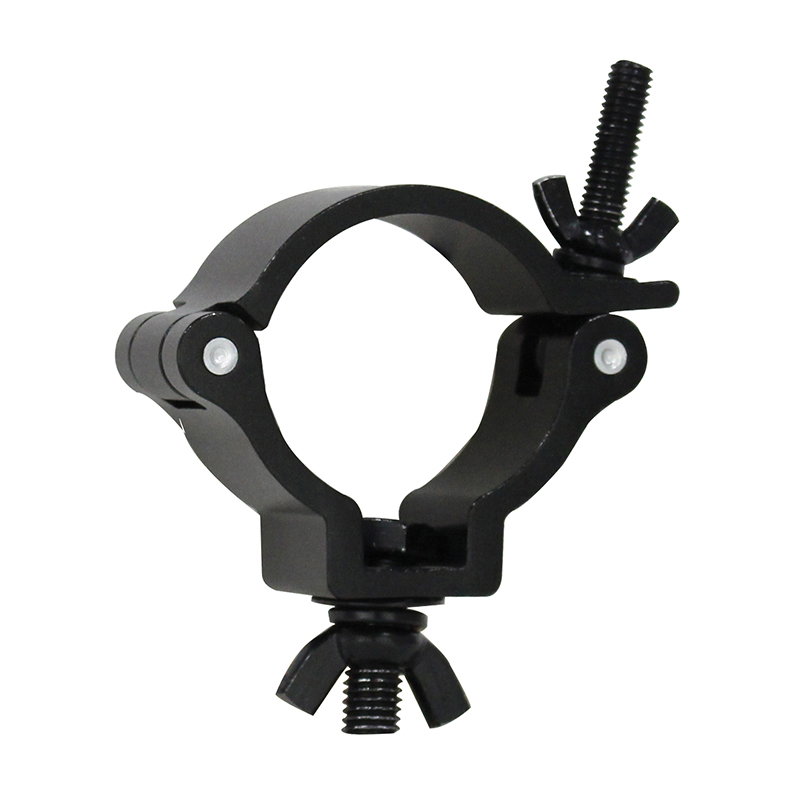

    The Equinox TC 50B is a slimline aluminium half coupler in black, rated to a 50kg working load limit on 48-51mm truss. At 0.17kg it is the lightest coupler in the TC range, which matters when you are hanging thirty LED pars on a touring rig and counting every kilo. Black finish keeps it discreet on theatre bars and painted truss.

    Working load limit
    50kg
    WLL per coupler

    Finish
    Black
    Low visibility on stage

    Weight
    0.17kg
    Aluminium body

    Tube range
    48-51mm
    Diameter

    Features
    ✓
    50kg WLL, suited to LED pars, bars and small effects
    ✓
    Black finish for theatre bars and black-painted truss
    ✓
    Very light at 0.17kg, ideal for large-quantity par rigs
    ✓
    Fits tubes 48-51mm in diameter, covering standard truss and scaff
    ✓
    Wing nut closure for fast tool-free rigging
    ✓
    M10 light fixing, the standard yoke bolt size
    ✓
    Supplied with M10 bolt, washer, spring washer and wing nut
    ✓
    30mm slim body allows tight fixture spacing along a truss

    Note

    This is the 50kg WLL variant with wing nut closure. If you need a heavier rating on the same 48-51mm tube, the TC 100 series is rated to 100kg; for a T-knob closure instead of a wing nut, see the TC 50 PRO.

    Specifications
    Stock code CLAM04B
    Model TC 50B
    Finish Black
    Tube diameter 48-51mm
    Working load limit 50kg
    Closure Wing nut
    Light fixing M10
    Supplied with M10 bolt, washer, spring washer and wing nut
    Dimensions 110 x 30 x 88mm
    Weight 0.17kg
    Warranty 1 year

    More Information

    • For tubes 48-51mm in diameter
    • Wing nut closure
    • WLL: 50kg
    • Width: 30mm
    • Light fixing: M10
