Equinox TRC 30S Aluminium Easy Clamp 48-51mm 30kg WLL, Silver (CLAM40)

SKU: CLAM40

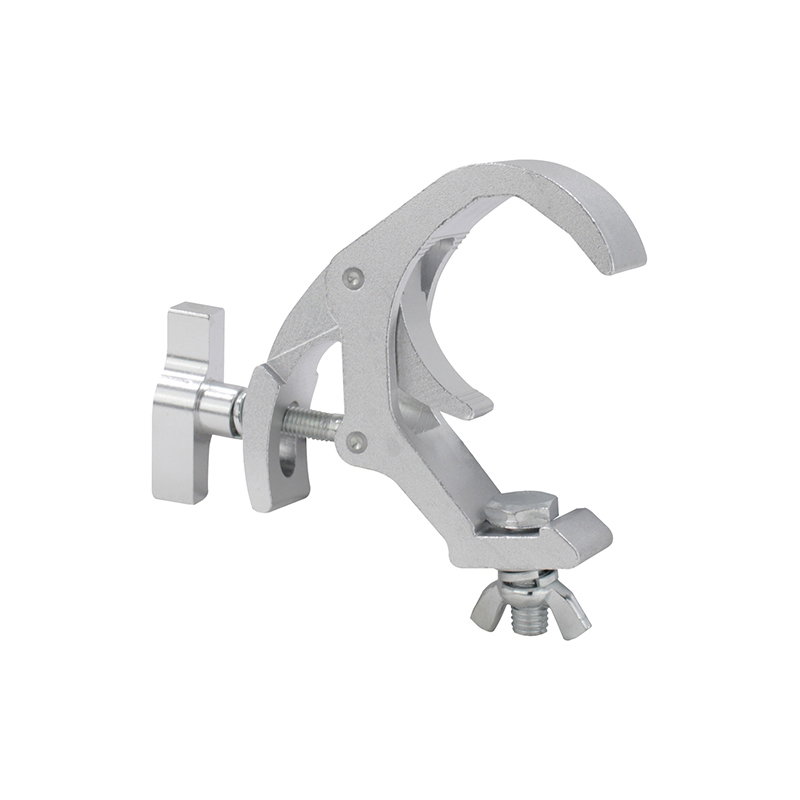

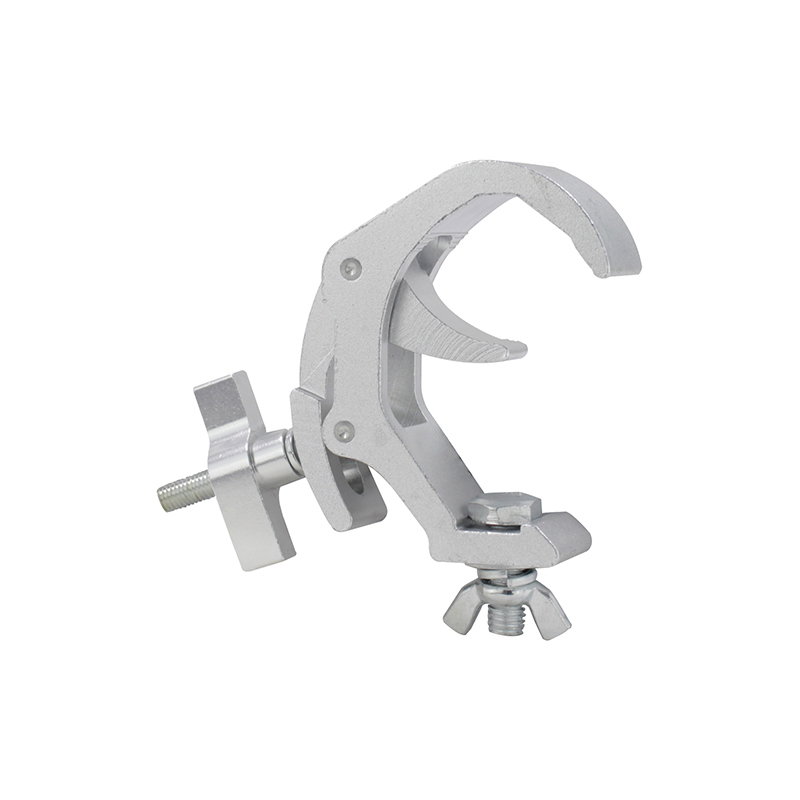

Equinox TRC 30S Aluminium Easy Clamp 48-51mm 30kg WLL, Silver (CLAM40)
Equinox TRC 30S Aluminium Easy Clamp 48-51mm 30kg WLL, Silver (CLAM40)
Click to enlarge

    £7.00 inc VAT
    £5.83 ex VAT

    Available on back-order

    On backorder, expected 20 Oct 2026
    Delivered by Thu 22nd OctOrder by 3pm
    Click & Collect Wed 21st Oct ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Equinox TRC 30S is a lightweight aluminium self locking easy clamp for standard 48-51mm truss, rated to 30kg. The silver anodised finish suits raw aluminium truss, scaffold bar and exhibition rigs, and at 0.25kg it is the cost-effective clamp to buy by the box for pars, battens and small effects.

    30kg
    WLL · Working load limit
    48-51mm
    Tube size · Standard truss
    T-Knob
    Closure · Tool-free
    0.25kg
    Weight · Per clamp
    Features
    Fits tubes 48-51mm in diameter
    30kg WLL, sized for pars, battens and small effects
    Silver anodised finish matches unpainted truss and scaffold
    Only 0.25kg per clamp
    T-Knob closure for fast tool-free rigging
    Self locking body hooks the bar before you tighten
    Supplied with M10 bolt, washer, spring washer and wing nut
    30mm body width
    NoteThis is the 30kg version. For moving heads and heavier fixtures step up to the TRC 100 (100kg WLL). Always fit a safety bond rated for the fixture in addition to the clamp.
    Specifications
    Model TRC 30S
    Tube diameter 48-51mm
    WLL 30kg
    Body width 30mm
    Light fixing M10
    Closure T-Knob
    Material / finish Aluminium, silver
    Dimensions 130 x 140 x 30mm
    Weight 0.25kg

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • For tubes 48-51mm in diameter
    • T-Knob closure
    • WLL: 30kg
    • Width: 30mm
    • Light fixing: M10
