Equinox TRC25S Aluminium Easy Clamp 25-38mm 30kg WLL, Silver (CLAM100)

SKU: CLAM100
Equinox TRC25S Aluminium Easy Clamp 25-38mm 30kg WLL, Silver (CLAM100)
Equinox TRC25S Aluminium Easy Clamp 25-38mm 30kg WLL, Silver (CLAM100)
Click to enlarge

    £8.00 inc VAT
    £6.67 ex VAT

    171 in stock

    Order in 0h 20m 24s for delivery by Thursday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

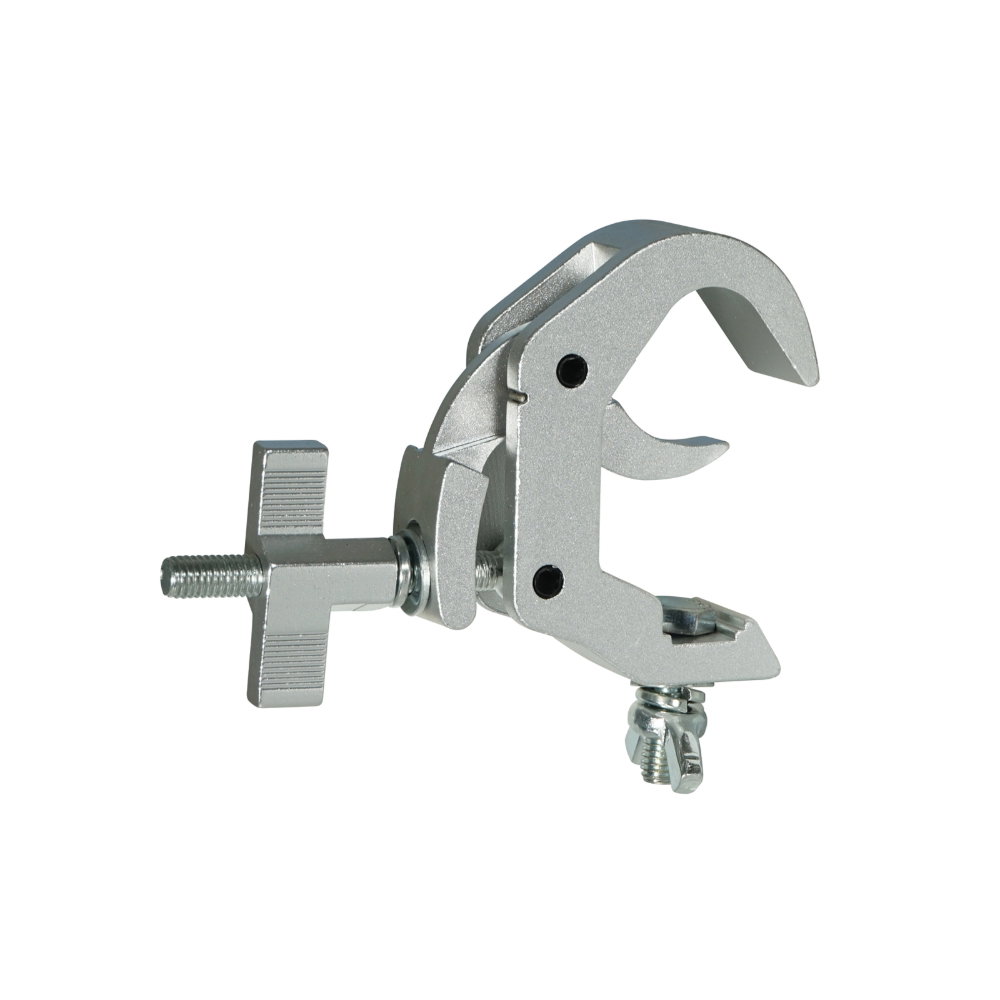

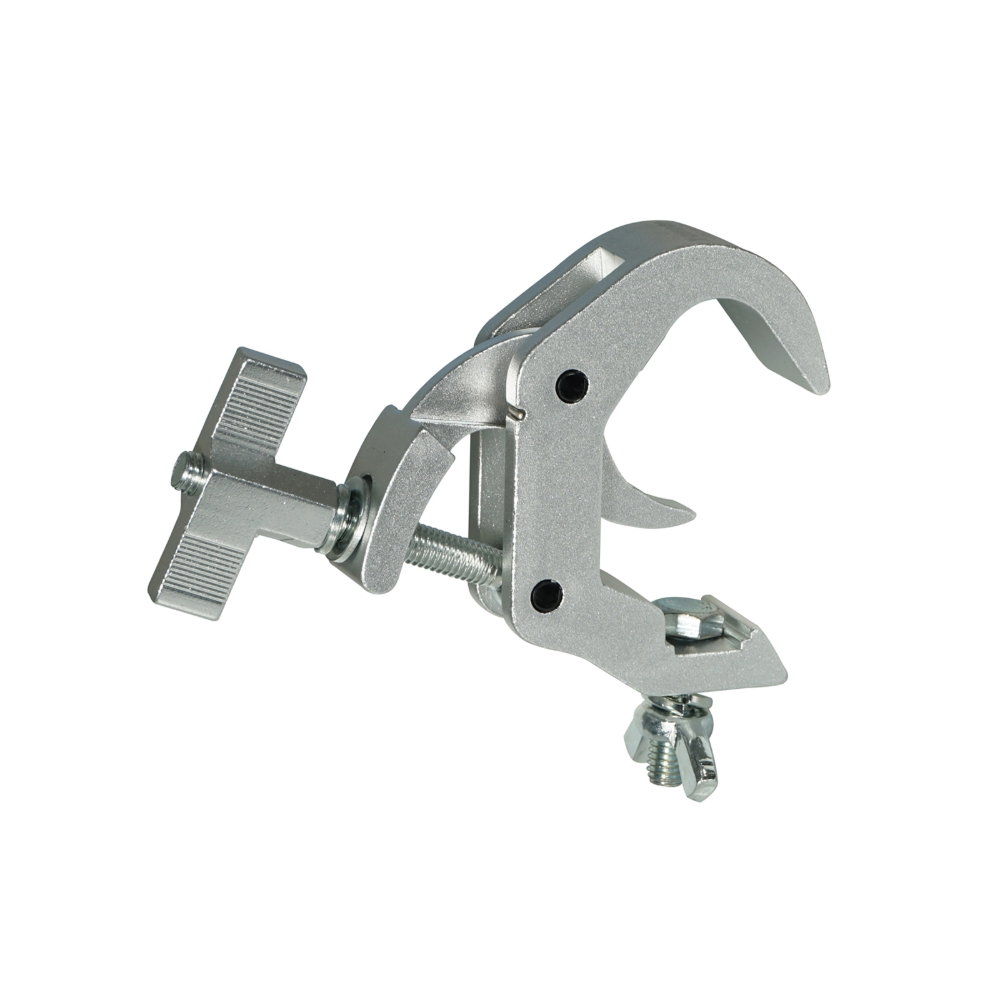

    The Equinox TRC25S is a slimline, lightweight aluminium self locking easy clamp for 25-38mm tube, covering most brands of F23 and F24 series truss. The silver anodised finish matches raw aluminium truss and scaffold, which makes it the tidier option on unpainted lightweight structures and exhibition stands.

    WLL
    30kg
    Working load limit

    Tube size
    25-38mm
    F23 / F24 series

    Fixture bolt
    M8 x 30mm
    Supplied

    Weight
    0.2kg
    Per clamp

    Features
    ✓Fits tubes 25-38mm in diameter
    ✓Silver anodised finish blends with raw aluminium truss
    ✓Self locking body wraps the tube before tightening
    ✓T-Knob closure, tool-free on the bar
    ✓30kg working load limit
    ✓Supplied with M8 x 30mm bolt, washer, spring washer and wing nut
    ✓Slimline 25mm body packs tightly along a bar
    ✓0.2kg per clamp keeps hung weight down on lightweight truss

    Note

    This is the 25-38mm version for F23 and F24 style tube. For standard 48-51mm truss you need the 48-51mm clamps instead. As with any overhead rig, fit a safety bond rated for the fixture in addition to the clamp.

    Specifications
    Model TRC25S
    Tube diameter 25-38mm
    WLL 30kg
    Body width 25mm
    Light fixing M8 x 30mm
    Closure T-Knob
    Material / finish Aluminium, silver anodised
    Dimensions (H x W x D) 84 x 123 x 25mm
    Weight 0.2kg

    More Information

    • For tubes 25-38mm in diameter
    • Supplied with M8 x 30mm bolt, washer, spring washer and wing nut
    • Silver anodised finish
    • T-Knob closure

    Manuals & Downloads

    PDFDatasheets & Technical Docs: CLAM100_TDPDF
