Equinox Truss Bridge Stand Adaptor 35mm Zinc Plated for F24 F32 F33 F34 (STAN92)

SKU: STAN92
Equinox Truss Bridge Stand Adaptor 35mm Zinc Plated for F24 F32 F33 F34 (STAN92)
Equinox Truss Bridge Stand Adaptor 35mm Zinc Plated for F24 F32 F33 F34 (STAN92)
Equinox Truss Bridge Stand Adaptor 35mm Zinc Plated for F24 F32 F33 F34 (STAN92)
Equinox Truss Bridge Stand Adaptor 35mm Zinc Plated for F24 F32 F33 F34 (STAN92)
Click to enlarge

    £30.00 inc VAT
    £25.00 ex VAT

    18 in stock

    Order in 22h 26m 19s for delivery by Friday
    Click & collect available Thursday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

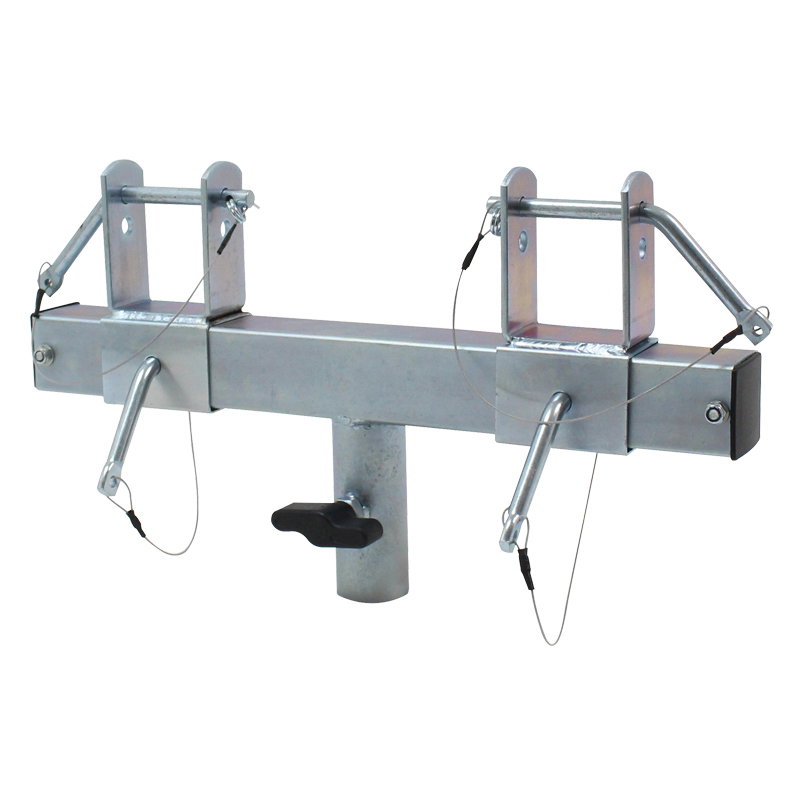

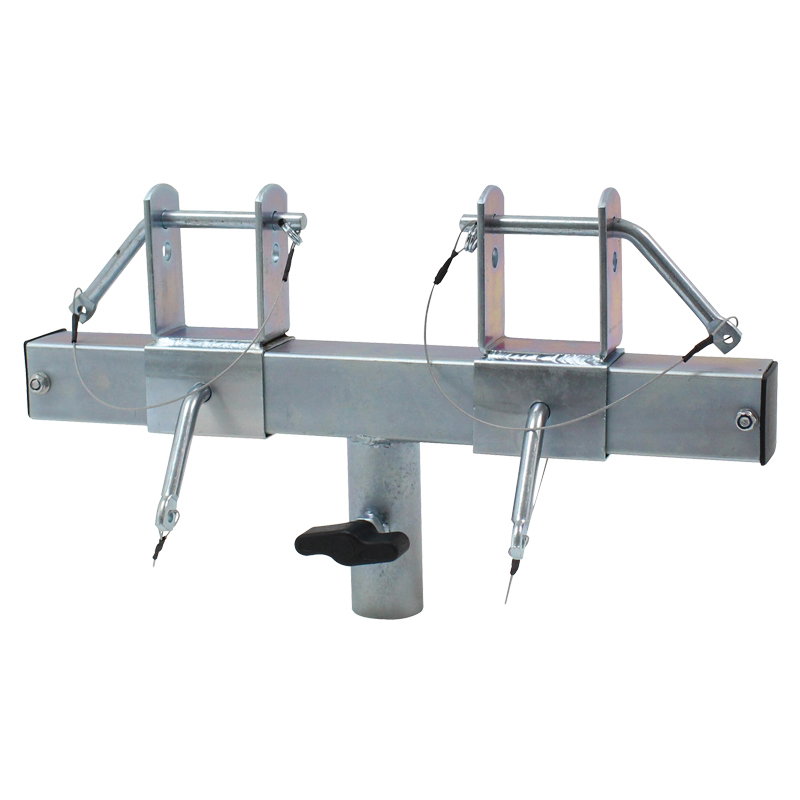

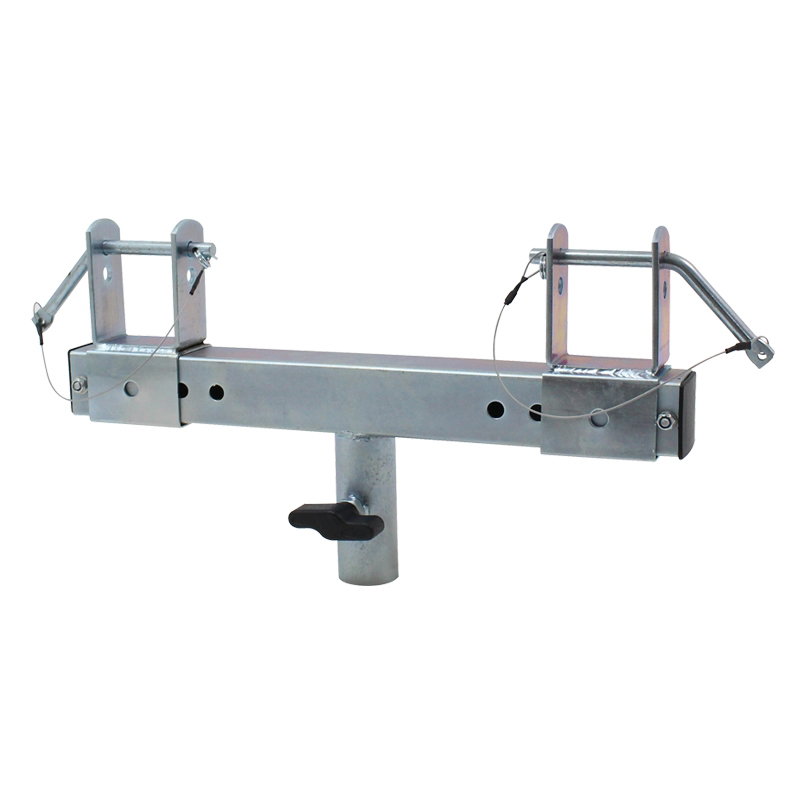

    A universal truss bridge adaptor that lets you carry a horizontal truss span on a pair of lighting stands with 35mm male uprights, including the Equinox STAN91 and STAN93. It accepts truss from 115mm to 310mm wide, covering Global Truss F32, F24, F33 and F34, and the supplied quick release locking pins hold the truss down on the cradle. The standard way to build a goalpost or overhead truss span without going to a full ground support system.

    STAND FITMENT
    35mm
    Male upright

    TRUSS WIDTH
    115-310mm
    Accepted range

    DIMENSIONS
    235 x 418 x 50mm
    H x W x D

    WEIGHT
    3.8kg
    Per adaptor

    Truss Compatibility

    Accepts truss 115-310mm wide, including the Global Truss series below.

    F24
    F32
    F33
    F34

    Stand Compatibility

    Designed for most lighting stands with a 35mm male upright.

    Equinox STAN91
    Equinox STAN93
    Other 35mm uprights

    Features
    ✓
    Designed for 35mm male lighting stand uprights
    ✓

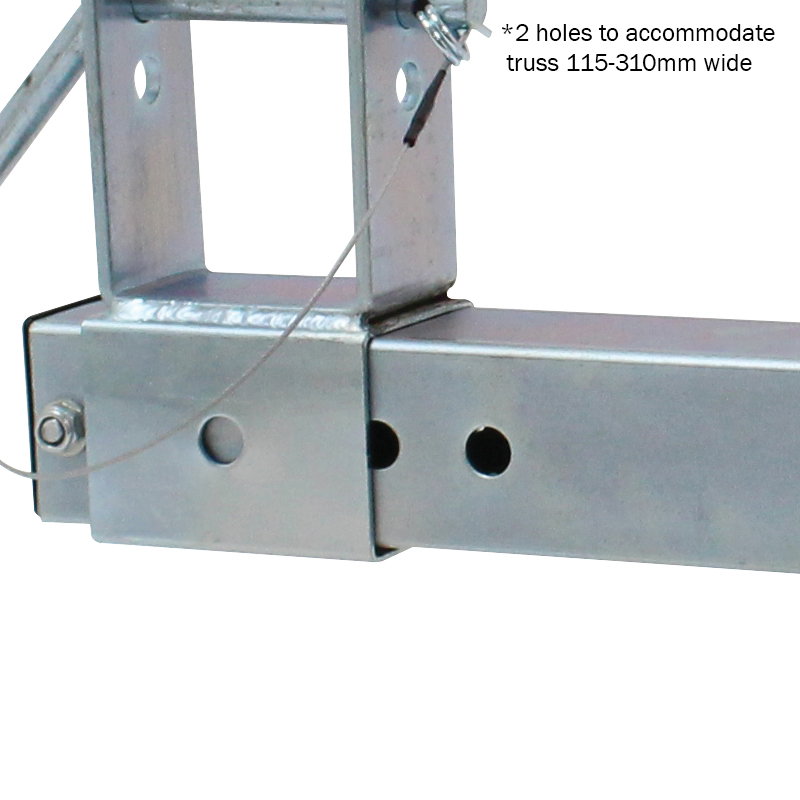

    Accepts truss from 115mm to 310mm in width
    ✓
    Supports truss either 220mm or 290mm wide
    ✓
    Compatible with Global Truss F24, F32, F33 and F34
    ✓
    Supplied with quick release locking pins to secure the truss
    ✓
    Bright zinc plated finish for corrosion resistance
    ✓
    Works with the Equinox STAN91 and STAN93 stands
    ✓
    Tool-free truss loading once the adaptor is on the stand

    Note

    Sold as a single adaptor. A truss span needs one on each stand, so order two. Load capacity of the finished span is set by the stands and the truss, not the adaptor, so always work to the stand manufacturer’s rating.

    Specifications
    Stock code STAN92
    Stand fitment 35mm male upright
    Truss width accepted 115-310mm
    Truss compatibility Global Truss F24, F32, F33, F34
    Finish Bright zinc plated
    Supplied with Quick release locking pins
    Dimensions (H x W x D) 235 x 418 x 50mm
    Weight 3.8kg

    More Information

    • Designed for 35mm lighting stands
    • Supports truss either 220mm or 290mm wide
    • Bright zinc plated
    • Supplied with quick release locking pins to secure truss onto the adaptor
    • F24, F32, F33 and F34  truss compatible

    Manuals & Downloads

    PDFManuals & Instructions: STAN92_ManualPDF
