Shure MX395W/BI-LED Microflex Bidirectional Button Boundary Mic+LED (White)

Product code: 6171

£284.00 inc VAT
£236.67 ex VAT

SKU: MX395W/BI-LED

Ordered from supplier, allow 1–3 weeks

About this Product

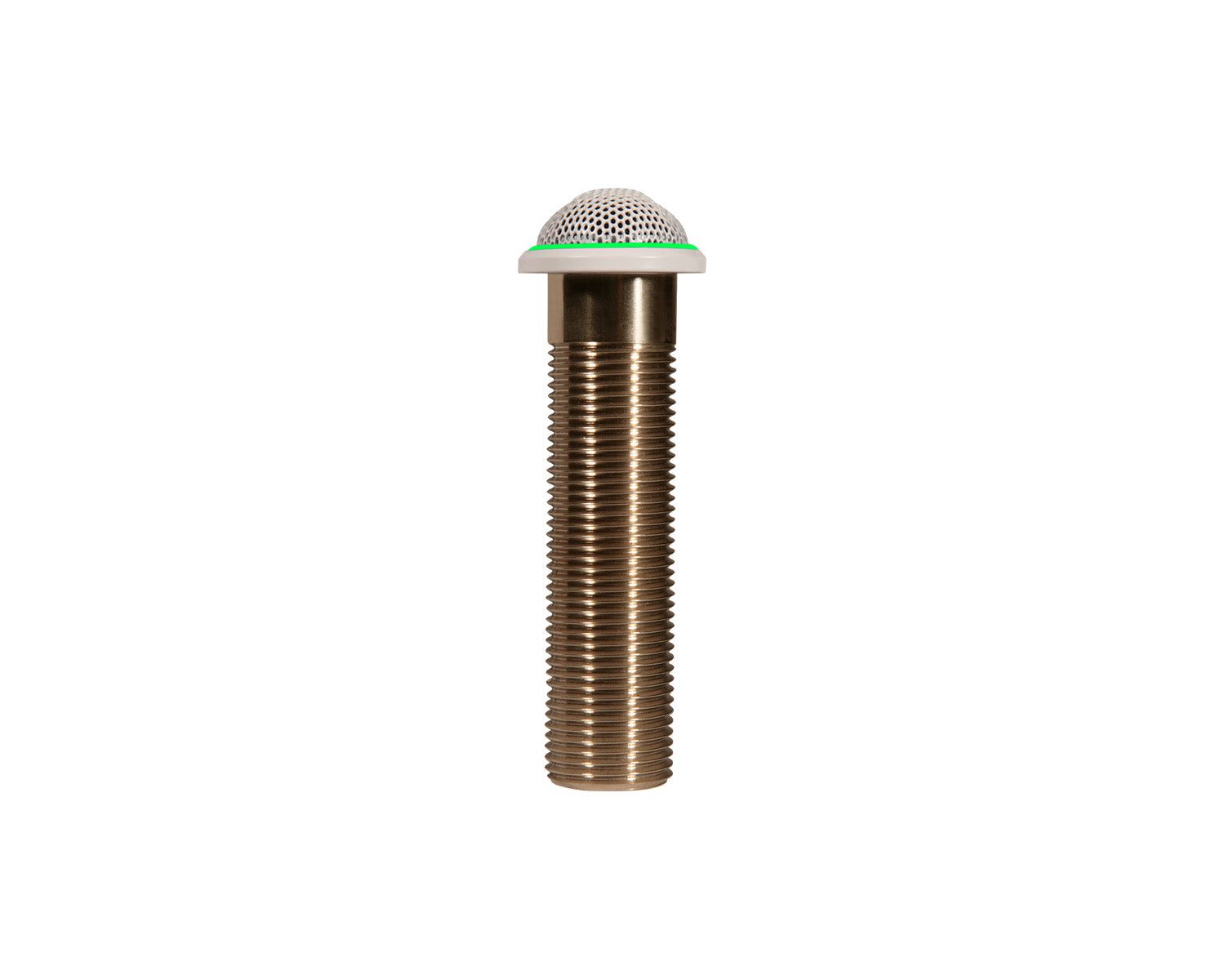

The Shure MX395W/BI-LED is a 25mm ‘button’ boundary condenser in white with a bidirectional capsule, the most discreet mic in the Microflex range, sitting barely 2cm proud of the table it’s set into. The logic-controlled bi-colour LED ring shows channel state when driven by an automatic mixer’s gate output. CommShield RF filtering keeps phones out of the audio.

Features

25mm low-profile button boundary design

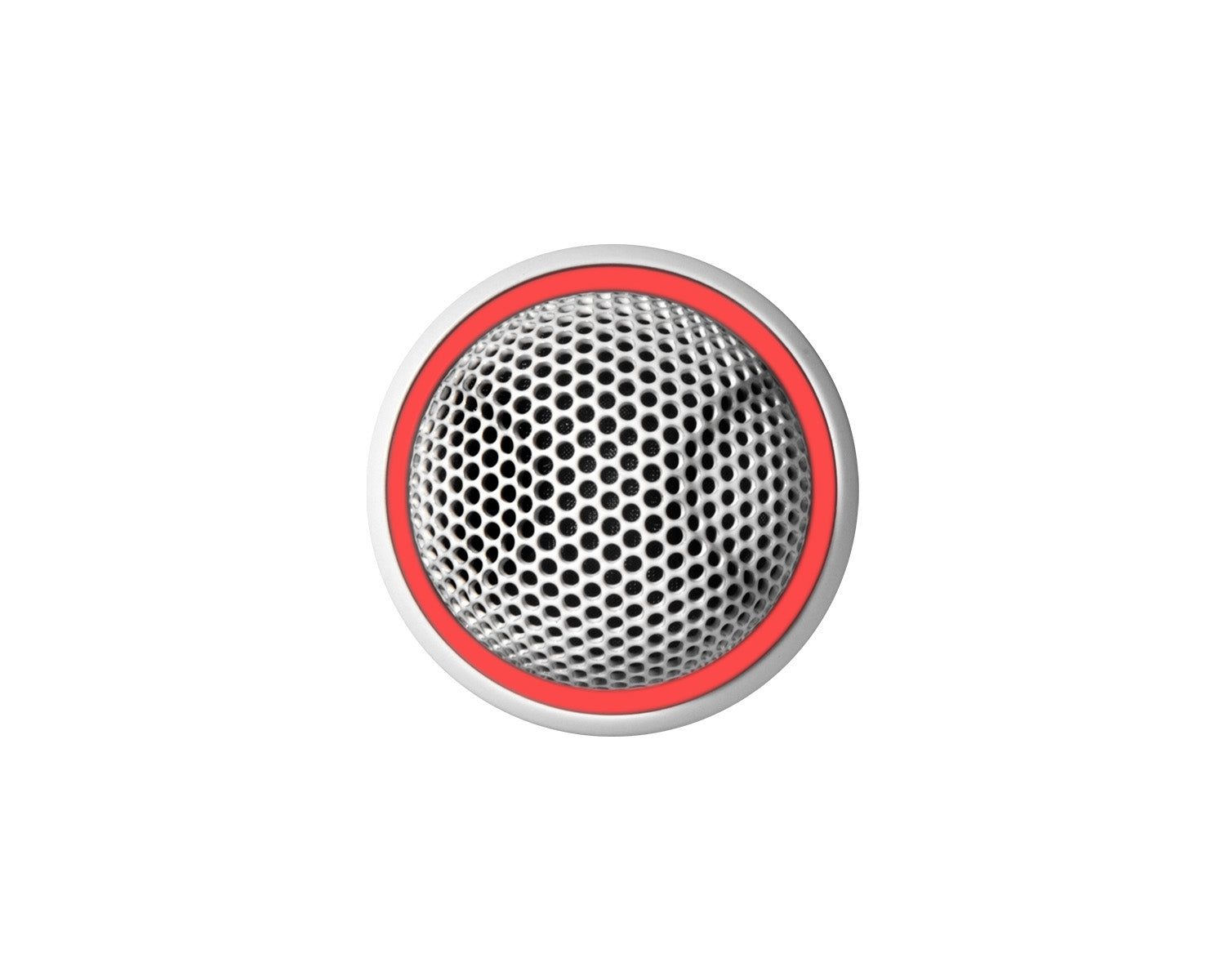

Logic-controlled bi-colour LED status ring

CommShield RF filtering

Switchable 150Hz low-cut filter

Black, white and aluminium finishes across the range

Mounts through the tabletop with a wing nut

NoteLED variants need true 48V (P48) phantom and their LED is driven by external logic, plan the automatic-mixer wiring accordingly.

Specifications

Shure MX395W/BI-LED Microflex Bidirectional Button Boundary Mic+LED (White) specifications
Type	Low-profile boundary condenser
SKU	MX395W/BI-LED
Finish	White
Polar pattern	Bidirectional
LED	Logic-controlled bi-colour
Frequency response	50Hz-17kHz
Sensitivity	-37 dBV/Pa (14mV)
Max SPL	123dB
Self noise	29dB SPL
Connector	5-pin XLR-type
Power	48-52V phantom, 8.0mA
Weight	136g

Full features

Bidirectional polar pattern
Only 2.5 cm (1 inch) in diameter
Wide dynamic range and smooth frequency response
Low profile, aesthetic design
RF filtering with CommShield technology
Bi-colour status indicator
Logic input for remote LED control
Finish: White

Full specifications

Transducer Type: Condenser
Polar Pattern: Bidirectional
Frequency Range From (Hz): 50
Frequency Range To (kHz): 17
Sensitivity dBV/Pa: Bidirectional: -37.00
Sensitivity mvpa: Bidirectional: 14.00
Equivalent Selfnoise: Bidirectional: 29 dB (A)
Maximum Sound Pressure: Bidirectional: 123 dB
Impedance (Ω): 170
Switchable Low Cut: yes
Output Connectors: 5 Pin XLR
Attenuation PAD: no
Interchangeable Capsule: no (different polar patterns offered as part of the mic, not via an interchangeable capsule)
Requires Phantom Power (VDC): 3-pin version: 11-52 VDC 5-pin version: 48-52 VDC
Weight (g) / (lbs): 136 g / 0.30 lbs
Height (mm) / (in): 101 mm / 3.976 in
Width (mm) / (in): 32 mm / 1.26 in
Depth (mm) / (in): 32 mm / 1.26 in
