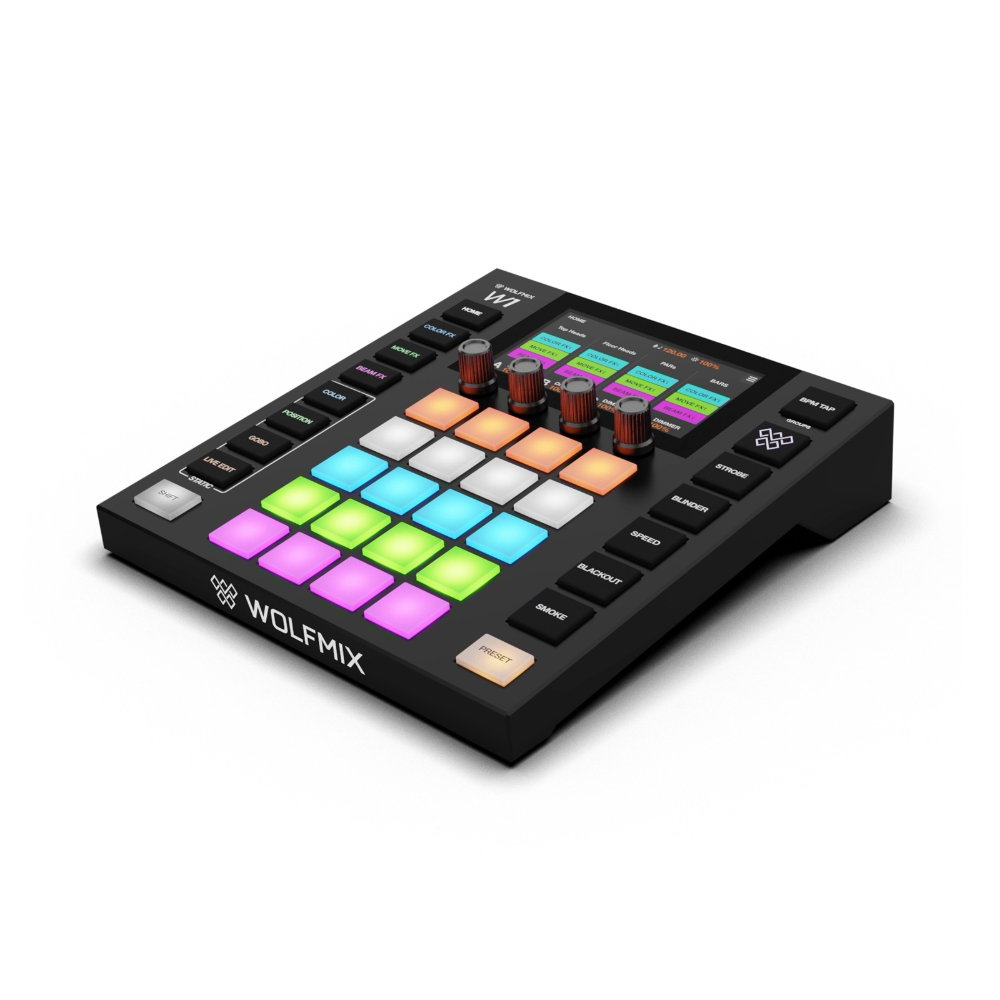

The Wolfmix W1 MK3 is a standalone performance DMX controller for running a light show live, with no computer in the chain. It drives up to four DMX universes (two as standard, with universes 3 and 4 a paid add-on unlocked through WTOOLS) from an onboard FX engine with dedicated Colour, Move and Beam racks, a 4.3-inch colour touchscreen, four encoders and 37 backlit pads. Music sync comes from the built-in microphone, a 3.5mm line-in or BPM tap, with Ableton Link and OS2L available when it is connected over USB to a computer running WTOOLS, so it locks to the DJ or the band without programming. Thousands of fixture profiles are onboard and over 15,000 are available through the free WTOOLS app, with a built-in fixture builder for anything else. It suits mobile DJs, small clubs, bars, function bands and dry hire where a laptop-based console is too much to set up and too easy to knock over.
4
DMX universes · 3+4 by add-on
4.3"
Touchscreen · Colour TFT
15,000+
Fixture profiles · via WTOOLS
25fps
FX engine · Beam processing
Powered over USB-CThe W1 MK3 takes its power from the USB-C port at 5V 900mA, or 1500mA where MIDI or WLINK devices hang off the USB-A port. Any decent USB-C phone charger or a powered USB port on a laptop will run it. The steel base plate carries a 100mm VESA pattern (M4, 6mm maximum) for mounting on an arm or stand in a permanent install.
Features
Runs a complete light show standalone, with no computer or software required
Four DMX universes (3 and 4 by paid add-on): 2 x 3-pin out, 1 x 5-pin out, 1 x 5-pin in/out with WLINK
Dedicated Colour FX, Move FX and Beam FX racks with a 25fps beam engine
Strobe, blinder, speed, blackout and smoke buttons for live performance
Music sync from built-in mic, 3.5mm line-in or BPM tap; Ableton Link and OS2L via WTOOLS on a computer
Thousands of onboard fixture profiles, 15,000+ via the WTOOLS app, plus a fixture builder

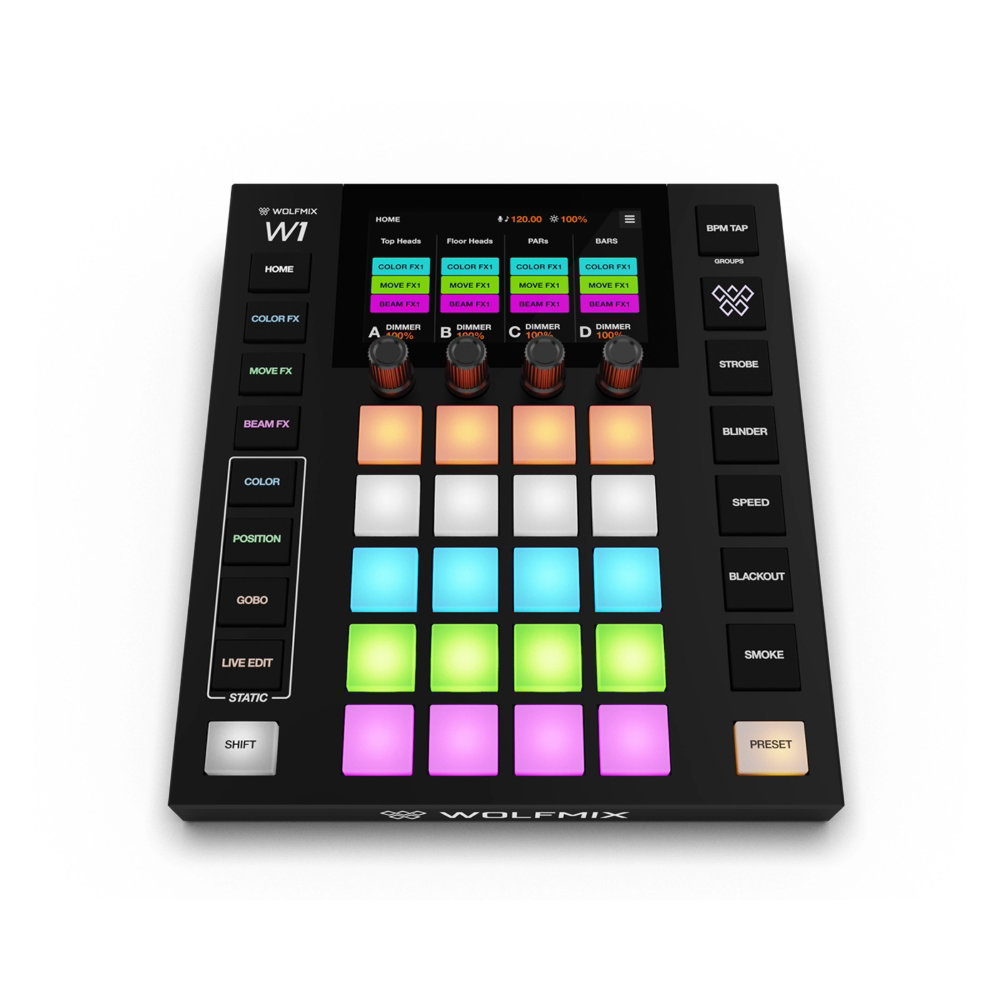

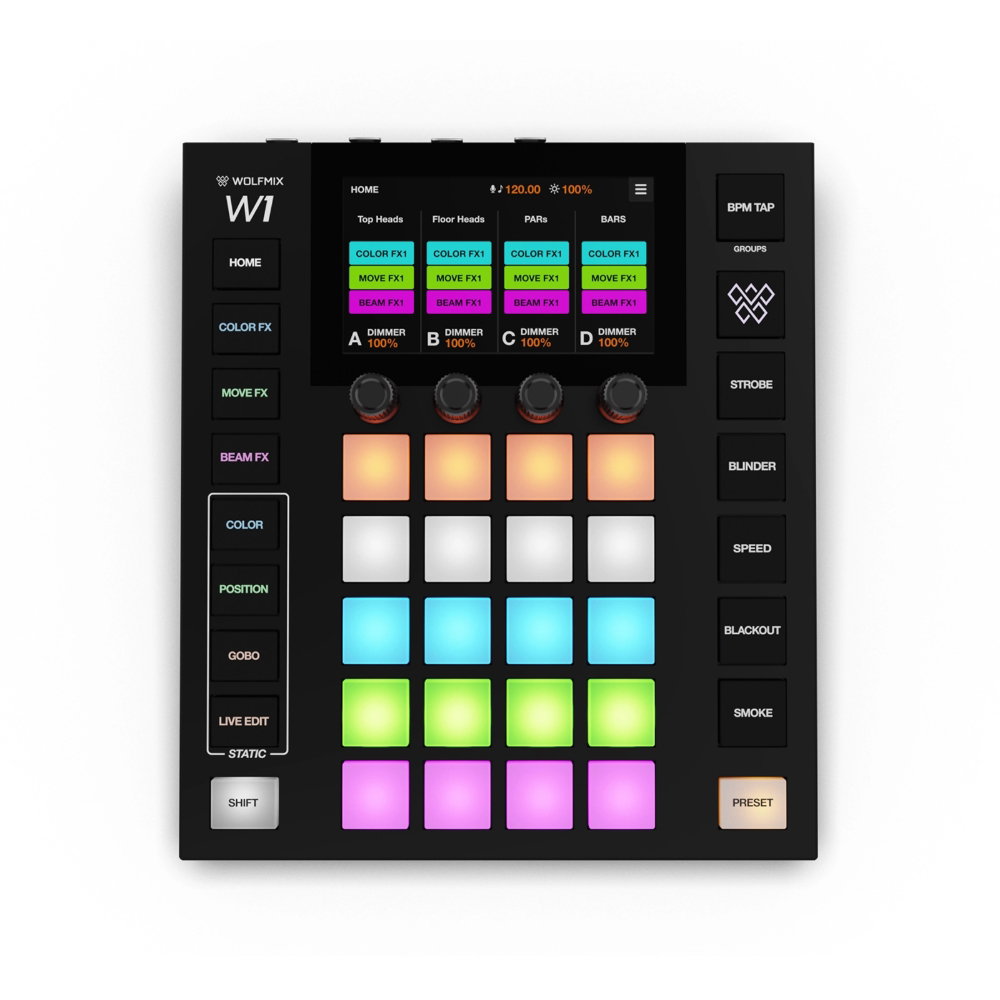

4.3-inch capacitive colour touchscreen, 4 push encoders and 37 LED-backlit silicone pads
ABS housing on a powder-coated steel base plate with 100mm VESA mounting
Specifications
| Type | Standalone performance DMX lighting controller |
| DMX universes | 4 (2048 channels; universes 3 and 4 by paid add-on) |

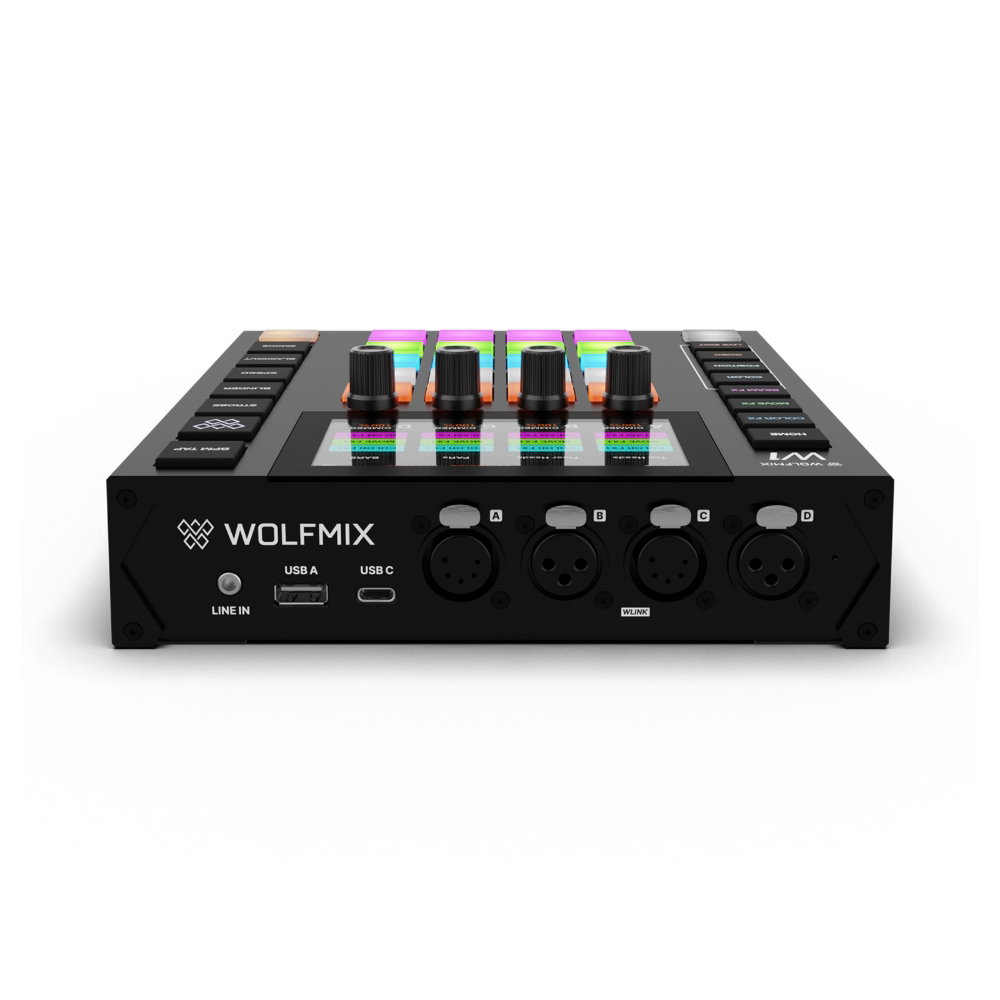

| DMX outputs | 2 x 3-pin XLR out, 1 x 5-pin XLR out, 1 x 5-pin XLR in/out with WLINK |
| Display | 4.3" colour TFT, capacitive touch, tinted glass |
| Controls | 4 push encoders with acceleration, 37 LED-backlit silicone buttons |
| Music sync | Omnidirectional electret mic, 3.5mm line-in, BPM tap, MIDI clock; Ableton Link and OS2L via WTOOLS on a computer |
| Fixture library | Thousands onboard, 15,000+ via WTOOLS, built-in fixture builder |
| USB | USB-C (power and data, 5V 900mA; 1500mA recommended for MIDI/WLINK), USB-A (MIDI, mass storage, WLINK) |
| Processor | 220MHz ARM CPU, 8MB RAM, 16MB flash |
| Housing | ABS plastic, powder-coated steel base plate with 100mm VESA (M4, 6mm max) |
| Dimensions (W x D x H) | 195 x 220 x 62mm |
| Weight | 1.005kg |
| Warranty | 2 years |
