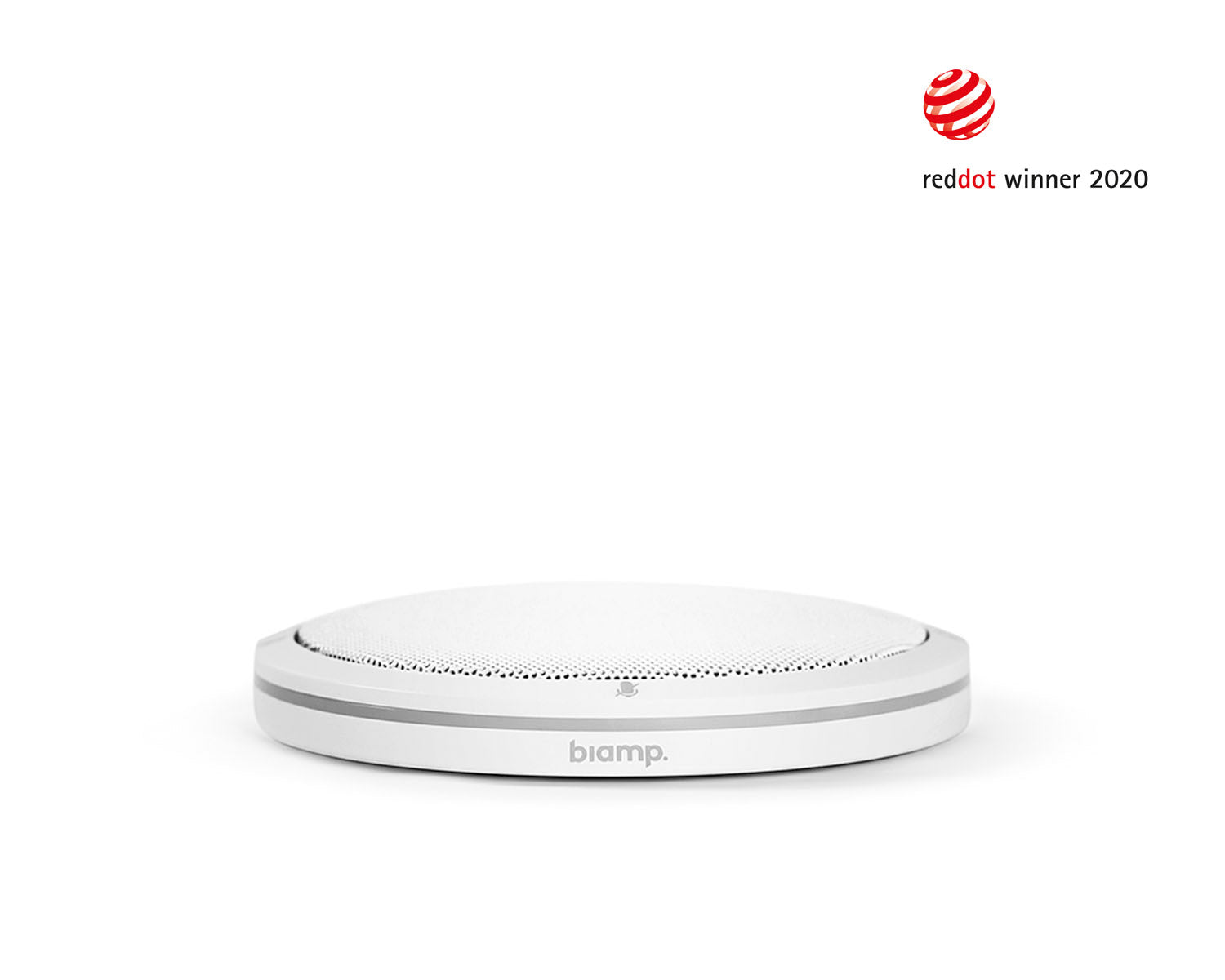

Biamp Parle TTM-X AVB Tabletop Beamtracking Microphone White for Tesira

Product code: 164147

£1,752.00 inc VAT
£1,460.00 ex VAT

SKU: 920-00510-20000

1 available online

More available from supplier in 1–3 weeks

About this Product

The Biamp Parlé TTM-X is a low-profile AVB tabletop microphone for Tesira systems, supplied as a tabletop microphone plus a network box. Beamtracking technology covers the room in four 90-degree zones for full 360-degree pickup, actively tracking and mixing conversations without lobe aiming or room mapping. At 110mm in diameter it sits directly on the table and stays visually discreet.

110mm

Diameter · 4.3 inches

360°

Coverage · 4 x 90° zones

Single CAT

Connection · AVB

5 years

Warranty · Biamp

Beamtracking and AECBeamtracking works out of the box with no lobe aiming or room mapping required, and each microphone consumes only one channel of acoustic echo cancellation, keeping DSP resource use low on larger Tesira deployments. The network box carries its own DSP module for Beamtracking processing.

Supplied as

Two-part system:

Tabletop microphone

Network box with DSP

Expansion

Optional:

TTM-XEX via RJ-45

Max 2 mics per network box

Features

Low-profile tabletop form factor at 110mm diameter

Beamtracking actively tracks and mixes conversations

Four 90-degree zones give full 360-degree coverage

Network box with dedicated DSP for Beamtracking

Uses only one channel of AEC per microphone

Single CAT cable connection

Works out of the box with no lobe aiming or room mapping

LED mute status indicator

Additional RJ-45 connection for optional TTM-XEX

CE marked, UL listed and RoHS compliant

NoteThis is the white variant. A maximum of two microphones are permitted per network box (one TTM-X with one optional TTM-XEX). For use in Biamp Tesira systems.

Specifications

Biamp Parle TTM-X AVB Tabletop Beamtracking Microphone White for Tesira specifications
Type	AVB tabletop Beamtracking microphone
System	Biamp Tesira
Diameter	110mm (4.3 inches)
Coverage	360 degrees via 4 x 90-degree zones
Connection	Single CAT cable, AVB
DSP	Included in network box
AEC usage	One channel per microphone
Expansion	1x RJ-45 for optional TTM-XEX
Maximum microphones	2 (one TTM-X plus one TTM-XEX)
Indicator	LED mute status
Colour	White
Compliance	CE marked, UL listed, RoHS compliant
Warranty	5 years
Part number	920-00510-20000

Full features

Measures 4.3 inches (110 mm) in diameter
Sits directly on a table top to virtually disappear in room
Beamtracking technology actively tracks and intelligently mixes conversations
Four 90-degree zones for full 360-degree room coverage
Network box which includes DSP for Beamtracking
Uses only one channel of AEC per mic
Single cable connection via CAT cable
Beamtracking technology works out-of-box without any lobe aiming or room mapping
LED mute status indicator
Available in either black or white
Additional RJ-45 connection for TTM-XEX
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty

Full specifications

General

Microphone Technology: 16-Element Digital Array
Frequency Response (150 Hz - 16 kHz): ± 3dB
Polar Pattern: Beamformed
Sensitivity (94dB SPL, 1kHz): > 74dB
Maximum SPL (at 0.5% THD): 109dB
Dynamic Range (THD+N < 10%): 90dB, A-Weighted
Indicators: Mute Indicator (Green/Red LED)
Digital Interface: Custom/Proprietary
Connector: RJ-45 (cable length 6.6 feet [2 meters])
Finish: White

Overall Dimensions

Height: 0.7 inches (18 mm)
Diameter: 4.3 inches (110 mm)
Weight: 0.5 lbs (231 g)
